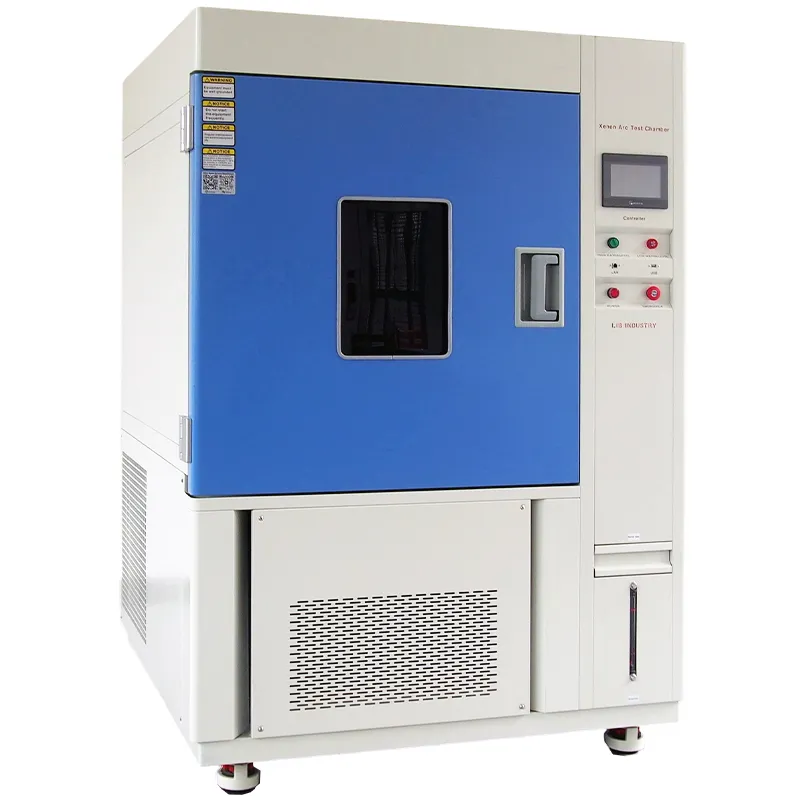

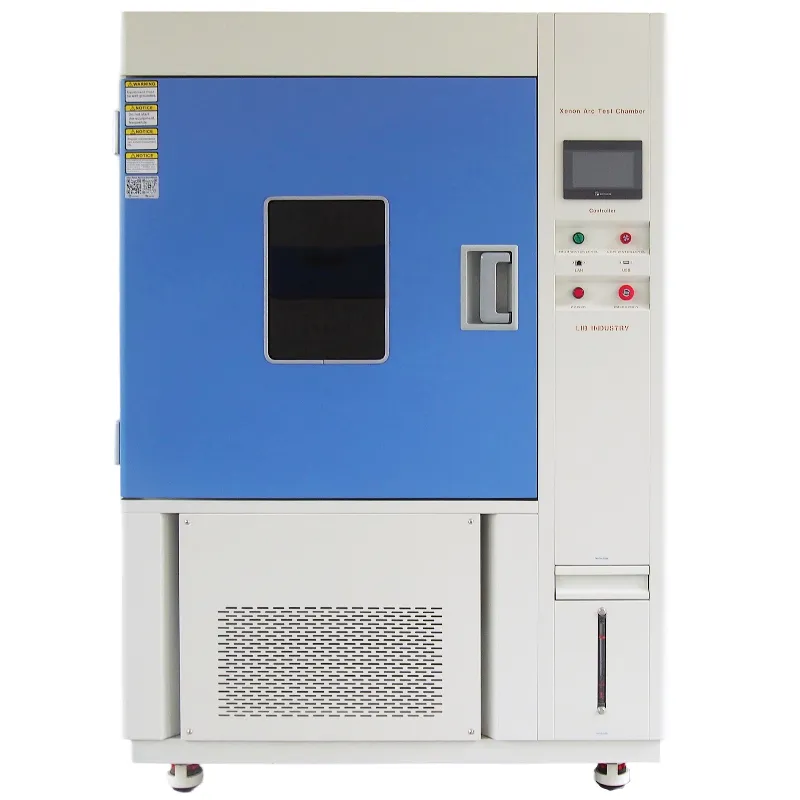

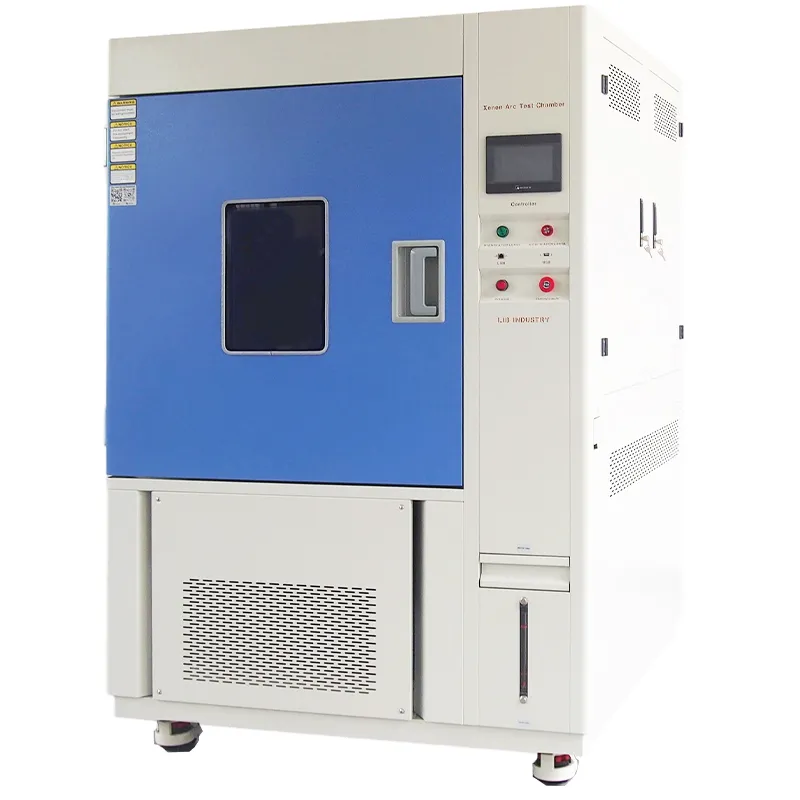

BS EN 50289-4-17 / UL 1581 Xenon Arc Weathering Cable Test Chamber

Accelerated UV & Rain Aging System for Power and Communication Cable Testing

The BS EN 50289-4-17 standard is not simply about “sun exposure.” It requires precise spectral energy distribution control, strict black panel temperature cycling, highly controlled rain and spray simulation, and stable irradiance throughout long-term exposure.

The Xenon Arc Weathering Cable Test Chamber is engineered to meet these demands with high-precision control, including irradiance stability of 0.30–1.20 W/m² @ 340 nm, black panel temperature control at 35 ~ 85 ℃ ±2℃, and humidity regulation from 30%–98% RH, ensuring repeatable outdoor aging simulation. LIB Industry systems use advanced PID control algorithms and closed-loop irradiance regulation to simulate complex environmental interactions, allowing engineers to predict long-term aging behavior (up to 10+ years equivalent exposure) during R&D stages.


Model: XL-S-750 and more customized models

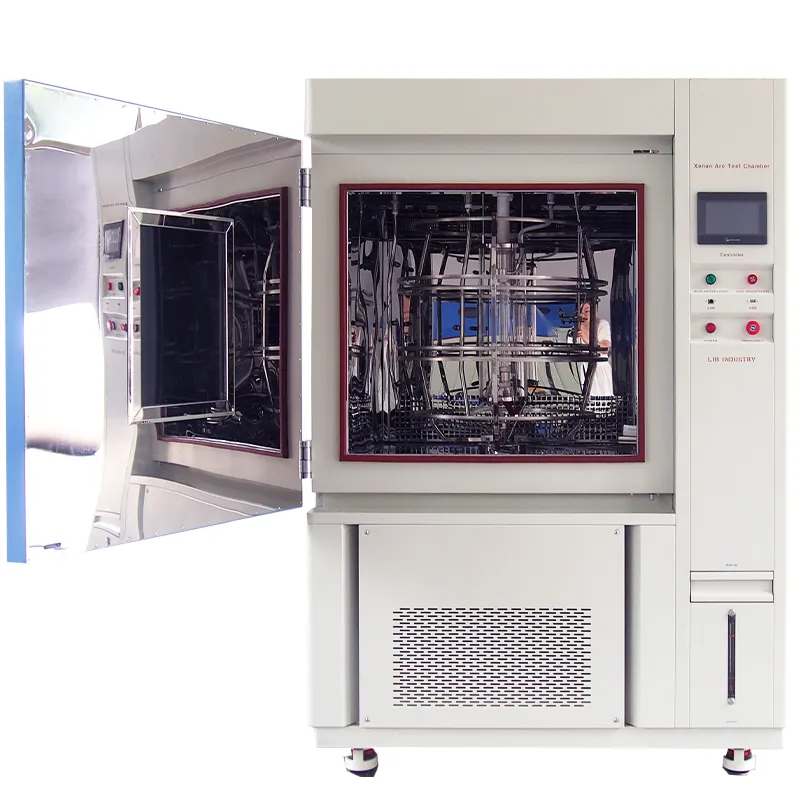

Xenon Arc Weathering Cable Test Chamber in Operation


 Xenon Arc Weathering Cable Test Chamber Core Engineering Advantages

1️⃣ One-Touch Standard Execution

Built-in pre-programmed standards:

  • BS EN 50289-4-17 (Method A / B)

  • UL 1581 Section 1200

  • ISO 4892-2

  • ASTM G155

Operators can start testing instantly without manual configuration, ensuring 100% audit-ready compliance.

2️⃣ Closed-Loop Irradiance Control System

Equipped with an advanced Solar Eye feedback system, continuously monitoring:

  • 340 nm UV irradiance

  • 420 nm visible spectrum irradiance

The system automatically compensates for xenon lamp aging, ensuring constant energy output throughout the entire test cycle.

✔ Stable UV intensity
✔ No manual recalibration required
✔ High repeatability for certification testing

3️⃣ Dedicated Cable Sample Mounting System

Specially designed for:Power cables, communication cables, PV cables, control & instrumentation cables

Features:

  • Vertical hanging structure

  • Multi-diameter cable clamps

  • 360° rotating rack

  • Elimination of optical blind spot


BS EN 50289-4-17 / UL 1581 Xenon Arc Weathering Cable Test Chamber Specifications

Model

XL-S-750

Internal Dimension (mm)

950*950*850 mm

Overall Dimension (mm)

1400*1400*1950 mm

Specimen Holder Size(mm)

95*200

Specimen Capacity

42pcs

Chamber Type

Rotating Holder

Irradiation Source

1 piece of 4500w water-cooled xenon arc lamp

Irradiance Range

35~150 W/㎡

Bandwidth Measurement

300nm~400nm (340nm or 420nm)

Chamber Temperature Range

Ambient ~ 100 ℃ ±2℃

Black Panel Temperature

BPT 35 ~ 85 ℃ ±2℃

Humidity Range

50% ~ 98% RH

Humidity Deviation

± 5% RH

Water Spray Cycle

1~9999H59M  (Adjustable)

Controller

Programmable color LCD touch screen controller

Water supply system

Automatic water supply, Water purification system

Radiometer

UV Radiometer, Tolerance: ±5%


System Highlights of Xenon Arc Weathering Cable Test Chamber

1600hrs Xenon Source: Stable Irradiance Output

Closed-loop Irradiance & BPT Control


360° Cable Specimen Holder(customizable)

Remote Monitoring & Data Management

  • Fully automated BS EN 50289-4-17 test program

  • Industrial-grade xenon arc light source system

  • Daylight filter for outdoor solar spectrum reproduction

  • Integrated rain + UV synchronized cycling

  • Multi-sample vertical cable exposure system

  • Real-time irradiance compensation technology

  • Multi-layer safety protection system


Service Commitment  3 Years Warranty · Lifetime Service Support

  • CE / ISO certified equipment

  • Xenon lamp & filter replacement support

  • Guaranteed spare parts supply chain

  •  Four global service hubs: UK, USA, Canada, Malaysia

  • 5–12 hour fast technical response worldwide
