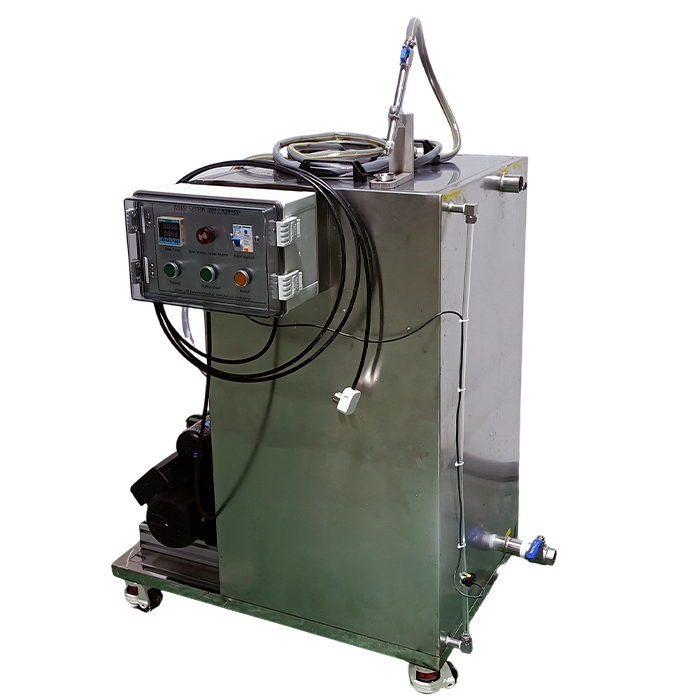

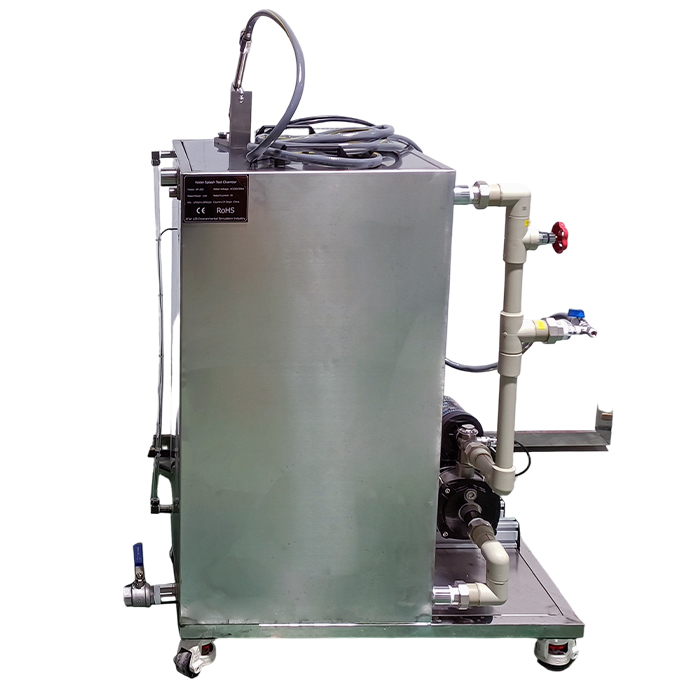

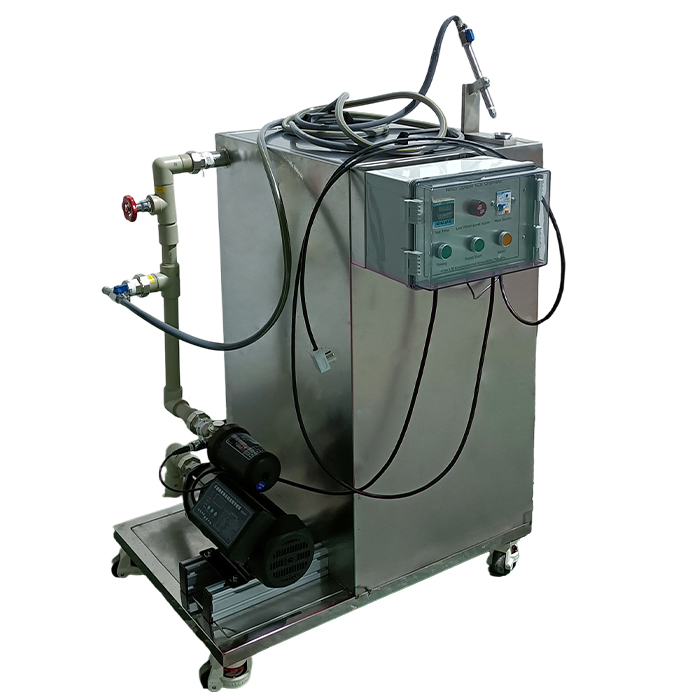

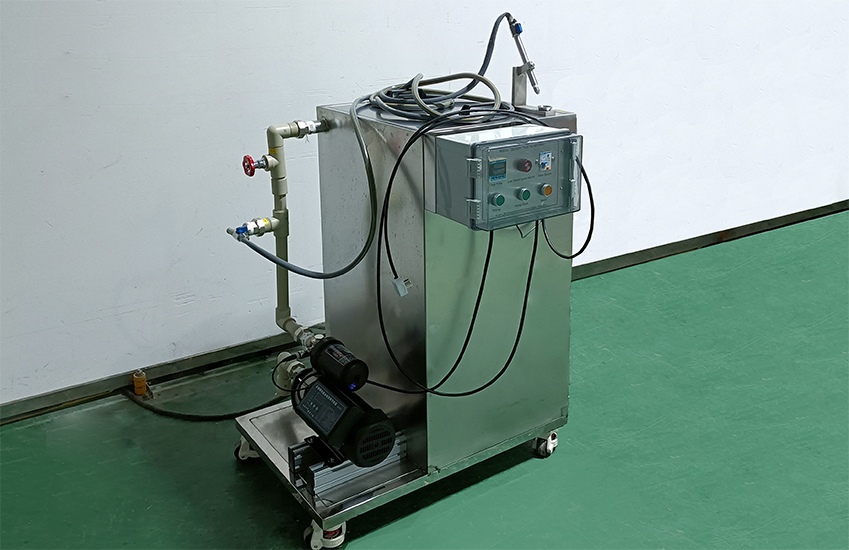

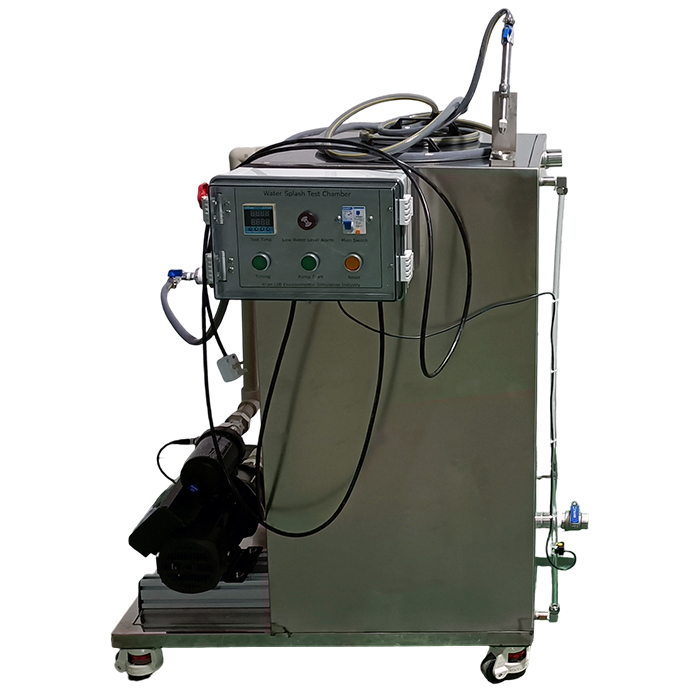

Water Splash Tester

The water splash tester is designed per Figure 101 of the GOST IEC 60335 2 series standards to simulate water splash impacts in real usage environments. A bowl shaped splash device rotates around the test specimen, generating natural water splashes from multiple angles onto the appliance.

During testing, the electrical appliance is placed on a support surface as the device encircles it, ensuring droplets strike its surface from all directions. Ideal for verifying moisture and splash resistance, this tester suits both household and commercial electrical appliances, offering reliable performance testing with repeatable results.



Reference standards: GOST IEC 60335-2-36-2016, GOST IEC 60335-2-37-2012, GOST IEC 60335-2-38-2013, GOST IEC 60335-2-39- 2013, GOST IEC 60335-2-42−2013, GOSTIEC 60335-2-47-2012, GOST IEC 60335-2-49-2017, GOST IEC 60335-2-50-2013

Water Splash Tester Features and Benefits

1. Standards compliant:
Fully meets Figure 101 of GOST IEC 60335 2, ensuring test results are directly comparable to global safety requirements.

2. Precision bowl shaped splash device
Bowl Ø35 mm (top) × Ø25 mm (bottom) × 10 mm high, with Ø2 mm nozzle at 60° incline and 50 mm spray height—delivering uniform droplets for consistent coverage.

3. Robust, corrosion resistant construction
All wetted parts are stainless steel SUS304, delivering long service life and minimal maintenance even under repeated high humidity testing.

4. High repeatability & ease of use
Quick set parameters and simple fixturing mean tests can be ramped up rapidly, with tight tolerances for batch to batch consistency.



Specifications of Water Splash Tester

Parameter

Specification

Bowl Material

Stainless Steel

Bowl Dimensions

Top Diameter: Ø35 mmBottom Diameter: Ø25 mmHeight: 10 mm

Spray Nozzle Diameter

Ø2 mm

Spray Angle

60° Inclination to Bowl

Nozzle Height

50 mm from the Bowl Bottom

Compliance Standard

GOST IEC 60335-2 Series – Figure 101 (Splash Test Method)



Details of Water Splash Tester

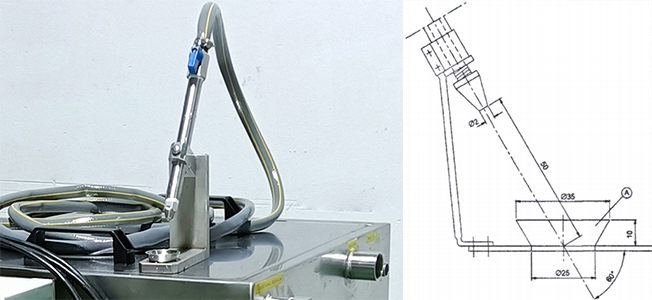

1. Stainless steel water bowl

Made of stainless steel material, the diameter of the bowl top is 35 mm, the diameter of the bowl bottom is 25 mm, and the height is 10 mm. This design ensures that the water splash distribution during the test can simulate the real usage situation, thereby enhancing the reliability of the test.

2. Φ2 mm nozzle

The nozzle has a diameter of 2 mm and is installed at a 60° angle relative to the bowl body, accurately reproducing the water flow impact angle and meeting the test requirements of Figure 101 in GOST IEC 60335-2 standard.

3. Fixed height

The distance between the nozzle and the bottom of the bowl is strictly controlled at 50 mm, ensuring consistent conditions for each test and more comparable data.



If you have any other customization requirements, please feel free to contact LIB. We will respond to your request within 24 hours.
