When manufacturers search for ip68 test equipment , they often expect a single device. In reality, IP68 testing requires two different types of chambers: one for dust ingress (IP6X/IP5X) and another for water immersion (IPX7/IPX8). Only by combining both can a product be certified to the highest IP68 protection level.

LIB offers a full range of IP test chambers, including sand and dust test chambers and water immersion tanks, ensuring compliance with IEC 60529 and delivering reliable, repeatable results.

Beyond Immersion: What IP68 Really Means

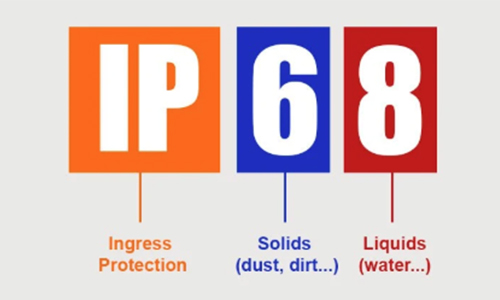

The “6” in IP68 stands for complete dust tightness, while the “8” signifies resistance to continuous immersion in water, typically under pressure and at depths greater than 1 meter. Achieving this rating means a product can withstand both harsh dusty environments and demanding waterproof challenges.


That’s why LIB offers not only immersion tanks but also dust chambers, rain spray systems, and water jetting testers—allowing manufacturers to perform a full range of ingress protection tests in-house.

LIB IP68 Test Equipment Features

It’s important to note that achieving IP68 protection requires two distinct types of equipment, not a single all-in-one device. LIB provides both:

1. IP6X/IP5X Sand and Dust Test Chamber

Designed to evaluate dust ingress resistance, this dust test chamber simulates real-world dusty environments under controlled airflow.


Key Features:

Controlled dust circulation using standardized powders,dust can be recycled.(with free talcum powder)
Adjustable negative air pressure for precise testing
Durable SUS304 stainless steel interior can resist long-term dust erosion
Flexible sample mounting holders(hanging sample holder and grid plate sample holder)
Touchscreen interface with programmable test cycles, real-time monitoring, and data logging for accurate and repeatable testing.

Parameters:

Model	DI-800	DI-1000	DI-1500	DI-2000
Useful Volume (L)	800	1000	1500	2000
Temperature Range	Ambient ~ +50℃
Humidity Range	< 30% RH
Normal Wire Diameter	50um
Nominal Width of a Gap Between wires	75um
Interior Material	SUS304 stainless steel
Standard Configuration	Sample shelf, dust wiper, talcum powder(5kgs)
Standards	IEC 60529, ISO 20653, JIS D0207
Dust Concentration	2–4 kg/m³
Airflow Speed	≤ 2 m/s

2. Water Immersion Test Chamber

To test water resistance, LIB’s water immersion tanks provide stable depth, timing, and safety features for IPX7, IPX8, and IP68 tests.


Key Features:

Programmable immersion depth: 1–50m（The simulated water depth can be customized.）
Automatic lifting basket for safe and repeatable cycles
Stainless steel construction for durability and corrosion resistance
Integrated Intelligent Control System – Precise control of immersion depth, duration, and water temperature; real-time monitoring with automated alarms and data recording
12 safety locks on tank doors to prevent accidental opening, stabilizing support brackets to prevent tipping,




Parameters:

Model	R78-600
Pressure	50m water depth pressure
Open mode	Pneumatic lid
Material	A3 steel plate, wall thickness 15mm
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water Supply System	Storage water tank, Automatic water supply
Standards	IEC 60529 IPX7, IPX8, IP68

Full Range of IP Test Solutions

LIB is not limited to immersion testers. We supply:

Rain and Spray Test Systems (IPX1–IPX6)
Water Immersion Test Chamber( IPX7 X8)
High-Pressure Jet Testers (IPX9K)

Custom Non-Shell Waterproof Test Boxes for continuous waterproof level testing or irregular-shaped products

By combining these systems, manufacturers can build an all-in-one IP test laboratory that supports every stage of product development.

After-Sales Support You Can Trust

When choosing LIB, you gain not only advanced equipment but also a reliable partner:

In-stock models with fast delivery
️ 3-year warranty & lifetime service
Global technical support (US,UK,Canada,Malaysia)
On-site installation & training available

Conclusion: True IP68 Testing Comes from a Complete Solution

The term ip68 test equipment is often misunderstood as a single machine. In practice, it requires both dust and immersion testing. LIB provides the full set of chambers—backed by customization, precision engineering, and long-term service—to help you certify your products with confidence.

Contact LIB today at inquiry@libtestchamber.com to build your complete IP68 testing solution—combining dust, immersion, rain, and high-pressure systems with unmatched reliability.
