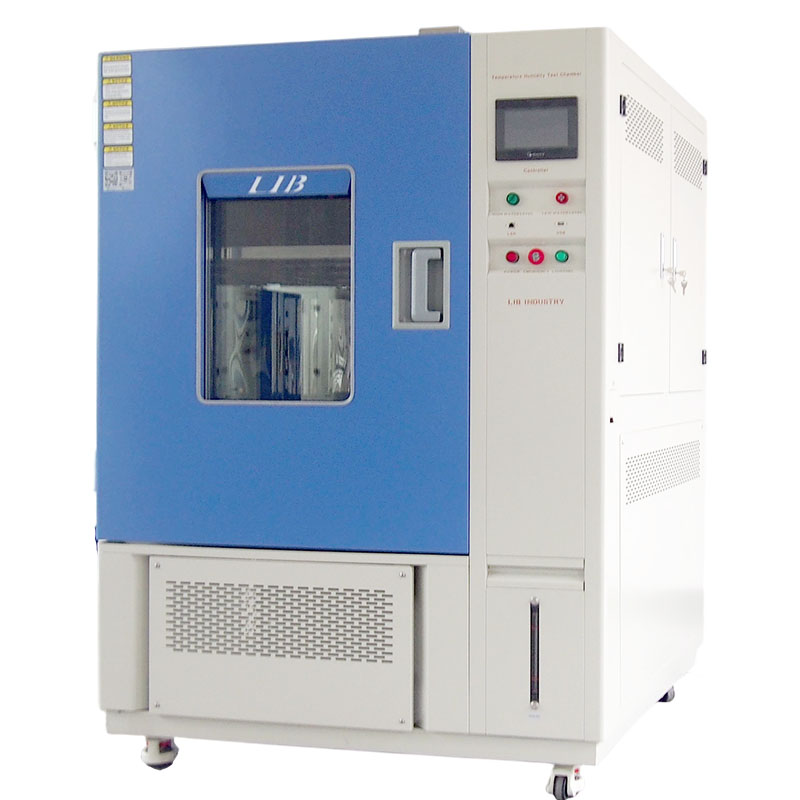

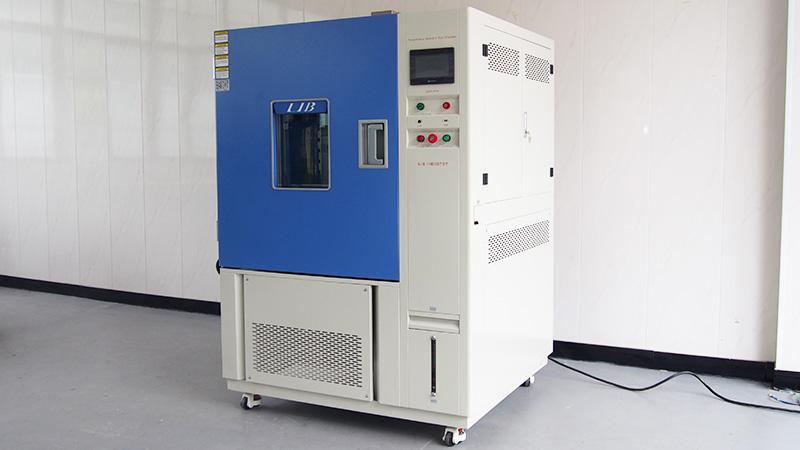

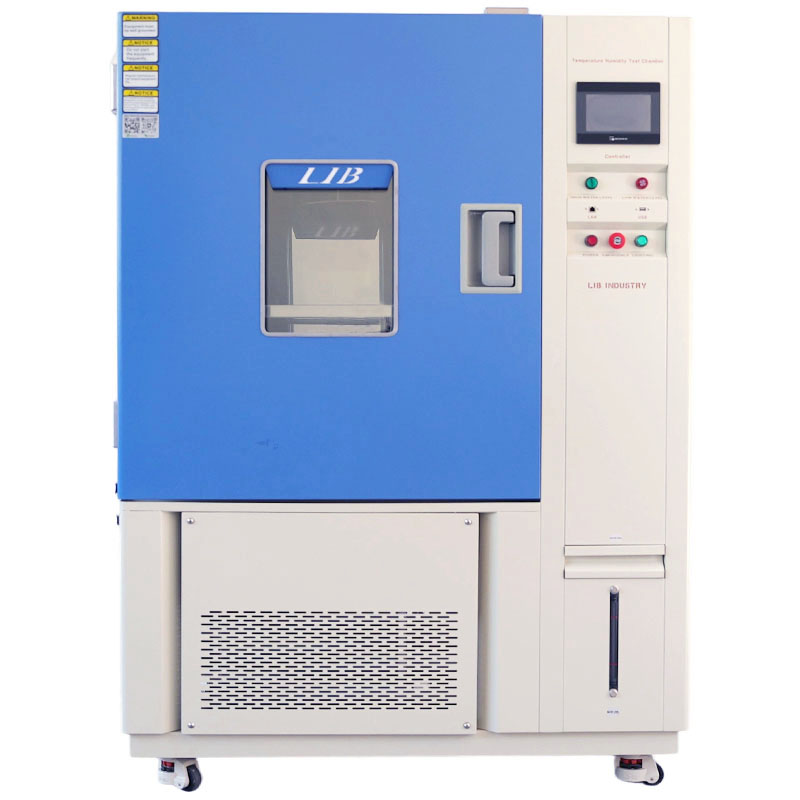

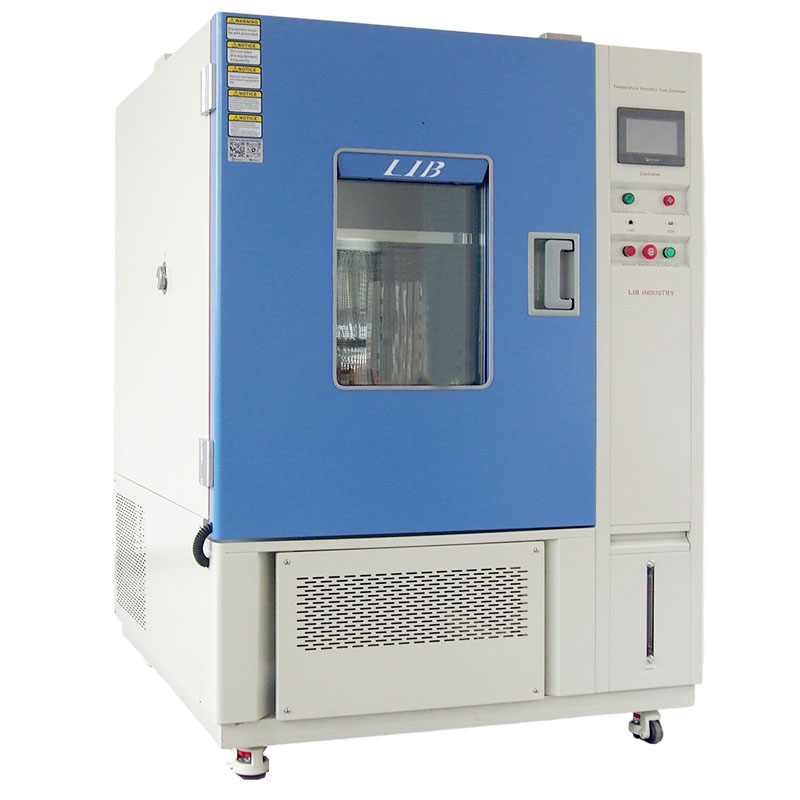

Humidity Freeze Test Chamber

Name: Humidity Freeze Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The humidity freeze test chamber have wide T&H ranges:-20℃，-40℃，-70℃ ~ +150℃ and 20%~98%RH,it can perform humidity test to access DUT’s moisture absorption, corrosion, and deformation.low-temperature or freezing environments, are for freeze test,users can also set program to conduct cycling test:the material undergoes cyclic changes between high temperature and high humidity and low temperature freezing.The humidity freeze test chamber can simulate harsh natural environmental conditions, such as tropical humidity, cold regions and diurnal temperature differences.

Model: T-100, T-225, T-500, T-800, T-1000

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D

Humidity Freeze Test Chamber Features and Benefits

1. Wide temperature and humidity range, suitable for various extreme environments,it can simulate complex environments from tropical high temperatures to polar cold,

2. PID control system, featuring high temperature and humidity control accuracy (temperature ±0.5°C, humidity ±2.5%RH), and supports functions such as condensation control and condensation simulation.

3. Comply with multiple international testing standards such as IEC 60068, MIL-STD-810, ISO 16750, etc., and is applicable for electronics, automobiles, military industry, semiconductors, etc.

4. Flexible configuration, supporting customized function expansion such as remote monitoring, program setting, multi-sample testing, cable holes, and rapid cooling with liquid nitrogen.

Specifications of Humidity Freeze Test Chamber

Model	TH-100	TH-225	TH-500	TH-1000
Internal Dimension (mm)	400500500	500600750	700800900	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	150015402140
Interior Volume	100L	225L	500L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Controller	Programmable color LCD touch screen controller,PC Link, R-232 interface
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Cooling system	Mechanical compression refrigeration system,French TECUMSEH compressor,environmentally friendly refrigerant.
Air circulation	Centrifugal wind fan
Water supply system	Automatic water supply; Water purification system
Safety device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection;
Observation window	Interior lighting , double-layer thermo stability silicone rubber sealing
Standard configuration	1 Cable hole (Φ 50,) with plug; 2 shelves
Timing Function	0.1~999.9 (S,M,H) settable

Details of Humidity Freeze Test Chamber

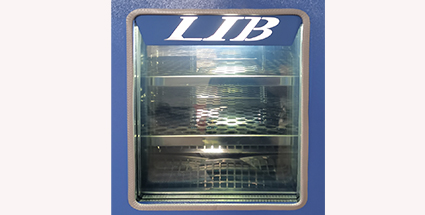

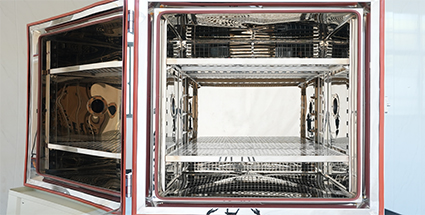

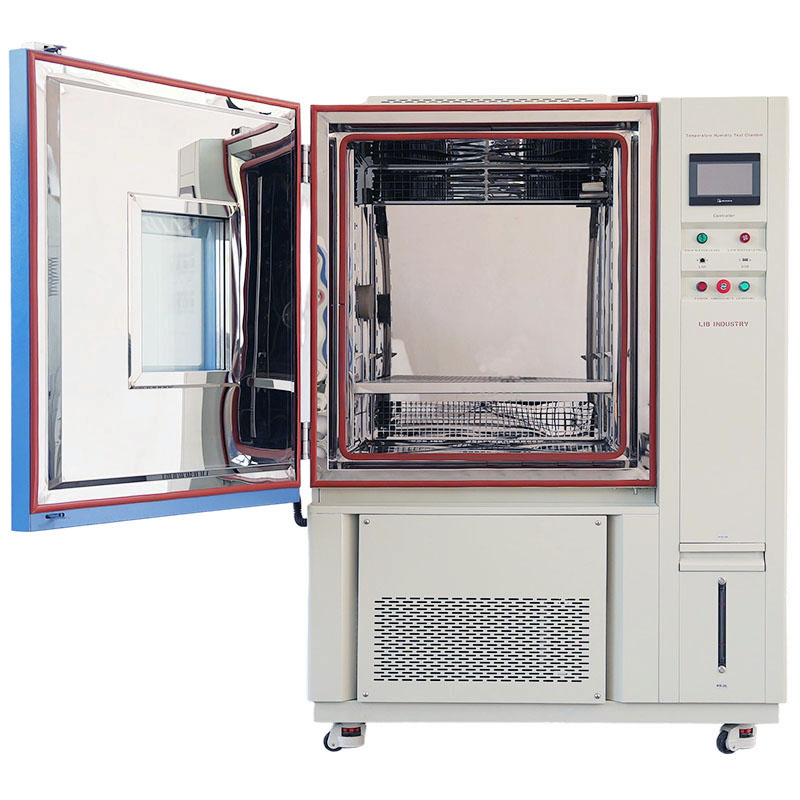

Workspace	Observation Window
SUS304 material ensures that it does not rust for long-term use in high-humidity and low-temperature environments.The workspace volume ranges from 100L to several thousands L. High-quality silicone rubber sealing strips ensure no leakage.	Double-layer insulating glass Windows with built-in electric heating film to prevent frosting or fogging at low temperatures. Built-in LED lighting lamp.

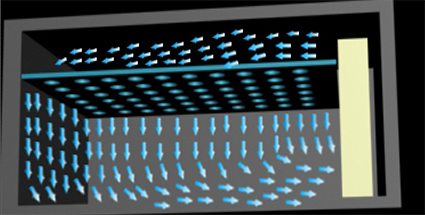

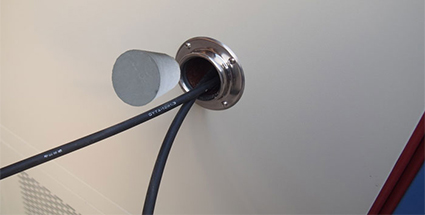

Cable Hole	Air Circulation System
The diameter is Φ50mm or Φ100mm, installed on the side wall or rear wall, and is equipped with a silicone plug for sealing.	The horizontal air supply mode ensures uniform distribution of temperature and humidity. High-efficiency and low-noise fans and circulating motors ensure rapid air circulation and heat exchange.

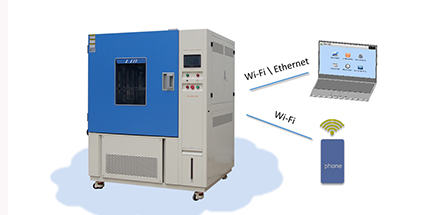

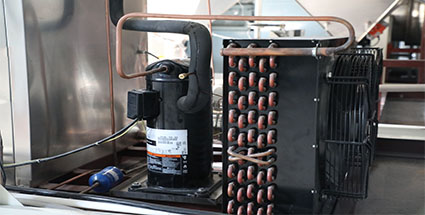

Remote Monitoring & Control	Refrigeration System
Support communication interfaces such as USB and Ethernet. Remotely monitored via a PC, and the test data can be exported. In case of abnormalities (such as over-temperature or water shortage), remote alarms can be triggered.	Cascade mechanical compression refrigeration system, suitable for a wide temperature range (-70°C to +150°C).Environmentally friendly refrigerant, in compliance with international environmental protection regulations.
