Double Door Custom Temperature Humidity Chamber

Name: Double Door Custom Temperature Humidity Chamber
Brand: Xi'an LIB Environmental Simulation Industry

Flexible Structural Tailoring for Large-Scale and Complex Environmental Testing

Are you struggling with oversized specimens that won’t fit through standard doors? Or do you need a chamber that integrates seamlessly with your specific lab cabling and external sensors?

LIB Industry’s Double Door Custom Temperature Humidity Chamber is more than just a large-capacity temp and humidity chamber. It is a fully customizable testing platform designed to adapt to your unique structural requirements—from port placement to controller ergonomics.

Beyond the Door: Your Vision, Our Engineering

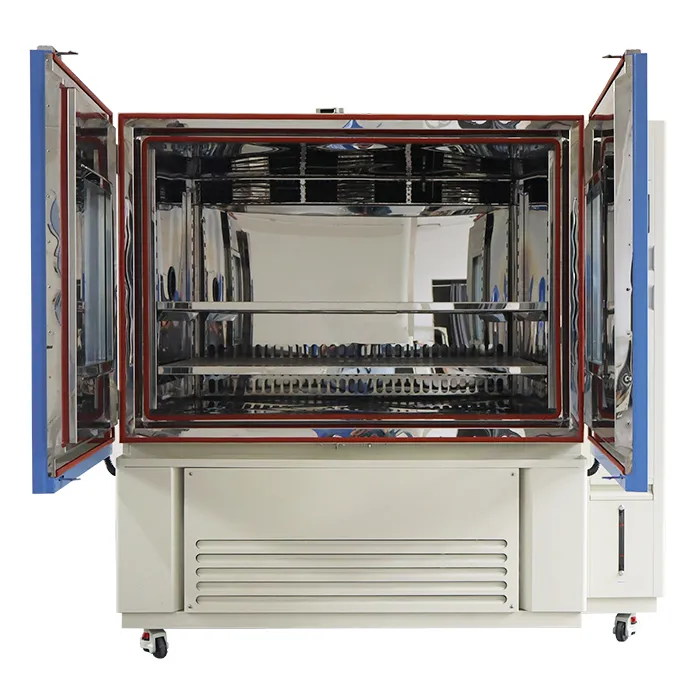

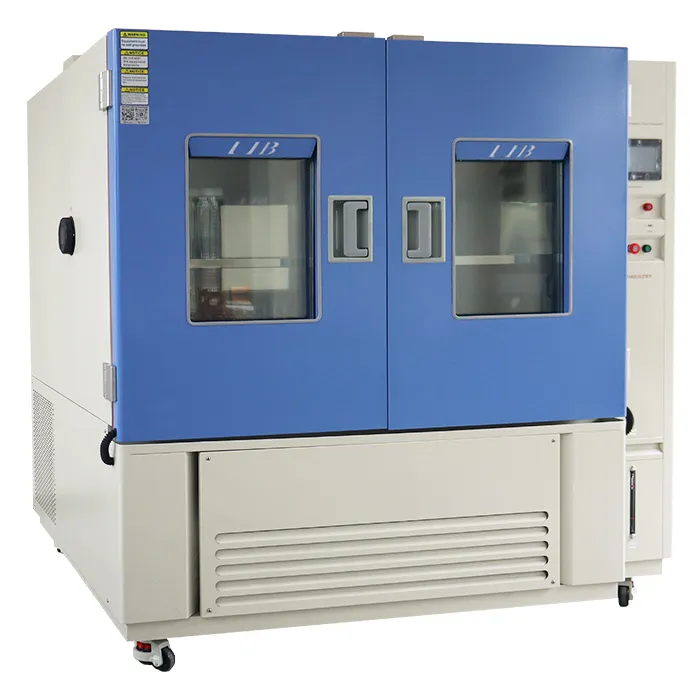

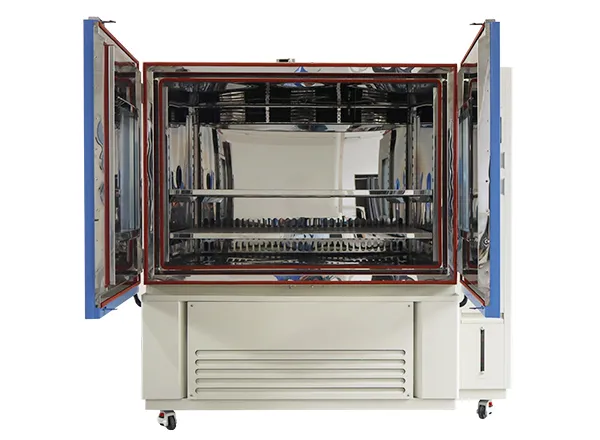

While the dual-door design provides effortless access for bulky samples like EV battery packs or large telecommunication racks, the real power lies in our structural flexibility:

1. Advanced Port & Interface Customization

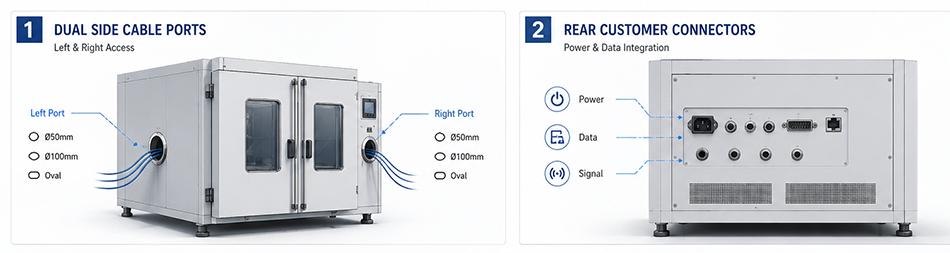

Dual Side Cable Ports: Need wiring from both sides? We offer customizable diameters (Φ50mm, Φ100mm, or oval) on both the left and right panels to manage complex sensor arrays.
Rear Customer Connectors: We can integrate specialized power sockets or data interface panels directly into the rear wall for seamless device-under-test (DUT) communication.

2. Optimized Observation & Access

Side Observation Windows: In addition to the door windows, we can add multi-layer, heated, anti-frost windows on the side panels for 360-degree monitoring.
Heavy-Duty Reinforced Shelving: Our custom double-door units can be reinforced to support test loads from 100kg to over 500kg without compromising air circulation.

3. Ergonomic Controller Placement

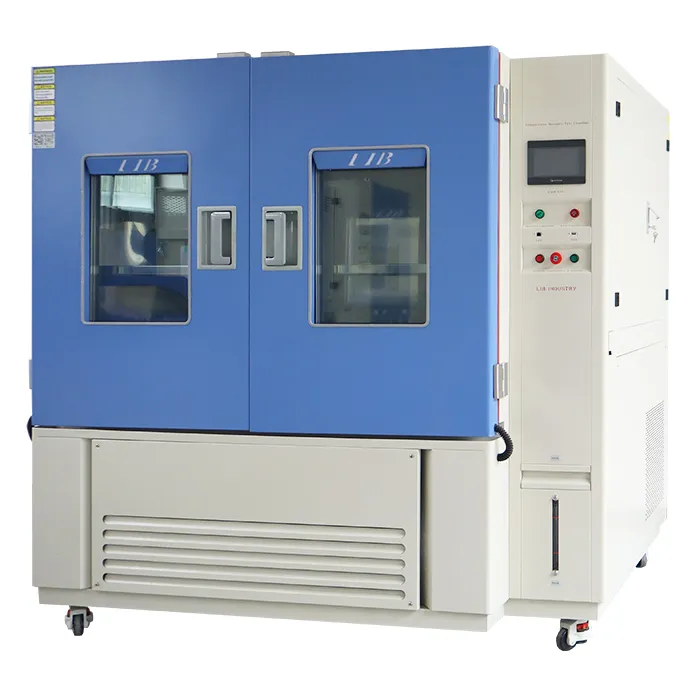

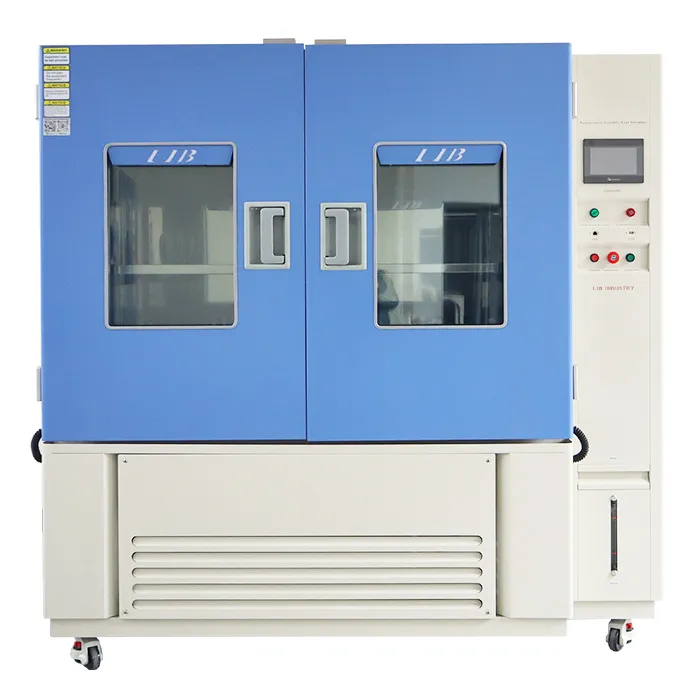

Door-Mounted Controller: Save floor space and improve accessibility by placing the PID touchscreen directly on the door.
Top-Mounted Controller: Ideal for narrow lab spaces, ensuring the interface is always at eye level and out of the way of cable paths.

Temperature and Humidity Test Chamber Specifications

Name	Double Door Custom Temperature Humidity Chamber
Heat load	1000W
Temperature Range	A: -20℃ \| B: -40℃ \| C: -70℃ to +150℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Door Configuration	Double-Wing Opening with high-resilience silicone seal
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Controller	Programmable color LCD touch screen controller,PC Link, LAN interface for remote control
Cooling system	Mechanical compression refrigeration system，environmentally friendly refrigerant,compliant with the GWP standards requirements
Water supply system	Automatic water supply; Water purification system
Safety device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection;
Interior Material	High-grade SUS304 Stainless Steel (Corrosion-resistant)
Exterior Material	Steel Plate with protective coating

Why Leading Labs Partner with LIB Industry for Custom Projects

Precision Meets Flexibility

Our high-efficiency heating and cooling systems maintain a temperature fluctuation of ±0.5°C, ensuring that even with multiple custom cable ports or large viewing windows, your test data remains accurate and compliant with international standards (IEC, MIL-STD, ISO).

Maintenance-Low Humidity Technology

Custom chambers often face humidity stability issues. LIB utilizes external isolation evaporation technology, preventing water scale buildup and protecting your custom-installed sensors from contamination.

Global Support for Bespoke Solutions

Custom equipment shouldn't mean a lack of support. We provide an industry-leading 3-year warranty and global on-site installation/training. Our engineers work with you from the initial structural drawing to the final calibration in your lab.

Common Test Standards Supported

Temperature Cycling: IEC 60068-2-14
Humidity Aging: IEC 60068-2-78, JESD22-A101
Reliability Testing: 85°C / 85%RH for Electronics and ESS
Custom Protocols: Tailored ramp rates for specific aerospace or automotive cycles.

Contact LIB Industry Today

17+ years of environmental testing engineering experience
3-year warranty with lifetime technical support
Global installation and training service
Fast customization and engineering response capability

If your testing requirements go beyond standard chamber structures, LIB industry can provide fully customized solutions based on your laboratory space, sample dimensions, and testing conditions.

Whether you need double door access, cable integration, or fully redesigned chamber architecture, our engineering team will build a solution tailored to your application.
