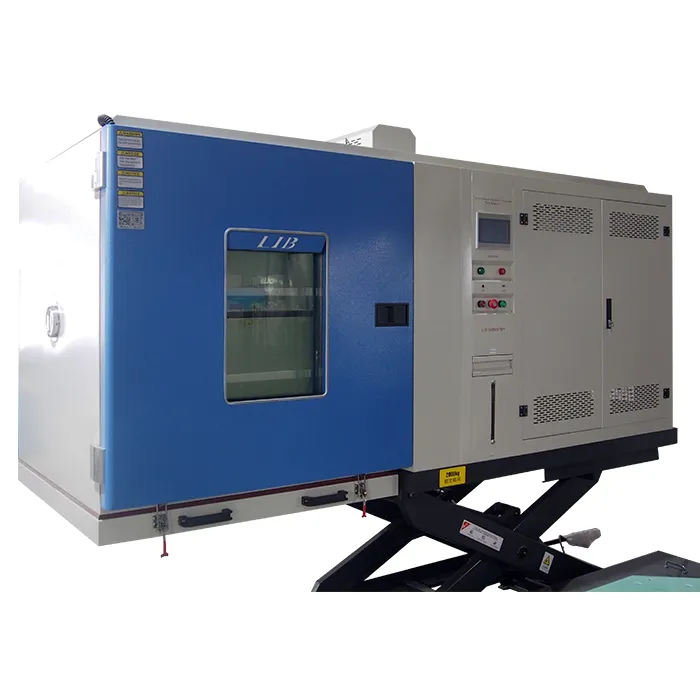

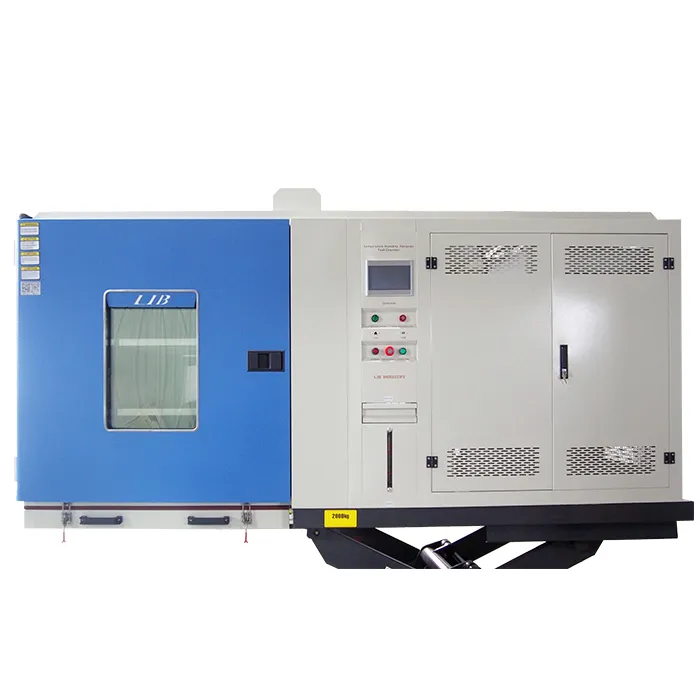

Combined Vibration Climatic Test Chamber

Name: Combined Vibration Climatic Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The Combined Vibration Climatic Test Chamber integrates temperature (-70℃ to +150℃), humidity (20%–98% RH), and multi-axis vibration testing（vertical and horizontal） in one advanced system, delivering precise, real-world reliability simulations. Compatible with various vibration shakers, it replicates harsh conditions such as road transport, aerospace turbulence, and military field use. Fully compliant with IEC 60068, ISO 16750, MIL-STD-810, and other standards, it ensures global test acceptance.

LIB industry provides 3-year warranty, lifetime technical support, rapid spare parts replacement, and on-site training. Test with LIB and guarantee your products’ durability in the toughest environments.

Applicable Standards: IEC 68-2-1、IEC 68-2-2、IEC 68-2-3,SAE J575,ISO 16750

Optional Models: THV-100，THV-225，THV-500，THV-800，THV-1000 and more tailor-made models .

Features and Benefits of Combined Vibration Climatic Test Chamber

1. Integrated Multi-Environment Testing

Combines temperature (-70℃ to +150℃), humidity (20%–98% RH), and multi-axis vibration in one chamber.

Eliminates the need for separate equipment, saving space, cost, and installation time.

2. High Precision Control

Advanced PID programmable controller ensures temperature ±0.5℃ and humidity ±2% RH accuracy.

Vibration frequency and amplitude are fully adjustable, guaranteeing repeatable and reliable test results.

3. Customizable Combined Vibration Climatic Test Chamber & Vibration Options

Workroom sizes can be customized to fit small electronics to large automotive assemblies.

Compatible with various shaker systems for multi-axis vibration testing.

4. Standards Compliance & Reliability

Fully meets IEC 60068, ISO 16750, MIL-STD-810, and etc.

Ensures globally recognized test results, critical for automotive, aerospace, and military applications.

Core Technical Parameters of Combined Vibration Climatic Test Chamber

Model	THV-225
Temperature Range	-50℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	30% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	5 ℃ / min
Heating Rate	5 ℃ / min
Rated Force of Vibration	1000kgf
Frequency Range of Vibration	2 to 4000 Hz
Armature Diameter of shaker	φ240mm
horizontal sliding table	600*600 mm
Power Amplifier	Digital power amplifier
Head Expander	600*600 mm
Blower	4Kw blower, including muffler.
Cooling system	Mechanical compression refrigeration system
Safety Device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Standard Configuration	Cable hole with plug; 2 shelves

Details of Combined Vibration Climatic Test Chamber

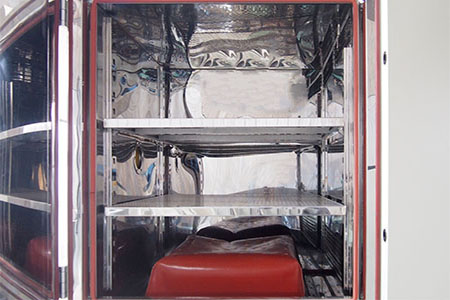

Sturdy & Reliable Climate Test Chamber Construction	Inner chamber made of 304 stainless steel, resistant to corrosion and high temperature. Double-layer insulated doors with tempered safety glass for easy observation.
Precise Temperature & Humidity Control	Temperature range: -70/-40/-20℃ to +150℃, accuracy ±0.5℃ Humidity range: 20%–98% RH, stability ±2% RH Rapid heating and cooling with high-efficiency refrigeration and steam humidification system

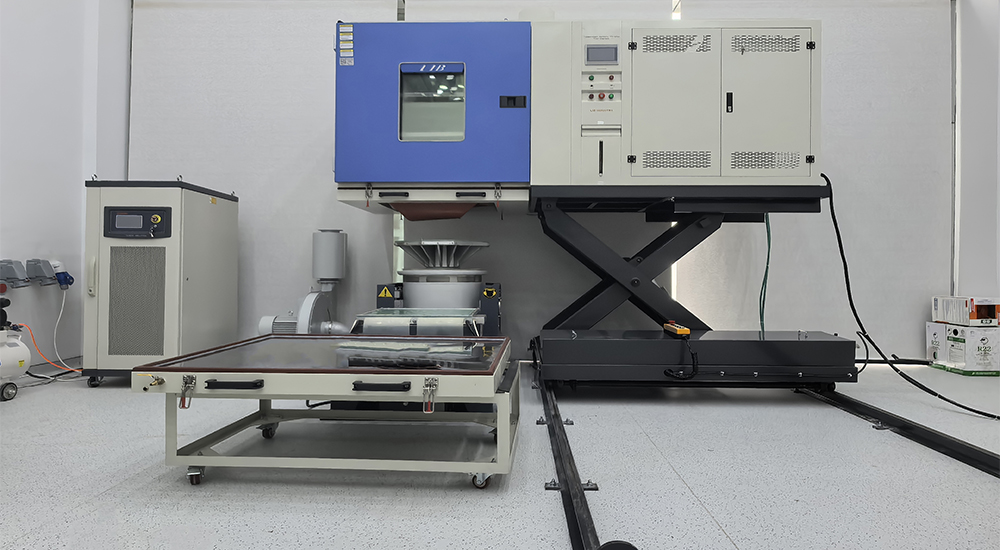

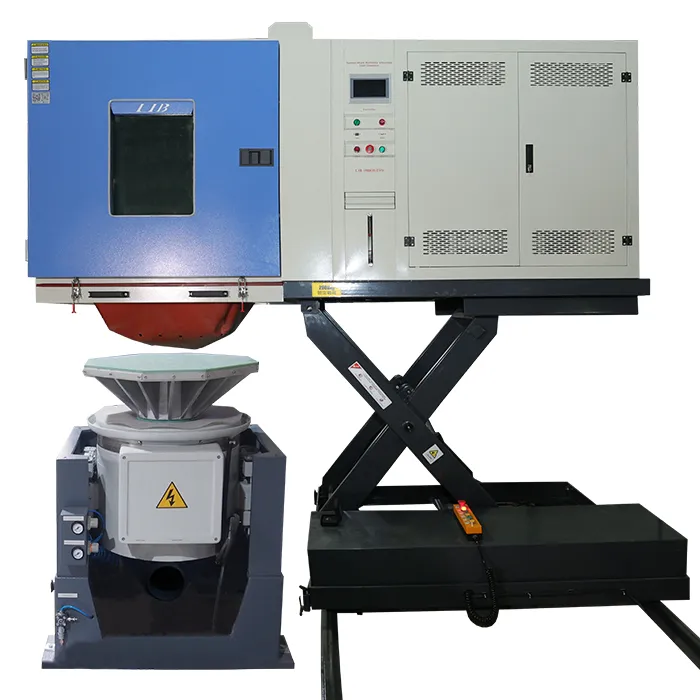

Versatile Vibration Testing	Supports vertical and horizontal vibration for realistic stress simulation Frequency range: 2 to 4000 Hz Simulates road transport, aerospace turbulence, and military vibration conditions
Smart Control & Monitoring System	Advanced PID programmable controller with touchscreen interface Real-time monitoring of temperature, humidity, vibration frequency, and amplitude Supports custom test cycles and data logging for traceable, accurate results

Ensure your products survive the harshest environments – choose LIB for fully customized solutions, rapid delivery, 3-year warranty, and lifetime technical support. Contact us today to design your test chamber and guarantee your product’s reliability!
