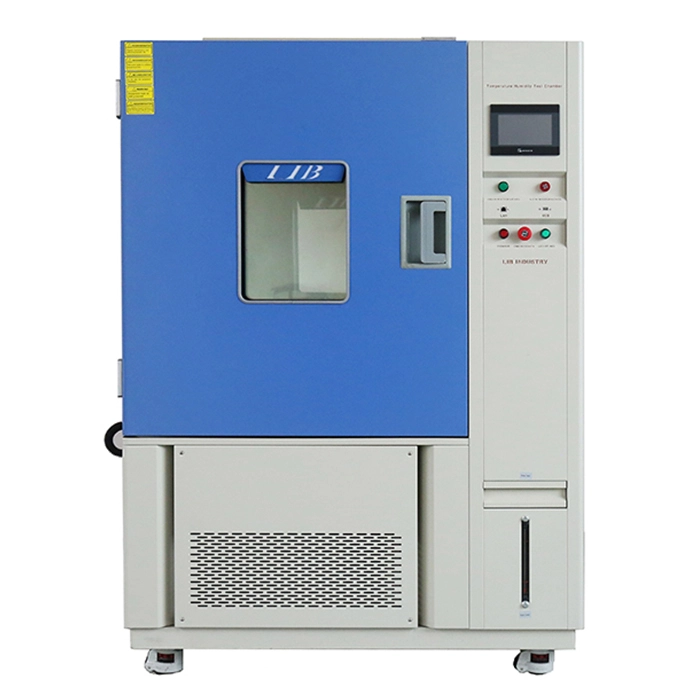

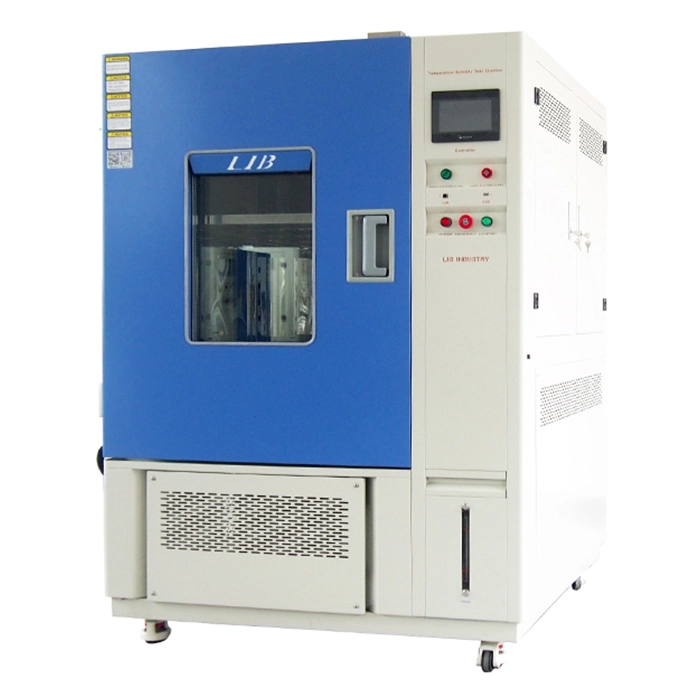

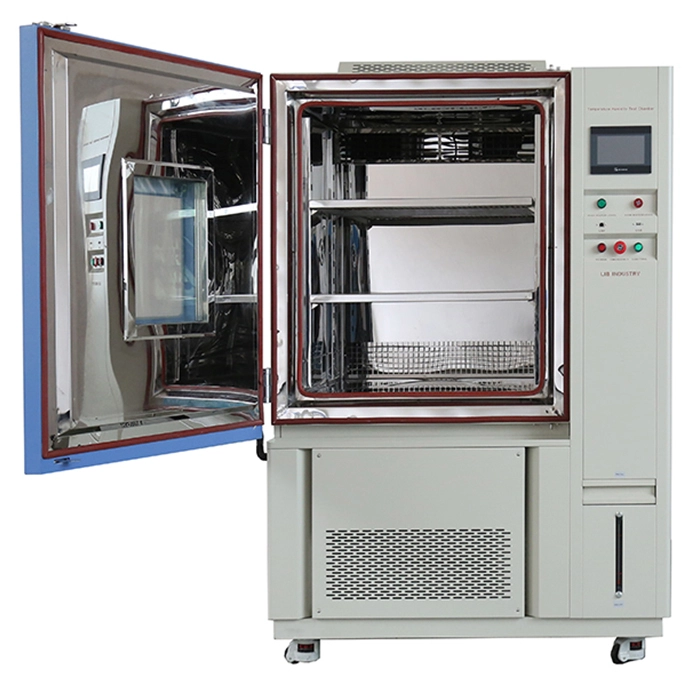

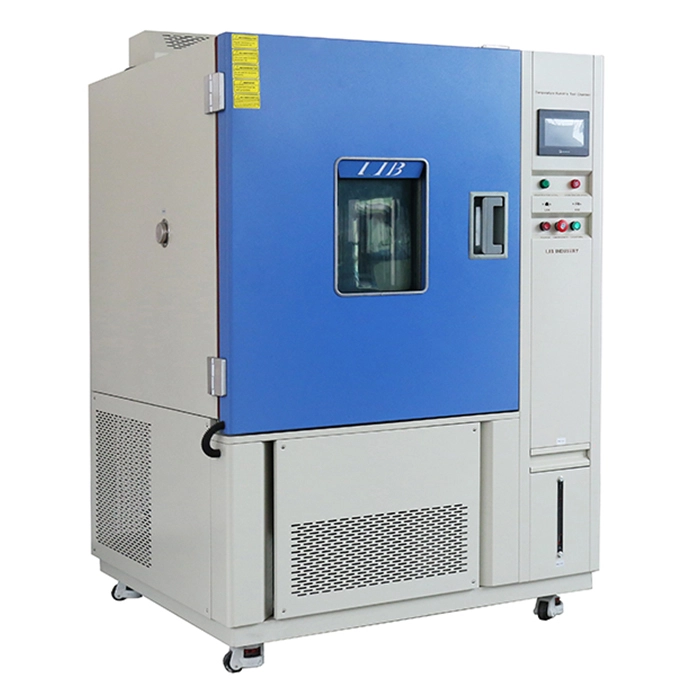

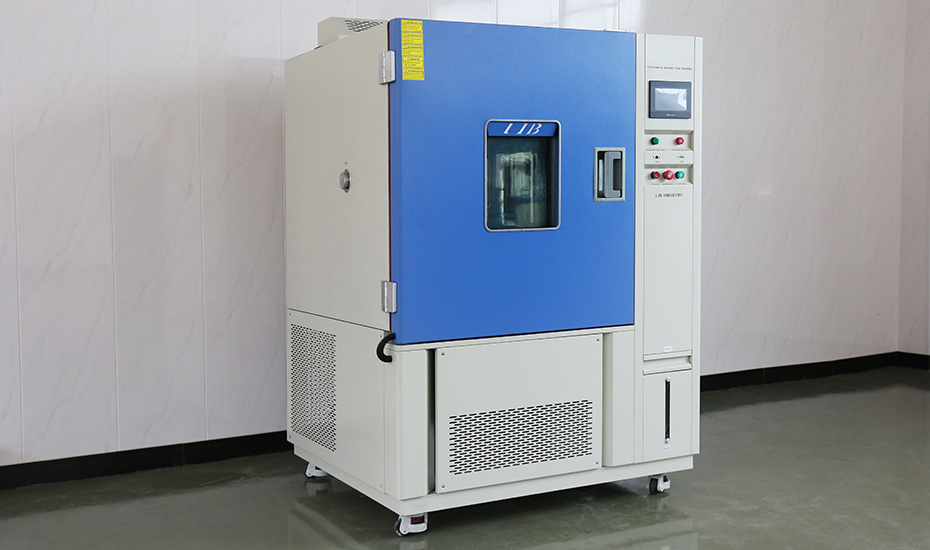

Cold Environment Chamber

Name: Cold Environment Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The cold environment chamber simulates ultra-low-temperature environmental conditions, which can precisely control the temperature (as low as -120°C, high temperature up to +150℃), aiming to provide realistic and wide cold environment testing conditions. Cold environment chambers are often used to assess the performance stability of products under extreme climates and verify the physical or chemical changes of materials at low temperatures.

Model: CF-100, CF-225, CF-500, CF-800, CF-1000

Standard: ISO 14965, ISO 21011, ISO 21013-1, ISO 9328-4

Features and Benefits of Cold Environment Chamber

1. Ultra-wide high and low temperature range (-120°C to +150°C), meeting the testing requirements of multiple scenarios. It operates stably for long periods in low-temperature conditions.

2. High-precision temperature control (PID control and PT-100 Class A temperature sensor) ensures small temperature fluctuation ±0.5°C and uniform distribution ±1.0°C, improving the accuracy and consistency of test data.

3. A variety of volumes and structural forms (customized), ranging from conventional equipment to walk-in types, to meet various test from material sample testing to overall machine evaluation.

4. The fully touch interface, multi-segment program programming, data recording, USB export, Ethernet remote control and other operations facilitate long-term testing and tracking of experimental results.

Specifications of Cold Environment Chamber

Model	CF-100	CF-225	CF-500	CF-800	CF-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	130015402120	150015402140
Interior Volume	100L	225L	500L	800L	1000L
Temperature Range	-120℃ ~ +150℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	Cascade compressor
Controller	Programmable color LCD touch screen controller,Ethernet connection
Safety Device	Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection
Standard Configuration	1 Cable hole (Φ 50,) with plug; 2 shelves

Details of Cold Environment Chamber

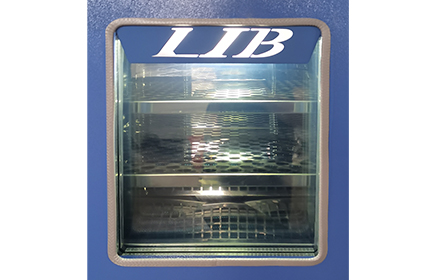

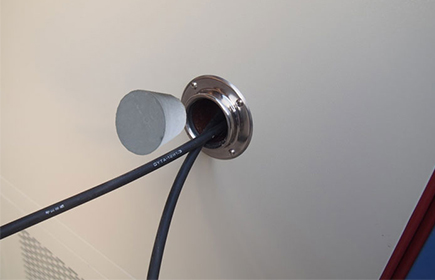

Cable Hole	Viewing Window
Convenient to introduce cables and monitor the performance of the samples in real time during the testing process. Standard specification: φ50mm.Silicone rubber sealing plugs are adopted to ensure air tightness and thermal insulation.	The sample status, frosting condition and equipment operation can be checked without opening door.Multi-layer tempered glass with an electric heating film inside to prevent frosting or fogging. Resistant to low-temperature impact.

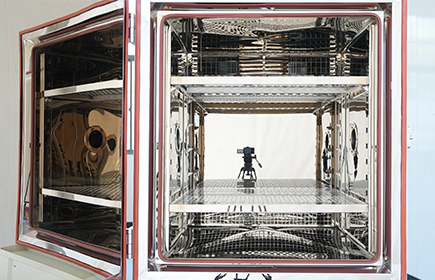

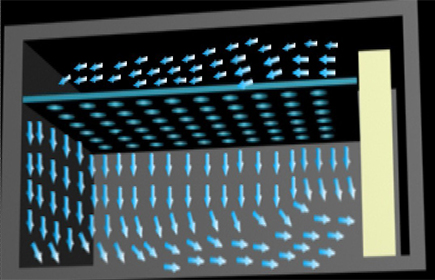

Test Area	Air Circulation
Made of SUS304, corrosion-resistant and has good low-temperature stability. Equipped with a two double-layer adjustable sample holder for convenient operation.The insulation layer is made of polyurethane foam material, with low heat loss.	Evenly distribute the cold air to ensure the consistency of workroom temperature. Avoid dead corners in test zone and ensure consistent surface temperatures of the samples. Accelerate the cooling/heating process.

LIB cold environment chamber will provide you with a stable, safe and accurate ultra-low temperature testing environment. Equipped with air circulation system, high-definition observation window, flexible cable interfaces and chamber structure, contact LIB to customize your low-temperature testing solution!
