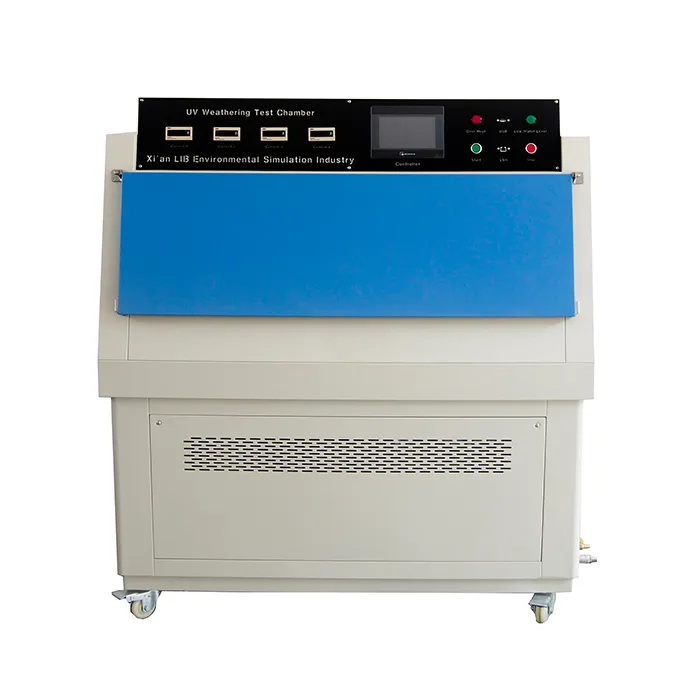

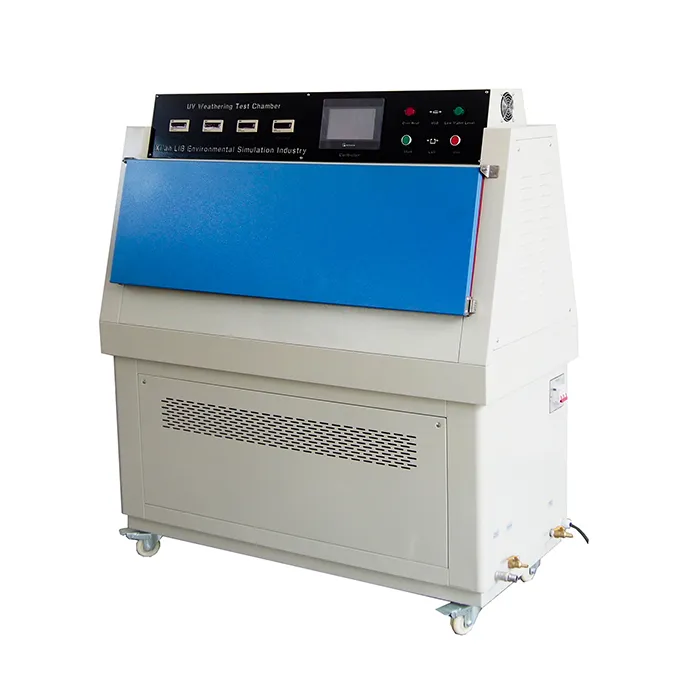

UV Accelerated Weathering Tester

Recreate Years of Outdoor Exposure in Just Weeks

The UV accelerated weathering tester brings industry-proven performance to laboratories seeking faster, more reliable durability validation. By using precision-controlled UVA-340 or UVB-313 lamps, it replicates the most destructive portion of sunlight responsible for material degradation. An advanced condensation cycle simulates real-world dew conditions—often more aggressive than rain—accelerating failure mechanisms such as cracking, fading, and loss of strength. With SOLAR EYE irradiance control ensuring stable light intensity and full compliance with ISO 4892, ASTM G154, and SAE J2020, it delivers highly repeatable, globally recognized test results.


Model: UV-SI-260 and more customizable models(size,option fuctions based on your needs)


UV Accelerated Weathering Tester Demonstration – Global Standard for Material Durability Testing


Why UV Aging Testing Ensures Accurate and Reliable Weathering Results

Targeted UV Exposure – Focusing on the Most Destructive Wavelengths

QUV testing concentrates on short-wave UV (295–365 nm), the primary cause of material degradation.

  • UVA-340 lamps simulate natural sunlight with high accuracy

  • UVB-313 lamps accelerate aging for rapid failure detection

Condensation Simulation – Replicating Real Moisture Damage

Many materials fail due to dew formation and long-term humidity exposure, not direct rainfall.

UV systems reproduce this through controlled condensation:

  • Heated water creates saturated vapor

  • Cooler sample surfaces form uniform condensation

LIB industry integrates precise condensation control to ensure stable and repeatable moisture testing.

SOLAR EYE® Control – Maintaining Long-Term Test Stability

Lamp aging can cause irradiance drift, leading to unreliable results.

UV’s SOLAR EYE® system solves this by:

  • Real-time UV intensity monitoring

  • Automatic irradiance adjustment

  • Stable long-term exposure conditions

At LIB industry, this ensures:

✔ Consistent test data
✔ High repeatability
✔ Reliable certification-level results


Key Technical Parameters for Reliable UV Weathering Testing

Model

UV-SI-260

Internal Dimension (mm)

450*1170*500

Overall Dimension (mm)

680*1300*1500

Specimen Holder Size (mm)

75*150

Specimen Capacity

56 Pieces

Irradiation Source

Fluorescent UV lamps (8) - 40 W

Temperature Range

Ambient ~ 90 ℃ ±2℃

Black Panel Temperature (BPT)

35 ~ 80 ℃

Humidity Range

≥95% RH

Bandwidth

290 ~ 400 nm

Irradiance Control

0.3~20 W/㎡

Water Spray Cycle

1~9999H59M (Adjustable)

Distance of Specimen and lamp

50 mm


User-Friendly Design for Efficient Laboratory Operation

A powerful system should also be simple to operate.

Pre-programmed Standards

  • ASTM G154

  • ISO 4892-3

  • ASTM D4587

Run standardized tests with one click.

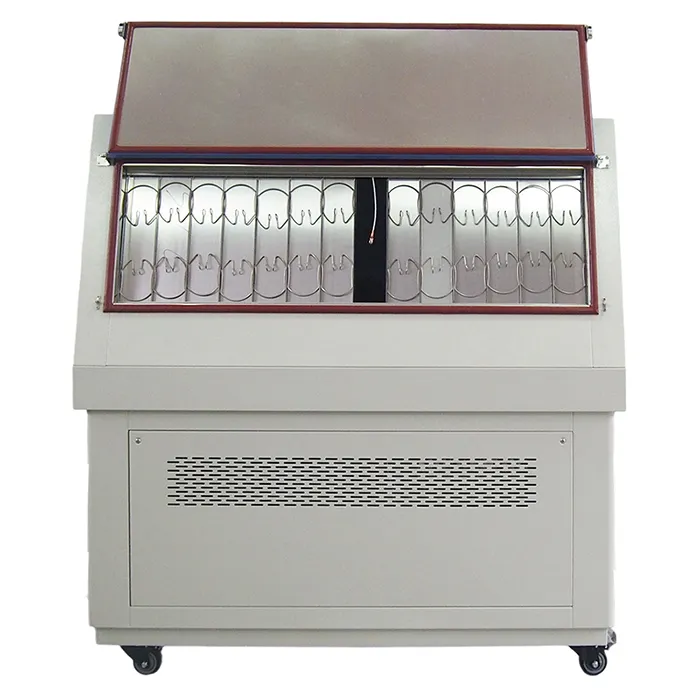

Fast Sample Installation

  • Vertical panel mounting

  • Up to 56 specimens simultaneously

Low Operating Cost

Compared with xenon arc systems:

  • Lower energy consumption

  • No complex water cooling

  • Cost-effective UV lamps

LIB industry focuses on delivering high performance with lower total cost of ownership.

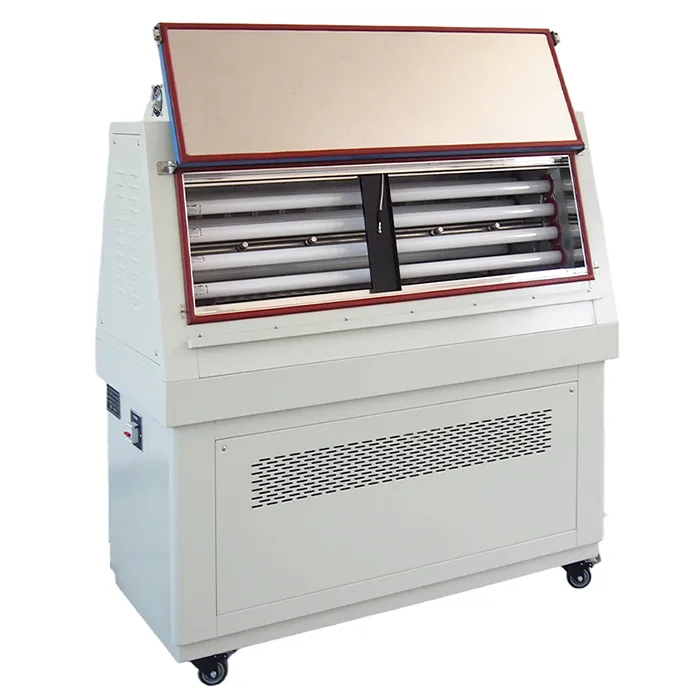

Lighting system

Control system


Spray Nozzles

 Black panel


Why Choose LIB Industry for UV Weathering Test Solutions

Choosing equipment is not just about specifications—it’s about long-term reliability.

LIB industry provides:

3-Year Warranty
Lifetime Technical Support
5 Global Service Centers
Remote Diagnostics & Support

Get Your UV-Based UV Aging Test Solution Today

Contact LIB industry today and bring global-standard UV testing into your laboratory.

Send Inquiry
LIB Team will send you specs and quote today.
