Outdoor lighting products such as streetlights, floodlights, tunnel lights, and industrial luminaires are continuously exposed to dust, sand, and outdoor contaminants. If dust enters the enclosure through cable glands, vents, connectors, or housing joints, it can affect electrical insulation, heat dissipation, optical performance, and long-term reliability.
For manufacturers, the key question is not simply whether a luminaire looks well sealed, but whether its enclosure can maintain the required level of dust ingress protection under standardized testing conditions.
An IP5X/IP6X Dust Ingress Chamber provides a controlled environment for evaluating enclosure protection against dust ingress according to IEC 60529. For lighting products, IEC 60598-1 may also apply depending on the product and test requirements.
Outdoor lighting manufacturers typically face four critical dust-protection challenges:
Dust entering through cable glands and connectors
Poor sealing or incorrect cable routing can create paths for dust to enter the enclosure.
Dust penetration through housing joints and gaskets
Uneven gasket compression, damaged seals, or assembly tolerances may reduce the actual protection level.
Different requirements for IP5X and IP6X
IP5X allows limited dust ingress under defined conditions, while IP6X requires the enclosure to be dust-tight.
Differences between prototypes and mass production
Changes in gasket compression, fastener torque, casting tolerances, and assembly processes can cause production units to perform differently from prototypes.
A standardized dust ingress test helps manufacturers identify these weaknesses before products enter certification or large-scale production.

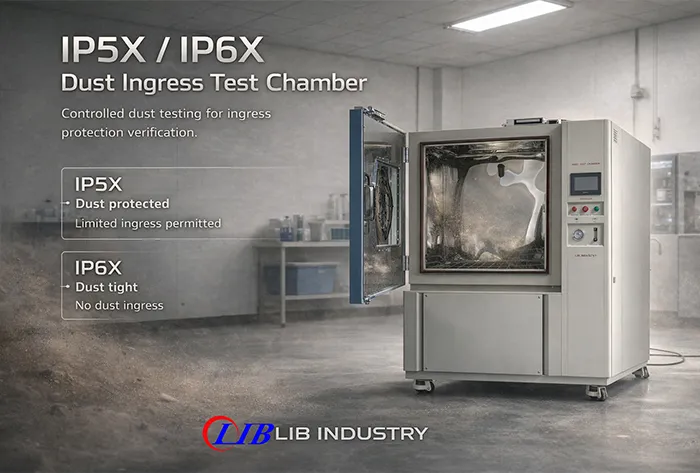

LIB industry provides IP5X/IP6X Dust Ingress Chambers designed for controlled dust exposure and negative-pressure testing.
The chamber uses dry talcum powder as the dust medium and maintains controlled dust circulation throughout the test space. For applicable Category 1 testing, an integrated vacuum system creates negative pressure inside the test specimen to help evaluate dust penetration through enclosure openings and sealing points.
Parameter | Specification |
Applicable Standards | IEC 60529, IEC 60598-1 |
Dust Medium | Dry talcum powder |
Dust Concentration | 2–4 kg/m³ |
Temperature | Ambient to +50°C |
Humidity | <30% RH |
Sieve | 50 μm wire diameter / 75 μm free spacing |
Vacuum System | Built-in negative-pressure system |
Maximum Depression | Up to 2 kPa |
Controller | Programmable color touchscreen + Ethernet |
Interior Material | SUS304 stainless steel |
Dust Circulation | Vertical airflow + bottom vibration + heating |
| Test Duration | Up to 99 h 59 min |
 | |
The dust circulation system combines vertical airflow, bottom vibration, and heating to help maintain a consistent testing environment. The programmable controller allows test parameters and duration to be configured according to the required test procedure.
For products with different dimensions or testing configurations, LIB industry can also provide customized chamber sizes, fixtures, and internal layouts.
IP5X and IP6X are not interchangeable. The appropriate test depends on the required IP rating and applicable product standard.
Item | IP5X | IP6X |
Protection Level | Dust protected | Dust tight |
Dust Ingress | Limited ingress permitted under defined conditions | No observable dust ingress |
Typical Evaluation | Whether dust affects operation or safety | Whether the enclosure prevents dust ingress |
Vacuum Testing | Category 1 or Category 2 depending on requirements | Category 1 negative pressure |
Typical Application | Outdoor luminaires requiring IP5X | Outdoor luminaires requiring the highest dust protection |
For lighting manufacturers, IEC 60529 defines the IP protection classification, while IEC 60598-1 may provide additional requirements for luminaires.
Therefore, the required test configuration should always be determined from the applicable product standard and certification requirements rather than from the IP marking alone.
A properly configured IP5X/IP6X test can reveal practical enclosure weaknesses that may not be visible during visual inspection.
Cable entry points are common dust-ingress paths. Testing can help determine whether glands, connectors, and cable interfaces maintain their intended sealing performance.
The test can expose problems caused by uneven gasket compression, damaged sealing surfaces, incorrect assembly, or insufficient fastener torque.
Ventilation structures and service openings must balance thermal management with enclosure protection. Dust testing helps verify whether these structures provide the required protection level.
For mass-produced lighting products, testing can also be used for design verification and quality control. Comparing prototype and production samples helps identify sealing variations caused by manufacturing tolerances or assembly processes.
LIB industry focuses on environmental simulation and reliability testing equipment for industrial and laboratory applications.
For IP5X/IP6X dust testing, the solution is designed around four key requirements:
1. Standard-Oriented Testing
The chamber is designed for dust ingress evaluation based on IEC 60529, with IEC 60598-1 considered for applicable lighting products.
2. Stable Dust Circulation
The combination of vertical airflow, bottom vibration, and heating helps maintain a stable dust environment throughout the test.
3. Integrated Negative-Pressure System
The built-in vacuum system supports applicable negative-pressure testing without requiring a separate external vacuum setup.
4. Standard and Customized Configurations
LIB industry can configure chamber dimensions, fixtures, and internal arrangements according to sample size and testing requirements, including larger outdoor luminaires.
With 3-year warranty and lifetime technical support, LIB industry provides not only the test chamber but also technical assistance for equipment configuration, installation, operation, and long-term maintenance.
Choosing an IP5X/IP6X Dust Ingress Chamber should start with the required IP rating, applicable standard, sample dimensions, and test configuration.
Tell LIB industry:
Your lighting product dimensions
Required IP rating: IP5X or IP6X
Applicable testing standard
Number and size of samples
Our engineers can recommend the appropriate chamber size, vacuum configuration, fixtures, and testing setup for your application.
Request a Quote | Talk to an Engineer
IP5X provides dust protection with limited ingress permitted under defined conditions, while IP6X requires the enclosure to be dust-tight with no observable dust ingress.
For the applicable Category 1 IP6X procedure, negative pressure is used to help evaluate whether dust can enter the enclosure. The exact test configuration should follow the applicable standard.
IEC 60529 defines IP5X and IP6X enclosure protection. For luminaires, IEC 60598-1 may also apply depending on the product and certification requirements.
Yes. LIB industry can provide customized chamber dimensions and fixtures for larger outdoor lighting products, including streetlights, floodlights, and industrial luminaires.
