High and Low Temperature Test Chambers: Rapid vs Standard Testing for Better Quality

Mar 20 2026

Table of Content [Hide]

Ensuring product reliability under extreme conditions is a critical challenge for manufacturers across industries. High and Low Temperature Test Chambers provide controlled environments to evaluate how materials, components, and finished products perform under both rapid and standard temperature changes. By simulating real-world conditions, these chambers help companies identify potential weaknesses, improve durability, and maintain the highest quality standards.

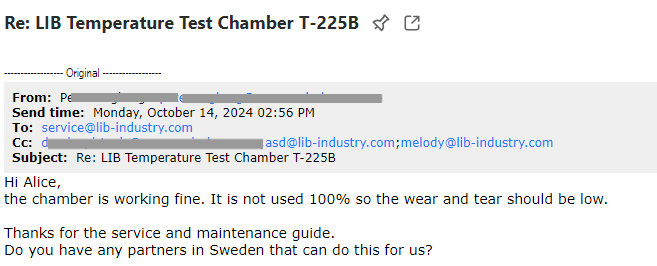

A valued client from Sweden recently shared their experience with one of our High and Low Temperature Test Chambers used for testing electronic products. They noted that the chamber has been operating smoothly with minimal wear due to moderate usage, and appreciated the clarity of the service and maintenance guide. This real-world feedback demonstrates the reliability of LIB Industry’s High and Low Temperature Test Chambers and reinforces customer confidence in our solutions.

Rapid, Standard, and Thermal Shock Testing: Choose the Right Chamber for Your Products

High and Low Temperature Test Chambers are specialized environmental testing equipment designed to evaluate how products perform under varying temperature conditions. These chambers replicate real-world extremes—from freezing cold to intense heat—to help manufacturers assess material stability, component reliability, and overall product durability. By simulating both gradual and rapid temperature changes, these chambers enable engineers to identify potential weaknesses, optimize designs, and ensure that products meet stringent quality standards.

LIB Industry Main Types of High and Low Temperature Test Chambers

Small High and Low Temperature Test Chamber

Temperature and Humidity Test Chamber

Programmable 2TS Thermal Shock Chamber

3TS High and Low Temperature Impact Test Chamber

Full Customized Walk-In Environmental Chamber

LIB Industry offers three main types of High and Low Temperature Test Chambers, each designed to meet specific testing requirements:

Standard Temperature Test Chambers

Purpose: Ideal for long-term evaluation of material stability and product endurance.
Temperature Range & Control: Operates from -70/-40/-20°C to +150°C, with high-precision control (±0.5°C).
Applications: Electronics, automotive components, plastics, and mechanical assemblies.
Advantages:

Uniform temperature distribution through optimized air circulation, ensuring reproducible test results.
Supports aging and reliability tests to simulate natural environmental conditions over extended periods.
Customizable sample racks and chamber sizes to accommodate diverse products.

Rapid Temperature Test Chambers

Purpose: Designed for fast temperature cycling to detect latent defects in components exposed to sudden environmental changes.
Temperature Ramp Rate: 5–30°C per minute (customizable).
Applications: Electronics, automotive sensors, battery modules, aerospace components.
Advantages:

Rapid temperature shifts expose microcracks, soldering weaknesses, and material stress points.
Vertical forced-air circulation ensures each sample experiences uniform thermal exposure.
PLC-based controllers allow programmable cycles, remote monitoring, and precise temperature control.

Thermal Shock Chambers

Purpose: Simulates extreme high-to-low temperature changes to assess a product’s structural and material resilience.
Temperature Range & Transition: Hot chamber up to +220°C, cold chamber down to -70°C, with transfer times ≤3 seconds and recovery ≤5 minutes.
Applications: Aerospace parts, critical electronics, automotive sensors, structural components.
Advantages:

Independent heating and cooling zones for rapid recovery and seamless continuous testing.
High-quality SUS304 stainless steel interior resists corrosion, high heat, and moisture.
Fan-driven circulation ensures uniform exposure, delivering consistent and reliable results.

Feature	Standard	Rapid	Thermal Shock
Temperature Change Rate	1–3°C/min	5–30°C/min	Seconds to minutes
Focus	Long-term durability	Rapid environmental stress	Extreme thermal shock
Applications	Electronics, plastics, automotive	Electronics, automotive, aerospace	Aerospace, sensors, critical components
Key Advantage	Stable, reproducible results	Detects hidden defects	Evaluates structural resilience

Boost Product Reliability with High and Low Temperature Test Chambers

High and Low Temperature Test Chambers enhance product quality by providing precise, repeatable, and controlled testing environments:

Reliable temperature control: Accurate regulation ensures consistent results.
Comprehensive testing scenarios: Supports both gradual and rapid temperature cycles.
Early defect detection: Identifies potential issues before products reach the market.
Optimized design: Testing results guide engineers in improving materials, soldering, or coatings.
Improved durability and safety: Products tested under extreme conditions perform better, reducing returns and warranty claims.

Why LIB Standard Temperature Test Chambers Deliver Superior Performance

LIB Industry’s Standard Temperature Test Chambers are engineered for precision, reliability, and durability, making them ideal for long-term environmental testing:

	Name	Temperature Humidity Chamber
	Temperature range	-20℃ ～+150 ℃
	Low type	A: -40℃ B:-70℃ C -86℃
	Humidity Range	20%-98%RH(Option）
	Temperature deviation	± 2.0 ℃
	Heating rate	3 ℃ / min
	Cooling rate	1 ℃ / min
	Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
	Refrigerant	R404A, R23
	Exterior material	Steel Plate with protective coating
	Interior material	SUS304 stainless steel
	Standard configuration	1 Cable hole (Φ 50) with plug; 2 shelves
	Timing Function	0.1~999.9 (S,M,H) settable


Robust Workroom	Cable Hole		Temperature and Humidity Sensor	PID controller

Advanced Air Circulation for Uniform Testing

Equipped with centrifugal fans and optimized air ducts to maintain consistent temperature distribution.
Vertical forced convection ensures that all samples experience the same test conditions, minimizing deviations.
Fan quantity is tailored to chamber size, balancing airflow with quiet operation for laboratory comfort.

Customizable Sample Shelves and Chambers

SUS304 stainless steel shelves resist corrosion and high temperatures.
Adjustable height, number of layers, and load capacity (typically 50 kg per shelf) accommodate different sample sizes.
Perforated shelves ensure airflow passes evenly through all samples for accurate results.

Precise Heating and Cooling Systems

Chromium-nickel alloy heaters provide stable high temperatures, up to 150°C or higher.
TECUMSEH compressors allow low-temperature testing down to -70°C.
Heating and cooling rates optimized for precise and reproducible test conditions (heating ~3°C/min, cooling ~1°C/min, customizable up to 20°C/min).

Intelligent Control and Connectivity

PLC touchscreen controller supports programmable cycles, data logging, and real-time monitoring.
Ethernet connectivity enables centralized monitoring of multiple chambers.
Remote access allows control and observation without frequent lab entry.

Safety and Durability

Chamber construction: SUS304 stainless steel interior + A3 steel exterior with powder coating.
Strong door seals with concave-convex design and double-layer silicone strips prevent temperature and humidity loss.
Safety features include leakage current protection, grounding, phase monitoring, and over-temperature shutdown.

Operational Efficiency

Automatic water inlet and condensate recovery system reduces manual intervention and improves testing efficiency.
Quiet operation (≤65 dB), suitable for labs and clean rooms.
High accuracy PT100 sensors with ±0.001°C resolution ensure stable temperature and humidity.

LIB Standard Temperature Test Chambers combine precision, stability, and flexibility to ensure your products meet the highest quality standards. Contact us today to customize your testing solution!

Choose LIB Industry: Precision, Reliability, and Global Support

High and Low Temperature Test Chambers are essential for modern manufacturers seeking reliable, high-quality products. LIB Industry offers a complete range of chambers—including standard, rapid, and thermal shock testing solutions—that help identify defects, improve design, and ensure long-term durability.

3-year warranty and lifetime service.
5*12-hour English-speaking support team.
Global service centers in Europe, Americas, Southeast Asia, and Central Asia.
Over 30 authorized distributors worldwide.

LIB Industry High and Low Temperature Test Chambers combine precision, reliability, and flexibility, ensuring your products meet the highest standards. Contact us today to customize your testing solution!
