No-Housing IPX3 and IPX4 Water Spray Test Device

Name: No-Housing IPX3 and IPX4 Water Spray Test Device
Brand: Xi'an LIB Environmental Simulation Industry

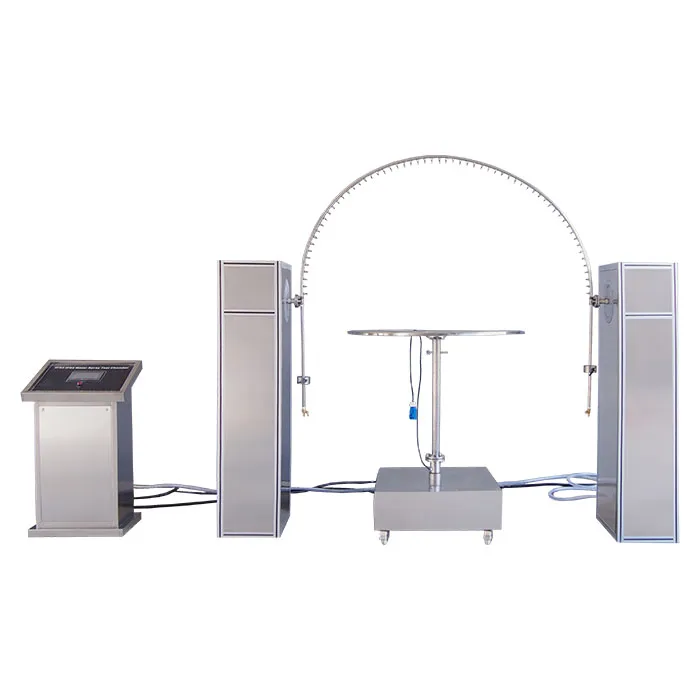

The No-Housing IPX3 and IPX4 Water Spray Test Device provides a flexible solution for IPX3 water spraying and IPX4 water splashing tests. Its open-type (no-housing) structure eliminates physical dimension limits, making it ideal for large, heavy, or irregularly shaped specimens without requiring a closed test chamber. A sturdy dual-column frame supports the oscillating tube while keeping the specimen area fully accessible. Multiple oscillating tube radii are available to provide suitable spray coverage for different specimen sizes and testing requirements.

Applicable Standards：IEC 60529

Key Features of No-Housing IPX3 and IPX4 Water Spray Test Device

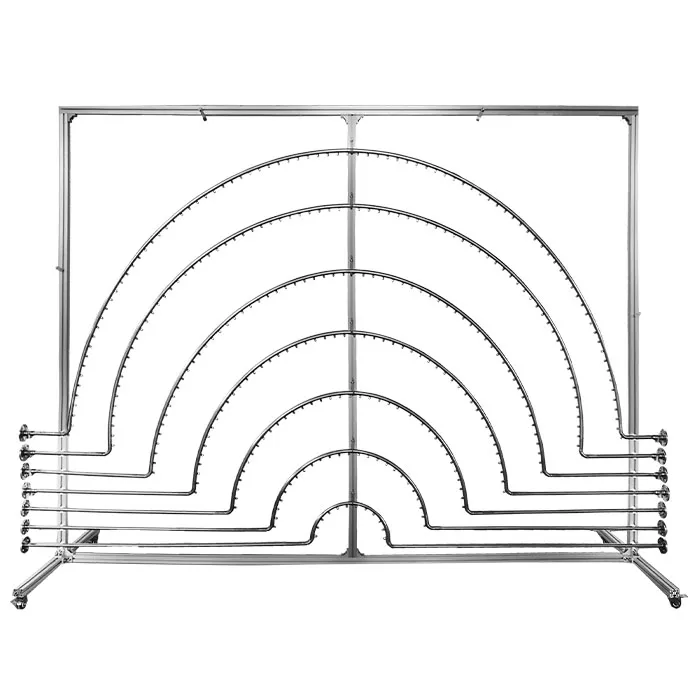

Full-Range Tube Radii Options:

Available from R200mm up to R1600mm (R200/R400/R600/R800/R1000/R1200/R1400/R1600) to match any specimen size.

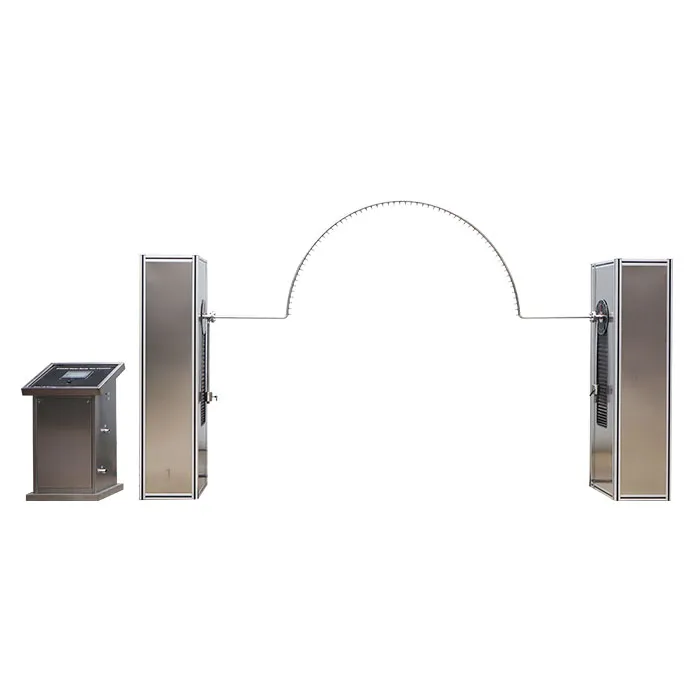

Unrestricted Open-Frame Structure:

Open-type architecture allows easy crane/forklift loading of heavy or bulky electronics, street lights, and outdoor cabinets.

Precision PLC & Touchscreen Control:

Full digital control over oscillation speed, spraying angle (±60° / ±180°), turntable speed, and test duration.

Heavy-Duty SUS304 Stainless Steel:

Corrosion-resistant oscillating tubes, laser-drilled nozzles, and robust rotation turntable ensure zero rust and long-term durability.

Smart Water Circulation & Filtration:

Integrated high-pressure pump, precision flowmeter, and multi-stage filter to protect nozzles from clogging.

Specifications of No-Housing IPX3 and IPX4 Water Spray Test Device

Feature / Parameter	Technical Specifications
Structure Style	Open-Type Dual Column / No-Housing Frame Structure
Oscillating Tube Radius	R200 / R400 / R600 / R800 / R1000 / R1200 / R1400 / R1600 mm (Modular & Customizable)
Spraying Hole Diameter	Ø0.4 mm
Hole Spacing	50 mm
Oscillating Angle	0 to ±180°, adjustable
Water Flow Rate	Adjustable via precision flowmeter; 0.07 L/min per nozzle standard
Turntable Diameter	Ø600 / Ø800 mm
Turntable Rotation Speed	1 r/min, adjustable
Turntable Height Adjustment	Manual / Electric Lift; 200–500 mm
Controller	Programmable color LCD touchscreen controller with Ethernet and USB
Water Supply System	Water tank, booster pump, automatic water supply, water purification system
Safety Protection	Over-temperature, over-current, water shortage, earth leakage, and phase sequence protection

Applications & Test Specimens of No-Housing IPX3 and IPX4 Water Spray Test Device

This open-type IPX3/IPX4 testing system is widely used across multiple industries for R&D, compliance verification, and quality assurance:

Outdoor Luminaires: Street lights, floodlights, garden lamps, stadium lighting.
Automotive & Transportation: Car headlights, tail lights, rearview mirrors, EV charging connectors, external sensors.
Power & Energy Devices: Outdoor power supply cabinets, junction boxes, solar micro-inverters.
Consumer Electronics & Appliances: Outdoor cameras, smart meters, water-resistant enclosure housings.
Testing Laboratories: Third-party certification bodies (TÜV, SGS, Intertek), university R&D labs.

Custom IPX3/IPX4 Testing Solutions

Different products may require different spray areas, specimen supports, water supply arrangements, and installation configurations. LIB provides customizable IPX3 and IPX4 water spray testing equipment to match specific product dimensions and laboratory requirements.

Please provide your specimen dimensions, test requirements, and applicable standard when requesting a quotation. LIB can recommend a suitable configuration for your application.

After-Sales Support

LIB provides 3-year warranty and lifetime technical service, with installation, training, and responsive after-sales support available when required.Contact LIB with your specimen size and testing requirements for a customized No-Housing IPX3 and IPX4 Water Spray Test Device.
