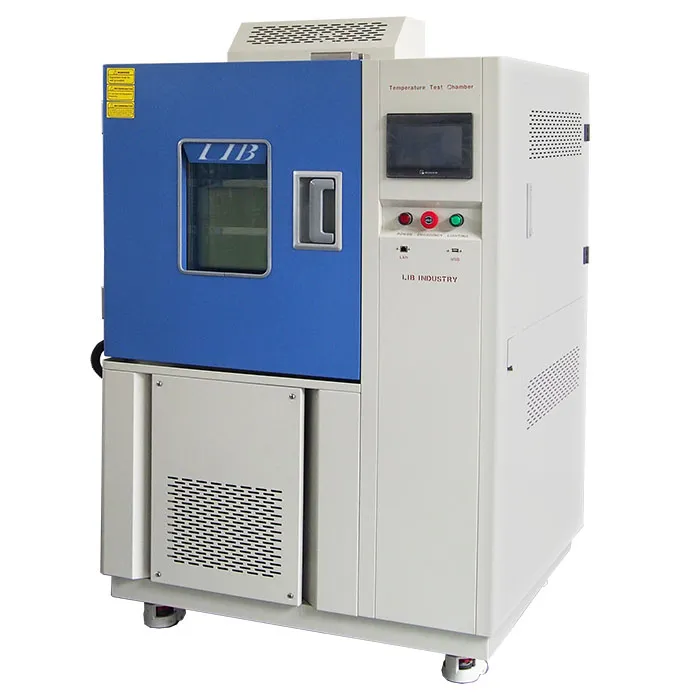

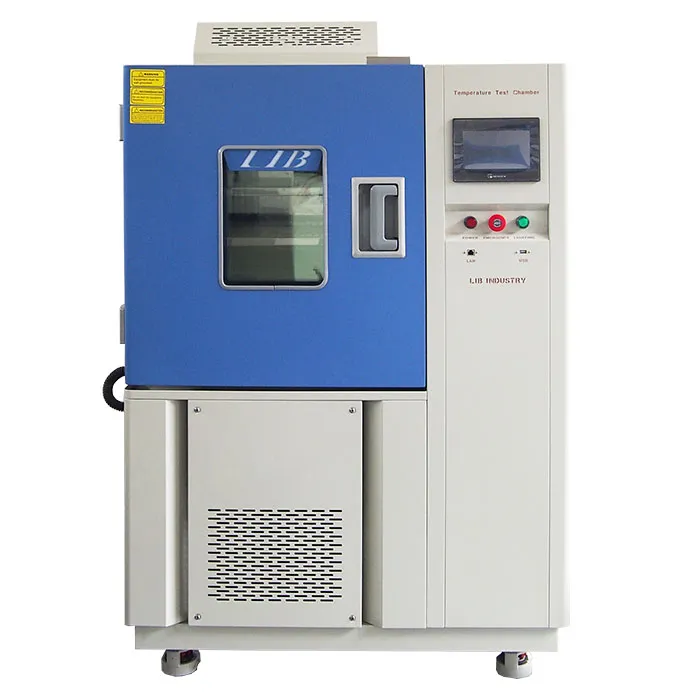

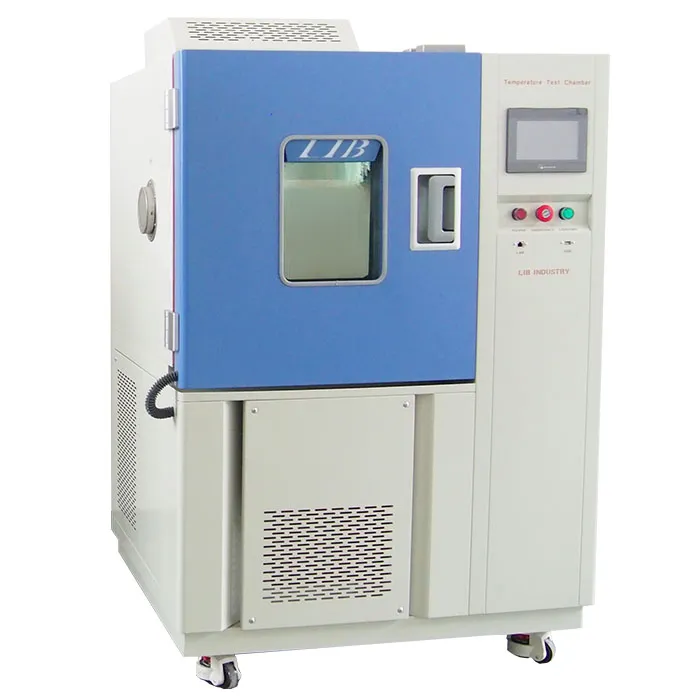

Hot Cold Temperature Test Chamber

Name: Hot Cold Temperature Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

LIB hot cold temperature test chamber can simulate extreme temperature variations, allowing precise evaluation of product performance, reliability, and durability. With a typical temperature range from -20℃，-40℃，-70°C to +150°C with ± 0.5 ℃ temperature fluctuation, this test chamber can alternate between high and low temperatures according to programmed cycles, replicating real-world environmental changes.

By exposing products to controlled hot and cold conditions, it helps detect potential issues caused by thermal expansion, contraction, and material fatigue.LlB offers a wide range of models to meet the testing requirements of various components.

Optional Models: T-100, T-225, T-500, T-800, T-1000 and customized models.

Applicable Standards: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D,SAE J575

Hot Cold Temperature Test Chamber Features and Benefits

1. Wide & Flexible Temperature Range
Operates from -20℃，-40℃，-70°C to +150°C(3 temperature options), meeting diverse testing standards for electronics, automotive, aerospace, and materials.

2. High Precision & Programmable Control
Advanced temperature sensors and PID control ensure stable performance, with customizable hot-cold cycles for repeatable, automated testing.

3. Energy-Efficient & Reliable Design
Optimized heating/refrigeration system reduces power consumption, with built-in safety features for continuous, worry-free operation.

4. User-Friendly Observation & Access
Heated double-layer glass window prevents fogging, allowing clear sample monitoring without interrupting the test process.

Hot Cold Temperature Test Chamber Specifications

Model	T-100	T-225	T-500	T-1000
Internal Dimension (mm)	400500500	500600750	700800900	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	150015402140
Interior Volume	100L	225L	500L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Automatic water supply, Water purification system
Safety Device	Over-temperature protection; Over-current protection; Refrigerant high-pressure protection; Earth leakage protection

Details of Hot Cold Temperature Test Chamber

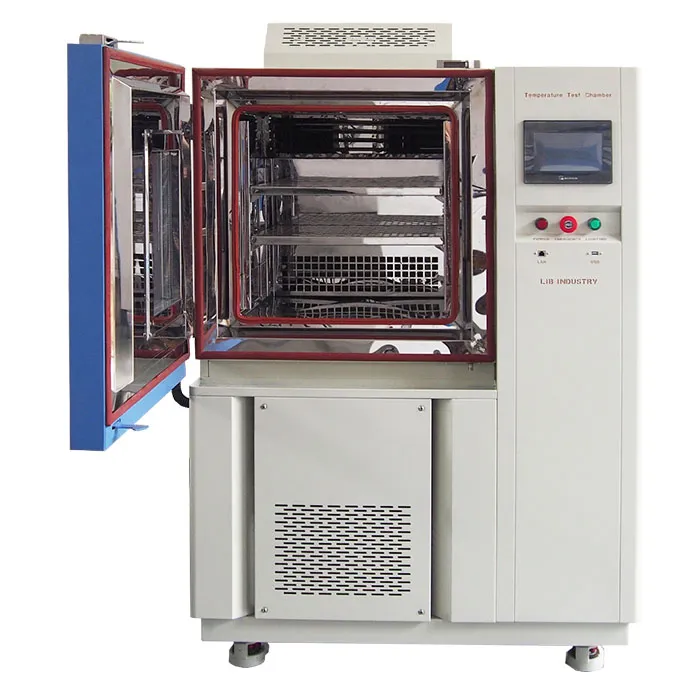

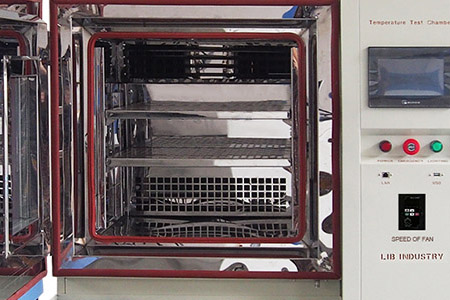

Test Workroom	Material:SUS#304 mirror-finish stainless steel, corrosion-resistant and easy to clean Volume options: 100L, 225L, 500L, 800L, 1000L (custom sizes available)
Temperature Sensors	Type: High-precision Pt100 platinum resistance sensors Accuracy: ±0.5°C Real-time temperature monitoring throughout the test cycle

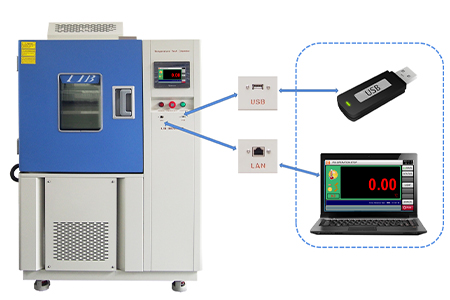

Remote Controllable Controller	Type: touch-screen programmable controller Functions: Multi-segment program setting, data recording, automatic test execution, USB export,connectable to PC for remote control of the test chamber

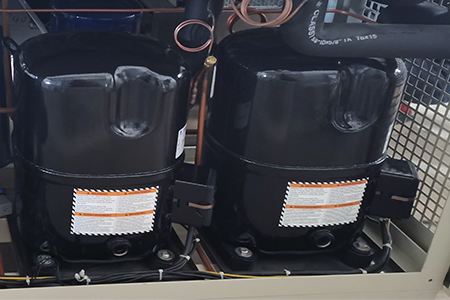

Refrigeration System	High-performance, environmentally friendly refrigeration unit with cascade compressors, enabling rapid cooling and stable low-temperature performance. Cooling rate: 1.0~3.0°C/min (customizable)

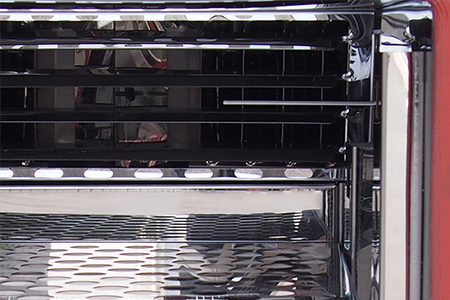

Air Circulation System	Method: Forced air circulation for uniform temperature distribution Benefit: Eliminates temperature gradients, ensuring consistent test results

Ensure your products meet the highest reliability standards with LIB’s Hot Cold Temperature Test Chamber. Backed by over 16 years of environmental test chamber manufacturing experience, LIB delivers precision, durability, and customization tailored to your exact testing needs.All test chambers come with a 3-year warranty and lifetime service.

Contact LIB today for a free consultation and quotation — let us help you design the perfect hot cold temperature test chamber solution for your industry.

LIB Team will send you specs and quote today.
