In modern industrial manufacturing—spanning automotive electronics, outdoor LED displays, telecommunications, and aerospace components—water ingress is one of the leading causes of electrical short circuits, product failure, and costly warranty claims. Ensuring that product enclosures withstand harsh ambient weather and liquid pressure requires rigorous, standardized compliance testing.
This comprehensive guide breaks down international ingress protection standards, explores the mechanics of water resistance testing, compares equipment configurations, and demonstrates how LIB Industry provides custom, certified testing solutions for world-class laboratories.
Rain test equipment (also referred to as a rain resistance test chamber, water spray chamber, or IP water ingress testing system) is specialized environmental testing hardware designed to evaluate how effectively a product’s protective enclosure resists water penetration.
These chambers simulate a wide spectrum of natural and industrial precipitation scenarios—ranging from gentle vertical dripping water and oscillating rain sprays to continuous high-pressure water jets and deep-water submersion.
Standard Verification: Ensures full compliance with international ingress protection ratings (IEC 60529, ISO 20653, MIL-STD-810H).
Failure Identification: Pinpoints structural vulnerabilities in rubber gaskets, seals, seams, and connector interfaces prior to mass production.
Data Authority: Delivers precise, repeatable water pressure and flow control required for third-party lab accreditation and global market entry.
The international benchmark IEC 60529 establishes the Degrees of Protection Provided by Enclosures (IP Code). To select the correct testing setup, engineering teams must evaluate the technical distinctions between IPX1 and IPX9K testing levels.
IP Rating | Water Test Method | Main Test Parameter | Typical Application |
IPX1 | Vertical dripping water | 1 mm/min dripping rate, 10 minutes | Indoor electrical equipment |
IPX2 | Dripping water tilted 15° | Four tilt positions | Devices exposed to angled dripping |
IPX3 | Oscillating spray | ±60° spray angle, 0.07 L/min per hole | Outdoor electronics |
IPX4 | Splashing water | ±180° spray coverage | Consumer electronics, lighting |
IPX5 | Water jet | 12.5 L/min, 30–100 kPa pressure | Automotive parts, outdoor devices |
IPX6 | Powerful water jet | 100 L/min high-flow jet | Industrial equipment |
IPX7 | Temporary immersion | 1 m water depth, 30 minutes | Waterproof portable products |
IPX8 | Continuous immersion | Customized pressure/depth | Marine and underwater products |
| IPX9K | High-pressure hot water spray | 80°C water, 8,000–10,000 kPa | Automotive components |
When building or upgrading an Ingress Protection (IP) facility, procurement specialists must decide between self-contained, stand-alone test chambers and modular, housing-less integrated systems.
Comparison | Stand-Alone Chamber | Integrated IP Laboratory |
Testing Range | Specific IP level | IPX1-IPX9K complete coverage |
Sample Size | Small to medium products | Large automotive and industrial components |
Laboratory Space | Requires multiple machines | Centralized customized layout |
Expansion Capability | Limited | Flexible future upgrades |
| Best Application | R&D testing | Certification laboratories |
 |  |
LIB Industry manufactures advanced rain resistance test chambers engineered to meet strict international standards while minimizing operational overhead.
|
|
|
|

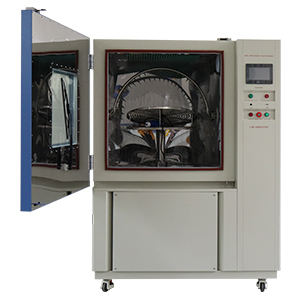

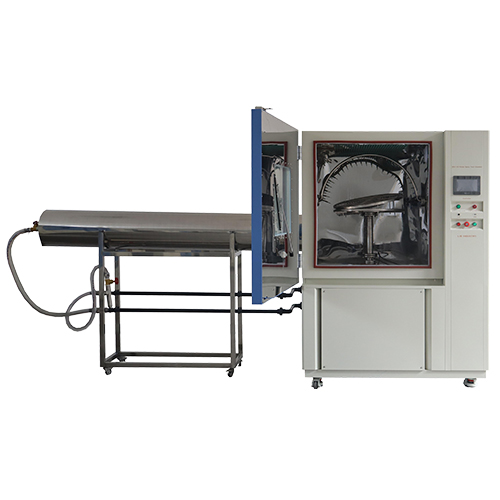

To save lab footprint, LIB industry’s Combined IPX1–IPX6 units integrate drip boxes (IPX1/2), stainless steel oscillating tubes (±60° and ±180° sweep for IPX3/4), and high-pressure jet nozzles (IPX5/6) into a single chamber.
SUS304 Stainless Steel: The test chamber interior is constructed with high-grade SUS304 stainless steel, offering superior corrosion resistance under continuous moisture exposure.

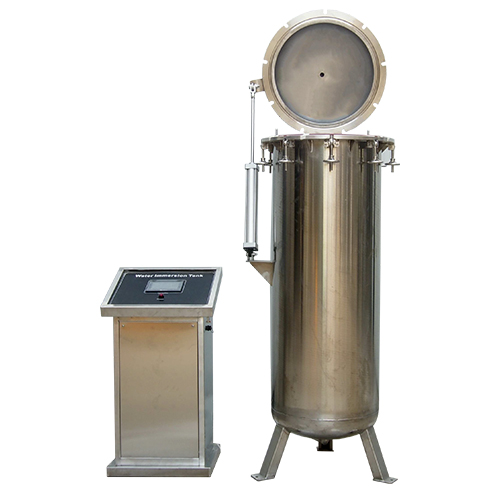

Reinforced Steel Outer Structure: Deep-immersion IPX7/X8 tanks feature 15mm thick A3 steel plate construction engineered to withstand hydrostatic water pressures equivalent to 50 meters depth without deformation.
Double-Layer Silicone Seal: Incorporates a dual-tier sealing mechanism—a soft silicone inner layer for flexible surface contact and a hard elastomeric outer layer to sustain high internal pressures.

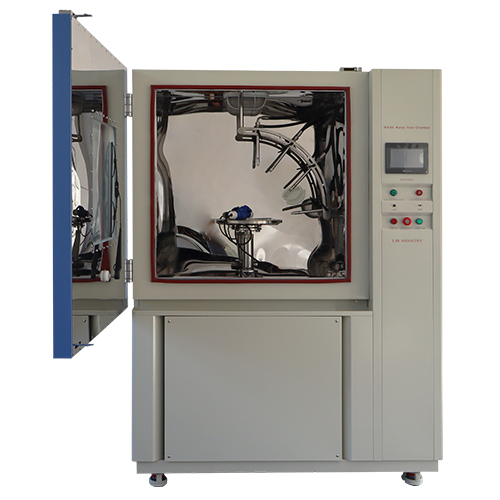

For severe industrial washdown testing, LIB IPX9K systems feature heavy-duty heating elements delivering continuous 80°C hot water at pressures up to 10,000 kPa across four automated spray angles (0°, 30°, 60°, 90°).
Testing consumes substantial water volumes. LIB chambers feature closed-loop filtration and water recovery systems. Automated filters eliminate suspended particles, preventing nozzle clogging while recycling water to reduce operational utility costs by up to 80%.
Programmable Color Touchscreen: Operators can easily program spray duration, water flow rates, oscillation speed, and sample turntable rotation (1 rpm up to custom speeds).
Waterproof Sample Power Outlets: Built-in waterproof terminal ports allow test specimens (such as active outdoor lighting or automotive headlights) to remain powered on during live water spray tests.
Established in 2012, LIB Industry has grown into a globally trusted manufacturer and turnkey environmental test chamber expert. Rather than merely supplying standalone hardware, LIB specializes in delivering complete, end-to-end testing ecosystems that empower laboratories worldwide to achieve regulatory compliance.
Comprehensive Product Range: LIB manufactures a complete range of environmental test chambers—including rain spray chambers, sand & dust test equipment, temperature & humidity chambers, thermal shock units, salt spray corrosion chambers, and custom walk-in environmental facilities.
One-Stop Turnkey Solutions: From initial lab spatial layout design and custom engineering to manufacturing, shipping, on-site installation, and operator training, LIB manages the entire project lifecycle seamlessly.
Custom Design Expertise: LIB engineers tailor custom equipment dimensions, housing-less IP laboratory systems, and specialized sample power interfaces to align with your specific laboratory workflow.
3-Year Global Warranty: Full unit warranty coverage to safeguard your capital investment and lower long-term maintenance overhead.
Lifetime Technical Support: Continuous engineering assistance, rapid spare parts fulfillment, and long-term calibration guidance for the entire operational lifespan of your test chamber.
Client Overview: Standard Bank is a leading independent testing and compliance agency in South Korea, serving automotive, industrial, and consumer electronics OEMs.
In January 2019, Standard Bank contacted LIB Industry to build a multi-disciplinary IP testing facility to meet expanding client certification demands. Their procurement request specified:

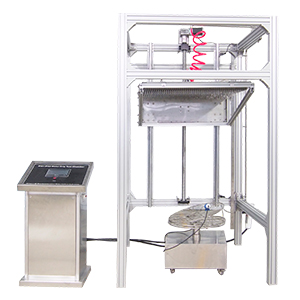

Water Ingress Test Equipment for IPX1/X2 (R12-1600), IPX3/X4 (R-3200), IPX5/X6 Water Jet Chambers, and IPX7/X8 Immersion Systems

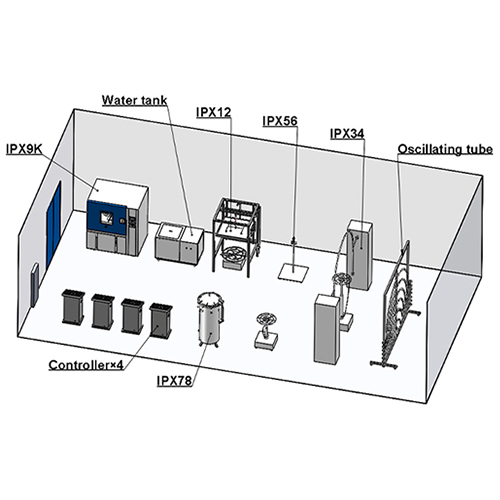

LIB engineers designed and manufactured a comprehensive, housing-less IP laboratory system tailored to Standard Bank's laboratory floor plan:
Turnkey Delivery: Constructed an integrated setup covering IPX1 through IPX8 water testing and IP5X/6X dust ingress compliance.

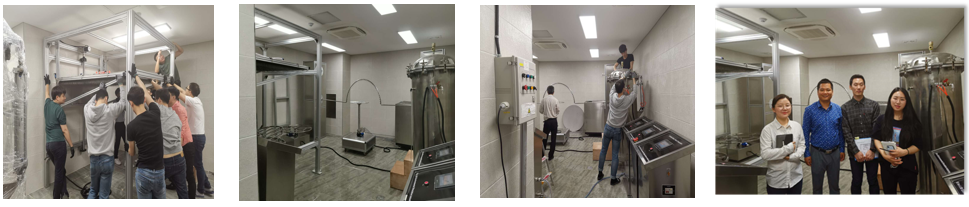

On-Site Installation & Training: LIB engineers traveled to South Korea to execute equipment installation, plumbing system integration, and operator training.
Ongoing ISO 17025 Calibration: To ensure Standard Bank's certified testing data remains internationally recognized, LIB helps Standard Bank perform annual ISO 17025 calibrations on the flow sensors and pressure transducers of their IP water test equipment.
Standard Bank successfully commissioned its accredited laboratory, delivering fast, highly accurate, and certified ingress testing services to commercial clients across Asia.
A: IPX3 tests against spraying water delivered at angles up to ±60° from vertical. IPX4 extends the swing arc to ±180°, splashing water from all angles to simulate harsher environmental exposure.
A: Regular ISO 17025 calibration verifies flow meter accuracy and water pressure precision. Certified calibration ensures that testing data produced by your laboratory is legally valid and recognized by global certification authorities.
A: Yes. Integrated units (such as the LIB Combined IPX1–IPX6 Chamber) house low-pressure drip trays, oscillating spray arms, and high-pressure jet nozzles within one space, eliminating the need to buy multiple separate machines.
A: LIB test chambers integrate multi-stage filtration units and recirculating water reservoirs. The system cleans and reuses test water during operational cycles, preventing nozzle blockage and reducing water consumption by up to 80%.
A: Drip apertures and nozzles should be inspected monthly for mineral or particulate buildup. Utilizing distilled or deionized water within the closed-loop system significantly extends nozzle lifespan and maintains uniform flow rates.
Whether you require a standard benchtop drip unit, an IPX9K high-pressure spray chamber, or a complete custom-built IP laboratory system like Standard Bank, LIB Industry delivers end-to-end engineering, manufacturing, on-site installation, and long-term ISO 17025 calibration support.
Contact our team of application engineers today to receive:
Detailed technical specifications & CAD layout drawings
Customized IP laboratory design consultations
A competitive, factory-direct quotation
Contact LIB Industry Engineers for a Free Consultation & Quote
