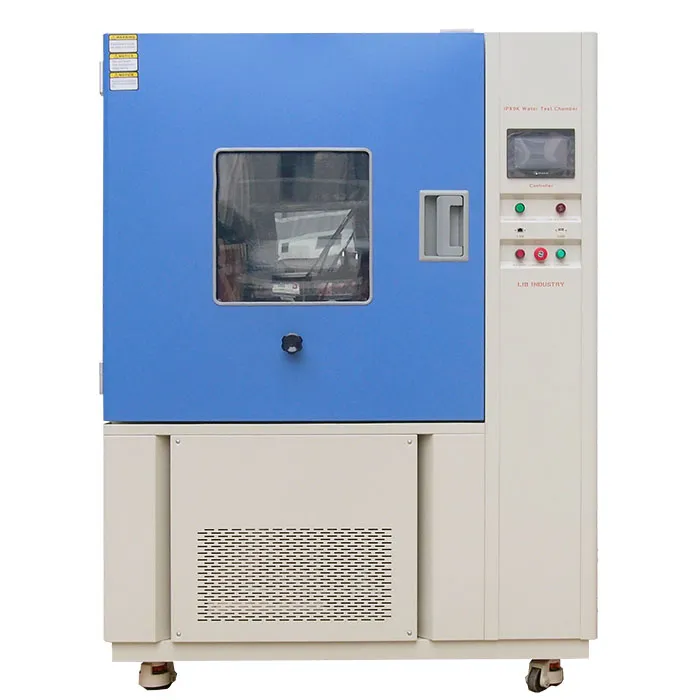

Features and Benefits of Ipx9k Test Equipment
1. A combination of heat, water ingress and high pressure are used to measure the effect of degradation on seals, connectors, wires and mounting equipment.
2. Good sealing performance, and the wiper is installed on the door to facilitate observation of the test situation
3. Higher precision, the nozzle hole adopts laser processing technology, which has higher precision
4. Flow pressure control uses solenoid valve to control flow and pressure, and digital flow meter indicates flow.

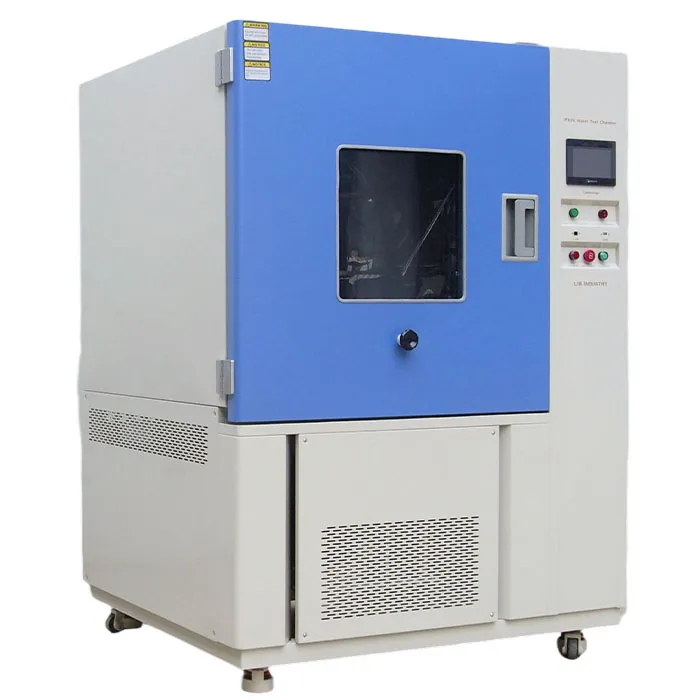

Specifications of Ipx9k Test Equipment
Model | R9K-1200 |
Internal Dimensions (mm) | 1000*1200*1000 |
Overall Dimensions (mm) | 1250*1700*2050 |
Interior Volume (L) | 1200 |
Water Spray Angle | 0°, 30°, 60°, 90° |
Water Spray Temperature | Ambient ~ +88℃ (Adjustable) |
Spray Nozzle | Four, 30 Seconds each position |
Distance from Water Spraying to Specimens | 10~15cm |
Water Pressure | 8000-10000 Kpa (Adjustable) |
Water Flow Rate | 14L-16L/min |
Testing Platform Speed | 5±1 r.p.m |
Testing Platform Height | 200-400 nm (Adjustable) |
Testing Platform Diameters | 600mm |
Heater Elements | Nichrome heater |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Door Lock | Electromagnetic lock |
Water supply system | Storage water tank; Booster pump; Automatic water supply; Water purification system; |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Double layer insulating glass with wiper |

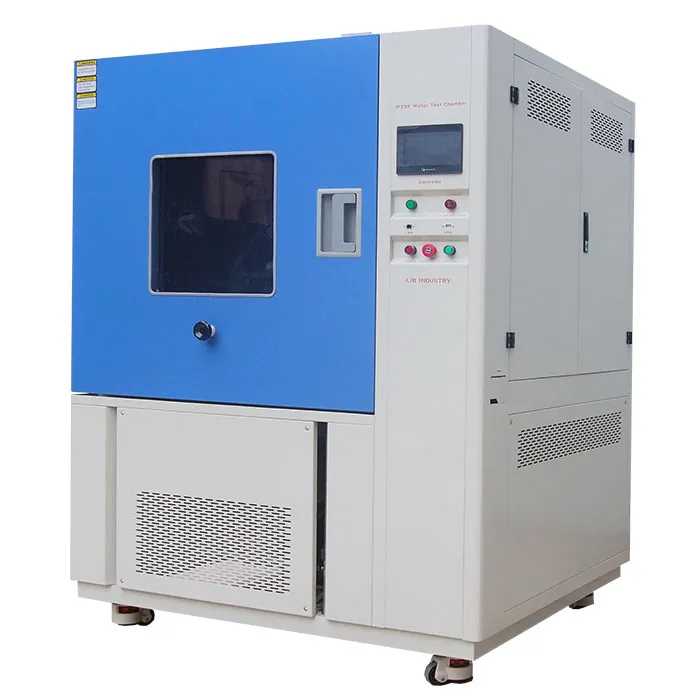

Ipx9k Test Equipment Application
Lib Industry Ipx9k is the highest waterproof rating complying with IEC60529 standard currently, and Ipx9k test equipment can also perform tests under ISO 20653, DIN 40050-9 and etc.
Ipx9k testing chamber is widely used in automotive, electronics, aerospace and etc.,these fields' products need to undergo IPx9k testing to verify their sealing and protection under high pressure water shock condition.
Ipx9k Test Equipment Working Principle

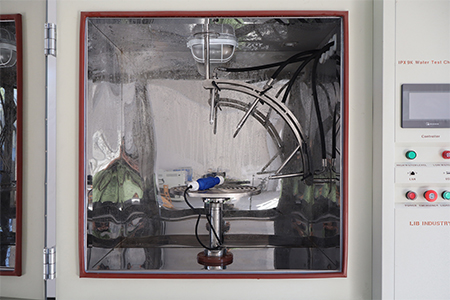

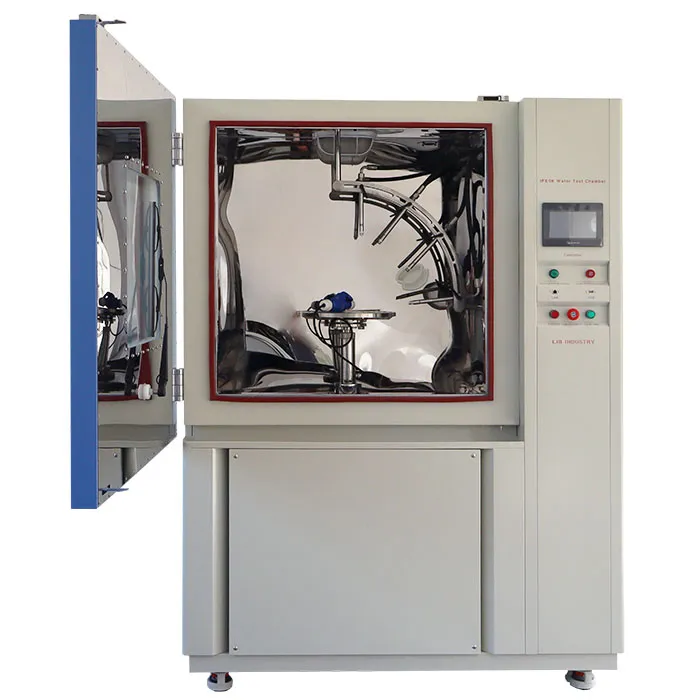

Before the test, the specimen is placed on the turntable designed M6 screw holes with screws to hold the specimen. When the Ipx9k test equipment is started, the water flow is controlled by the pressure gauge and the flow meter, a waterproof power connector on the turntable energizes the test piece.

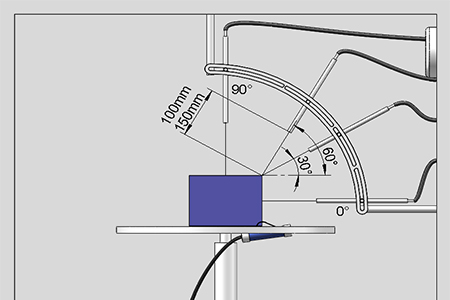

The water is sprayed from four angles of 0°, 30°, 60° and 90° respectively for 30 seconds in the Ipx9k test chamber. and water spray tests are performed at high pressure (8000-10000Kpa), high temperature (+88°C) and water flow rates of 14-16L/min, to test the water penetration resistance of products.
How to Choose Proper Ipx9k Test Equipment？
According to the size and number of test pieces, select the appropriate Ipx9k test equipment size, model R9K-1200 with 1200L interior volume which can satisfy most test pieces, meanwhile you can custom any size.
Capable of performing authoritative standard tests:optional Ipx9k steam chamber can meet further standards and protection levels, including ISO 20653, IPX1K to IPX6K, IPX1 to X8, SAE J 575, JIS D 0203, GMW16001, MIL STD 810 and more.
Water cycle system: a series of water pipes are arranged in the Ipx9k tesyer to form a water circulation system, which greatly reduces the water consumption.
