In the pharmaceutical industry, stability testing is not a routine laboratory task—it is a decisive step that directly impacts drug registration, shelf-life determination, and global market approval. Under the ICH Q1A(R2) guideline, regulatory authorities require scientifically sound, long-term stability data to demonstrate that a drug product maintains its quality, safety, and efficacy throughout its intended shelf life.

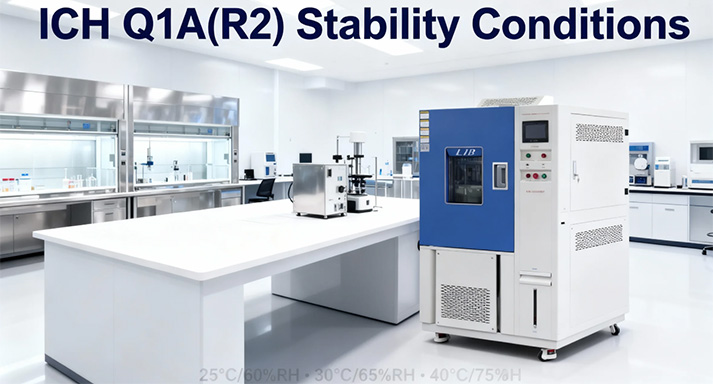

Typical ICH stability conditions include 25 °C/60 %RH, 30 °C/65 %RH, and 40 °C/75 %RH, often maintained continuously for 6, 12, or 24 months. During such extended test cycles, even small temperature or humidity deviations can invalidate data and force costly retesting—delaying submissions and increasing regulatory risk.
_Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration.jpg "ICH_Q1A(R2)_Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration.jpg")
For this reason, pharmaceutical companies increasingly recognize that the stability chamber itself plays a strategic role in accelerating drug registration. A chamber designed specifically for ICH Q1A(R2) compliance is not just a test instrument, but a critical assurance of data integrity. This is where LIB industry stability chambers deliver measurable value.
While ICH Q1A(R2) clearly defines temperature and humidity setpoints, it also implies strict performance requirements that are often underestimated:
Long-term operational stability: Continuous 24/7 operation over months or years
Tight control tolerances: Minimal fluctuation and deviation under dynamic laboratory conditions
Uniform environmental distribution: Consistent temperature and humidity across all shelf levels
Reliable data recording: Traceable, exportable, and auditable test records
In practice, these requirements translate into a need for advanced airflow design, high-accuracy sensors, robust materials, and intelligent control systems. Conventional environmental chambers may reach the required setpoints, but they often struggle to maintain uniformity and precision over long durations—especially when fully loaded with pharmaceutical samples.
LIB industry addresses these challenges by engineering stability chambers that not only meet ICH Q1A(R2) requirements, but exceed them in consistency, repeatability, and reliability.
At the core of every LIB industry stability chamber is a design philosophy focused on precision, durability, and regulatory confidence.

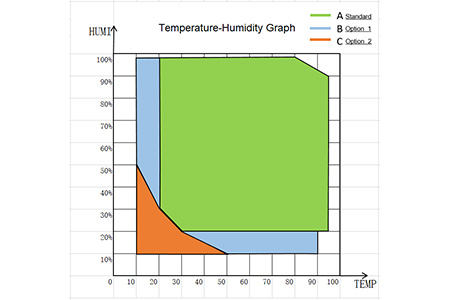

Temperature range: –20 °C to +150 °C (optional low-temperature versions down to –70 °C) Humidity range: 20 % to 98 %RH Temperature fluctuation: ±0.5 °C Maximum temperature deviation: ±2.0 °C Humidity accuracy: ±2.5 %RH | _Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration7.jpg "ICH_Q1A(R2)_Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration7.jpg") |
High-accuracy PT100 Class A sensors with ±0.001 °C resolution ensure stable monitoring and control throughout long-term stability programs.

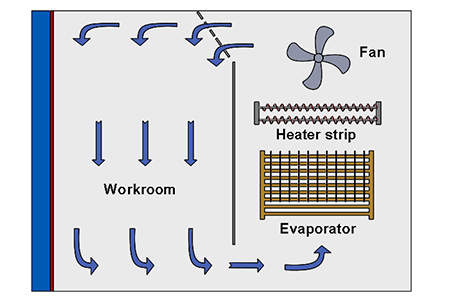

LIB industry stability chambers utilize a top air supply and bottom air return design, creating vertical forced convection. Built-in low-noise centrifugal fans—configured according to chamber volume—deliver large airflow capacity and uniform distribution.
This optimized airflow structure ensures:
Temperature uniformity within ±1 °C Humidity uniformity within ±3 %RH Faster stabilization during heating and high-humidity conditions | _Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration3.jpg "ICH_Q1A(R2)_Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration3.jpg") |
The result is consistent environmental exposure across all sample positions, a critical factor for reliable pharmaceutical stability data.

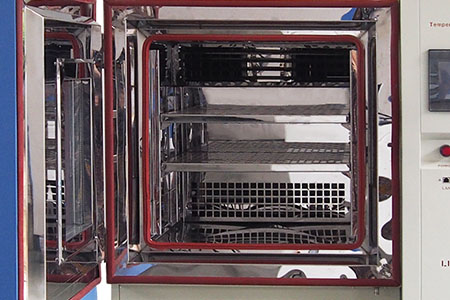

Interior: SUS304 stainless steel, corrosion-resistant and suitable for high-humidity environments Sample shelves: Perforated stainless steel trays, 50 kg load capacity per shelf, adjustable and customizable Door sealing: Double-layer silicone gaskets with concave-convex interlocking design to prevent heat and moisture leakage Viewing window: Double-glazed tempered glass with conductive anti-fog coating and LED lighting for real-time observation | _Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration4.jpg "ICH_Q1A(R2)_Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration4.jpg") |
An automatic water inlet system with condensate recovery ensures continuous humidity generation without frequent manual refilling—essential for long-term, unattended stability studies.

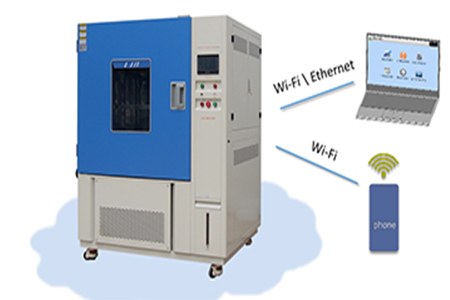

Programmable PID touchscreen controller Up to 120 programs with 100 steps each Ethernet and USB connectivity for remote monitoring and data export One computer can manage multiple chambers simultaneously | _Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration5.jpg "ICH_Q1A(R2)_Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration5.jpg") |
These features simplify data collection and reporting, supporting compliance with pharmaceutical documentation and audit requirements.

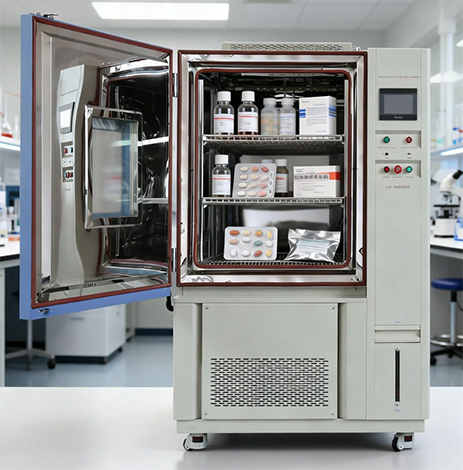

By combining precision control, structural reliability, and intelligent automation, LIB industry stability chambers help pharmaceutical companies reduce risk and shorten timelines:
_Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration2.jpg "ICH_Q1A(R2)_Compliance_Guide_How_LIB_Industry_Stability_Chambers_Accelerate_Pharmaceutical_Registration2.jpg")
Lower deviation rates minimize test failures and eliminate unnecessary retesting
Large-capacity configurations (100 L to 1000 L and beyond) enable parallel testing of multiple batches and packaging formats
Stable long-term operation protects critical stability data throughout 6–24 month programs
Automated data logging and export streamline dossier preparation for regulatory submission
In real-world pharmaceutical laboratories, these advantages translate into 20–30 % shorter stability study cycles, higher data acceptance rates, and smoother regulatory reviews.
For ICH Q1A(R2) stability studies, reliability over months and years is essential. LIB industry stability chambers are backed by a 3-year warranty, long-term technical support, and 1–3 hour remote response to minimize test interruptions. Standardized spare parts are available through global service channels, typically delivered within 7–15 days, helping ensure stable operation throughout 6–24 month pharmaceutical stability programs.
Contact LIB industry inquiry@libtestchamber.com to discuss a stability chamber solution designed for compliant, continuous, and reliable drug stability testing.
