Walk-in Dust Test Chamber

Name: Walk-in Dust Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The walk-in dust test chamber is designed for large products or batch samples’ IP5X, IP6X verification in industries such as automobiles, electrical and electronic engineering, and defence. The walk-in dust test chamber integrates multiple dust conveying and circulation devices to achieve high-consistency dust environment(2kg/m³-4kg/m³),maintaining a stable dust particle concentration and air flow distribution in a large workroom. Meanwhile, its structure facilitates the direct entry of the entire vehicle or large samples.

Standard: IEC 60529, IP5X, IP6X, ISO20653, IEC 60068-2-68, IEC 60598, MIL-STD-810

Features and Benefits of Walk-in Dust Test Chamber

1. Multiple dust outlets, dust is evenly distributed into the working area through a distributed system to ensure that each test area can achieve a consistent dust concentration.

2. Multiple dust circulation loops operate independently of each other, enabling rapid recovery and re-delivery, and enhancing the utilization rate of dust.

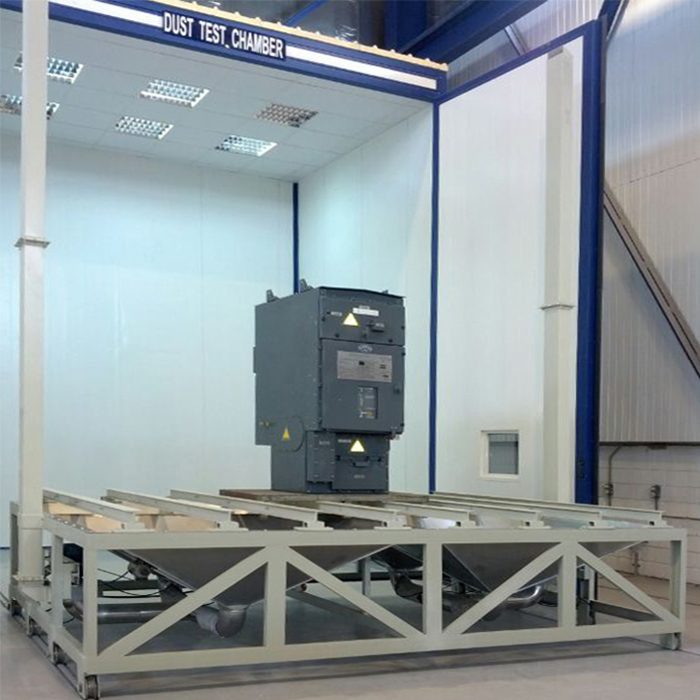

3. Large workroom design can accommodate the simultaneous testing of complete vehicles, or multiple samples, significantly enhancing the testing efficiency and flexibility.

4. Strengthened sealing design effectively prevents dust leakage or environmental interference, ensuring the safety and stability of the test process.

Specifications of Walk-in Dust Test Chamber

Name	Walk-in Dust Test Chamber
Temperature Range	Ambient ~ +50℃
Humidity Range	< 30% RH
Normal Wire Diameter	50um
Nominal Width of a Gap Between wires	75um
Fight Time	0 ~ 99H59M
Blowing Time	0 ~ 99H59M
Specimen Power Outlet	Dust-proof socket 16A
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection
Exterior Material	A3 Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Standard Configuration	Sample shelf, dust wiper, talcum powder(5kgs)
Power	AC380V 50Hz

Configuration of Walk-in Dust Test Chamber

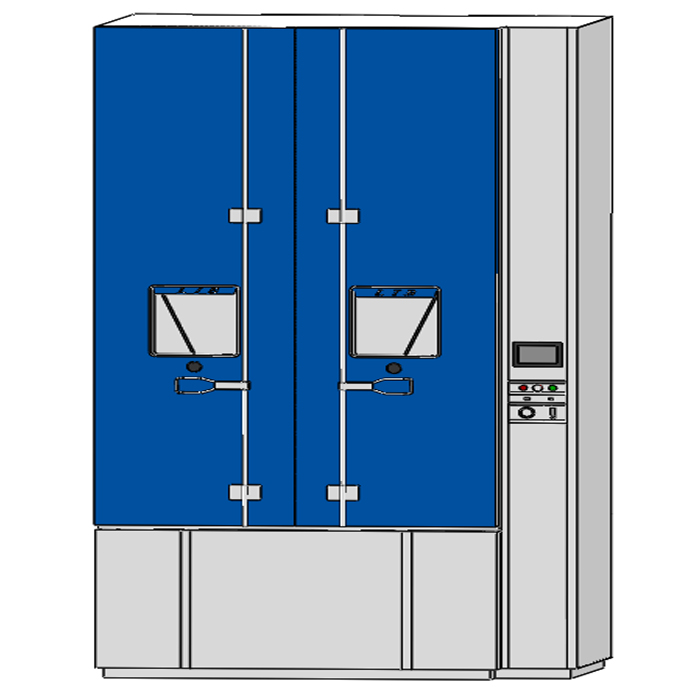

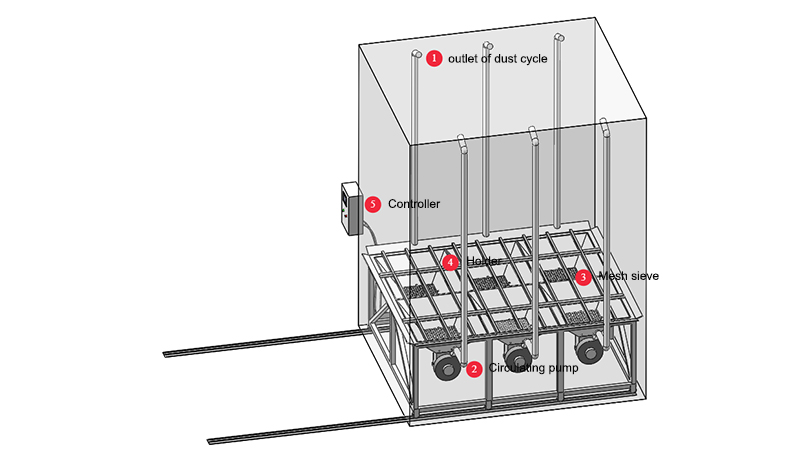

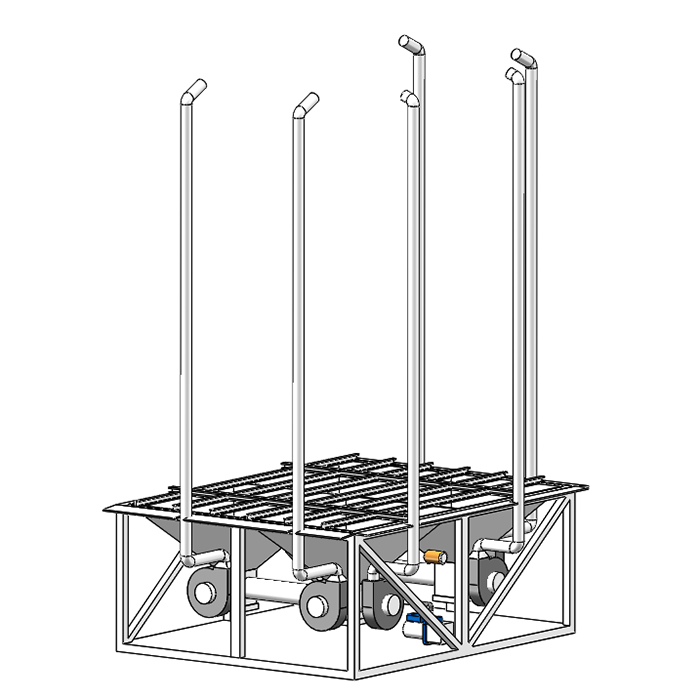

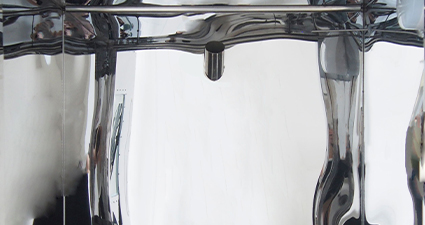

① outlet of dust cycle	Multiple dust outlets are flexibly distributed according to the size of the working chamber and the testing requirements. High-pressure air flow conveys dust, achieving a spray speed of ≥ 1.5m /s, ensuring uniform diffusion of dust in a large space.

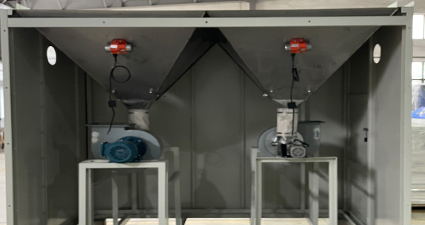

② circulating pump	Ensure that the airflow in the workroom is strong and stable, operates with low noise, and at the same time achieve uniform distribution and rapid circulation of dust.

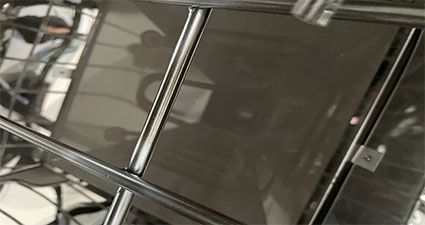

③ mesh sieve	The screen mesh diameter is generally 75μm to separate impurities and large particles, preventing clogging of the dust delivery system and simultaneously enhancing the secondary utilization rate of dust.

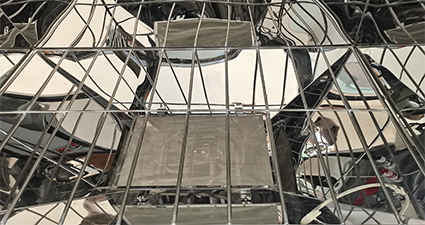

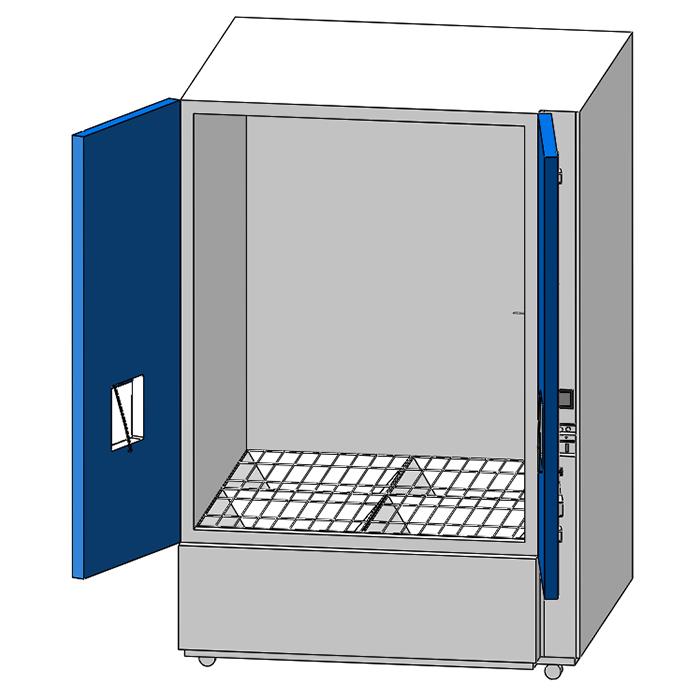

④ holder	High load-bearing capacity and is suitable for placing various test samples such as electrical control modules, lamps, and electronic components. High-strength SUS304 frame, and fixtures can be customized according to DUT.

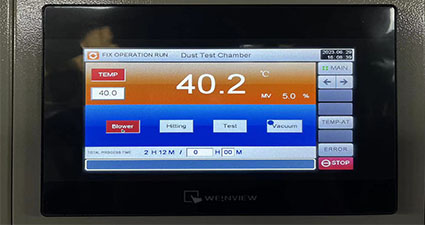

⑤ controller	The PLC programmable touch controller controls the dust ejection time, vacuum pumping and circulation system. It features real-time curve display, test data export and other functions, and can be remotely connected to a PC.

The size of the walk-in dust test chamber, the number and position of the dust outlet, the controller, etc. can all be customized. Please leave your testing requirements and the LIB team will contact you soon.
