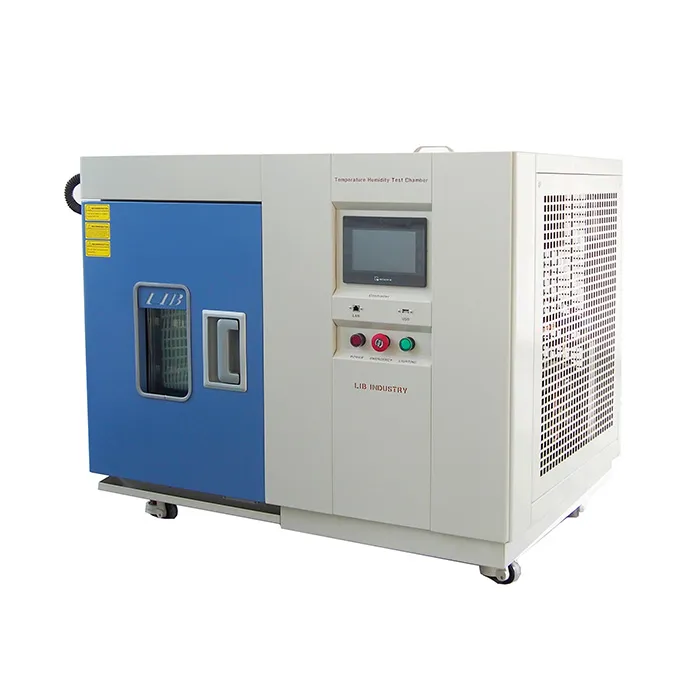

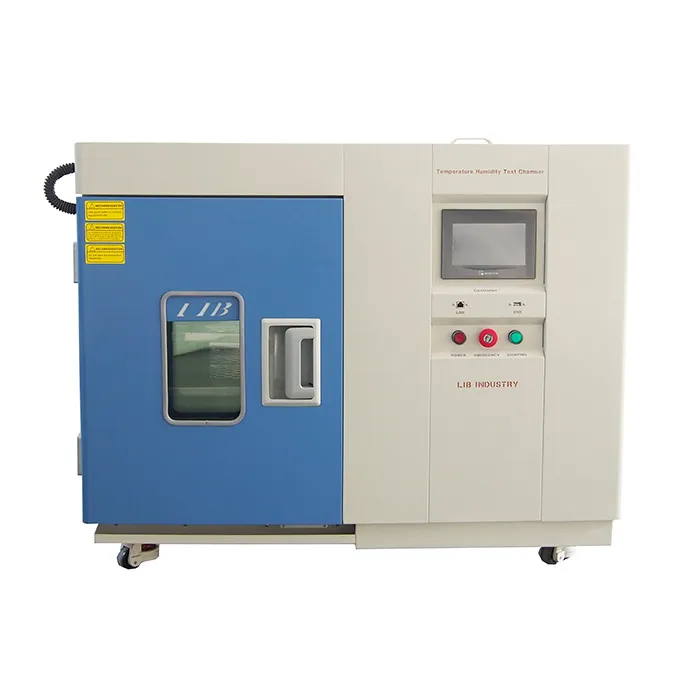

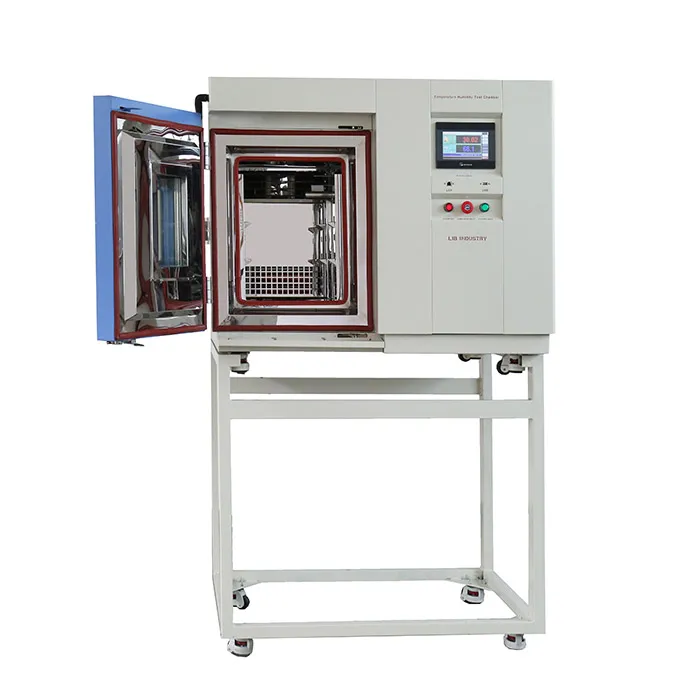

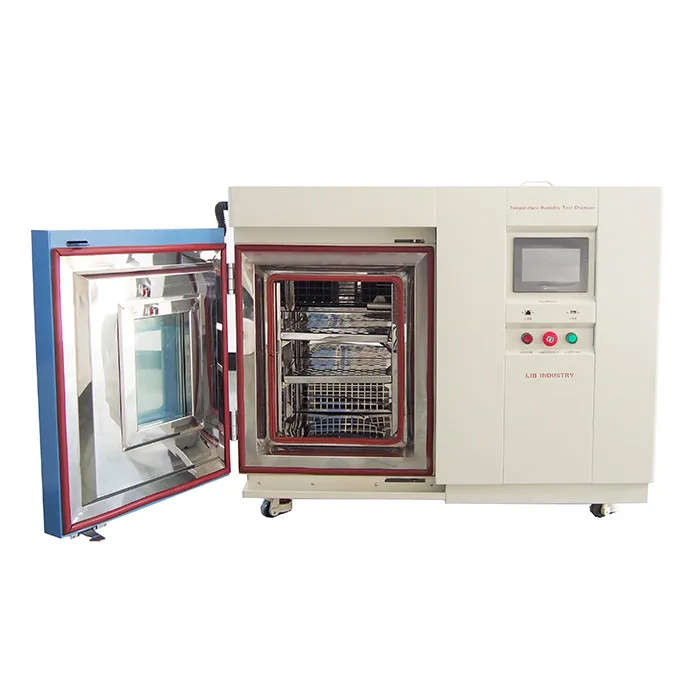

Mini Environmental Test Laboratory Kit

Small Footprint, Powerful Performance — Built for Advanced Reliability Testing

LIB industry mini environmental test laboratory kit greatly meet the compact space requirements of laboratories and R&D offices, providing a high-precision temperature and humidity simulation environment. With an industrial-grade PID control system and energy-efficient cooling tech, it offers performance comparable to larger equipment within a small footprint. It accurately simulates extreme climatic conditions, ensuring reliable and repeatable test data.Its low-noise design and standard power supply compatibility allow it to be deployed directly on an engineer's desk, significantly reducing sample handling time.

The mini environmental lab kit features an intuitive touchscreen for complex cyclic test program setup and achieve real-time data recording and monitoring,and multiple safety protections for stable long-term operation., making it ideal for accelerating product iteration and R&D.


Models Available:TH-50, TH-80

Standards Compliant: IEC 60068 | ISO 16750  | MIL-STD-810H | MIL-STD-883 | JEDEC JESD22 | SAE J1211 | LV124 | LV148 | ASTM D4332 | ASTM D1748 | ICH Q1A (R2) /IEC 17025 | ISO 2247

Core Advantages of the Mini Environmental Test Laboratory Kit

1. Maximized Space Efficiency

Designed as a true desktop environmental test solution, this mini environmental test laboratory kit occupies minimal space and can be placed directly on a workbench. Engineers can monitor test samples in real time without leaving their workstation.

2. Industrial-Level Precision Control

Equipped with advanced PID fuzzy control algorithms, the system ensures:

  • Temperature fluctuation: ±0.5°C

  • Humidity fluctuation: ±2% RH

This guarantees stable and repeatable test results for high-precision applications.

3. Low Noise & Energy Saving

Optimized for laboratory and office environments:

  • Inverter compressor technology

  • Noise level < 65 dB

  • Reduced power consumption compared to traditional chambers

4. Smart Connectivity & Data Management

  • RS485 / Ethernet communication

  • Automatic data export (Excel format)

  • Remote monitoring via PC or mobile devices

  • Real-time alarm notifications


Specifications of Mini Environmental Test Laboratory Kit

Model

TH-50

TH-80

Internal Dimension (mm)

320*350*450

400*400*500

Overall Dimension (mm)

820*1160*950

900*1210*1000

Interior Volume

50L

80L

Heat load

1000W

Temperature Range

A : -20℃ ~ +150 ℃ B : -40℃ ~ +150 ℃ C: -70℃ ~ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min

Cooling system

Mechanical compression refrigeration system

Controller

Programmable color LCD touch screen controller.Ethernet connection

Safety Device

Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection;

Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Thermal Insulation

Polyurethane foam and insulation cotton


Key Functional Features of  Mini Environmental Test Laboratory Kit

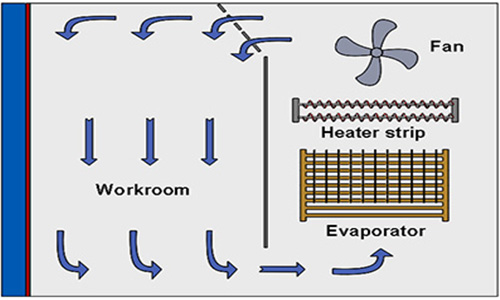

Optimized Airflow Circulation Design

The patented rear air supply system ensures uniform airflow distribution, maintaining consistent environmental conditions even with multiple samples inside the chamber.

  • Temperature uniformity: ±2.0°C

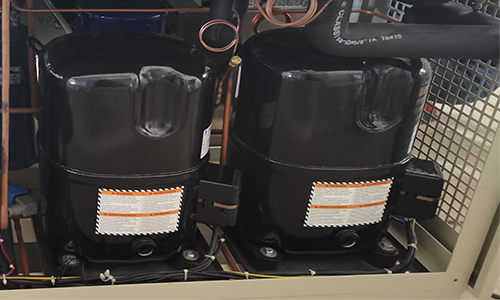

High-Efficiency Refrigeration System

Equipped with Tecumseh (or equivalent) compressor and eco-friendly refrigerants:

  • Fast cooling performance

  • Stable long-term operation

  • Compliance with international environmental standards

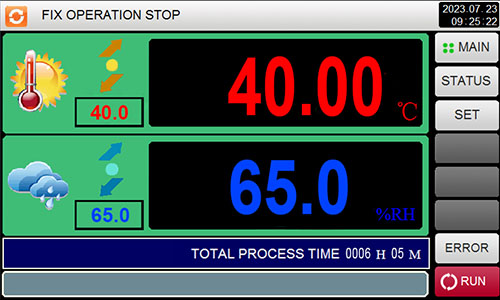

Advanced Control System

A 7-inch industrial-grade touchscreen controller supports:

  • 100 programmable profiles

  • Up to 120 steps per program

  • Real-time curve display for temperature and humidity

This allows precise simulation of complex environmental conditions.

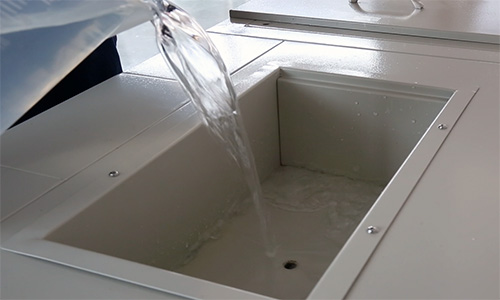

Water Supply System

Manual water filling as standard configuration. Automatic water supply is optional, allowing connection to an external water source for continuous operation.

  • Standard manual water filling

  • Optional automatic water supply system

  • Supports direct connection to external water source

  • Suitable for long-duration testing applications


Quality Assurance

Calibration & Certification

Each unit is delivered with a third-party calibration report, meeting audit and compliance requirements.

After-Sales Service

  • 3-year warranty Lifetime technical support

  • Global service network and local partners


Why Choose LIB Industry?

LIB industry provides turn-key environmental testing solutions, including:

  • Custom design

  • Manufacturing

  • Installation & commissioning

  • Training & after-sales support

We specialize in mini environmental test laboratory kits tailored for modern laboratories, ensuring flexibility, precision, and long-term reliability.

Contact LIB industry today to customize your mini environmental test laboratory kit.Get your quotation now and upgrade your lab efficiency.
