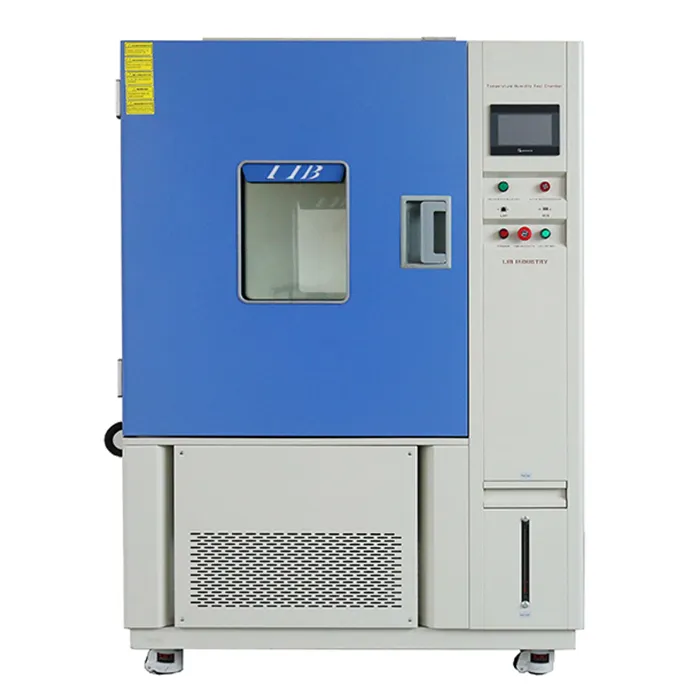

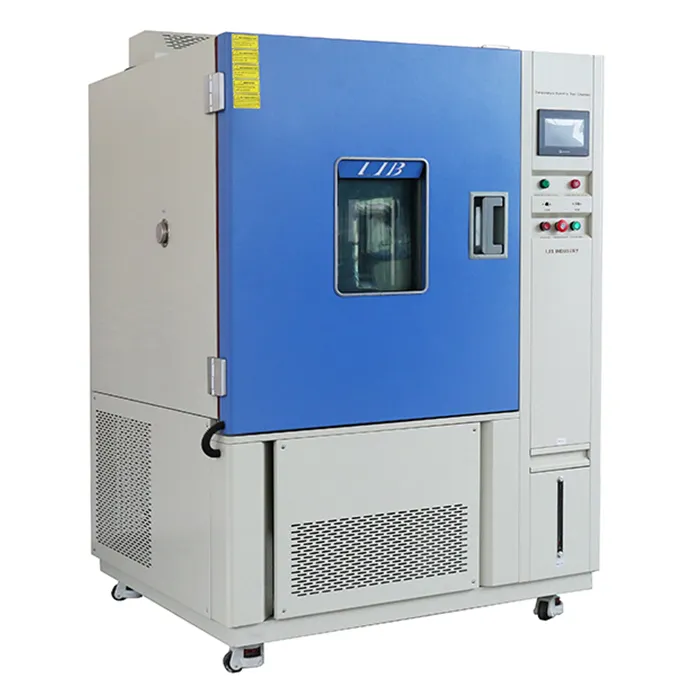

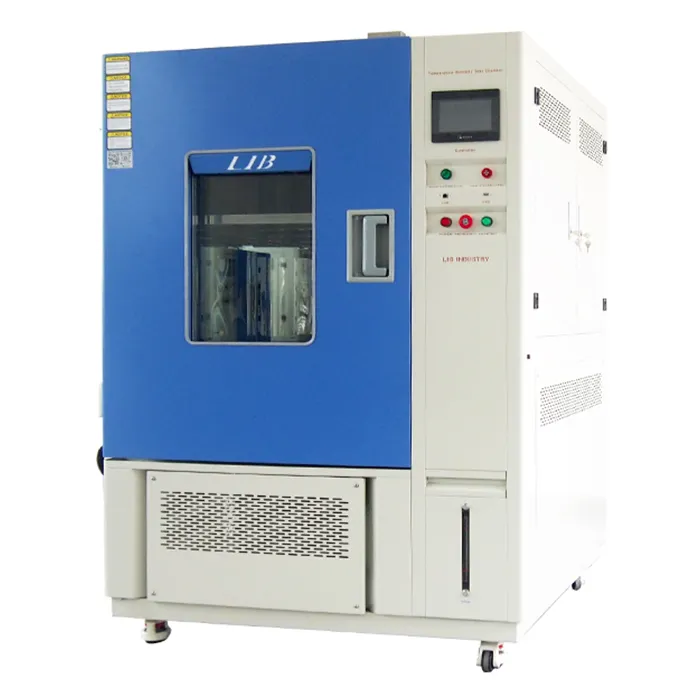

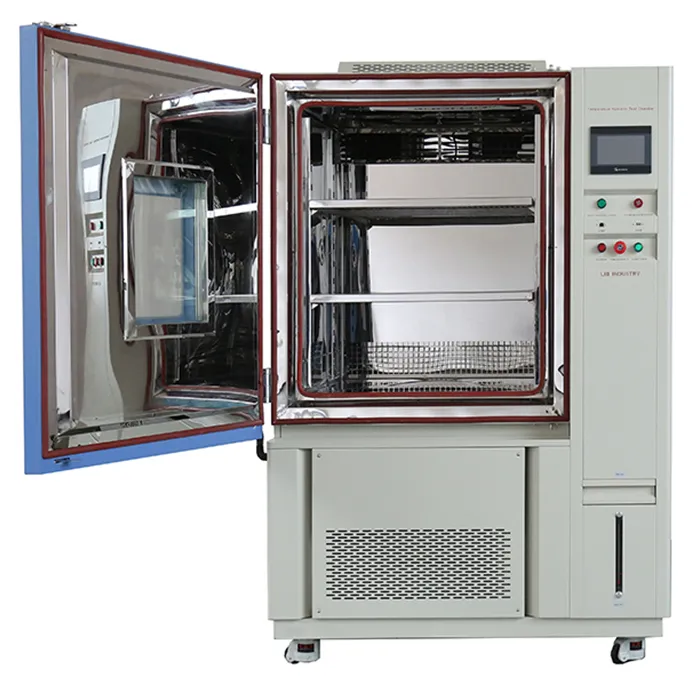

Shelf Life Test Chamber

Name: Shelf Life Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The shelf life test chamber can precisely control temperature and humidity (-70/-40/-20℃ to +150℃, 20%RH to 98%RH). Its design aims to simulate storage and shelf conditions to evaluate the stability and lifespan of products. By precisely controlling temperature and humidity, it helps manufacturers understand the performance of products such as medicines, food, cosmetics, and packaging materials over time. These testing chambers can simulate long-term or accelerated aging conditions.

Multiple standard models meet the testing requirements for different sizes of samples, and environmental parameters such as lighting and spraying can also be customized.

Optional Models : TH-50,TH-80,TH-100A, TH-225A, TH-800A, TH-1000A and more .

Applicable Standards:UL 2580,SAE J2464,IEC 60086-4,UL 1642,IEC 61215,IEC 62717,VW 80000,ICH Q1A and etc.

Shelf Life Test Chamber Features and Benefits

1. Precise environmental control

Utilizing high-precision sensors and PID control systems, the temperature accuracy can reach ±0.5℃ and the humidity accuracy ±2%RH, ensuring the reliability and consistency of the test results.

2. Flexible testing capabilities

The shelf life test chamber can conduct long-term stability tests and accelerated aging tests, applicable to multiple industries such as pharmaceuticals, food, and cosmetics.

Supports multi-segment program control to meet different testing conditions and research requirements.

3. Customizable lighting function

Optional lighting or UV light source modules can be selected for light stability or light aging tests, simulating the actual storage or shelf lighting environment.

4. Data traceability and batch management

The shelf life test chamber has batch management, alarm recording, and remote monitoring functions, facilitating production enterprises to conduct long-term quality tracking of different batch numbers of products.

Technical Specification of Shelf Life Test Chamber

Model	TH-100	TH-225	TH-500	TH-1000
Internal Dimension (mm)	400500500	500600750	700800900	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	150015402140
Interior Volume	100L	225L	500L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Controller	Programmable color LCD touch screen controller,PC Link, LAN interface for remote control
Cooling system	Mechanical compression refrigeration system
Refrigerant	Environmentally friendly refrigerant
Water supply system	Automatic water supply; Water purification system
Safety device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection;
Interior Material	SUS304 stainless steel
Exterior Material	Steel Plate with protective coating

Details of Shelf Life Test Chamber

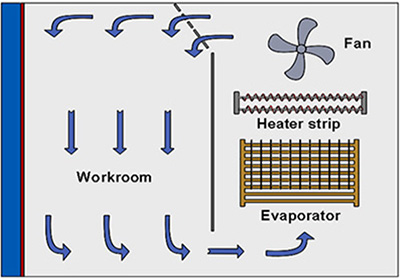

Workroom	Air Circulation System

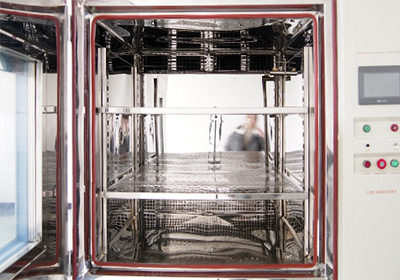

The stainless steel SUS304 internal structure is sturdy, durable, and easy to clean. Standard features include double-layer adjustable shelves with a load capacity of 50KG, allowing for flexible placement of samples. A 10CM thick insulation layer ensures stable temperature and humidity levels.	The centrifugal ventilation system ensures uniform airflow distribution throughout the laboratory. It minimizes temperature and humidity differences, ensuring consistent test conditions.

Manual/Automatic Water Supply	Door Sealing Gasket

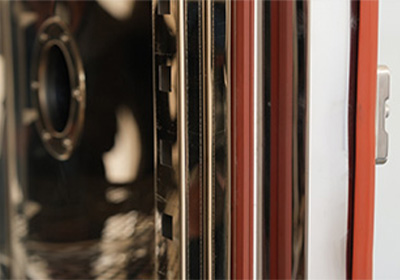

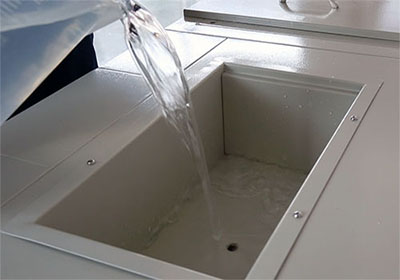

An internal large-capacity water tank, and the automatic water supply system can be directly connected to the water source, enabling continuous humidity control. A manual water addition option is available for small-scale or short-term testing. An integrated water level sensor prevents the equipment from running dry and ensures safety.	Multiple layers of high-elastic rubber sealing gaskets prevent the leakage of temperature and humidity and can withstand frequent opening and closing operations.

Controller	Cooling system

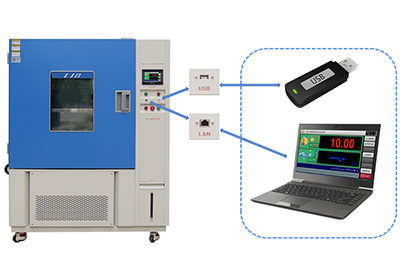

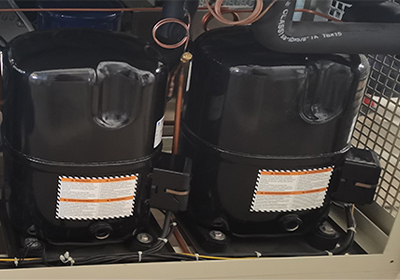

The touch screen programmable controller enables precise temperature and humidity settings (with multi-step programming). It features data recording, USB/ethernet export, and alarm functions, facilitating monitoring and meeting GMP/ICH standards.	The efficient and environmentally friendly refrigerant meets the GWP requirements. It adopts mechanical refrigeration, with fast and stable refrigeration efficiency. If necessary, a two-stage refrigeration technology can be adopted to enhance the low-temperature refrigeration capacity.

In addition to standard models, the Shelf Life Test Chamber can be built as a walk-in type, perfect for high-volume sample testing and bulk storage studies. Backed by LIB’s one-stop solution, every system comes with a 3-year warranty and lifetime service support.

Tell us your testing needs today – LIB will respond within 24 hours to provide the right solution for you.

LIB Team will send you specs and quote today.
