In today’s fast-paced industrial world, product reliability and performance are no longer optional—they are essential. Whether you are testing electronics, automotive components, aerospace materials, or coatings, your products must withstand real-world environmental conditions. A Walk in Climate Chamber provides the ultimate solution, allowing engineers and technicians to test full-size products, entire assemblies, or multiple samples simultaneously in a controlled environment. Unlike small benchtop or standard vertical chambers, walk-in chambers offer space, precision, and flexibility for large-scale testing, making them indispensable for modern industrial labs.
At LIB industry, we offer a full series of temperature and humidity chambers, from compact benchtop units to standard vertical models and large walk-in chambers, providing solutions that scale from research and development to full-scale production validation.
A Walk in Environmental Chamber is a large environmental test chamber designed for simulating precise temperature and humidity conditions over extended periods. Its step-in design allows engineers to test oversized equipment or multiple samples at once, which would be impossible in conventional benchtop or vertical chambers.
Walk-in chambers are particularly suitable for:
Full-size electronic devices and assemblies
Automotive components, including EV battery packs
Aerospace materials and critical defense components
Large materials or coatings samples
Standards Compliance:
IEC 60068-2-38: Environmental testing for temperature and humidity cycling
MIL-STD-810G: Military standard for environmental stress testing
GB/T 2423.1–2423.4: Chinese national standard for environmental testing
ISO 9001 & ISO 14001: Quality and environmental management standards
These certifications ensure reliable, reproducible results that meet industry expectations, giving engineers and product developers confidence in their testing outcomes.
 |  |
Model | WTH-0015C |
Temperature range | -60℃ ~ +150℃(customizable) |
Humidity range | 20% ~ 95% RH(customizable) |
Temperature fluctuations | ± 2.0℃ |
Humidity fluctuations | ± 2.5% RH |
Heating rate | 3℃ / min |
Cooling rate | 1 ℃ / min |
Controller | Programmable color LCD touch screen controller; Ethernet port |
Cooling system | Mechanical compression refrigeration system |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior material | Steel Plate with protective coating |
Interior material | SUS304 stainless steel |
SUS304 Workspace |

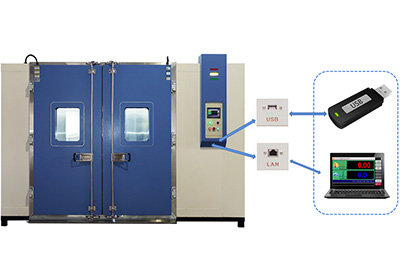

Remote Control & Data Export |

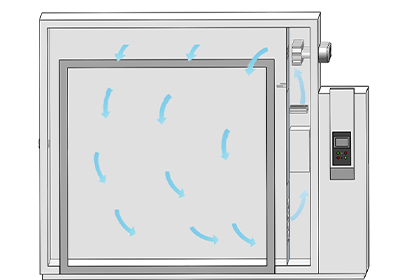

Air Circulation Ensures Uniform Temperature and Humidity |

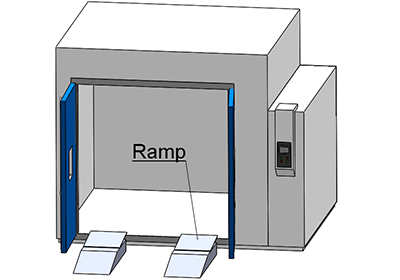

The Slope Design Makes It Easy for the Cart to Enter |
The performance of a walk-in climate chamber relies on precise control systems for temperature, humidity, and airflow.
Temperature Control
Range: -70/-40/-20°C to 150°C
Ramp Rate: 1–5°C/min
Compressor Options: Bitzer, Tecumseh, or Danfoss for high reliability
Cooling Systems: Choice of air-cooled or water-cooled configurations to match facility requirements and maximize energy efficiency
Humidity Control
Range: 20%–98% RH
Accuracy: ±2% RH
Continuous monitoring with automatic compensation maintains uniform conditions during long-term or cyclical testing.
Airflow and Circulation
High-efficiency forced-air circulation ensures temperature uniformity of ±2°C and humidity uniformity of ±2.5% RH
Eliminates hotspots or uneven conditions, ensuring every sample experiences the same environment
Control and Monitoring
PLC-controlled touchscreen interface for programmable operation
Remote monitoring and automated data logging for continuous oversight
Alarm systems notify users if environmental conditions exceed set parameters
These systems ensure that large products and assemblies are tested under stable, reproducible conditions, reducing the risk of product failure during real-world use.
LIB industry walk-in climate chambers are designed to accommodate large products and adapt to unique testing requirements.
Large Capacity & Flexible Layouts
Sample racks support up to 500 kg per shelf
Mobile trolleys facilitate the movement of heavy or oversized equipment
Custom ramps ease loading and unloading
Interior made of SUS304 mirror stainless steel, offering durability, corrosion resistance, and ease of cleaning

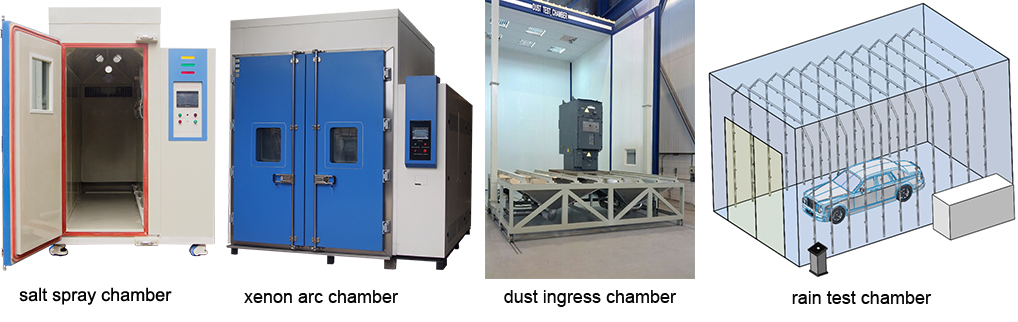

Optional Modules
Salt Spray Corrosion Testing for metal components
Dust and Sand Testing to simulate outdoor environments
Rain Simulation for testing waterproof enclosures and IP-rated components
Modular design allows multiple environmental simulations in one chamber
Energy Efficiency & Reliability
High-efficiency compressors and optimized heat exchangers reduce energy consumption by 20–30%
Air-cooled or water-cooled options maximize operational efficiency
Long-life components minimize downtime and maintenance
These features ensure that LIB industry walk-in chambers provide precise environmental conditions while accommodating the unique requirements of different industries.
Installing a walk-in climate chamber is a complex task due to its large size and the need for precise environmental control. At LIB industry, we provide full door-to-door services, ensuring a smooth, hassle-free experience from start to finish.Thanks to its modular design, customizable openings, and large internal capacity, the LIB walk-in climate chamber is widely used across multiple industries, providing both high-volume and ultra-large specimen testing in a single environment.Click here to learn how LIB industry successfully delivered a 98 m³ ultra-large walk-in climate chamber
Our comprehensive service includes:
Design Consultation: Tailored solutions to meet your testing requirements, chamber size, and facility constraints
Site Selection Support: Recommendations for optimal placement, considering floor load, accessibility, and utilities
Transport & Modular Assembly: Safe modular shipment and on-site assembly for large or ultra-large chambers
Installation: Complete setup including leveling, internal layout configuration, and safety compliance
Utility Connections: Professional water, air, and electrical hookups to ensure walk-in chamber performance and reliability
Commissioning & Testing: Full system calibration, control verification, and trial operation to confirm specifications are met
On-site Training: Comprehensive training for your operators and maintenance personnel, ensuring they can safely and efficiently operate the walk-in climate chamber
With years of experience in delivering large-scale, customized environmental testing solutions, LIB industry guarantees that even the most complex walk-in climate chambers are installed efficiently, reliably, and ready for immediate use.LIB industry – From design to full operation, we handle every step of your walk-in climate chamber installation. Your testing solution, delivered turnkey.
LIB industry provides a complete lineup of environmental chambers to meet diverse testing needs:
TH-50 TH-80 Small Benchtop Chambers: Compact, cost-effective, ideal for R&D and early-stage development
Standard Temperature Humidity Chambers: Medium-sized, suitable for batch testing and routine aging studies
Walk in Climate Chambers: Large, customizable, with step-in access and optional modules
This product lineup ensures consistency across all stages of product development, enabling labs to scale testing from prototype to full-scale production without changing platforms.
|
|
Electronics & Semiconductors
Simultaneous testing of large PCBs, sensors, and full assemblies to improve efficiency and consistency
Modular design enables on-site assembly for bulky equipment
Custom openings and layouts support complex products without affecting airflow uniformity
Automotive & Battery Testing
Batch testing of EV battery packs and automotive electronics for high-throughput validation
Supports ultra-large components with realistic temperature and humidity cycling
Trolleys and racks ensure efficient loading and organization
Aerospace & Defense
Reliable testing of large aerospace and military components under extreme conditions
Custom access ports allow real-time monitoring and instrumentation integration
Modular transport and assembly adapt to oversized equipment requirements
Materials & Coatings
Evaluation of metals, panels, and coatings under controlled environmental conditions
Optional salt spray, dust & sand, and rain modules simulate real-world environments
Suitable for both high-volume testing and oversized specimens
With modular transport, large capacity, customizable openings, and multi-environment integration, LIB walk-in climate chambers enable efficient testing of both high-volume and ultra-large specimens.
A Walk in Climate Chamber from LIB industry provides unmatched capacity, precision, and customization for large-scale environmental testing. From electronics to automotive components, aerospace materials, and coatings, these chambers ensure that products are tested under real-world conditions to deliver consistent, reliable performance.
LIB’s full series of temperature and humidity chambers—from small benchtop units to standard vertical and walk-in models—offers a comprehensive solution for any stage of product development. Each chamber is built to meet international and national standards, including IEC, MIL-STD-810G, and GB/T, guaranteeing accurate, reproducible results.
Contact LIB industry today to design your custom Walk in Climate Chamber or select the ideal model from our complete series.
Enjoy 3-year warranty, lifetime support, and expert engineering guidance for your environmental testing needs.
