In today’s competitive manufacturing landscape, ensuring that products meet stringent dust‑ingress requirements is essential—whether you’re producing consumer electronics, medical devices, or aerospace components.
At LIB, we specialize in IP dust test chambers designed to replicate real‑world dusty environments and verify compliance with international Ingress Protection (IP) standards. In this article, we’ll explore the critical differences between the IP5X and IP6X tests, walk you through their individual procedures, examine ideal application scenarios, and provide guidance on selecting the right equipment for your testing needs.

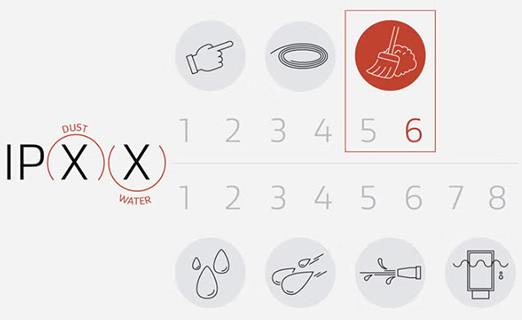

The IEC 60529 standard defines the IP (Ingress Protection) rating, which classifies the degree of protection provided by enclosures against solids and liquids. An IP rating consists of two digits:
First digit (0–6): Solid‑particle protection, where 5 and 6 relate specifically to dust resistance.
Second digit (0–9): Liquid‑ingress protection, which is not our focus here.
IP Code Definitions:
First Digit | Protection Level | Description |
5 | Dust‑protected (IP5X) | Limited dust ingress permitted; no harmful deposits. |
6 | Dust‑tight (IP6X) | No ingress of dust; complete protection. |
An IP5X rating indicates that while dust cannot enter in harmful quantities, a small amount may pass through. Key characteristics:
Dust Source: Standardized test dust with particle sizes up to 75 µm.
Test Duration: At least 8 hours of continuous exposure.
Dust Concentration: Minimum of 2 kg/m³ within the chamber.
Rotation: The specimen is often mounted on a turntable rotating at 1 rpm to ensure uniform exposure.
Seal Requirements: Gaskets and enclosure designs must prevent dust accumulation that could interfere with operation, but perfect sealing is not mandatory.
Typical Applications:
Indoor electronics (e.g., home appliances, office equipment)
Automotive interiors (e.g., dashboard components)
Enclosures in mildly dusty industrial settings
A device rated IP6X is tested to prove that no dust enters under specified conditions. Its procedure is more rigorous:

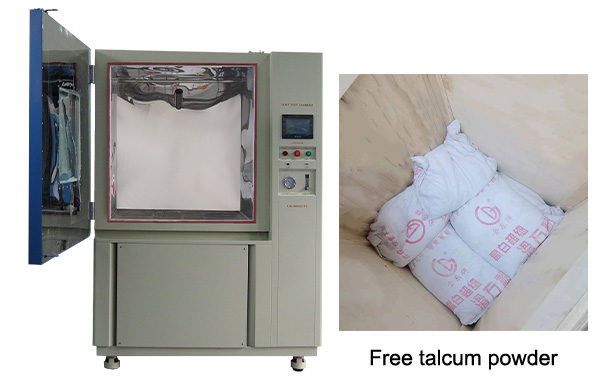

Dust Source: Finer test dust (often talcum powder) to challenge even the smallest gaps.
Test Duration: Minimum 8 hours, though some industries specify 16 hours for extra certainty.
Dust Concentration: At least 2 kg/m³, identical to IP5X but with finer particles.
Chamber Vacuum: Prior to dust introduction, a slight vacuum is sometimes applied to simulate pressure differentials.
Rotation: As with IP5X, a rotating turntable ensures 360° exposure.
Seal Requirements: Enclosures must be engineered to an almost hermetic level, using precision‑fitted seals, welded joints, or overmolded housings.
Typical Applications:
Outdoor lighting fixtures
Aerospace instrumentation
Harsh‑environment sensors (e.g., oil & gas, mining)
Test Parameter | IP5X (Dust-Protected) | IP6X (Dust-Tight) |
Dust Particle Size | ≤ 75 µm | Often ≤ 50 µm (talcum powder) |
Test Duration | ≥ 8 hours | ≥ 8 hours (some specs 16 h) |
Dust Concentration | ≥ 2 kg/m³ | ≥ 2 kg/m³ |
Chamber Vacuum | Not typically applied | Optional/slight vacuum step |
Seal Integrity | Good, but minor ingress allowed | Near‑perfect sealing required |
Typical Industries | Office, light industry | Aerospace, outdoor, mining |
Preparation
Dust Introduction
Test Run
Inspection
Pre‑Test Vacuum
Dust Introduction
Extended Duration
Post‑Test Evaluation
Consumer Electronics: Laptops or smartphones often need only IP5X.
Outdoor Lighting: Requires IP6X for desert and windy environments.
Medical Devices: IP6X needed for contamination control.
Aerospace Components: Typically require IP6X validation.

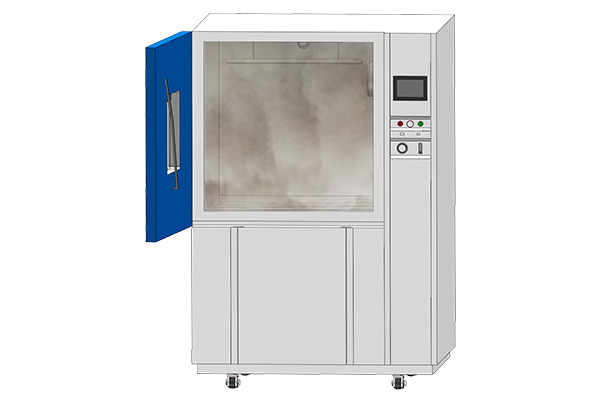

When selecting an IP Dust Test Chamber, consider these factors:
1. Performance Specs:
Dust concentration control ±5%
Turntable speed accuracy
2. Chamber Volume:
Small workroom units (500L 800L 1500L and etc) vs. walk‑in models (>1 m³)
3. Dust Handling & Recycling:
Built‑in cyclone separators for dust reuse
4. Automation & Data Logging:
PLC control with real‑time monitoring
5. Brand & Service:
LIB offers calibration, maintenance contracts, and global support.
Pro Tip: If your product must pass both IP5X and IP6X, opt for a chamber capable of switching between dust types and test profiles automatically.
1.“Can I upgrade an IP5X chamber to IP6X?”
Yes—by adding finer dust filtration, improving seals, and enabling a slight vacuum step.
2. “What maintenance does a dust test chamber require?”
Regular dust removal, gasket inspection, and turntable motor check.
3. “Are there health concerns handling test dust?”
Yes—use PPE, extraction systems, and proper disposal methods.
Choosing between IP5X and IP6X testing hinges on your product’s intended operating environment and the level of dust‑protection required. IP5X offers a cost‑effective solution for moderately dusty conditions, while IP6X provides airtight assurance for the harshest environments.
As you evaluate testing protocols and equipment, remember that LIB's IP dust test chambers are engineered for flexibility, precision, and long-term reliability—backed by comprehensive support and industry expertise.
Ready to discuss your specific dust-ingress requirements? Contact your LIB inquiry@libtestchamber.com representative today to design the perfect testing solution and obtain best quote for your needs.
