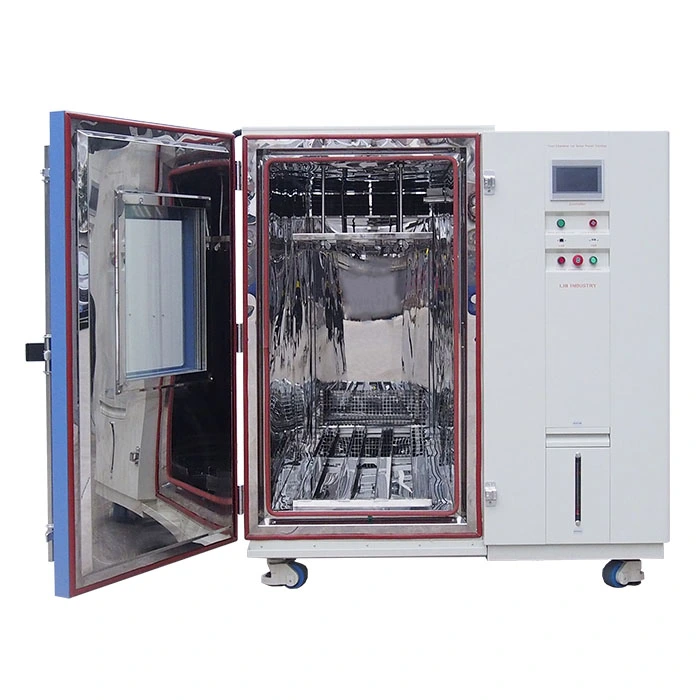

85°C 85%RH Constant Climate Chamber

Name: 85°C 85%RH Constant Climate Chamber
Brand: Xi'an LIB Environmental Simulation Industry

Reliability Testing for PV Modules | Compliant with IEC 61215 & IEC 61730 | Damp Heat Test

In the solar industry, long-term durability is non-negotiable. The 85°C 85%RH constant climate chamber is engineered specifically for the Damp Heat (DH) Test(high-temperature and high-humidity environment), simulating extreme tropical environments to evaluate a PV module's resistance to delamination, moisture ingress, thermal stress and material aging during long-term use.

Designed for continuous operation of 1000 to 2000 hours, our chambers provide the rock-solid stability required by global certification bodies.

Model: DHPV-02/04/06/08,PV-02/04/06/08

Standard: ,IEC 62804,IEC 61215,IEC 61646,IEC 61730,UL 1703,JIS C-8990,C-8991,C-8917,C-8938

Features and Benefits of 85°C 85%RH Constant Climate Chamber

1. Extreme Stability for Long-Term Tests:

Precisely maintains 85°C and 85% RH with minimal fluctuation. Our PID control logic ensures that environmental parameters remain constant over months of uninterrupted testing.

2. Optimized for Large-Scale PV Panels:

The spacious interior is designed to house standard 1m x 2m solar modules. The adjustable SUS304 stainless steel racks allow for vertical placement, maximizing airflow and testing efficiency.

3. Anti-Corrosion & Anti-Condensation:

The interior is constructed from high-grade laser-welded stainless steel to resist long-term humidity. A specialized air circulation system prevents condensation droplets from falling onto the cells, ensuring test integrity.

4. Intelligent Control & Data Logging:

Features a multi-language color touchscreen controller. Program complex cycles and export critical test data via USB or Ethernet for full traceability—essential for R&D and third-party labs.

International Standard Compliance: Engineered for PV Damp Heat (DH) & Accelerated Aging Tests

IEC 61215 / IEC 61646: Crystalline silicon/Thin-film PV terrestrial modules.
IEC 61730: Photovoltaic module safety qualification.
IEC 62804: Test methods for the detection of PID (Potential-Induced Degradation).
UL 1703 / JIS C-8990: Standard for Flat-Plate Photovoltaic Modules and Panels.

Specifications of 85°C 85%RH Constant Climate Chamber

Model	PV-04
Internal Dimension	13007001350
Overall Dimension	190011001750
Interior Volume	1220L
Temperature Range	-60℃～+100 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Temperature Change Rate	1~3.4 ℃ / min
Panel Size	1m*2m
View Window Size	330*370(mm)
Panel Capacity	4 / 6 / 8 / 10 / 12 Pieces
Build-in Water Tank	270300450(mm)

LIB damp heat chamber is fully engineered to meet the stringent 85°C/85%RH Accelerated Aging requirements for PV modules. Specifically designed for full-scale testing, it accommodates 1m x 2m (and larger) solar panels, ensuring uniform environmental stress across the entire surface area in accordance with international standards.

Configuration of 85°C 85%RH Constant Climate Chamber


Sample holder	Temperature and humidity sensor
Adjustable SUS304sample holder, stable structure, supports vertical placement of multiple PV modules, optimizes spacing according to the flow direction of hot and humid air, and can be customized according to different specifications of photovoltaic panels.	PT100 temperature and humidity sensors, it features sensitive response and strong anti-interference ability, ensuring precise and stable temperature and humidity control.

Intelligent controller system	Air circulation system
Color touch screen controller, with multiple language options, allowing for the setting of complex test processes such as temperature rise, constant temperature, and humidity changes. Remote monitoring, data recording, USB export.	The high-power centrifugal fan (low noise) and high-temperature resistant air duct system achieve vertical air supply inside, with uniform air velocity, ensuring that the temperature and humidity are consistent.

Why Partner with LIB?

LIB is a global leader in environmental testing, providing more than just equipment:

3-Year Warranty: Industry-leading peace of mind.
Global Service Network: 12/5 technical support and lifetime maintenance.
Custom Engineering: Tailored dimensions and rack systems to fit your specific module formats.
