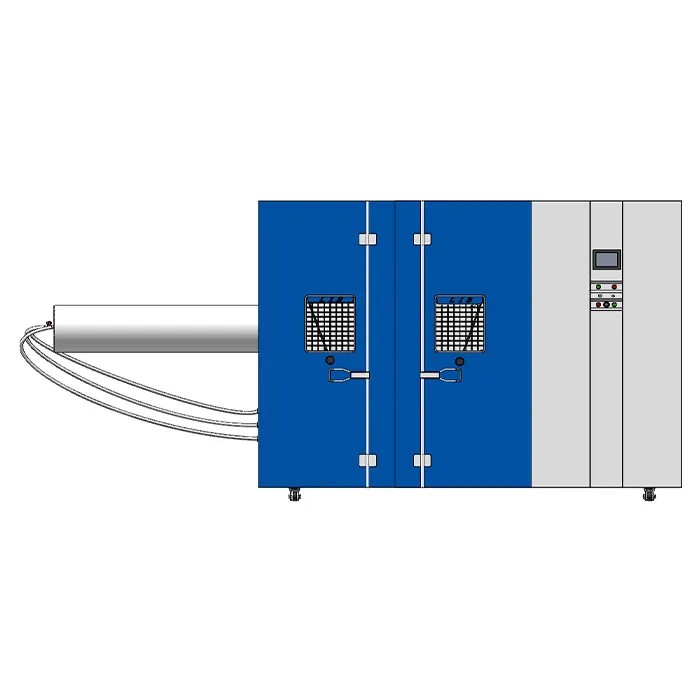

Walk-In IPX1-IPX9K Rain Test Chamber

Name: Walk-In IPX1-IPX9K Rain Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

Integrated Waterproof Testing Solution for Large Products and Complete IPX Spray Protection Tests

Large industrial products, assembled electrical systems, automotive components, EV battery packs, outdoor cabinets, and communication equipment often cannot fit into standard waterproof test systems. Traditional small chambers also make it difficult to complete multiple IP waterproof tests efficiently.

The LIB industry Walk-In IPX1-IPX9K Rain Test Chamber is designed for large-scale waterproof testing applications. It integrates IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, and IPX9K testing capabilities into one complete system, allowing manufacturers to perform comprehensive ingress protection testing on large products without disassembly.

This walk-in waterproof test chamber simulates dripping water, rain spray, splash water, water jets, powerful water jets, and high-pressure hot water spray conditions according to IEC 60529 and related international waterproof testing standards.

Complied Standards：

IEC 60529, ISO 20653, DIN 40050-9

Why Choose LIB Industry Walk-In Rain Test Chamber?

All-in-One Waterproof Rating (IPX1 to IPX9K)

Seamlessly switch between drip, spray, jet, and high-pressure jet streams in a single testing room. (Note: This chamber is optimized for spray and jet tests; immersion testing like IPX7/X8 is excluded).

Reinforced Explosion-Proof Viewing Window

Safety is our priority. Equipped with a heavy-duty, multi-layer tempered safety glass window and an explosion-proof steel frame. Perfect for testing hazardous or high-energy components such as lithium-ion battery packs and automotive electronics.

Spacious Walk-In Capacity & Custom Dimensions

Available in customizable interior dimensions to easily accommodate oversized test specimens, including full-size electric vehicles, outdoor telecom cabinets, solar panels, and military hardware.

Smart PLC Touch-Screen Control

Features an intuitive programmable controller for real-time monitoring, automated testing sequences, water flow regulation, temperature adjustments, and comprehensive data logging.

Eco-Friendly Water Recirculation System

Built-in water filtration and recycling systems significantly reduce water consumption during continuous high-flow and high-pressure IPX6/IPX9K testing.

Technical Specifications of Walk-In IPX1-IPX9K Rain Test Chamber

Testing Capabilities	IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX9K (Excluding IPX7/X8)
Internal Volume	Customizable (e.g., 8m³, 12m³, 27m³ up to 60m³+)
IPX1 / IPX2 Drip Box	Drip rate: 1+0.5 mm/min or 3+0.5 mm/min (Programmable)
IPX3 / IPX4 Oscillating	Swing pipe radius: 400mm to 1600mm (Optional); Angle: ±60°, ±90°, ±180°
IPX5 / IPX6 Jet Nozzles	Nozzle diameter: 6.3mm (IPX5 - 12.5 L/min) / 12.5mm (IPX6 - 100 L/min)
IPX9K High-Pressure Jet	Water flow: 14–16 L/min; Water Temp: 80±5℃; Pressure: 8,000–10,000 kPa
Safety Features	Explosion-proof observation window, over-pressure safety valves, water shortage alarms, leakage protection, emergency stop
Chamber Material	Interior: SUS304 High-grade Stainless Steel; Exterior: Powder-coated steel

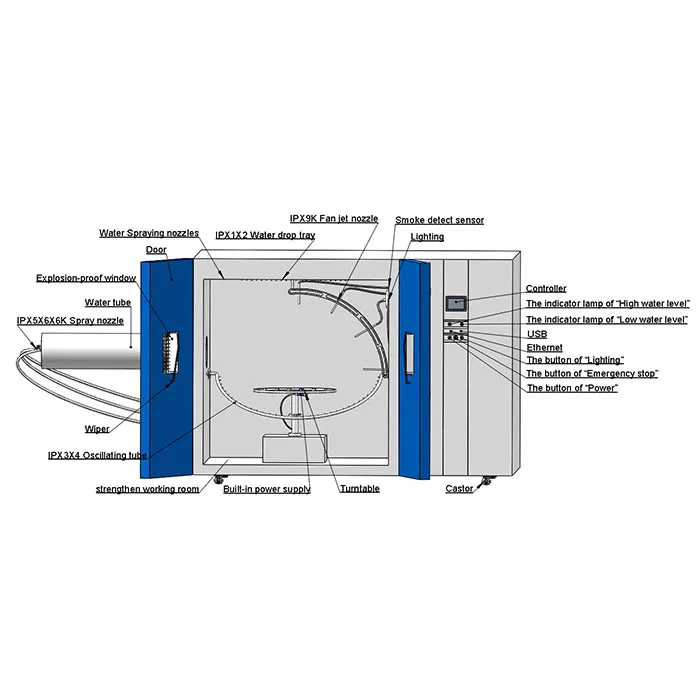

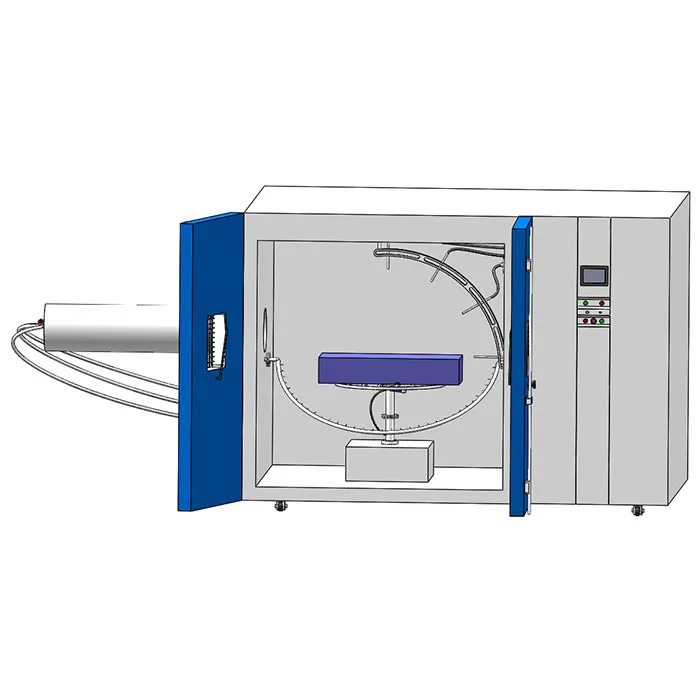

Core Details of Walk-In IPX1-IPX9K Rain Test Chamber

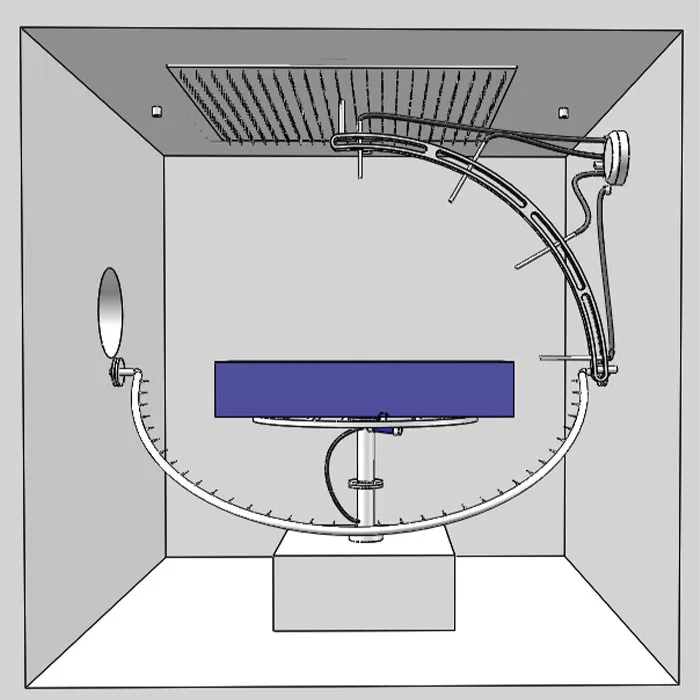

IPX1 / IPX2 Vertical Drip Box Accurately simulates natural environments such as drizzle, localized dripping, or condensation.	IPX3 / IPX4 Oscillating Pipe and Sprinkler Rain Simulates rain and splashing environments from all directions, comprehensively evaluating the rainproof capability of large equipment enclosures.

IPX5 / IPX6 High-Power Water Spray and Intense Water Jet Simulates extreme and harsh outdoor environments such as encountering giant waves, storms, or powerful water jet impacts.	IPX9K High-Temperature and High-Pressure Spray Simulates the most stringent cleaning environments such as high-pressure car washing and hot steam washing of construction machinery.
