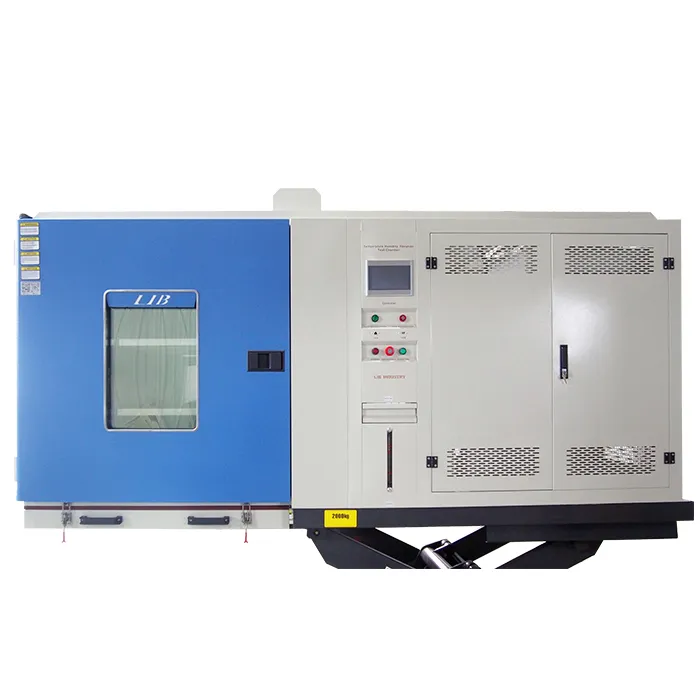

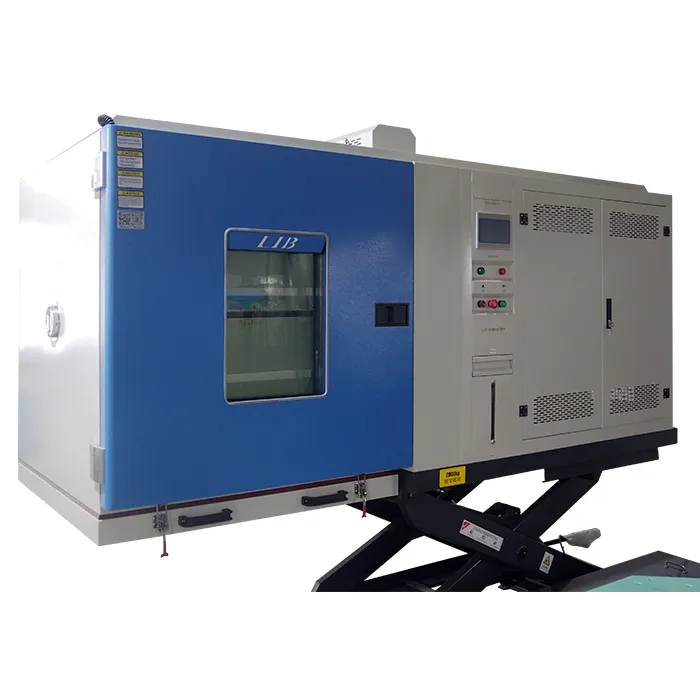

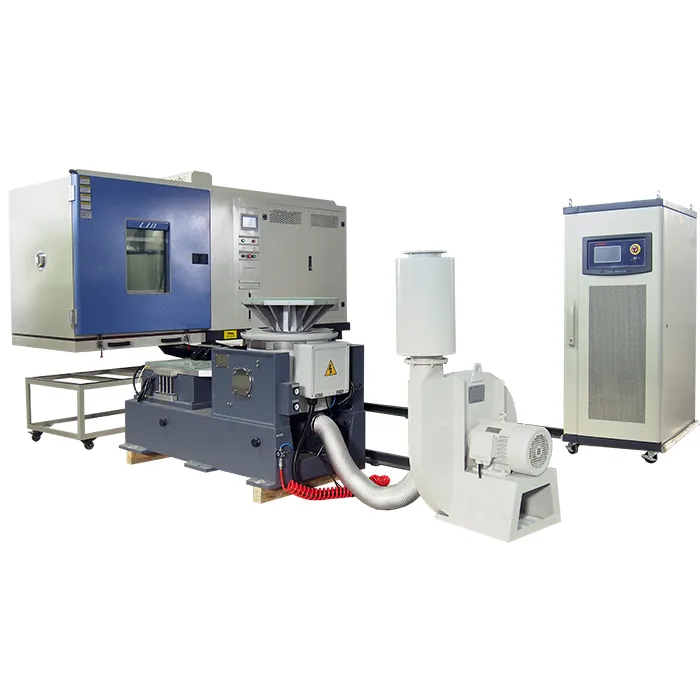

Temperature Vibration Machine

Name: Temperature Vibration Machine
Brand: Xi'an LIB Environmental Simulation Industry

LIB temperature vibration machine simultaneously or alternately applies high and low temperature environments（from -50℃ to +150 ℃）, humidity tests（ from 30% to 98%）, and vibration tests （vertical or horizontal vibration）to the tested sample.

It can simulate the combined environmental conditions that products encounter during actual transportation and usage, including temperature changes, humidity effects, and mechanical vibrations. It helps evaluate the structural strength, functional stability, and durability of the product.

Applicable Standards: IEC 68-2-1、IEC 68-2-2、IEC 68-2-3,SAE J575

Optional Models: THV-100，THV-225，THV-500，THV-800，THV-1000 and more customized models for choosen.

Learn More About LIB Temperature Vibration Machine

Temperature Vibration Machine Features and Benefits

1. Realistic Multi-Stress Simulation

Simultaneously applies temperature, humidity, and vibration (2 Hz–4,000 Hz) to replicate harsh real-world conditions with high precision.

2. Automatic Program Setting

Performs thermal cycling, damp heat, and vibration tests in one setup, shortening test schedules by 30–50 % and eliminating repeated sample handling.

3. Customizable Performance
Vibration direction, temperature ramp rate (up to 5 °C/min), humidity control accuracy (±2 %RH), and payload capacity (up to 1,000 kg) can be tailored to specific industry needs.

4. Multi-functional Machine

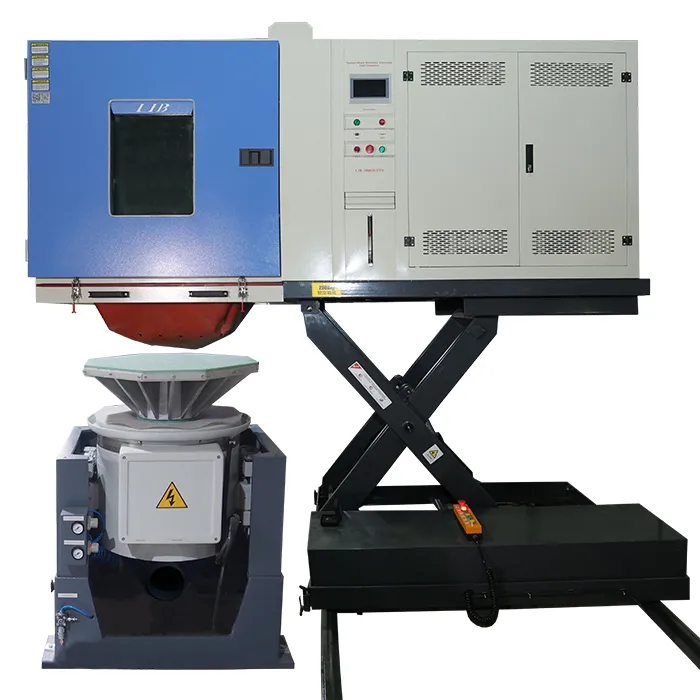

The vibration table can be easily disassembled. After disassembly, the temperature vibration machine can be used as a standard temperature and humidity test chamber to conduct T&H tests.

Parameter of Temperature Vibration Machine

Model	THV-225
Temperature Range	-50℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	30% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	5 ℃ / min
Heating Rate	5 ℃ / min
Rated Force of Vibration	1000kgf
Frequency Range of Vibration	2 to 4000 Hz
Armature Diameter of shaker	φ240mm
horizontal sliding table	600*600 mm
Power Amplifier	Digital power amplifier
Head Expander	600*600 mm
Blower	4Kw blower, including muffler.
Cooling system	Mechanical compression refrigeration system
Safety Device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Standard Configuration	Cable hole with plug; 2 shelves

Details of Temperature Vibration Machine

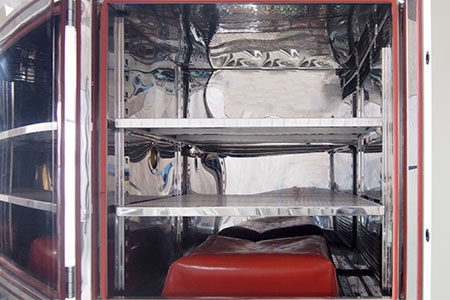

Workroom	The internal volume can be customized. It is made of SUS304 mirror-finish stainless steel plate, which is corrosion-resistant, anti-oxidation, easy to clean, and comes with a double-layer perforated sample holders as standard. Double-layer transparent tempered glass + conductive film anti-fog heating can maintain a clear view even in high humidity or low temperature conditions.

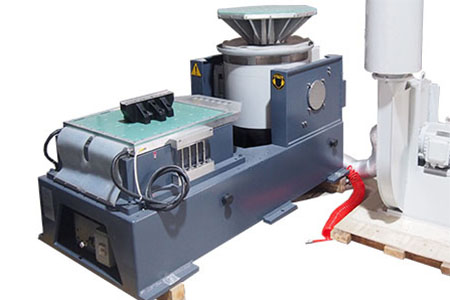

Vibration Table System	Vibration mode: Vertical/Lateral Switching (with horizontal slide table) Rated thrust: 1000 kgf; Frequency range: 2 Hz - 4000 Hz Table size: 600 × 600 mm, can be customized to be larger; Table material is hard aluminum alloy, with multiple sets of installation screw holes for easy fixture fixation Vibration control: Digital vibration controller + Digital power amplifier

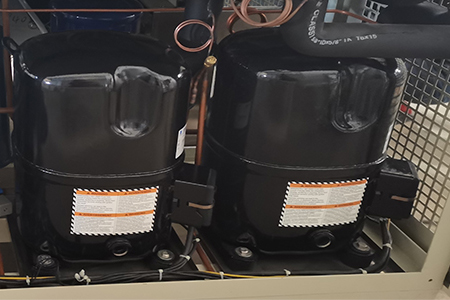

Refrigeration system	Refrigeration method: Two-stage mechanical compression refrigeration,refrigerant: environmentally friendly mixed refrigerant Condensation method: Air-cooled (optional water-cooled)

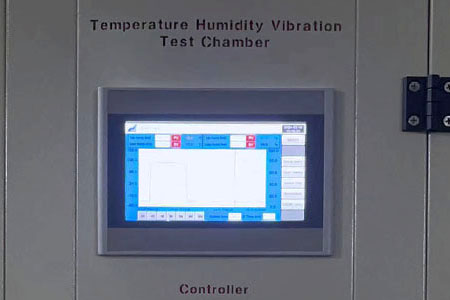

Control and Operation	Color touch screen controller, supports simultaneous editing of temperature and humidity curves as well as vibration curves; Data can be exported to USB or remotely monitored via Ethernet; multi-language interface; Store over 100 test programs, each program can include multiple segments of temperature, humidity and vibration control.
