LIB Industry Delivers Two TH-225 Temperature and Humidity Test Chambers to USTC for Cultural Heritage Research

Aug 21 2026

Table of Content [Hide]

Supporting 25°C / 70% RH Environmental Simulation for Protective Coating Research

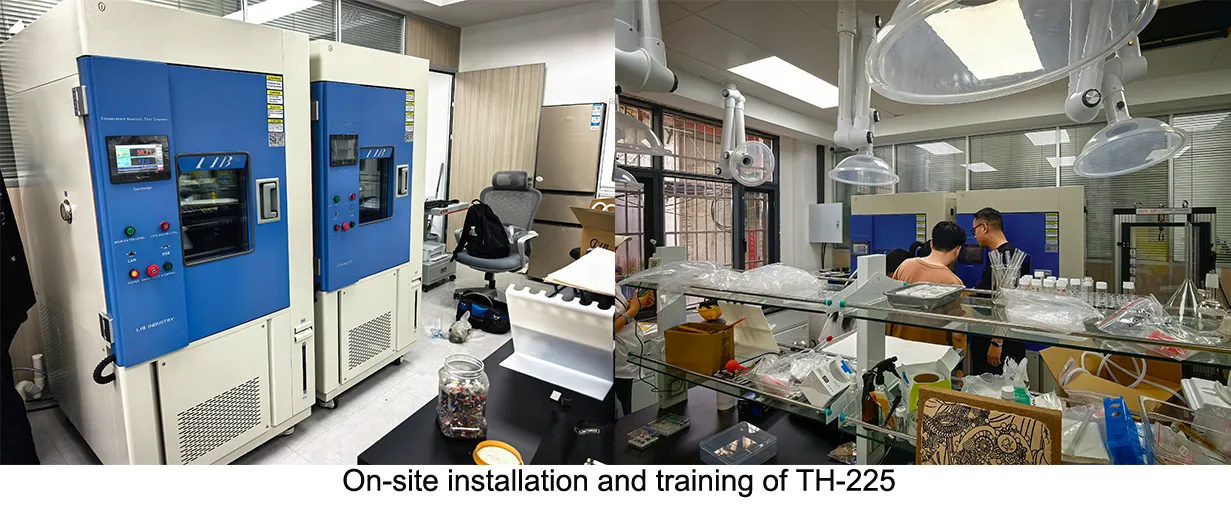

Two TH-225 Temperature Humidity Chambers Installed at USTC on August 20

On August 20, 2026, the LIB Industry engineering team completed the installation and commissioning of two TH-225 temperature and humidity test chambers at the University of Science and Technology of China (USTC). The project also included one O-100 laboratory oven.

The equipment will be used by a cultural heritage conservation research team to evaluate protective coating materials under controlled environmental conditions.

As an environmental test equipment manufacturer, LIB Industry provides temperature and humidity test chambers, UV aging chambers, laboratory ovens, and other environmental simulation equipment for universities and research institutions.

LIB Industry Delivers Two TH-225 Temperature and Humidity Test Chambers to USTC for Cultural Heritag

From Xi’an Jiaotong University to USTC: A University Research Referral

The USTC project also came through LIB Industry's previous cooperation with a university research team.

LIB Industry had previously supplied temperature and humidity test chambers and UV aging test equipment to a research team at Xi’an Jiaotong University. Based on the team's experience with the equipment and technical service, LIB Industry was later recommended to the USTC research team, leading to this new project.

For university research, equipment selection often depends not only on specifications but also on long-term operating stability, technical support, and experience in similar research applications.

This university-to-university referral reflects the trust built through LIB Industry's previous research projects.

How Is the Temperature and Humidity Chamber Used for Cultural Heritage Research?

The USTC research team focuses on cultural heritage conservation materials and protective coatings.

The researchers apply liquid protective coatings to soil blocks, rocks, or other substrates with properties similar to cultural heritage materials. The coated samples are then placed in a controlled environmental chamber to evaluate changes in coating performance during environmental exposure.

One of the commonly used test conditions is:

25°C / 70% RH

Maintaining a stable temperature and relative humidity helps reduce environmental fluctuations during testing and makes it easier to compare different coating materials under the same conditions.

For this type of research, the temperature and humidity test chamber needs to provide accurate environmental control, good chamber uniformity, and stable long-term operation.

TH-225 Temperature and Humidity Test Chamber for Stable Environmental Testing

The core equipment supplied for the project is the TH-225 temperature and humidity test chamber.

With a 225L working volume, the TH-225 is suitable for laboratory research involving materials, coatings, components, and other test specimens. Its programmable control system allows researchers to set specific temperature and humidity conditions for long-term or repeatable testing.

TH-225 Technical Specifications

Item	Specification
Internal Volume	225L
Internal Dimensions	500 × 600 × 750 mm
Temperature Range	-40°C to +150°C, optional -20°C or -70°C low-temperature range
Temperature Fluctuation/Uniformity	±0.5°C / ±2.0°C
Humidity Range/Deviation	20% to 98% RH with 2.5%RH Deviation
Heating Rate	3°C/min
Cooling Rate	1°C/min
Controller	Programmable color LCD touchscreen, PC connection and LAN remote control
Refrigeration	Mechanical compression refrigeration with environmentally friendly refrigerant
Water Supply	Automatic water supply with water purification system
Interior	SUS304 stainless steel
Safety Protection	Humidifier dry-run, over-temperature, over-current, high refrigerant pressure, water shortage, leakage, and other protections

For the USTC project, the TH-225 provides the controlled environment required for 25°C / 70% RH exposure testing, while also allowing researchers to configure other conditions for different experimental programs.

O-100 Laboratory Oven for Sample Drying and Preparation

Along with the two TH-225 chambers, the research team purchased an O-100 laboratory oven.

In coating research, soil, rock, and other test specimens may require drying, heating, or conditioning before or after coating application. The O-100 provides a dedicated heated environment for these processes.

O-100 Technical Specifications

Item	Specification
Internal Volume	100L
Internal Dimensions	400 × 500 × 500 mm
Temperature Range	Ambient to +250°C
Temperature Fluctuation	±0.5°C
Temperature Uniformity	±2.0°C
Heating Rate	6°C/min
Heating Element	Nichrome alloy heating wire
Controller	Programmable color LCD touchscreen with Ethernet connection
Interior	SUS304 stainless steel
Safety Protection	Over-temperature, over-current, phase sequence, and leakage protection
Standard Shelves	2

The O-100 oven handles drying and controlled heating, while the TH-225 chamber provides temperature and humidity environmental simulation. Together, the two types of equipment can support different stages of the research process.

Sample preparation → Coating application → Drying or heating → Temperature and humidity exposure → Performance evaluation

Why Do University Research Teams Choose LIB Industry?

From Xi’an Jiaotong University to USTC, LIB Industry continues to support university research teams with environmental testing equipment.

For research projects, LIB Industry can recommend equipment based on:

Sample type and size
Required temperature and humidity conditions
Test duration
Laboratory space
Testing procedures
Specific research objectives

Available solutions include:

Temperature and humidity test chambers
Laboratory ovens
UV aging test chambers
Xenon weathering chambers
Customized environmental test equipment

LIB Industry also provides special purchasing support for university research projects, helping research teams manage equipment budgets while obtaining suitable testing equipment.

The company provides a 3-Year Warranty and Lifetime Technical Support, together with installation, commissioning, spare parts, and technical assistance.

Temperature and Humidity Testing for More Than Cultural Heritage Research

A temperature and humidity test chamber is not limited to cultural heritage research. The same type of environmental simulation equipment is widely used in:

Materials research
Protective coating testing
Electronics reliability testing
Automotive component testing
New energy research
Packaging materials
University and laboratory research

By controlling temperature and humidity, researchers can establish repeatable environmental conditions for material performance and aging studies.

LIB Industry offers different chamber capacities and configurations according to sample size, test conditions, and laboratory requirements.

Need a Temperature and Humidity Test Chamber for Your Research?

If your research team needs a temperature and humidity test chamber, laboratory oven, UV aging chamber, or customized environmental testing solution, LIB Industry can provide equipment recommendations based on your actual testing requirements.

Send us your sample information, required environmental conditions, chamber capacity, and test procedure. Our engineering team can provide a suitable configuration and quotation.

LIB Industry provides 3-Year Warranty, Lifetime Technical Support, professional installation, and customized engineering solutions for university and research projects.
