For manufacturers entering the North American market, NEMA 3R compliance under UL 50E is often the first and most critical certification milestone.

Products such as meter boxes, junction boxes, disconnect enclosures, and control cabinets are expected to withstand real outdoor rain exposure without compromising internal electrical safety. However, many certification failures are not caused by poor enclosure design, but by inaccurate or inconsistent rain testing conditions during development.

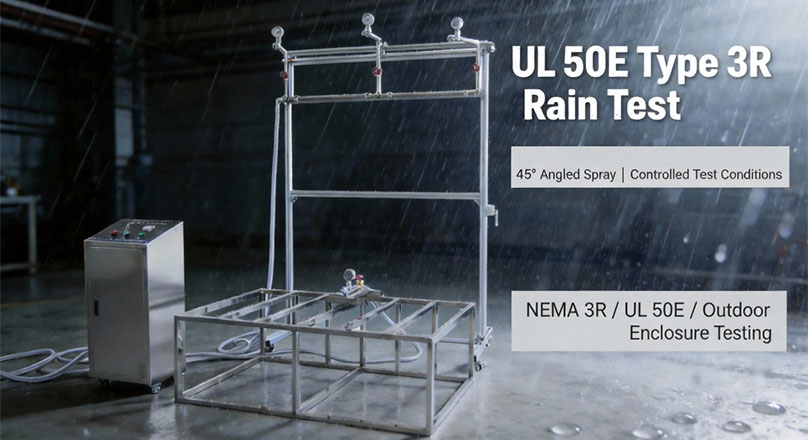

How_to_Achieve_NEMA_3R_Compliance_with_a_Professional_UL_Rain_Test_Apparatus_From_LIB_Industry1.jpg

This is why investing in a professional UL Rain Test Apparatus is no longer optional—it is a strategic decision that directly affects certification success, time to market, and long-term product reliability.

Understanding UL 50E Type 3R: More Than a Simple Water Spray Test

UL 50E Type 3R is specifically intended for outdoor enclosures that must provide protection against:

Falling rain
Blowing rain
Sleet and external ice formation

Unlike basic ingress protection tests, the UL 50E rain test focuses on angled water impact under controlled pressure, closely simulating real outdoor storm conditions.

According to UL 50E requirements, the enclosure must be exposed to a 45° water spray without allowing water to enter and reach live electrical parts.

Key Technical Parameters Defined by UL 50E Type 3R

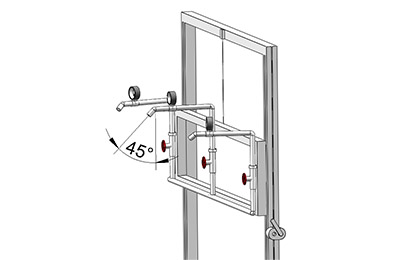

Spray Angle: 45° from vertical to simulate wind-driven rain
Water Pressure: Maintained at 34.5 kPa (5 psi) throughout the test
Nozzle Specification: Φ5 mm stainless steel spray nozzles
Water Flow Rate: 5.4 L/min/m²
Test Duration: Typically 1 continuous hour

Experienced engineers understand that any deviation in angle, pressure, nozzle geometry, or flow stability can result in false failures—or worse, false passes that later fail in official certification audits.

Why Most UL 50E Test Failures Come from Test Setup, Not Product Design

Many manufacturers attempt to simulate UL rain tests using improvised spray systems or general-purpose water rigs. These setups often suffer from:

Inconsistent spray angles
Pressure fluctuations during long test cycles
Nozzle corrosion that alters spray patterns over time
Inaccurate flow control without real-time monitoring

As a result, test results become non-repeatable, and internal pre-testing no longer aligns with third-party UL laboratory outcomes.

A professional UL Rain Test Apparatus eliminates these variables and ensures that internal testing truly reflects certification conditions.

The Core of Reliable UL 50E Testing: LIB Industry UL Rain Test Apparatus

A purpose-built UL Rain Test Apparatus is engineered to deliver precision, stability, and repeatability—the three elements that determine certification predictability.

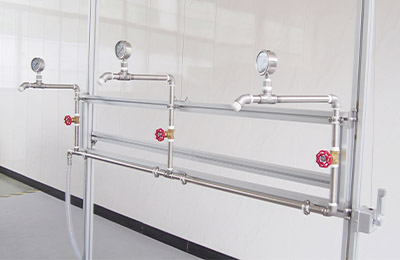

Precision Nozzle System

High-quality UL rain testing starts at the nozzle.

SUS304 stainless steel construction
Φ5 mm precision-machined outlets
Corrosion resistance for long-term spray consistency

Stable spray geometry ensures that water impact energy remains unchanged across repeated tests.

Pressure Stability and Real-Time Monitoring

Maintaining 34.5 kPa consistently for a full hour is far more challenging than it appears.

High-accuracy pressure gauges
Continuous pressure visualization
Immediate detection of pressure drift

This prevents under-testing or over-testing caused by unnoticed pressure fluctuations.

Accurate Flow Control

UL 50E specifies 5.4 L/min/m², not an estimated value.

Fine-adjustment control valves
Stable flow distribution across all nozzles
Easy calibration and verification

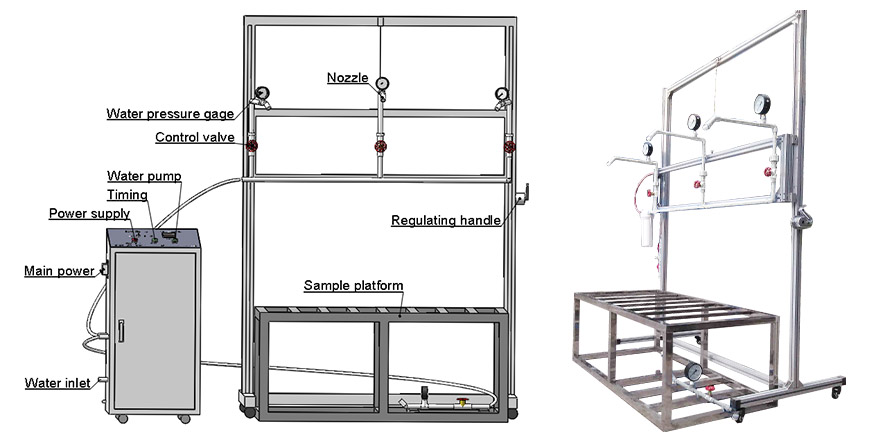

Model		R-UL020
Parameter	Number of spray head	3 spray heads
	Nozzle spacing	710mm
	Spraying Hole Diameter	Φ5mm
	Water pressure	34.5Kpa
	Sample platform size	1000X1400X500mm
	Load of sample platform load	100 Kgs
Structure	Water Pressure Control	Flow meter
	Water supply system	Automatic water supply, Water purification system
	Control Box	Display the Spray Mode, Time and Water Pump
Material	Material	SUS304 stainless steel
Material	Sample platform Material	SUS304 stainless steel
Standard		UL 50E Type 3R

Precise flow control ensures full compliance with UL testing logic rather than approximation-based testing.

Modular UL Rain Test Solutions: A Smarter Way to Build Compliance Capability

While some laboratories require full-frame UL rain test machines, many experienced manufacturers prefer a modular testing approach—especially when upgrading existing laboratories.

LIB industry offers specialized UL 50E 3-nozzle rain test kits, including:

Precision SUS304 stainless steel nozzles
High-accuracy pressure gauges
Fine-tuning control valves

Why Modular UL Rain Test Components Make Sense

Flexible Integration
Easily mount nozzle sets onto existing height-adjustable frames or custom rigs.
Reduced Investment Cost
Upgrade UL 50E testing capability without replacing your entire laboratory infrastructure.
Shorter Lead Time
Modular components are typically faster to deliver than full-frame systems.
Certification Confidence
Components designed strictly to UL 50E parameters ensure internal tests align with official certification results.

Modular solutions allow manufacturers to invest in compliance progressively, without overbuilding their laboratory on day one.

LIB industry: One Partner for the Full Range of IP & NEMA Rain Testing

UL 50E Type 3R testing is often just the starting point.

Many manufacturers eventually need to validate products against multiple ingress protection standards as product portfolios expand and markets diversify.

LIB industry is not just a UL Rain Test Apparatus supplier—we are a complete IP and NEMA rain testing solution provider.

Comprehensive Rain Test Capabilities from LIB industry

NEMA Standards:

Type 3R
Type 4 / 4X

IEC IP Rain Tests:

IPX1 / IPX2 (vertical dripping)
IPX3 / IPX4 (spraying and splashing)
IPX5 / IPX6 (water jets)
IPX9K (high-pressure, high-temperature water)

Integrated Rain Test Laboratory Design

Modular or full-frame rain test systems
Single-function or multi-standard combined test setups
Customized laboratory layouts for R&D, QA, and certification pre-testing
Future-proof designs allowing easy expansion to higher IP or NEMA levels

Instead of purchasing isolated equipment, manufacturers can build a scalable, certification-ready rain test laboratory with LIB industry as a long-term partner.
