Ensuring waterproof performance is no longer optional—it’s critical for modern electronics, automotive components, and industrial devices. From smartphones to ruggedized industrial equipment, manufacturers need reliable tools to verify IPX7, IPX8, and IP68 compliance.

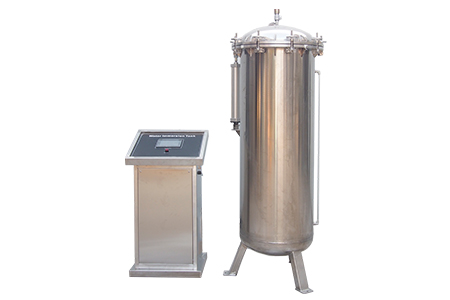

The LIB Water Immersion Test Chamber is engineered to deliver precise and repeatable testing for IPX7 and IPX8, giving manufacturers the confidence that their products will perform reliably in real-world conditions.
The LIB IPX7 IPX8 Water Immersion Test Equipment provides a controlled environment where products can be fully submerged in water to assess their resistance to ingress. Designed according to IEC 60529 standards, it is widely used for smartphones, smartwatches, earbuds, automotive sensors, industrial enclosures, and other waterproof-critical devices. By simulating water immersion at different depths and durations, it ensures that products meet strict waterproof criteria before entering the market.
1. High Precision Testing
o Supports IPX7 (1 m, 30 min), IPX8 (custom depth and duration), and IP68 testing.
o Accurate control of water depth, water temperature and immersion time ensures consistent results.
2. Durable and Safe Design
o Constructed from A3 steel plate, wall thickness 15mm for corrosion resistance and long-term durability.
o Features pneumatic lift cover, safety locks, and pressure sensors to protect both operators and samples.

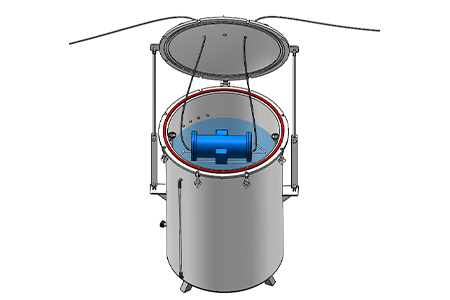

o The LIB Water Immersion Test Chamber features a cylindrical water tank, providing uniform pressure distribution for enhanced durability and safety.
|
|
3. Automated and User-Friendly

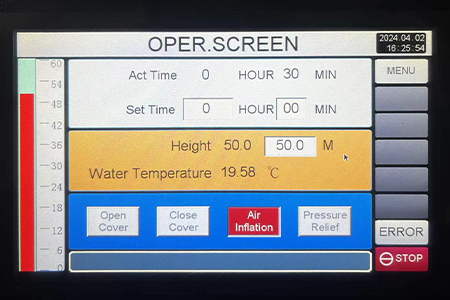

o Programmable touchscreen interface displays real-time water depth, temperature, and elapsed time.
o Automatic water filling and drainage provide consistent immersion conditions with minimal manual intervention.
|
|
4. Flexible Sample Accommodation
o Adjustable stainless steel racks allow testing of products with different shapes and sizes.
o Modular design enables quick setup and efficient testing cycles.
o Multiple test holes can be opened on the water tank cover to supply power to the measuring device.
5. Customizable Solutions
o Non-standard testing requirements can be met with tailored water depth, duration, and water tank volume.
The LIB Water Immersion Test Chamber is designed for both performance and usability. Key structural components include:
Corrosion-Resistant Water Tank: Durable A3 steel plate, wall thickness 15mm, resistant to long-term corrosion and pressure.
Automated Water Level System: Ensures precise and consistent water depth during each test.
Sample Holders and Fixtures: Adjustable racks secure products during immersion, accommodating a wide range of sizes.
Intelligent Control System: Touchscreen interface provides real-time monitoring and automated data logging.
Safety Mechanisms: Pneumatic lift cover, pressure sensors, and safety locks ensure safe operation.
Water Circulation & Filtration: Maintains uniform water conditions for accurate and repeatable testing.
Parameter | Specification |
Model | R78-600 |
Standard Compliance | IEC 60529, ISO 20653, UL 50E |
Water Depth Range | 1–100 m (adjustable) |
Control System | Programmable touchscreen interface |
Tank Material | SUS304 stainless steel |
Safety Features | Pneumatic lift cover, pressure sensor, safety lock |
Automation | Automatic water filling/draining, real-time data recording |
The LIB Water Immersion Test Chamber is ideal for a wide range of industries:
· Consumer Electronics: Smartphones, smartwatches, earbuds, cameras
· Automotive Electronics: Sensors, lighting systems, control modules
· Military & Aerospace: Rugged communication and navigation devices
· Industrial Equipment: Outdoor panels, connectors, and enclosures
“Ensure your products meet waterproof standards — LIB Water Immersion Test Chamber is in stock, with 7–14 days fast delivery, 3-year warranty, and lifetime technical support. Request your customized solution today and guarantee your product’s reliability!”
Click here inquiry@libtestchamber.com to get your advanced waterproof testing solution — precise control, safe operation, and guaranteed product quality.
