Thermal Testing Equipment

Name: Thermal Testing Equipment
Brand: Xi'an LIB Environmental Simulation Industry

The thermal testing equipment is equipped with a high-performance temperature control system, which can quickly, accurately and stably simulate extreme high temperatures, low temperatures or rapid temperature changes, to evaluate the performance of products or materials under different temperature environments, in order to test the key performance of the products such as heat resistance, cold resistance, thermal stability and thermal shock resistance.

LIB thermal testing equipment’s temperature changing rate is generally 5℃/min. LIB can also be customized with higher temperature changing rates for thermal testing chambers according to special testing requirements, such as 15℃/min, 20℃/min, etc. If you need more stringent temperature variation tests, you can also learn about the 2-zone thermal shock chamber and the 3-zone thermal shock chamber.

Optional models : TR5-100, TR5-225, TR5-500, TR5-800, TR5-1000

Applicable standards: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D

Thermal Testing Equipment Features and Benefits

1. Wide Temperature Range with Precise Control：The thermal testing thermal testing equipment cover a wide temperature range from -20℃，-40℃，-70°C to +180°C, with temperature fluctuation within ±0.5°C and uniformity within ±2.0°C.

2. Rapid Temperature Change & High Efficiency：Featuring fast temperature ramp rates up to 5°C/min (customizable to 10~15°C/min), LIB thermal testing equipment reduce test cycles for thermal cycling, thermal shock pre-conditioning, and life simulation tests.

3. Multiple Chamber Sizes & Custom Configuration：Standard models range from 100L to 1000L, with larger walk-in and drive-in versions available. Customizable options include additional test ports, cable holes, load shelves, or integration with vibration platforms for combined stress testing.

4. Complete Safety System & Broad Industry Use: Equipped with over-temperature protection, circuit breakers, door interlocks, and leakage detection, ensuring both equipment and operator safety. Widely used in automotive, electronics, aerospace, battery, and materials R&D.

Specifications of Thermal Testing Equipment

Model	TR5-100	TR5-225	TR5-500	TR5-800	TR5-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	130015402120	150015402140
Interior Volume	100L	225L	500L	800L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ~ +150 ℃ B : -40℃ ~ +150 ℃ C: -70℃ ~ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	5℃/min (10/15℃/min)
Heating Rate	5℃/min (10/15℃/min)
Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Cooling System	Mechanical compression refrigeration system
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Power Supply	380V
Maximum Noise	65 dBA

Details of Thermal Testing Equipment

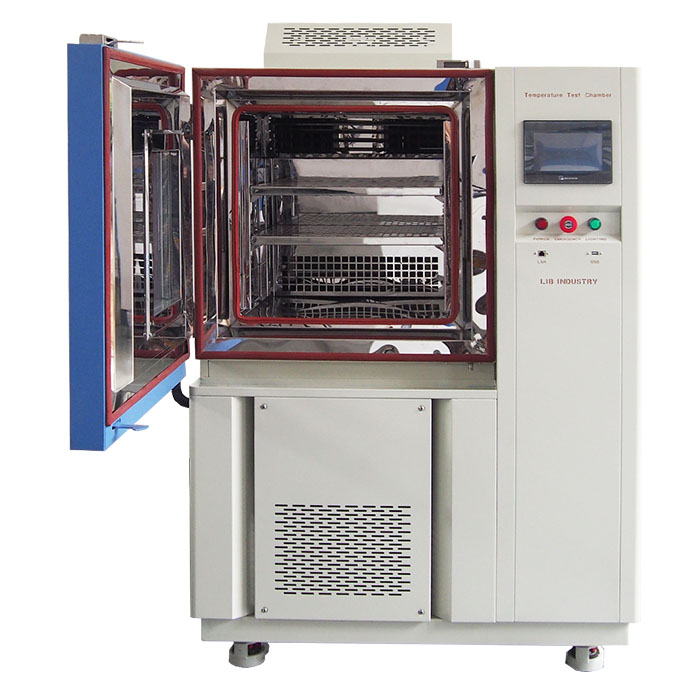

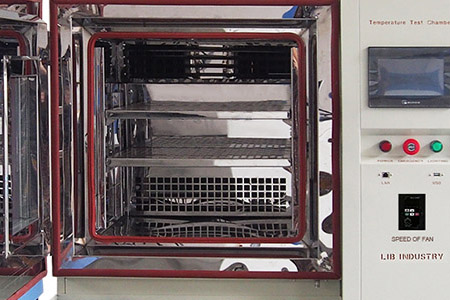

Workroom	The product is made of SUS#304, which is corrosion-resistant and heats evenly. It comes with a double-layer adjustable shelf for easy and flexible placement of test samples. Customization of multiple layers is also available. The bottom of the chamber has an inclined angle to facilitate the timely drainage of condensate water.

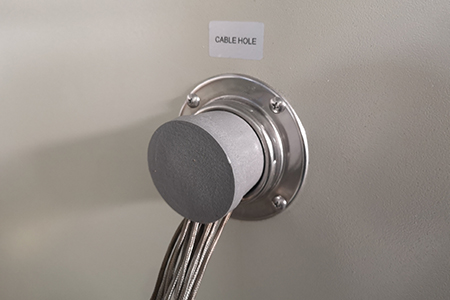

Cable Port	Equipped with one or more silicone-sealed cable interfaces , with a diameter of 50 millimeters. it is convenient to safely and conveniently connect external power supplies or signal cables, and can be customized.

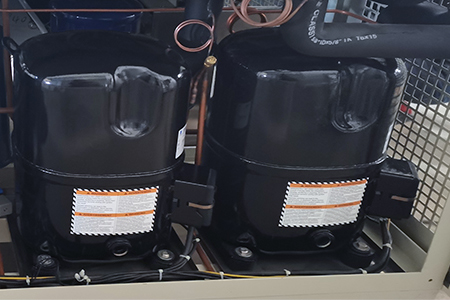

Cooling System	Equipped with a cascade cooling system, the cooling process uses environmentally friendly refrigerants that meet the requirements of Global Warming Potential (GWP), enabling a rapid temperature drop rate of ≥5°C per minute.

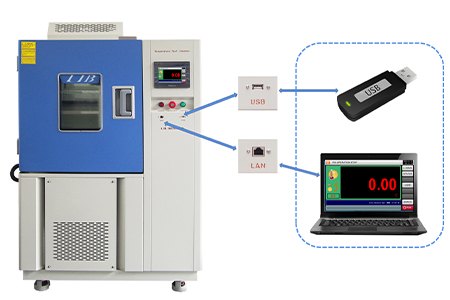

Remote Control	Remote monitoring and operation are carried out via Ethernet connection. Users can adjust parameters in real time, start/stop tests, and download test data. The touchscreen control panel is available and allows remote access via PC.

If you would like to obtain more information or receive a quotation, please contact LIB. LIB guarantees a three-year warranty and lifetime service for all its products.
