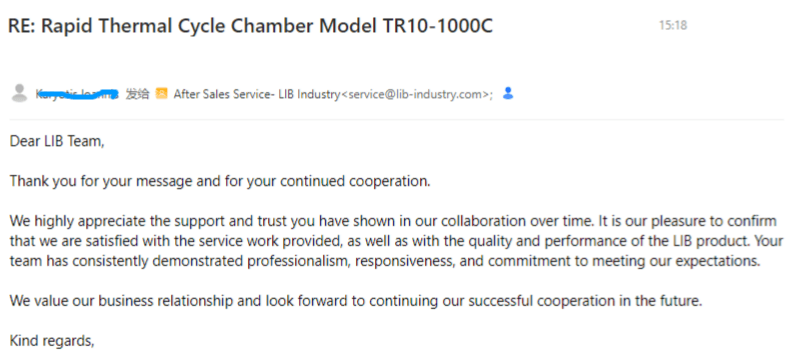

LIB industry recently received positive feedback from a customer in Greece regarding the performance of the TR10-1000C rapid thermal cycle chamber and the professional support provided by the LIB industry service team.
The customer stated that they were highly satisfied with both the equipment performance and the after-sales service experience, highlighting LIB industry’s professionalism, responsiveness, and commitment to long-term cooperation.
For environmental reliability testing equipment, customer recognition is more than positive feedback — it reflects stable performance under real laboratory conditions.
As industries continue demanding higher product reliability, rapid thermal cycle testing has become increasingly important for electronics, automotive, aerospace, military, and semiconductor manufacturers worldwide.
Electronic assemblies and industrial products are constantly exposed to temperature fluctuations during transportation, storage, and operation.
Repeated thermal expansion and contraction can gradually lead to:
Solder joint cracking
PCB deformation
Connector fatigue
Seal failure
Internal material stress
Electronic component malfunction
A rapid thermal cycle chamber simulates these temperature transitions in an accelerated laboratory environment, helping engineers identify potential product weaknesses before mass production or field deployment.
Compared with conventional temperature testing, rapid thermal cycling significantly shortens reliability verification time while applying stronger thermal stress to the test sample.

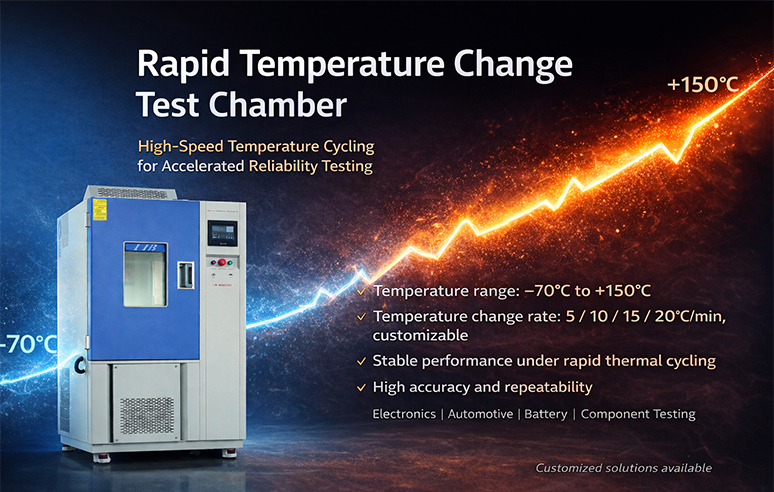

A rapid thermal cycle chamber is a specialized environmental test system designed to change temperature quickly while maintaining accurate temperature control and uniformity.
The chamber repeatedly cycles products between high and low temperatures at controlled ramp rates to evaluate durability and long-term reliability.
The TR10-1000C is one of LIB industry’s high-performance thermal test equipment developed for advanced reliability and accelerated life testing applications.
It combines fast temperature transition capability, stable control performance, and durable structural design for continuous cyclic testing.
Item | Specification |
Model | TR10-1000C |
Internal Volume | 1000 Liters |
Temperature Range | -70°C to +180°C |
Heating Rate | Up to 5/10/15/20°C/min（customized） |
Cooling Rate | Up to 5/10/15/20°C/min（customized） |
Temperature Fluctuation | ±0.5°C |
Temperature Deviation | ±2.0°C |
Controller | Programmable Touch Screen Controller |
Interior Material | SUS304 Stainless Steel |
Refrigeration System | Mechanical Compression Refrigeration |
Cooling Method | Air Cooling / Water Cooling Optional |
| Power Supply | Customized for Local Requirements |
 |  |
 |  |
|
Touch screen controller | The compressor | Security Settings |
LIB industry rapid thermal cycle chambers are designed to achieve stable heating and cooling performance while maintaining excellent temperature uniformity throughout the workspace.
Accurate temperature control helps ensure reliable and repeatable test results even during long-duration cycling programs.
The controller supports:
Multi-step programming
Cycle repetition
Temperature curve editing
Alarm recording
Real-time monitoring
Ethernet communication
Remote operation support
The interface is designed for convenient operation in laboratory and industrial environments.
LIB industry adopts high-quality refrigeration components and optimized refrigeration pipelines to ensure:
Stable low-temperature performance
Long-term operational reliability
Efficient cooling capability
Reduced maintenance requirements
The chamber interior uses SUS304 stainless steel with corrosion-resistant construction suitable for continuous environmental testing applications.
High-efficiency thermal insulation materials help improve temperature stability and reduce energy consumption.
LIB industry rapid thermal cycle chambers can support various international environmental testing standards.
IEC 60068-2-14
JESD22-A104
MIL-STD-883
JEDEC thermal cycling standards
ISO 16750
LV124
GMW3172
SAE environmental testing standards
MIL-STD-810
RTCA DO-160
Customized testing configurations are available according to customer-specific standards and testing procedures.
For many high-reliability products, rapid thermal cycling is only one part of environmental stress testing.
In industries such as aerospace, military electronics, EV systems, and semiconductor manufacturing, engineers often combine rapid thermal cycling with thermal shock testing to evaluate how products respond to both gradual and extreme temperature transitions.
Although the two tests are similar in purpose, their testing methods and stress mechanisms are quite different.
Rapid thermal cycling changes temperature continuously within the same workspace at controlled ramp rates.
The stress is generated through repeated expansion and contraction over many cycles.
Typical ramp rates include:
5°C/min
10°C/min
15°C/min
Customized high-rate transitions
A Thermal Shock Chamber creates much more aggressive temperature stress.
Instead of gradual ramping, products are transferred rapidly between hot and cold temperature zones, creating near-instant thermal transition.
Thermal shock testing is especially effective for detecting:
Cracking
Delamination
Seal leakage
Material separation
Structural failure caused by sudden temperature change
| Item | Rapid Thermal Cycle | Thermal Shock |
|---|---|---|
| Temperature Change | Controlled ramping | Instant transfer |
| Test Stress | Progressive stress | Extreme shock stress |
| Main Purpose | Fatigue & durability | Structural failure detection |
| Common Applications | Electronics & automotive | Aerospace & military |
| Test Method | Single workspace | Multi-zone transfer |
 |  |
LIB industry provides both rapid thermal cycle chambers and thermal shock chambers for advanced environmental reliability testing.
Depending on product structure, industry standards, and testing objectives, LIB industry can customize:
Temperature range
Transition rate
Chamber size
Two-zone or three-zone systems
LN2 assisted cooling
Fixture and sample configurations
Automated control systems
LIB industry focuses on environmental simulation and reliability testing equipment for global laboratories and manufacturers.
LIB industry supports customized design according to customer testing requirements, including:
Chamber dimensions
High ramp rate systems
Ultra-low temperature configurations
Cable ports
Observation windows
Water cooling systems
Special sample fixtures
LIB industry provides worldwide technical support services including:
Installation guidance
Remote technical assistance
Operation training
Spare parts support
Lifetime technical consultation
Before shipment, every LIB industry system undergoes:
Temperature calibration
Performance verification
Safety inspection
Functional testing
Continuous operation testing
to ensure stable operation at the customer site.
The positive feedback from the Greek customer once again demonstrates the stability, reliability, and professional support capability of LIB industry rapid thermal cycle chambers.
As product reliability standards continue to rise across automotive, aerospace, electronics, and semiconductor industries, advanced thermal cycling and thermal shock testing are becoming increasingly essential.
LIB industry remains committed to providing high-performance environmental testing solutions that help customers improve product reliability and accelerate qualification testing worldwide.
Looking for a rapid thermal cycle chamber or thermal shock chamber for your testing application?
LIB industry can provide customized environmental testing solutions for electronics, automotive, aerospace, military, battery, and industrial applications worldwide.
