Thermal shock test chamber is an important device for testing the performance of materials under extreme temperature changes. As a leading manufacturer of environmental simulation test chamber, LIB provides three full types of thermal shock solutions, namely air-to-air, air-to-liquid and liquid-to-liquid, which are widely used in electronics, new energy, aerospace and other fields.

The Structure of Air-to-Air Thermal Shock Test Chamber

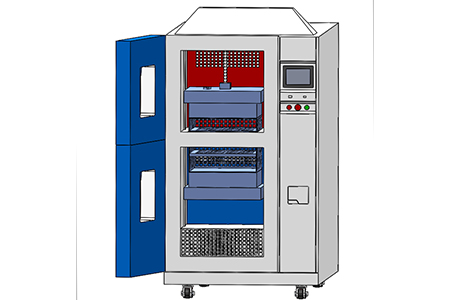

Dual-temperature zone system

Adopt the upper and lower independent temperature zone design, the upper temperature zone can reach 220℃, and the lower temperature zone can reach -75℃. Through the slide design, the test piece moves vertically in the basket, experiencing instantaneous high and low temperatures within 3 seconds.


Intelligent temperature control system

Equipped with intelligent algorithm temperature control module, temperature control accuracy of ±0.5℃. Support 100 groups of temperature variable program storage, can automatically generate time-stamped test reports.

Model		TS-162	TS-340	TS-500	TS-1000
Interior Volume (mm)		22L	72L	211L	505L
Loading Capacity		20kg	30kg	50kg	60kg
Pre-heat Room	Upper limit Temperature	+220℃
	Heating Time	Ambient ~ + 200℃, within 30 minutes
Pre-cool Room	Lower limit Temperature	-75℃
	Cooling time	Ambient ~ -70℃, within 30 minutes
Test Room	High Temperature Exposure Range	Ambient +20 ~ +200°C
	Low temperature Exposure Range	–65 ~ -5°C
Temperature Fluctuation		≤±0.5℃
Temperature Deviation		≤±3 ℃
Temperature Recovery Time		Within 5 minutes

II. A Full Range of Thermal Shock Solutions

LIB can also provide air to liquid, liquid to liquid impact. In addition to the vertical thermal shock test chamber, the horizontal thermal shock chamber LIB also has mature design and production experience.
