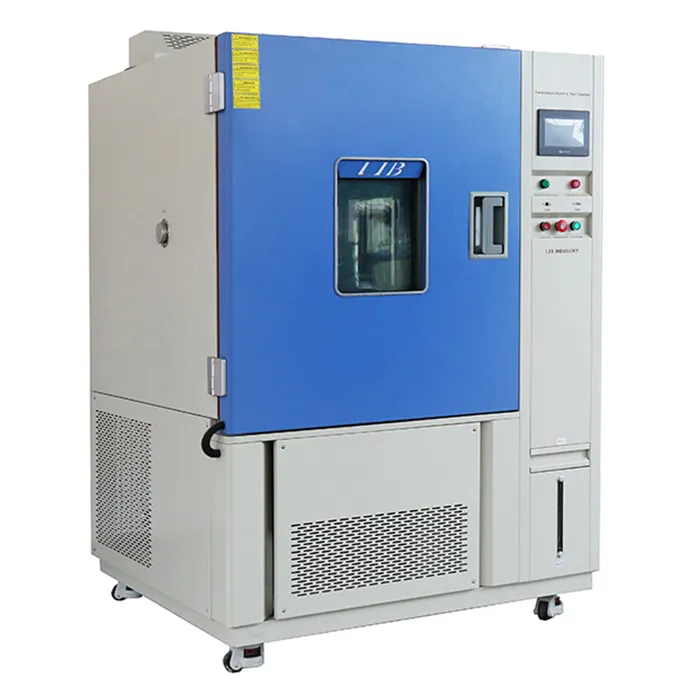

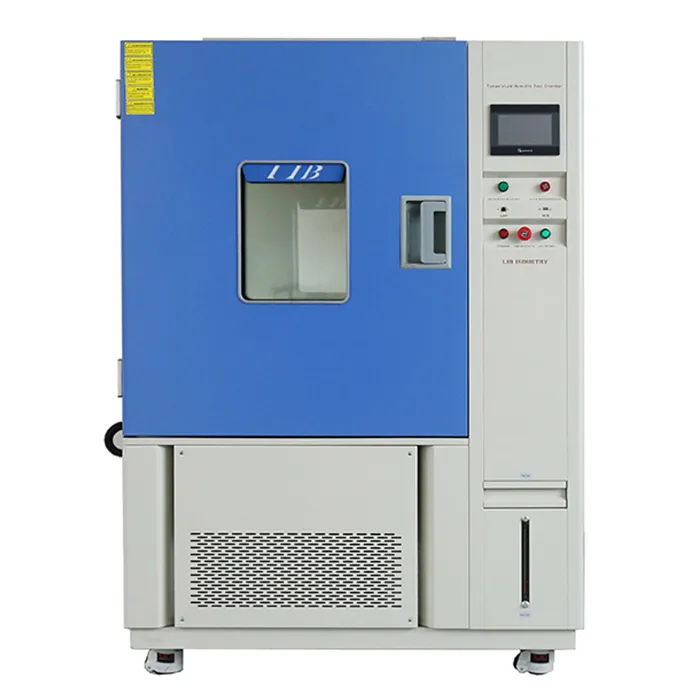

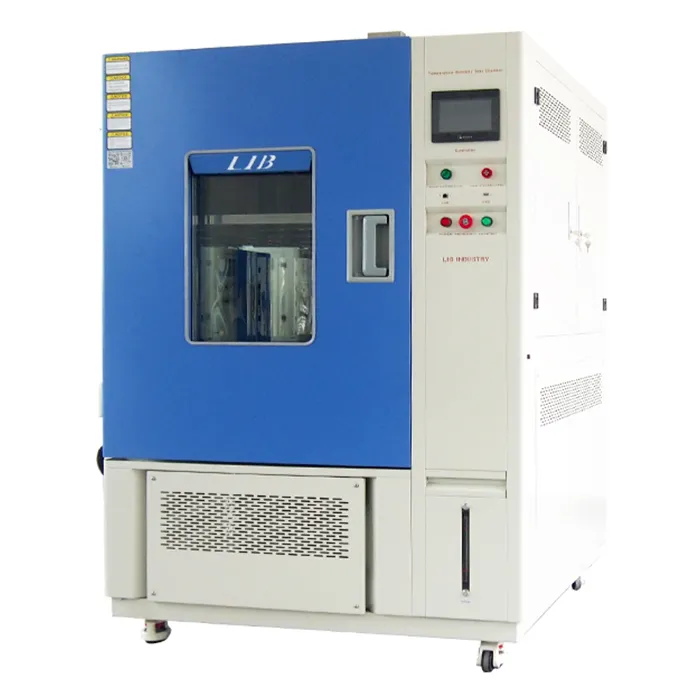

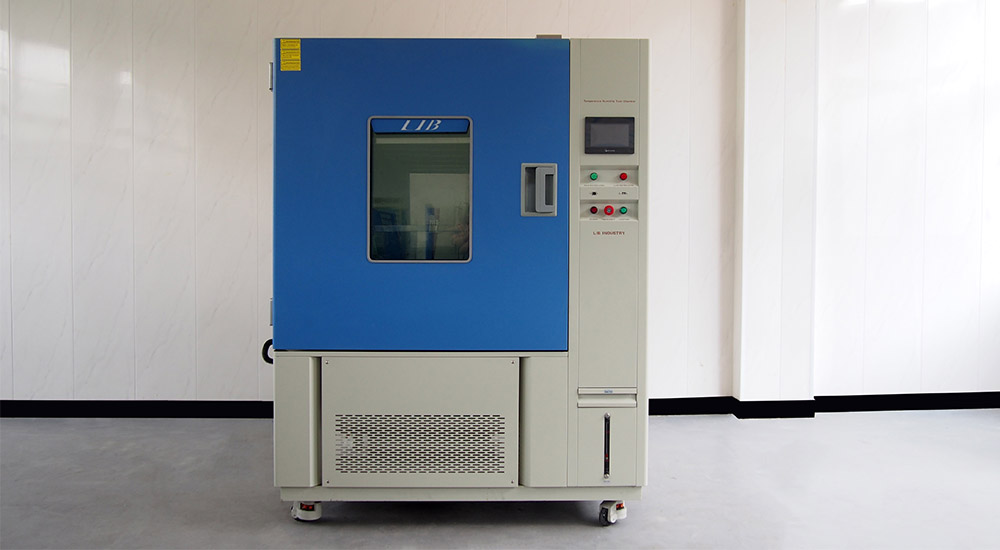

Constant Temperature Humidity Chamber

Name: Constant Temperature Humidity Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The constant temperature humidity chamber simulates a stable, precise, and independently enclosed T&H environment through a temperature control (cooling, heating) system and a humidification system. The LIB constant temperature humidity chamber offers flexible, wide-ranging standard or customized temperature and humidity options (-70/-40/-20℃ ~ +150℃, 10%/20%RH ~ 98%RH), which can be used to test and determine the parameters and performance of electrical, electronic, and other products and materials after changes in temperature environments during high-temperature, low-temperature, alternating humidity and heat, or constant tests.

The LIB constant temperature humidity chamber offers various models such as benchtop, vertical, and walk-in types, and provides multiple customization options.

Optional Models : TH-100A, TH-225A, TH-800A, TH-1000A and more.

Applicable Testing Standards:UL 2580,SAE J2464,SAE J575，IEC 60086-4,UL 1642,IEC 61215,IEC 62717,VW 80000 and etc.

LIB Industry Constant Temperature Humidity Chamber Video

Constant Temperature Humidity Chamber Features and Benefits

1. Wide Temperature & Humidity Range

Capable of simulating environments from extremely low to high temperatures (–70℃ to +150℃) and humidity levels from 10/20%RH to 98%RH, covering diverse testing needs.

2. Precise & Stable Control

Equipped with advanced PID controllers and high-accuracy T&H sensors to maintain constant conditions with minimal fluctuations, ensuring reliable and repeatable test results.

3. Efficient Air Circulation System

Uniform airflow design ensures even temperature and humidity distribution throughout the chamber, eliminating hot/cold spots.

4. Safety & Protection Features

Built-in over-temperature protection, water shortage alarms, and power-off memory functions ensure safe operation and protection of samples.

Parameter of Constant Temperature Humidity Chamber

Model	TH-100	TH-225	TH-500	TH-1000
Internal Dimension (mm)	400500500	500600750	700800900	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	150015402140
Interior Volume	100L	225L	500L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Controller	Programmable color LCD touch screen controller,PC Link, LAN interface for remote control
Cooling system	Mechanical compression refrigeration system
Refrigerant	Environmentally friendly refrigerant
Water supply system	Automatic water supply; Water purification system
Safety device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection;
Interior Material	SUS304 stainless steel
Exterior Material	Steel Plate with protective coating

Details of Constant Temperature Humidity Chamber

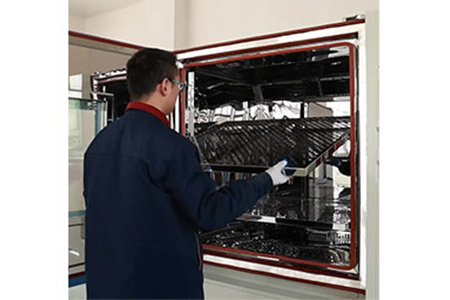

Test Workroom	Constructed from SUS304 stainless steel, corrosion-resistant and easy to clean. Silicone sealing strips ensure airtightness and prevent leakage of T&H. Multi-layer tempered glass observation window with anti-fog heating function.

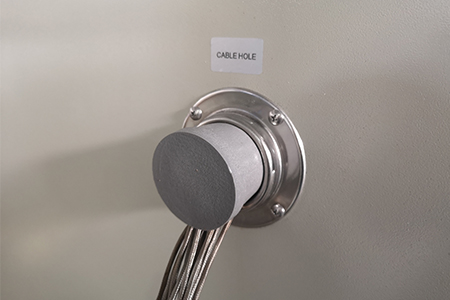

Test Port	Standard φ50 mm cable/test hole on the side wall for easy connection of external measurement devices.Other types of holes can also be customized, such as optical holes. Comes with a silicone plug to maintain sealing when not in use.

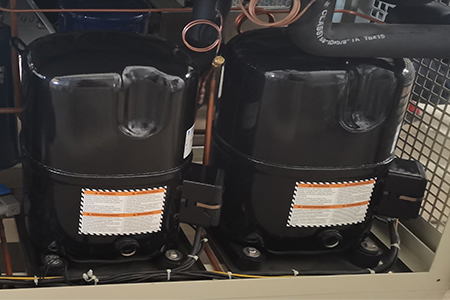

Refrigeration System	The cascade mechanical refrigeration system ensures the realization and stability of low temperatures with lower energy consumption.Uses high-efficiency, environmentally friendly refrigerants . Independent refrigeration circuit with effective heat dissipation, ensuring long-term durability.

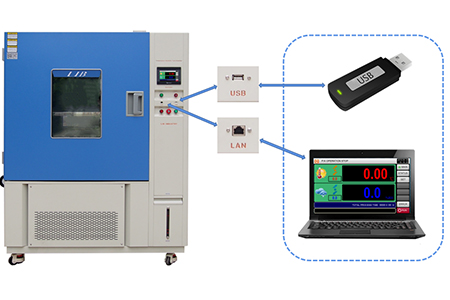

Controller	PLC color touch screen with intuitive interface for easy operation. Multi-step programmable settings for temperature and humidity cycling. Ethernet/USB remote access for monitoring and data export.
