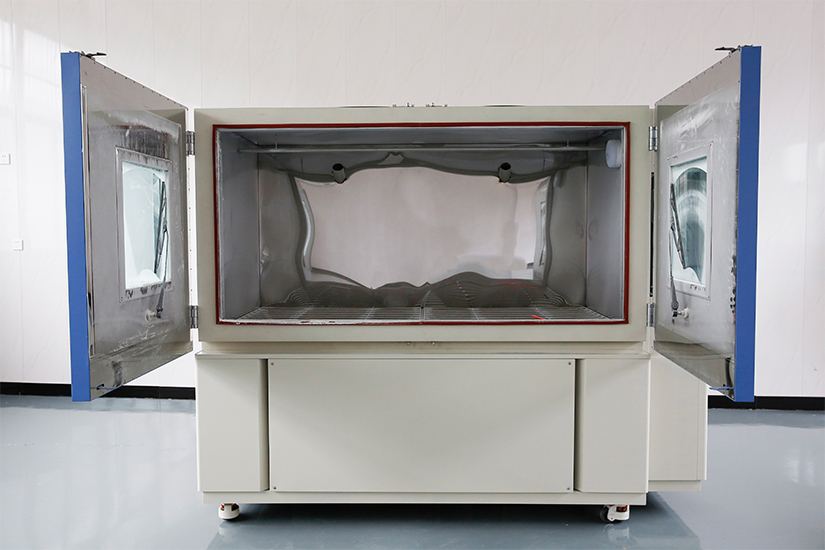

Static Exposure Chamber for Sand and Dust

Name: Static Exposure Chamber for Sand and Dust
Brand: Xi'an LIB Environmental Simulation Industry

The static exposure chamber for sand and dust tests the dust-proof ability of the product casing (IP5X/IP6X) by filling a closed test chamber with standard fine-grained dust (talcum powder) and precisely controlling the dust concentration and test time. Simulate the long-term exposure state of the product in a natural drought and dusty environment to verify the sealing performance and functional stability of the product in a sandy and dusty environment.

The static exposure chamber for sand and dust can also conduct negative pressure air extraction tests in accordance with IP6X requirements.

Model: DI-800, DI-1000, DI-1500, DI-2000

Standard: IEC 60529, IP5X, IP6X, ISO20653, IEC 60068-2-68, IEC 60598, MIL-STD-810G

Features and Benefits of Static Exposure Chamber for Sand and Dust

1. The static exposure chamber for sand and dust is equipped with a high-efficiency circulating fan and a dust circulation system to ensure the continuous and uniform suspension of dust.

2. Widely applied in outdoor lighting, new energy vehicles, electrical boxes, industrial instruments and other fields.

3. The regular models offer test spaces of 800L, 1000L, 1500L, 2000L etc. Larger or multi-station structures can be customized to meet the testing requirements of products of different volumes.

4. The static exposure chamber for sand and dust has functions such as over-temperature, fan overload, and door lock linkage protection to ensure the safety and stability of the testing process.

Specifications of Static Exposure Chamber for Sand and Dust

Model	DI-800	DI-1000	DI-1500	DI-2000
Internal Dimension (mm)	80010001000	100010001000	100015001000	100020001000
Overall Dimension (mm)	104014501960	133014501960	133019501990	133024501990
Useful Volume (L)	800	1000	1500	2000
Temperature Range	Ambient ~ +50℃
Humidity Range	< 30% RH
Normal Wire Diameter	50um
Nominal Width of a Gap Between wires	75um
Fight Time	0 ~ 99H59M
Blowing Time	0 ~ 99H59M
Specimen Power Outlet	Dust-proof socket 16A
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection
Exterior Material	A3 Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Standard Configuration	Sample shelf, dust wiper, talcum powder(5kgs)
Power	AC380V 50Hz

Details of Static Exposure Chamber for Sand and Dust

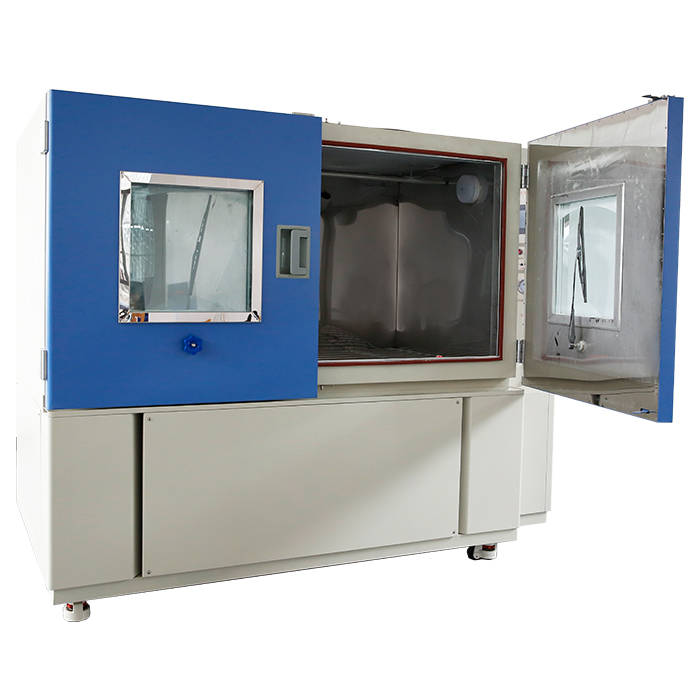

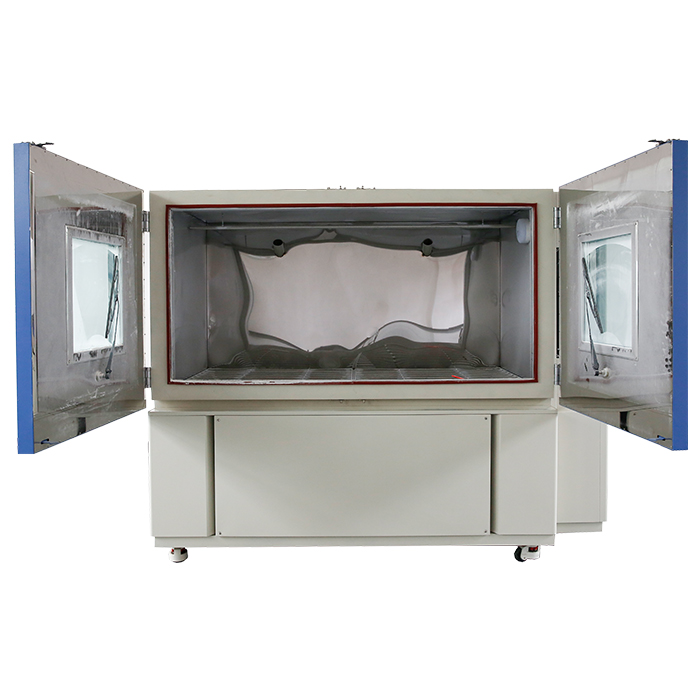

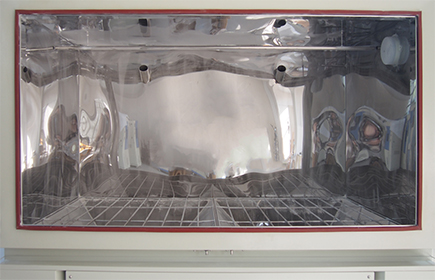

Workroom	Circulating fan

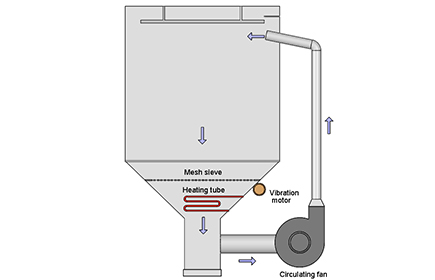

SUS 304welded structure, corrosion-resistant and wear-resistant. There are sealing strips around the workroom to ensure that dust does not leak. Equipped with suspended and horizontal sample racks, suitable for different types of samples.	Industrial-grade axial flow fans lift fine dust and maintain a uniform distribution. In combination with stainless steel air ducts, an O-shaped vertical dust circulation is formed.

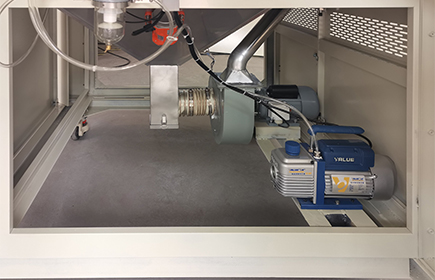

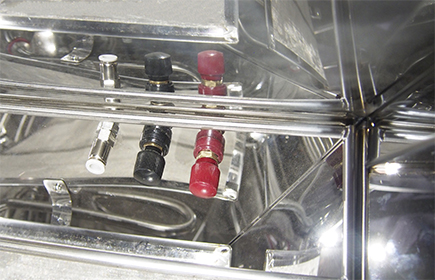

Dust supply and reuse	Sample lead interface
At the bottom of the workroom, there is a dust collection bin and a vibration device. After the test is completed, the settled dust can be automatically collected. The dust is recycled without frequent replacement, and it is equipped with a dust screen.	To ensure the integrity of the seal and electrical safety, a terminal post type sample lead-out structure is adopted. Each group of terminal posts is equipped with a dust-proof sheath and an insulating protective layer.

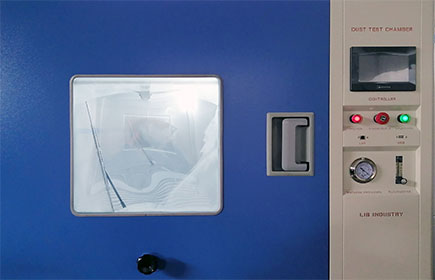

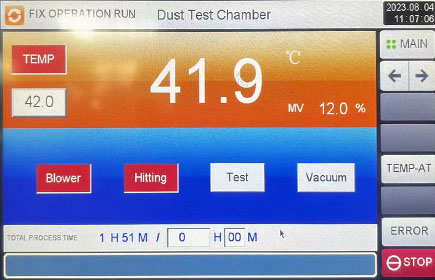

Observation window and lighting	Control system
Tempered explosion-proof glass with manual dust removal brush, equipped with high-brightness LED dust-proof lamp, providing a clear observation field.	PLC controller, compatible with complex process logic. Real-time data display, alarm record, PC remote control, and USB export function.

The LIB static exposure chamber offers free talcum powder.LIB offers: 3-year warranty,free technical support, on-site installation, commissioning and training services

Welcome to contact us for technical solutions and quotations.
