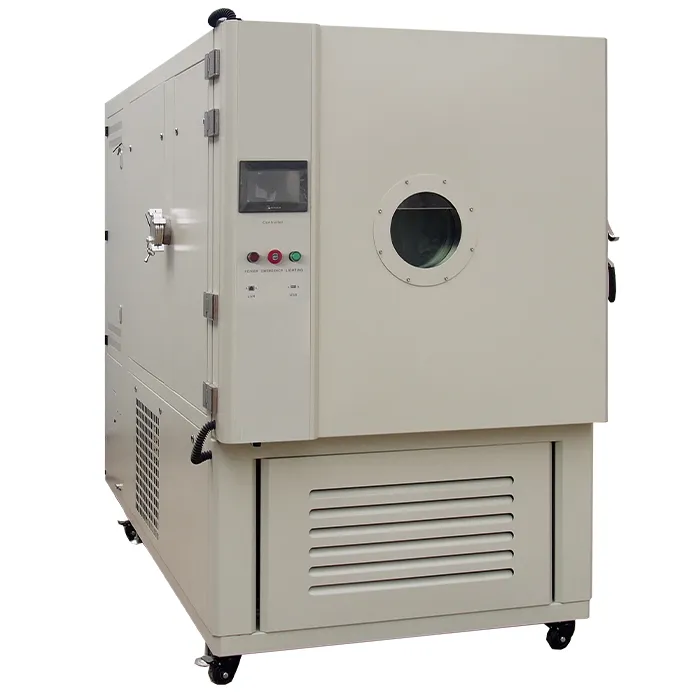

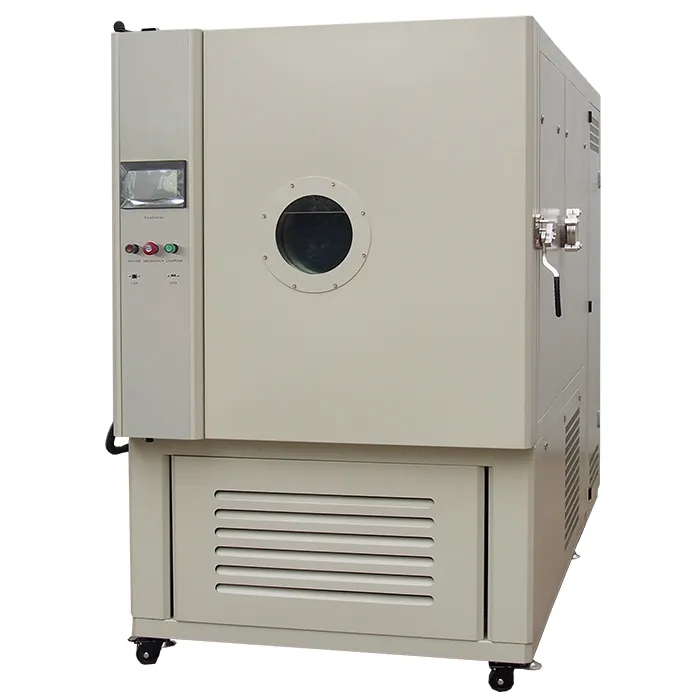

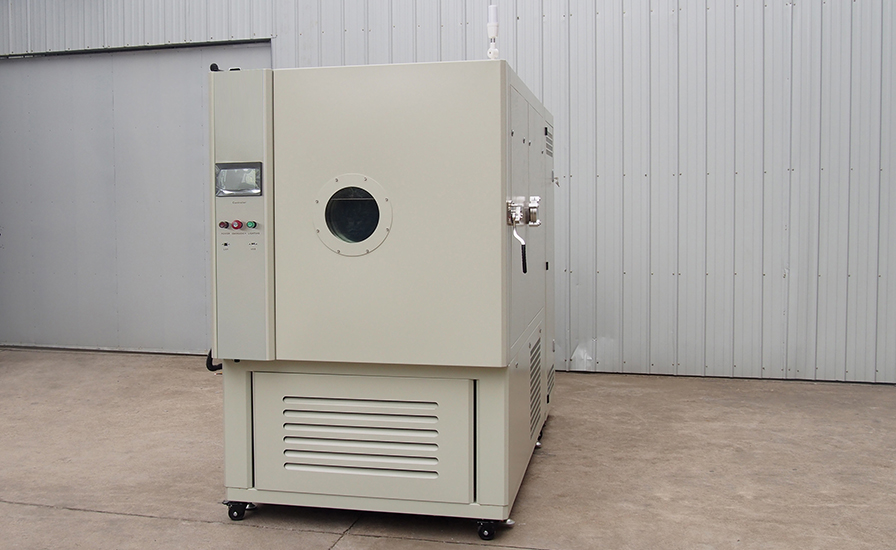

Altitude Simulation Chamber

Name: Altitude Simulation Chamber
Brand: Xi'an LIB Environmental Simulation Industry

LIB altitude simulation chamber can reproduce high-altitude or high-altitude conditions on the ground. It precisely controls the air pressure(Atmospheric pressure to 0.5kPa), temperature(-120℃/-60℃ /-40℃/-20℃ ～ +150 ℃), and humidity(20%RH ~ 95%RH)inside the chamber to simulate the climatic characteristics ranging from sea level to tens of thousands of meters, including low pressure, low temperature, and dryness.

This equipment is widely used in aerospace, military, automotive, electrical and electronic, and biomedical fields, for verifying the performance and reliability of products under high-altitude or air transportation conditions.

Model: A-1000 or more customized models.

Standard: IEC 60068, IEC 60749, MIL-STD-202F

Altitude Simulation Chamber Features and Benefits

1. Ultra-Wide Pressure Range
Simulates environments from sea level down to 0.5 kPa, equivalent to over 50,000 meters altitude, enabling extreme high-altitude and near-space condition testing.

2. Extreme Temperature Flexibility
Offers multiple ultra-low temperature configurations (-120℃ / -60℃ / -40℃ / -20℃ to +150℃), covering both arctic-level cold and desert-level heat in a single system.

3. Precise Multi-Parameter Control
Simultaneous regulation of pressure, temperature, and humidity (20%RH ~ 95%RH) with high accuracy ensures reliable and repeatable test results for complex climate profiles.

4. Aerospace-Grade Build Quality

Designed with reinforced structures, vacuum-sealed chambers, and advanced insulation to withstand extreme pressure differentials without performance loss.

Altitude Simulation Chamber Specifications

Model	A-1000
Internal Dimension	Depth 1500 width 1000 height 970mm
Overall Dimension	Depth 2050 width 1300 height 2200mm
Interior Volume	1000L
Temperature Range	-20℃ ～ +150 ℃ -40℃ ～ +150 ℃ -60℃ ～ +150 ℃ -120℃ ～ +150 ℃
Temperature Fluctuation	≤ ±0.5℃
Temperature Deviation	≤ 2.0℃
Temperature Uniformity	≤ 2.0℃
Humidity Range	20%RH ~ 95%RH (can be controlled above 50Kpa)
Cooling Rate	2 ℃ / min
Heating Rate	3 ℃ / min
Pressure Range	Atmospheric pressure to 0.5kPa standard atmospheric pressure 101.kpa
Pressure Deviation	±2Kpa
Pressure Reduction Time	Atmospheric pressure to 0.5kpa ≤30min
Pressure Housing	manganese steel, surface spray treatment
Other outer wall materials	doublesided galvanized steel plate, surface spray treatment
Vacuum system	vacuum pump, exhaust regulating valve, charging regulating valve

Configuration of Altitude Simulation Chamber


Interior Workroom	Controller

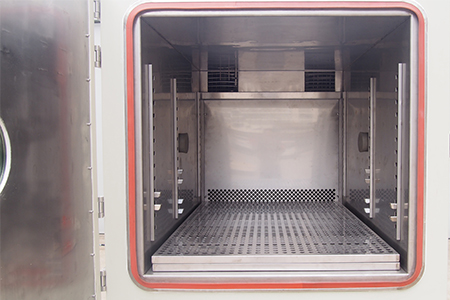

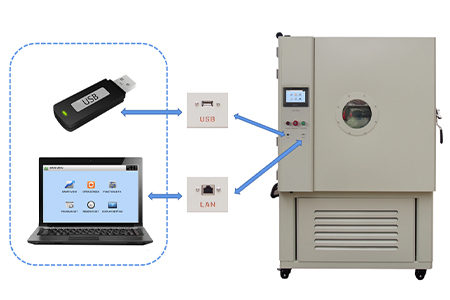

Material: SUS304, corrosion-resistant, pressure-resistant, and easy to clean. Available Volumes: From 100L to 1000L, with customizable oversized chambers. Observation Window: Multi-layer tempered glass with conductive anti-fog heating. Lighting: Built-in LED light for clear observation during testing.	Touch Panel:full-color touch screen with intuitive operation. Data Export: Supports USB data export and Ethernet/PC remote monitoring. Precision Control: Independent PID control for temperature, humidity, and air pressure with high accuracy.

Vacuum Pump	Refrigeration System

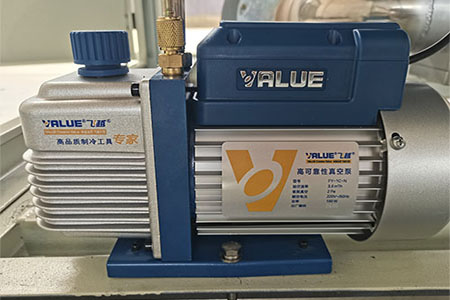

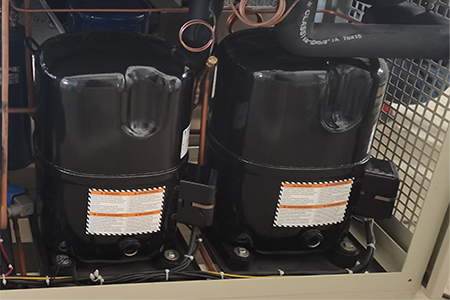

Type: High-vacuum pump, stable and durable. Pumping Speed: Reduces pressure from 101.3 kPa to 0.5 kPa in as fast as 30 minutes. Protection System: Equipped with anti-backflow and dust filter to extend service life.	Structure: Two-stage cascade refrigeration system capable of reaching -120℃. Cooling Speed: From ambient temperature to -70℃ in approximately 30 minutes. Eco-Friendly Refrigerants: environmentally friendly refrigerants.
