Thermal Stability Testing Machine

Name: Thermal Stability Testing Machine
Brand: Xi'an LIB Environmental Simulation Industry

LIB thermal stability testing machine provides dynamic temperature and humidity environment to test products’ and materials’ performance and stability.

The thermal stability testing machine programs to set constant high temperature and humidity, alternating temperature and humidity. -20℃,-40℃，-70℃ to +150℃，different temperature options, humidity ranges from 20% to 98%RH.

Standard and customized models cover various test request,3-years warranty solves your worries,get a quote now.

Model: TH-100A, TH-225A, TH-500A, TH-800A, TH-1000A

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D,SAE J575,ICH Q1A

LIB Industry Thermal Stability Testing Machine Video

Thermal Stability Testing Machine Features and Benefits

1. The temperature control accuracy can reach ±0.5℃, and the humidity control accuracy can reach ±2.5%RH, which can meet the strict requirements of temperature and humidity in different tests.

2. Thermal stability testing machine can test according to international standards such as IEC,ISO etc., to ensure that the product meets the industry specifications and certification requirements.

3. LIB thermal stability testing machine is equipped with multiple safety devices such as leakage protection, overtemperature protection and water shortage protection.

4. Suitable for material and product testing in electronics, automotive, aerospace, food, medicine and other industries.

Thermal Stability Testing Machine Specifications

Model	TH-100	TH-225	TH-500	TH-1000
Internal Dimension (mm)	400500500	500600750	700800900	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	150015402140
Interior Volume	100L	225L	500L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min

Configuration of Thermal Stability Testing Machine

1. Workroom	High precision temperature and humidity probe transmits data in real time. Double layer sample rack can be detachable and adjustable height, each layer can bear 50KG. The inner wall of the studio is made of SUS304 material, resistant to high and low temperature changes and humidity changes, easy to clean.
2. Air circulation system	The circulating air duct and reasonable outlet make the temperature and humidity evenly distributed in the chamber, and the difference of each point does not exceed ±0.5℃ and ±2.5%RH.
3. Heating system	Rapid heating and high precision temperature control.

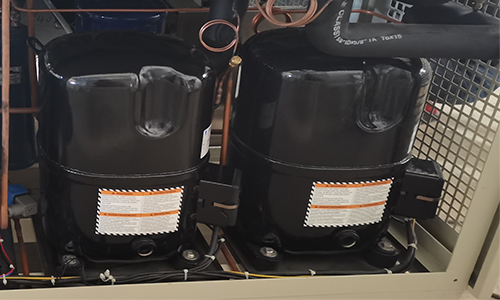

4. Cooling system	The method of mechanical refrigeration circulates the refrigerant, reduces the temperature of the working room and works with dehumidification.
5. Control system	Set environmental parameters, test procedures, etc., complete test data image recording, downloadable, port can be connected to the PC. Multiple language modes are available.
6. Humidity system	Closed evaporator, humidification stability and high efficiency.
