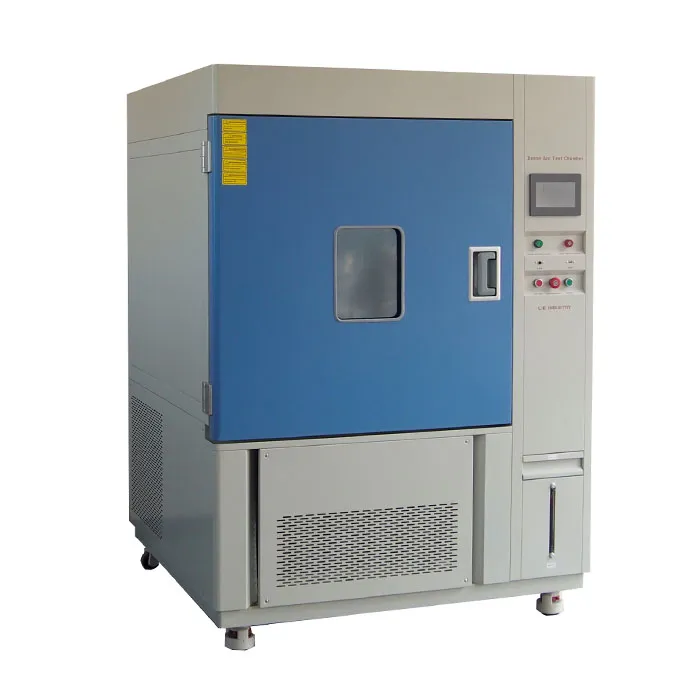

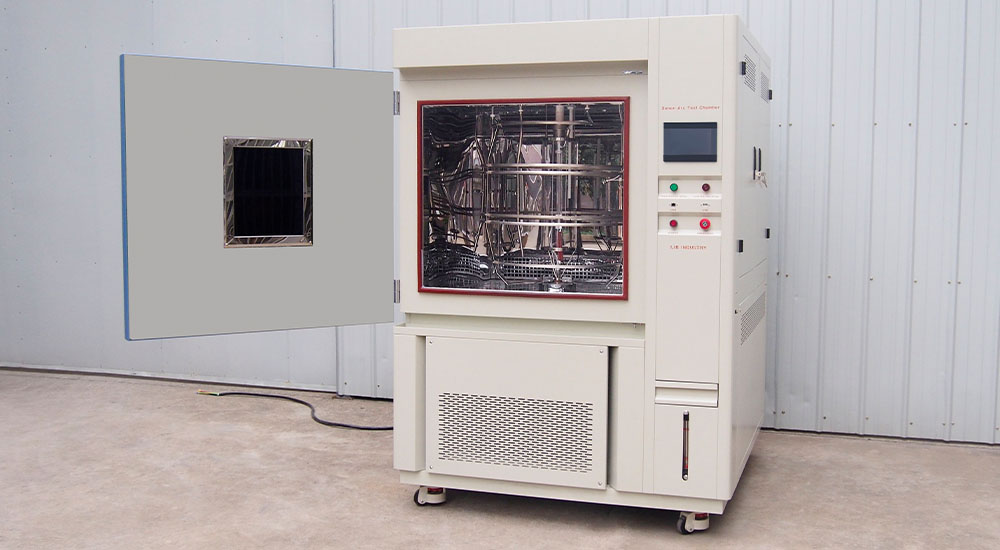

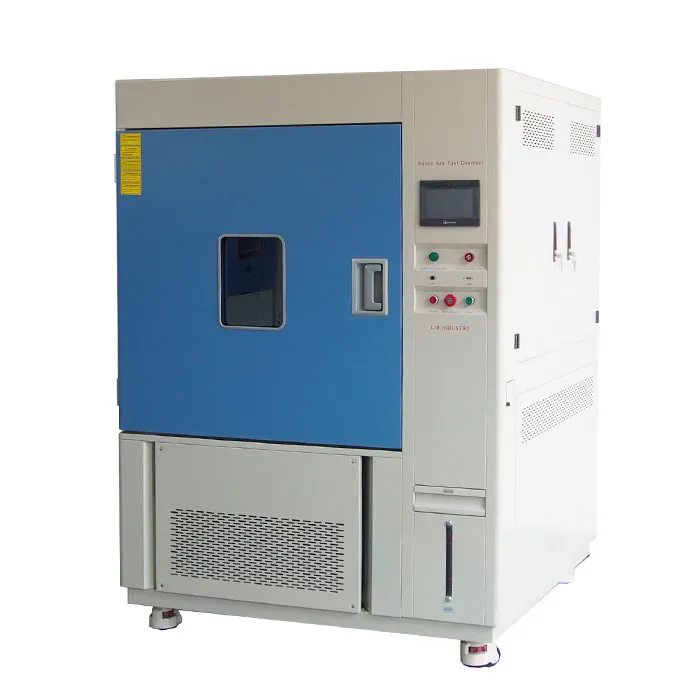

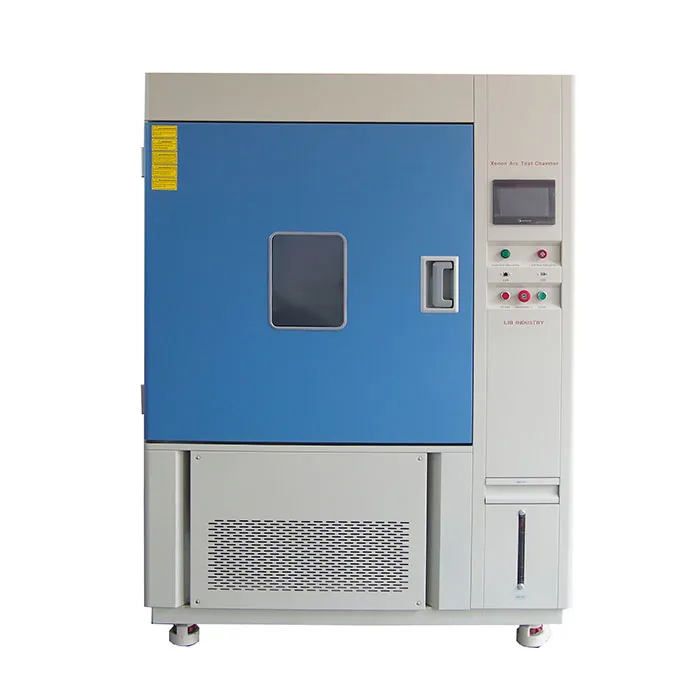

Xenon Arc Lamp Light Fastness Aging Device

Name: Xenon Arc Lamp Light Fastness Aging Device
Brand: Xi'an LIB Environmental Simulation Industry

By harnessing the full-spectrum radiation of a xenon arc lamp, xenon arc lamp light fastness aging device recreates the most aggressive elements of natural sunlight, including ultraviolet, visible, and infrared energy. This accelerated weathering simulator allows manufacturers to watch months or even years of outdoor exposure unfold in just days.

Beyond simple color fading tests, it reveals how textiles, plastics, coatings, and automotive interiors will truly endure under relentless cycles of light, heat, humidity, and rain,conforming to international standards such as ISO 105-B02, ASTM G155, and ISO 4892-2.

Model Options For You: XL-S-500,XL-S-750

Applicable Standards: IEC 60068-2-5, IEC 60068-2-27,ASTM G26,ISO 105, ISO 4892-2, ASTM G155, ASTM G151, ASTM G155,ISO 105-B02 (EN) (DIN), ISO 105-B04 (EN) (DIN).

LIB Industry Xenon Arc Lamp Light Fastness Aging Device Video

Features and Benefits of Xenon Arc Lamp Light Fastness Aging Device

1. Accelerated Weathering Testing

Utilizing high-intensity xenon arc lamps and controlled temperature/humidity environments, this system simulates long-term outdoor exposure in laboratory settings, significantly shortening test cycles and accelerating the acquisition of weather resistance data.

2. Authentic Sun Replica

Utilizing a xenon arc lamp light source (300–800 nm full spectrum) covering ultraviolet, visible, and infrared light, it simulates the closest approximation to natural sunlight, offering greater authenticity than single UV lamps.

3. Multi-Dimensional Aging Testing

Programmable control of temperature (RT~+100°C), humidity (50%RH–98%RH), and light intensity (adjustable 42 W/m²@340nm), with rain simulation capability, enabling combined light, heat, and water aging.

4. Cross-Industry Versatility

A single unit serves multiple sectors including textiles, coatings, plastics, inks, automotive interiors, and building materials. It supports both scientific validation and quality control applications.

Specifications of Xenon Arc Lamp Light Fastness Aging Device

Name	Xenon Arc Lamp Light Fastness Aging Device
Model	XL-S-750
Internal Dimension (mm)	950950850 mm
Overall Dimension (mm)	140014001950 mm
Specimen Holder Size(mm)	95*200
Specimen Capacity	42pcs
Chamber Type	Rotating Holder
Irradiation Source	1 piece of 4500w water-cooled xenon arc lamp
Irradiance Range	35~150 W/㎡
Bandwidth Measurement	300nm~400nm (340nm or 420nm)
Chamber Temperature Range	Ambient ～ 100 ℃ ±2℃
Black Panel Temperature	BPT 35 ～ 85 ℃ ±2℃
Humidity Range	50% ~ 98% RH
Humidity Deviation	± 5% RH
Water Spray Cycle	1~9999H59M (Adjustable)
Controller	Programmable color LCD touch screen controller
Water supply system	Automatic water supply, Water purification system
Radiometer	UV Radiometer, Tolerance: ±5%
Cooling System	Mechanical compression refrigeration system

Detail of Xenon Arc Lamp Light Fastness Aging Device

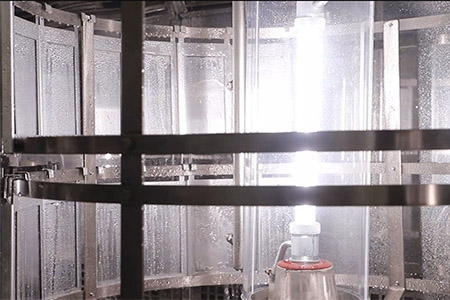

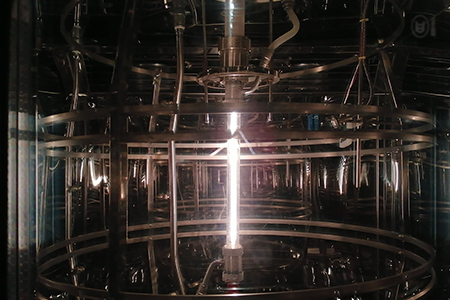

High-Performance Xenon Lamp System	Equipped with a water-cooled xenon arc lamp (4500W 6500W options), delivering full-spectrum irradiation (300–800 nm) with adjustable intensity, ensuring precise sunlight simulation for different materials.
Optical Filters	Multiple filter sets (Daylight, Window Glass, Extended UV) available to reproduce specific exposure conditions, meeting ISO 105-B02, ASTM G155, and ISO 4892-2 requirements.

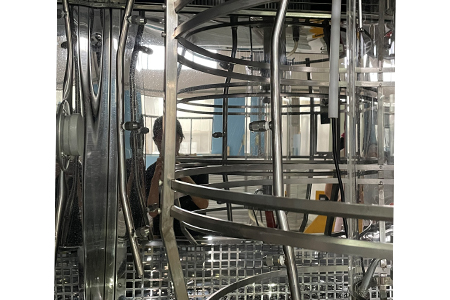

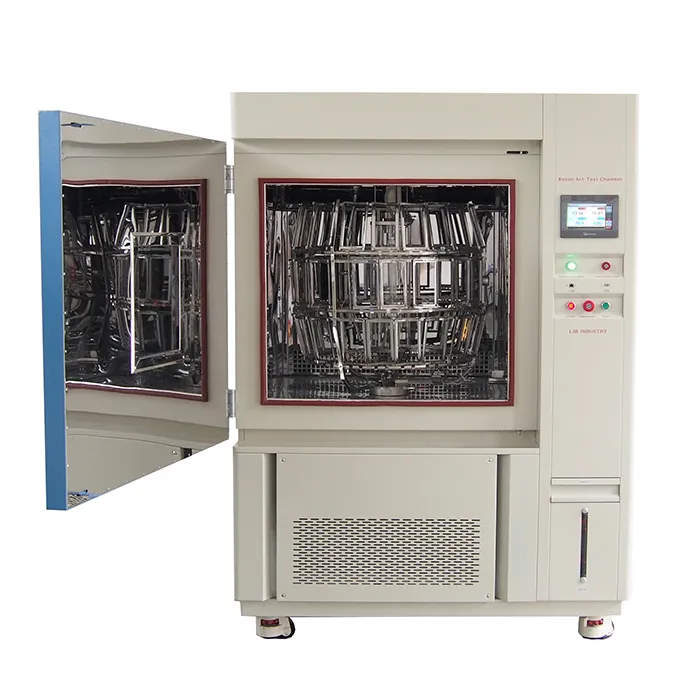

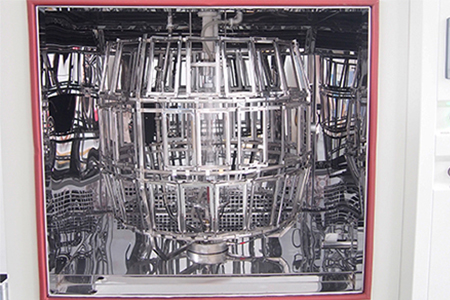

Workroom	Spacious stainless-steel chamber (capacity can be customized) with reflective inner walls for uniform irradiance. sample holders( a sample with a size of 95*200 and a maximum capacity of 42 pieces)with rotation function to guarantee consistent exposure.
Spray & Humidity Simulation	Integrated water spray nozzles for simulating rainfall or condensation cycles； Distilled water circulation system with automatic water level control ensures stable test conditions.

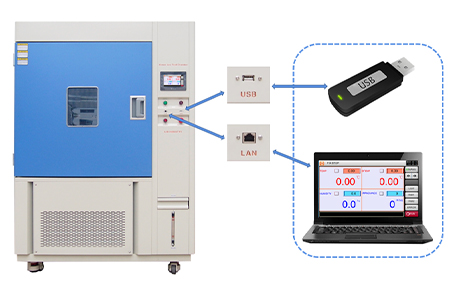

User-Friendly Controller	Touchscreen PLC controller, supporting programmable test cycles, multi-language interface, and USB/Ethernet data export for traceable test reports.
