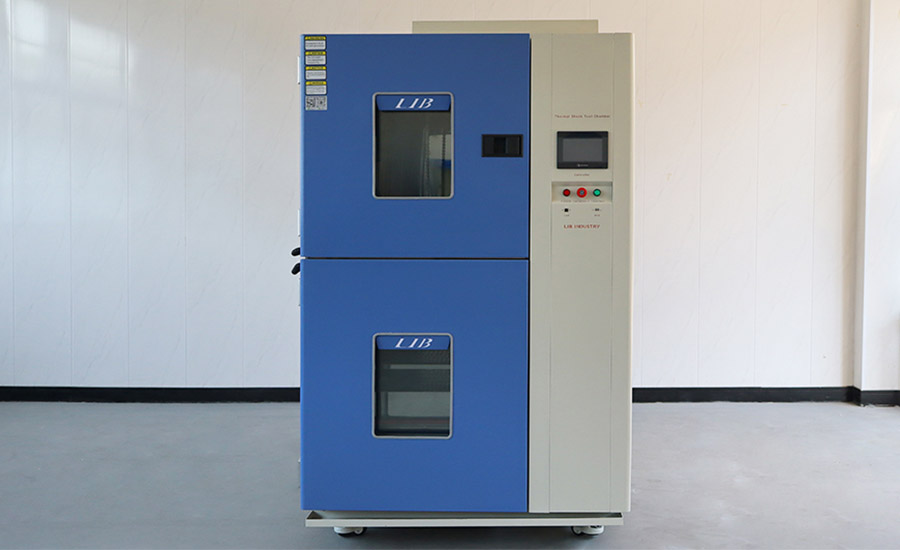

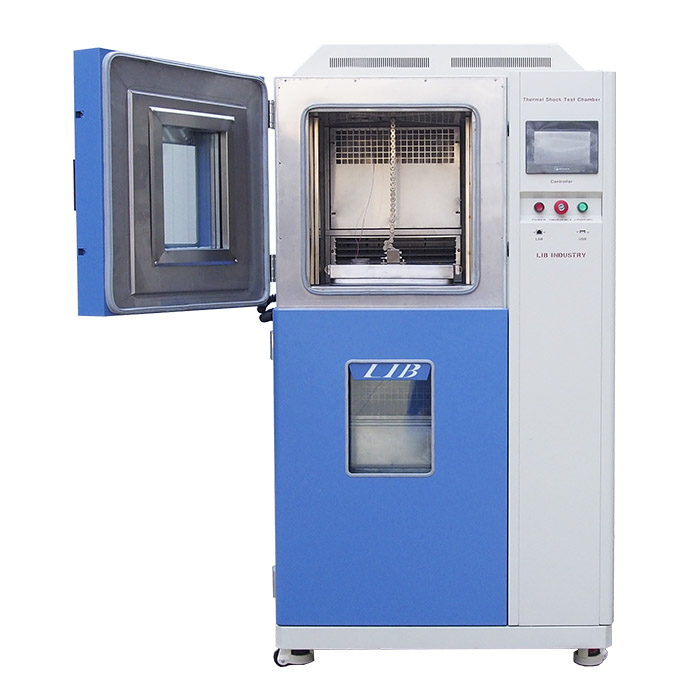

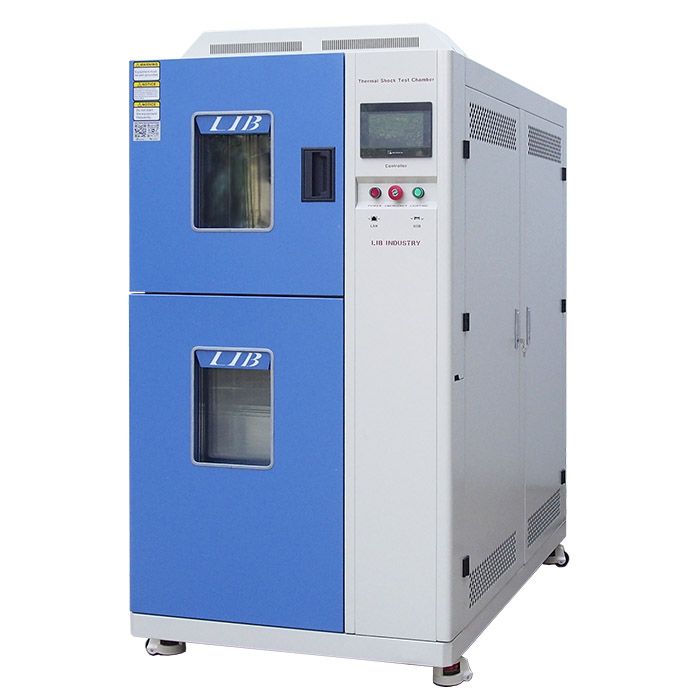

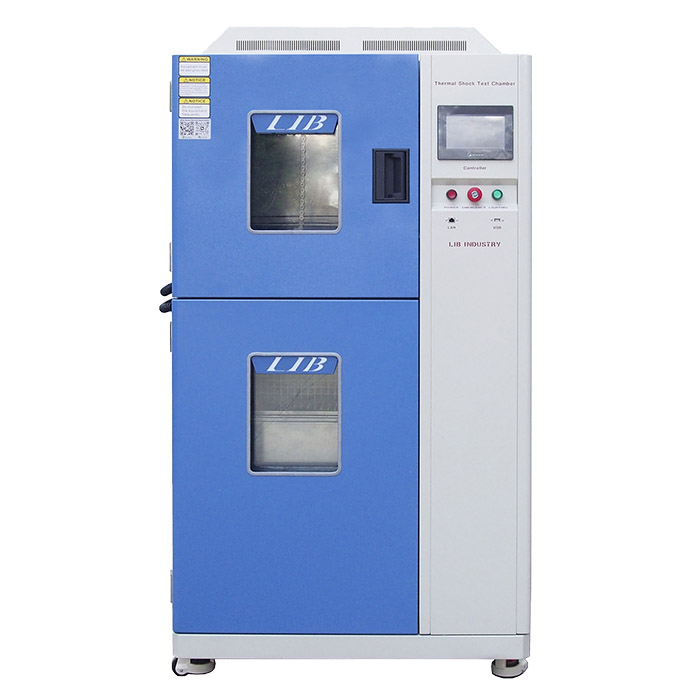

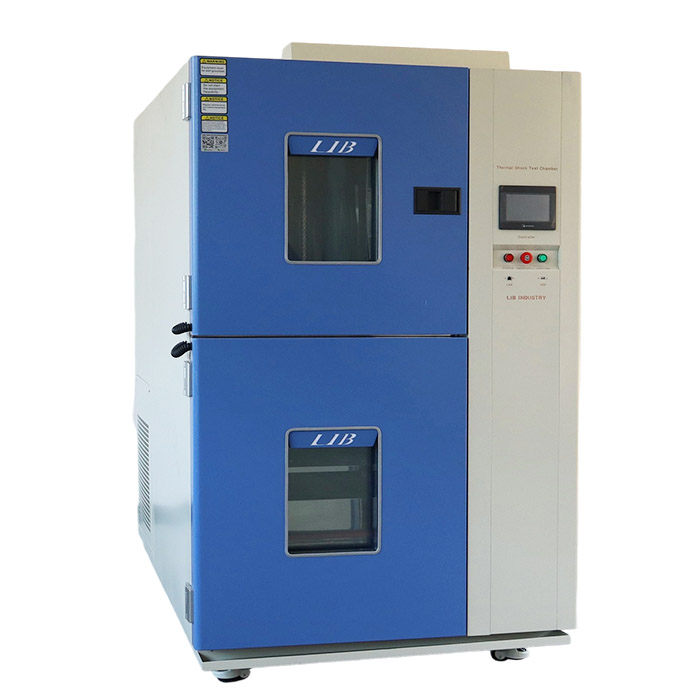

Air to Air Temperature Shock Chamber

Name: Air to Air Temperature Shock Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The air to air temperature shock chamber enables the DUT in the basket to rapidly switch between the high-temperature zone (up to +220℃) and the low-temperature zone (down to -75℃) within 3 seconds, allowing the sample to undergo extremely harsh temperature changes.

The air to air temperature shock chamber assesses product in a severe temperature difference environment and simulates the thermal expansion and contraction stress that the product may face. Help identify potential risks such as material cracks, welding failures, and structural deformations.

Model: TS-162, TS-340, TS-500, TS-1000

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-813D

LIB Industry Air to Air Temperature Shock Chamber Video

Air to Air Temperature Shock Chamber Features and Benefits

1. The independent temperature zone design and high-precision temperature sensor ensure rapid and uniform temperature conversion

2. Complies with international test standards such as MIL-STD, IEC and JEDEC, and is an ideal choice for high-reliability environmental stress screening (ESS) tests.

3. The samples are automatically switched without the need to open the door to change zones, avoiding the leakage of cold and hot air. The testing process is more continuous and energy-efficient.

4. The sample can switch rapidly between two temperature zones (within 3 seconds), enabling multiple cycles to be completed in a short period of time, enhancing testing efficiency and shortening the product verification cycle.

Specifications of Air to Air Temperature Shock Chamber

Model		TS-162	TS-340	TS-500	TS-1000
Internal Dimensions (mm)		300300250	450450360	650650500	850850700
Overall Dimension (mm)		15608701545	171010201845	191012202265	211014202665
Interior Volume (mm)		22L	72L	211L	505L
Loading Capacity		20kg	30kg	50kg	60kg
Pre-heat Room	Upper limit Temperature	+220℃
	Heating Time	Ambient ~ + 200℃, within 30 minutes
Pre-cool Room	Lower limit Temperature	-75℃
	Cooling time	Ambient ~ -70℃, within 30 minutes
Test Room	High Temperature Exposure Range	Ambient +20 ~ +200°C
	Low temperature Exposure Range	–65 ~ -5°C
Temperature Fluctuation		≤±0.5℃
Temperature Deviation		≤±3 ℃
Temperature Recovery Time		Within 5 minutes
Cooling System		Mechanical compression refrigeration system，environmentally friendly refrigerant
Controller		Programmable color LCD touch screen controller, Ethernet connection

Details of Air to Air Temperature Shock Chamber


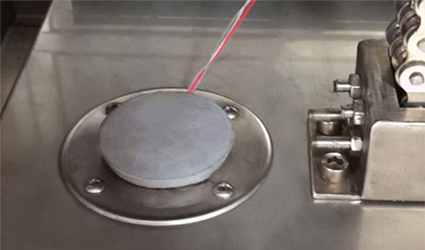

Basket Transfer System	Cable Hole

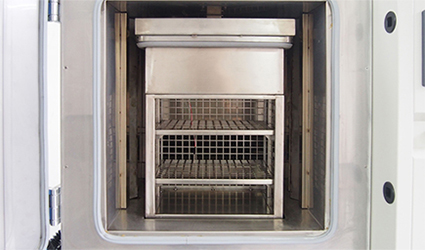

The high-strength alloy structure sample basket can automatically rise and fall vertically in the high and low temperature range. The movement is smooth and the test items inside the basket are not affected by vibration.	Test hole (φ50mm) is opened on the top of the basket, facilitating the testing of cables or external power supplies. comes with a silicone sealing ring to ensure sealing performance.

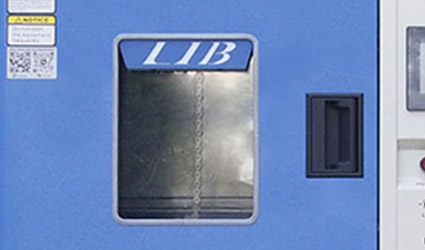

Observation Window	Refrigeration System

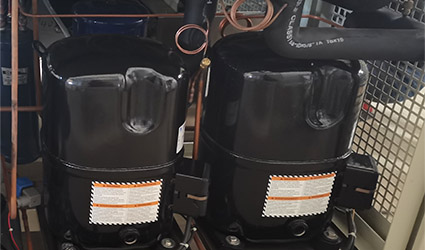

Single/double observation window design, double-layer heated insulating glass window to prevent condensation, built-in LED lighting, making the testing process clear at a glance.	French Tecumseh, which is highly versatile. Two-stage cascade refrigeration system and uses environmentally friendly refrigerants, providing powerful cooling and low-noise operation. Cooling method: Water cooling is optional

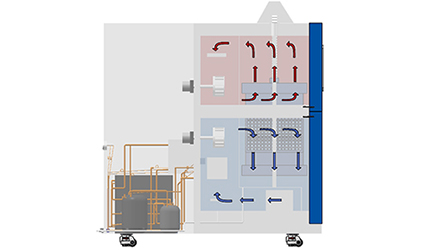

Touchscreen Controller	Air Circulation System

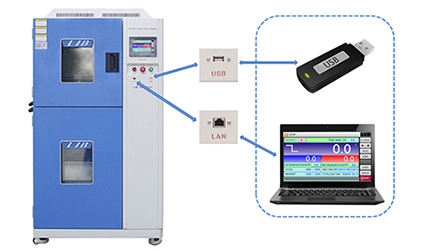

The color touch screen, equipped with a PLC module, supports multi-segment program control, real-time monitoring and data recording, and is intuitive to operate. Data export: USB export/PC connection	The air duct and low-noise high and low-temperature resistant fan enable the rapid and uniform distribution of cold and hot air in each temperature zone, ensuring consistent heating and cooling of the sample.
