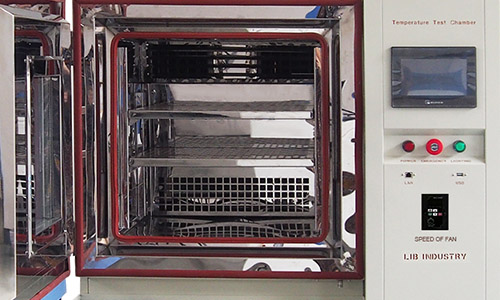

Thermal Cycling Chamber

A thermal cycling chamber is high and low temperature cycling chamber. When working, it can follow the set procedure to make the temperature in the workroom cycle between high and low temperature.

The temperature change rate is higher, which can be controlled at 5℃, 10℃, 15℃ or higher. Simulate the product alternating between hot desert environment (+150℃) and cold polar environment (-70℃) to check whether its performance is stable.


Model: TR5-100, TR5-225, TR5-500, TR5-800, TR5-1000

Standard:  AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D


Thermal Cycling Chamber Features and Benefits

1. A wide range of applications, suitable for electronic appliances, automotive, aerospace, material science and other fields, heat resistance, cold resistance, dry resistance and other performance of quality inspection.



2. Simulate a variety of complex temperature change environment, quickly and accurately complete high and low temperature cycle test, improve test efficiency, shorten product development and production cycle.



3. High precision temperature control and uniform temperature distribution ensure the consistency and stability of test conditions, so as to obtain reliable and accurate test results.



4. Energy efficient design reduces energy consumption and waste by optimizing hot air circulation system and heat recovery technology.


Specifications of Thermal Cycling Chamber

Model

TR5-100

TR5-225

TR5-500

TR5-800

TR5-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

800*1000*1000

1000*1000*1000

Overall Dimension (mm)

900*1050*1620

1000*1140*1870

1200*1340*2020

1300*1540*2120

1500*1540*2140

Interior Volume

100L

225L

500L

800L

1000L

Heat load

1000W



Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Cooling Rate

5 ℃ / min

Heating Rate

5 ℃ / min



Configuration of Thermal Cycling Chamber



① Workroom

  • stainless steel SUS304 mirror plate, which is corrosion-resistant and easy to clean.

  • High precision temperature sensor with 0.001 degree precision.

  • 100 mm insulation layer and double high temperature and high tension sealing strips prevent heat leakage.


② Control system



Precise control of temperature changes in the chamber, with program editing, data recording display, alarm protection and communication.


③ Air circulation system

  • Fan: low noise air conditioning motor and blade centrifugal wind wheel, strong air circulation, so that the temperature distribution is uniform.

  • Air duct: Properly designed air duct ensures that hot or cold air can be circulated in a predetermined path.


④ Heating system


Independent system, using nickel-chromium alloy electric heating heater, etc., can quickly and stably increase the temperature in the chamber.


⑤ Refrigeration system




Compression refrigeration method, with the France TECUMSEH fully enclosed compressor, can achieve rapid cooling and reach a lower temperature.
