Light Fastness Tester

Name: Light Fastness Tester
Brand: Xi'an LIB Environmental Simulation Industry

LIB light fastness tester is dedicated to evaluating the durability and weather resistance of materials under light conditions and is widely used in industries such as textiles, plastics, coatings and inks. It uses a full-spectrum xenon arc lamp to simulate natural sunlight (with a filter that can simulate the spectrum of window glass or outdoors), and conducts accelerated aging tests on samples by simulating the most destructive band of sunlight - xenon arc light.

Model: XL-S-500,XL-S-750

Standard: IEC 60068-2-5, IEC 60068-2-27,ASTM G26,ISO 105, ISO 4892-2, ASTM G155, ASTM G151, ASTM G155,ISO 105-B02 (EN) (DIN), ISO 105-B04 (EN) (DIN).

Light Fastness Tester Features and Benefits

1. Full-spectrum xenon arc lamps, when paired with window glass filters or outdoor filters, effectively simulate ultraviolet, visible and near-infrared light in sunlight, approaching real outdoor usage conditions.

2. Adjustable parameters such as temperature (Ambient ～ 100 ℃ ±2℃), humidity (50% ~ 98% RH), and irradiation intensity (35~150 W/㎡), to meet different standards (such as ISO, AATCC, etc.) and various custom conditions.

3. LIB light fastness tester can simultaneously conduct tests such as spray and condensation, meeting the requirements of complex environment simulation.

4. Accelerated aging simulation can obtain outdoor light aging data equivalent to several months or years within a few hundred hours, significantly shortening the verification cycle of new materials and new formulas.

Specifications of Light Fastness Tester

Model	XL-S-750
Internal Dimension (mm)	950950850 mm
Overall Dimension (mm)	140014001950 mm
Specimen Holder Size(mm)	95*200
Specimen Capacity	42pcs
Chamber Type	Rotating Holder
Irradiation Source	1 piece of 4500w water-cooled xenon arc lamp
Irradiance Range	35~150 W/㎡
Bandwidth Measurement	300nm~400nm (340nm or 420nm)
Chamber Temperature Range	Ambient ～ 100 ℃ ±2℃
Black Panel Temperature	BPT 35 ～ 85 ℃ ±2℃
Humidity Range	50% ~ 98% RH
Humidity Deviation	± 5% RH
Water Spray Cycle	1~9999H59M (Adjustable)
Controller	Programmable color LCD touch screen controller
Water supply system	Automatic water supply, Water purification system
Radiometer	UV Radiometer, Tolerance: ±5%
Cooling System	Mechanical compression refrigeration system

Details of Light Fastness Tester

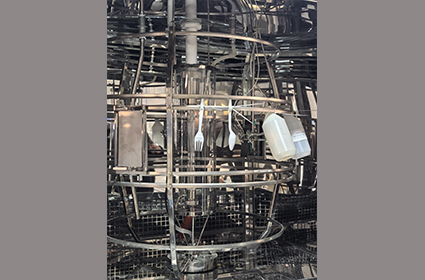

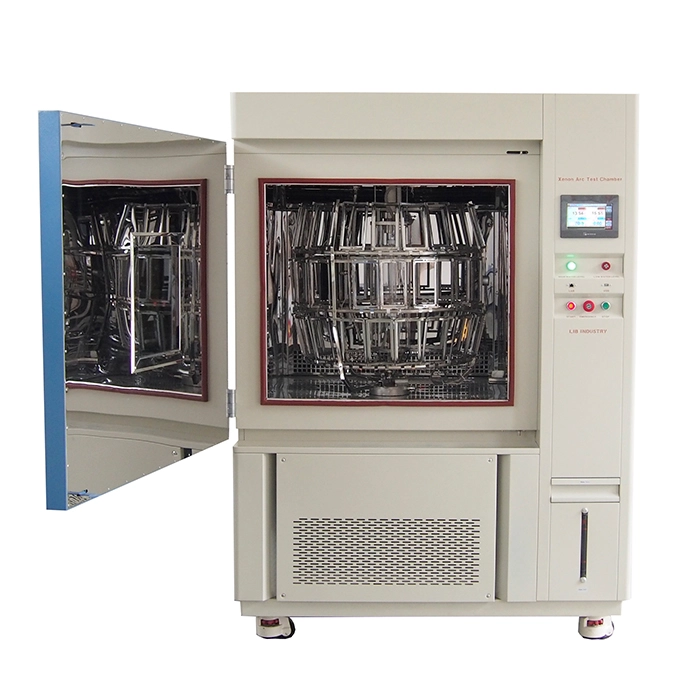

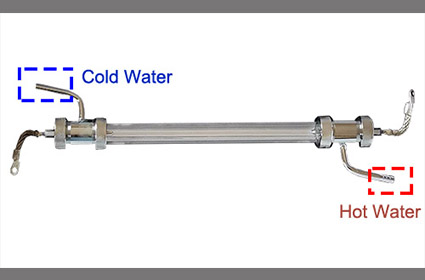

Rotating sample holder	Xenon arc light
Corrosion-resistant SUS304 sample holder, capable of 360° continuous rotation, ensures consistent light and heat exposure conditions for each sample. Supports simultaneous testing of 42 samples (customizable).	4.5kW high-performance water-cooled xenon arc lamp, equipped with a filter (optional window glass type or sunlight type), simulates direct sunlight (full spectrum). and is equipped with a radiometer to ensure automatic constant control of irradiance

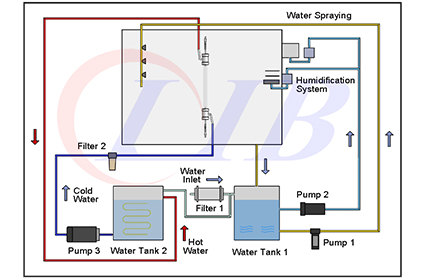

Water cycle	Intelligent remote control

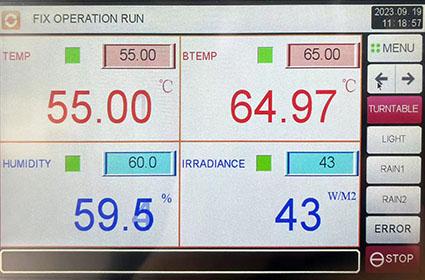

Automatic water filtration and circulation system to ensure the cleanliness of the water source for spraying, cooling and humidity control, prevent nozzle blockage, save water resources and improve the efficiency of the test.	Full-color touch screen controller, PLC programming, to achieve test program setting, light/dark cycle setting, fault alarm and remote monitoring. Support data USB export and network interface
