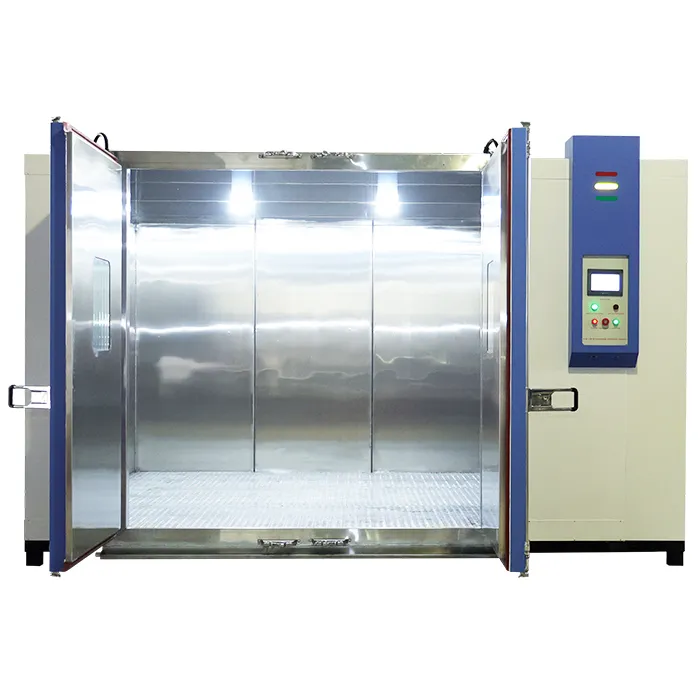

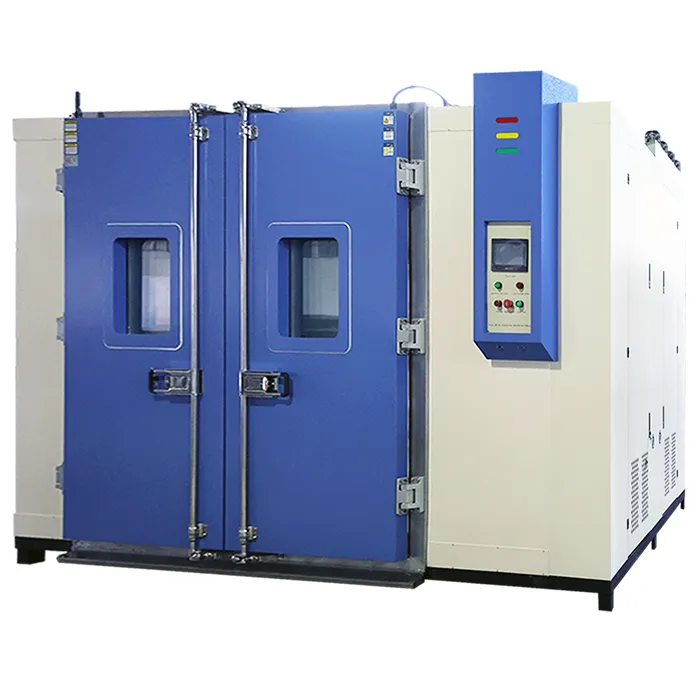

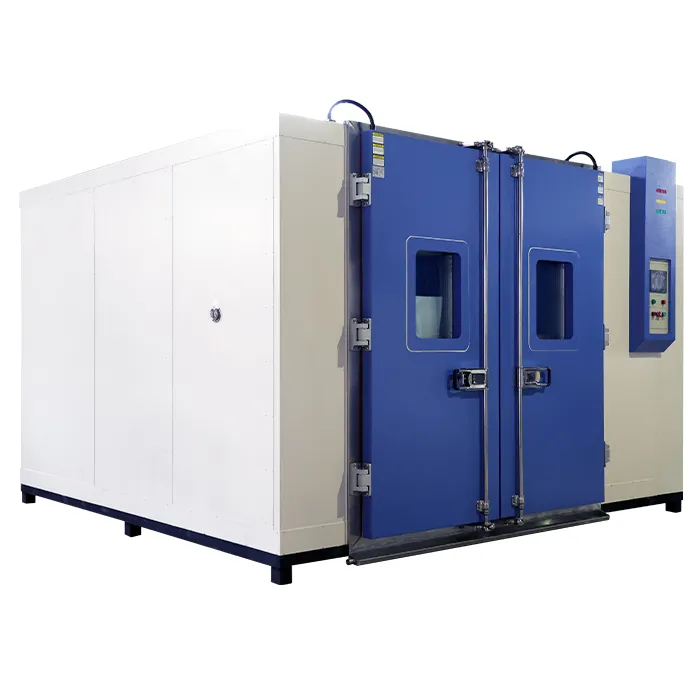

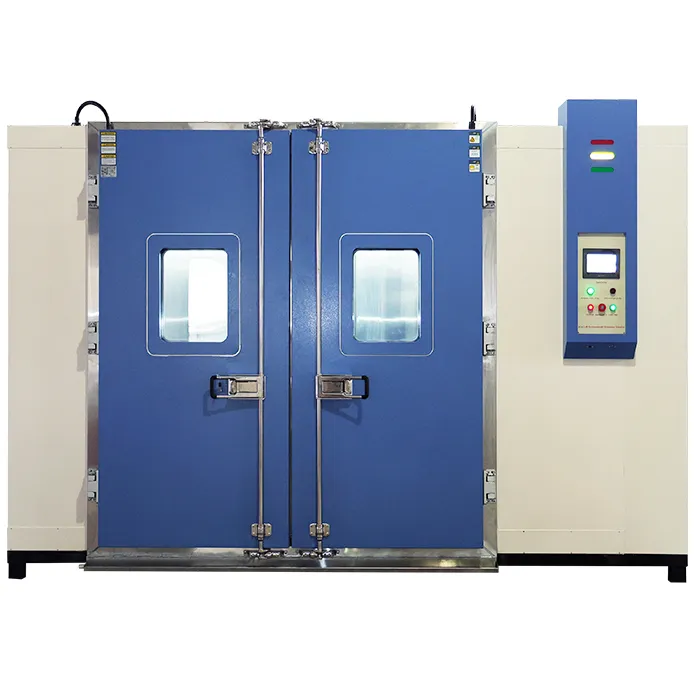

LIB walk-in environmental chamber is a large size test chamber. The walk-in test chamber can simulate a variety of environment conditions, providing a solution integrating design, production, delivery, installation and operation. Including walk-in temperature and humidity chamber, walk-in salt spray chamber, walk-in dust chamber, walk-in rain chamber and walk-in special chamber.
1. The walk-in environmental chamber is available in integrally formed and detachable models. The test chamber can simulate temperature, humidity, corrosion, low air pressure, sand, rain, toxic gas and other environmental conditions.
2. The walk in environmental chamber can be equipped with a variety of devices such as cart and stand. It is possible to test large size specimens and large number of them.
3. Engineers carry out on-site installation, commissioning, training and one-stop solution to customers.
4. LIB team responds quickly, has high work efficiency and can delivery the chamber as soon as possible.
Model | WTH-0015C |
Internal dimension (mm) | 2500*2500*2500 D*W*H |
Overall dimension (mm) | 4000*2550*2850 D*W*H |
Temperature range | -60℃ ~ +150℃ |
Humidity range | 20% ~ 95% RH |
Temperature fluctuations | ± 2.0℃ |
Humidity fluctuations | ± 5.0% RH |
Heating rate | 1℃ / min |
Cooling rate | 1 ℃ / min |

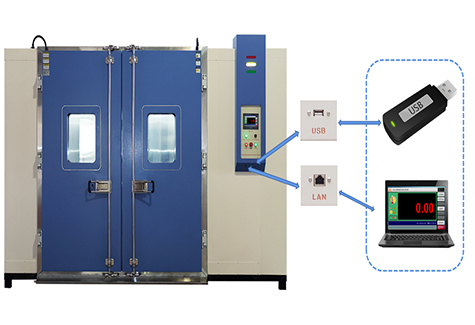

Controller | Programmable color LCD touch screen controller; Ethernet port |

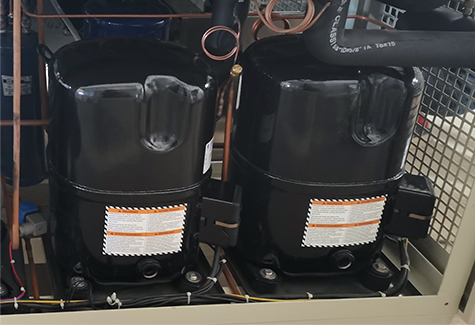

Cooling system | Mechanical compression refrigeration system |
Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior material | Steel Plate with protective coating |

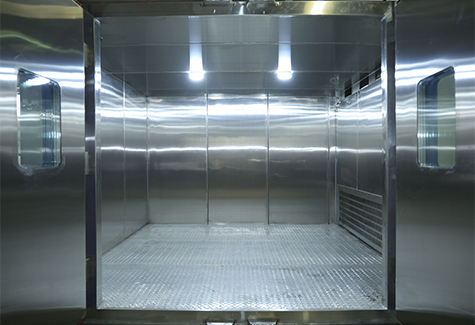

Interior material | SUS304 stainless steel |
Walk-in environmental chamber is an experimental test device used to simulate various extreme environmental conditions, carrying out abundant environmental adaptability tests such as temperature cycle test, humidity test,water pressure test, blowing sand and dust test, accelerating weathering test and etc. And its application fields include but are not limited to electronic products, automobile, aerospace, chemical industry and many other fields.
Choosing a proper walk-in environmental chamber is inseparable from these factors:
• Determine whether the performance of the test chamber meets the test requirements, such as temperature range, control accuracy, uniformity, heating and cooling rate, humidity range, etc.
• Choose manufacturers with good after-sales service to ensure if problems occur in the test chamber can be solved in time.
• The walk-in environmental chamber should have the characteristics of safe operation, easy operation, reliable use and long working life, those characteristics is depending on walk-in test chamber’s safety, reliability and high quality.
The walk-in environmental chamber generally is large-scale and can achieve comprehensive environmental simulation, whereas which consists of basic working principles and functions.
• High accurate temperature and humidity control relies on heating and cooling systems and humidification system, equipped with temperature and humidity sensor, which can precisely control the temperature and humidity in the workroom and fed back to the control system.

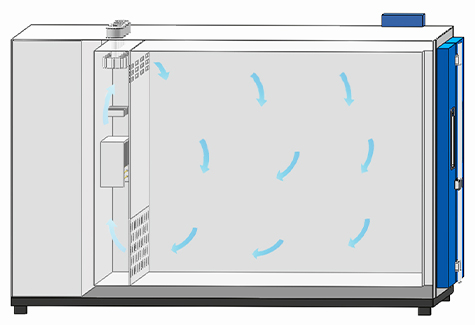

• Air circulation: The walk-in environmental chamber equipped with air fans ensures a uniform distribution of air. This helps maintain uniformity of temperature and humidity and provides consistent test conditions.
• Different types of walk-in environmental chambers have specific working principles and functions to meet different test needs.
