Ultraviolet radiation is one of the primary causes of material degradation in outdoor environments. For plastics and coatings, prolonged UV exposure leads to polymer chain scission, surface oxidation, gloss loss, discoloration, cracking, and embrittlement.
Natural weathering tests may take years to produce measurable results. Manufacturers therefore rely on accelerated laboratory methods that simulate UV radiation, heat, and moisture in a controlled environment. An ASTM G154 UV aging test chamber provides a standardized and repeatable solution for evaluating long-term outdoor performance within weeks instead of years.
Vladimir Todorović from Serbia recently shared his experience using the UV chamber in his Quality department. He reported that the equipment runs smoothly every day, with no interruptions or performance issues. He also highlighted the value of ongoing technical support, noting that consistent assistance has made daily operations easier. Feedback like this underscores the key requirements for laboratories: reliable UV irradiance, precise temperature control, and durable performance that goes beyond mere compliance.
ASTM G154 defines a method for exposing nonmetallic materials to fluorescent ultraviolet light combined with controlled temperature and condensation cycles.
The standard focuses specifically on the UV portion of sunlight most responsible for polymer degradation. Instead of reproducing the entire solar spectrum, ASTM G154 uses fluorescent lamps that deliver concentrated short-wave UV radiation, allowing efficient acceleration of material aging.
Typical test cycles alternate between:
UV exposure phase – controlled irradiance and elevated temperature
Condensation phase – 100% humidity without light to simulate dew formation
Moisture is a critical component of real-world weathering. During nighttime conditions outdoors, dew condenses on material surfaces, intensifying degradation. The condensation cycle inside an ASTM G154 UV aging test chamber replicates this mechanism precisely.
Compared with ASTM G155, which uses xenon arc lamps to reproduce full-spectrum sunlight, ASTM G154 provides a more targeted and cost-efficient solution for UV-focused aging. For laboratories and manufacturers that require broader sunlight simulation, LIB industry also offers xenon arc test chambers that deliver highly stable irradiance, precise temperature control, and uniform exposure across specimens.
Because of its reproducibility, cost efficiency, and strong correlation with outdoor exposure, ASTM G154 remains one of the most widely adopted accelerated weathering standards worldwide.

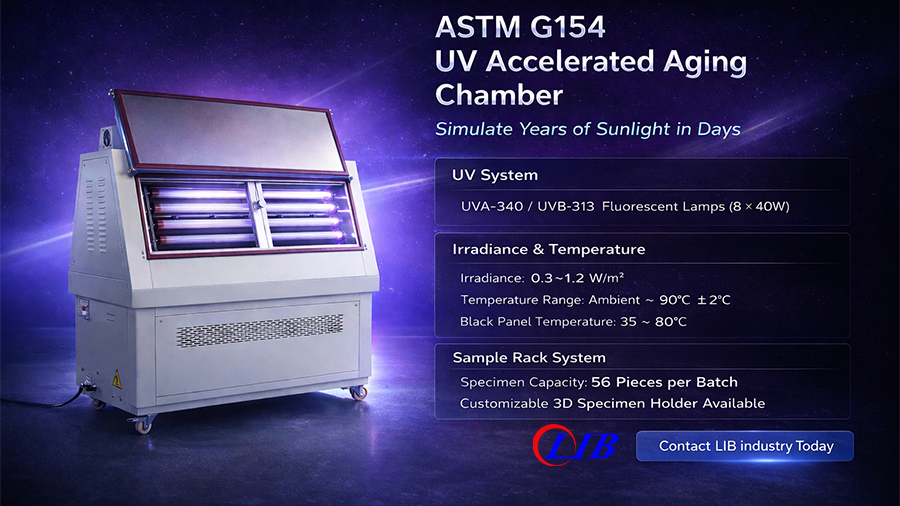

An ASTM G154 UV aging test chamber integrates ultraviolet radiation, temperature control, humidity, and optional water spray systems to reproduce complex outdoor environments in a controlled laboratory setting.
LIB industry UV test chambers are equipped with up to eight U.S.-manufactured fluorescent UV lamps, available in:
UVA-340
UVB-313
UVB-351
Each lamp delivers 40 W of stable output and supports up to 5000 hours of operation. These lamps emit controlled wavelengths within the 290–400 nm range, precisely targeting the UV spectrum responsible for polymer degradation.

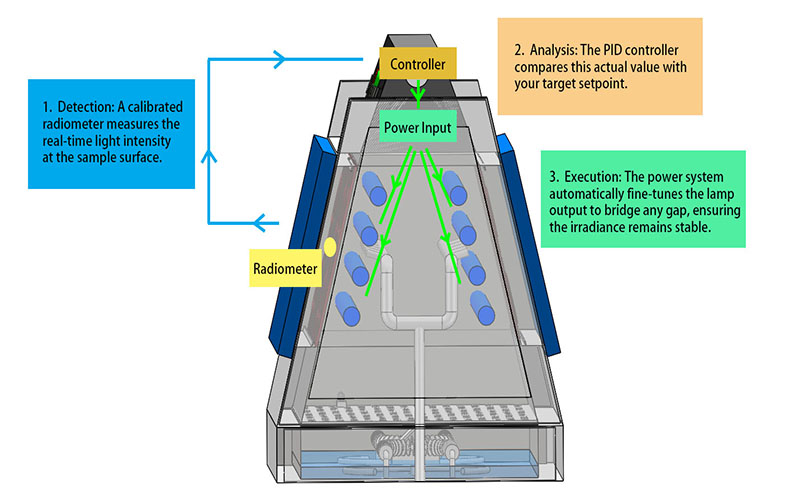

Closed-loop irradiance control maintains stable UV intensity throughout the test cycle, ensuring consistent exposure conditions and repeatable results.
Beyond UV radiation, the system simulates:
High temperature conditions (up to 90°C)
High humidity (≥95% RH)
Condensation cycles
Darkness periods
Optional water spray
This multi-environment capability allows laboratories to reproduce realistic outdoor aging mechanisms, including combined UV and moisture attack.
To better simulate rain and erosion effects, the chamber integrates 10 high-efficiency spray nozzles—five on each side. With a controlled flow rate of approximately 0.3 L/min and an automatic water supply and filtration system, long-duration spray testing can be performed with reduced water consumption and minimal maintenance.
The ability to apply simultaneous UV radiation and water spray enhances correlation with actual outdoor exposure conditions.
 |  |
Model | UV-SI-260 |
Internal Dimension (mm) | 450*1170*500 |
Overall Dimension (mm) | 680*1300*1500 |
Irradiation Source | Fluorescent UV lamps (8) - 40 W |
Temperature Range | Ambient ～ 90 ℃ ±2℃ |
Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
Humidity Range | ≥95% RH |
Bandwidth | 290 ~ 400 nm |
Irradiance Control | 0.3~20 W/㎡ |
Distance of Specimen and lamp | 50 mm |
Heating Element | Nichrome heater |
Controller | Programmable color LCD touch screen controller |
Ethernet connection, PC Link,USB | |
Water Supply System | Automatic water supply, Water purification system |
Interior Material | SUS304 stainless steel |
When choosing an ASTM G154 UV aging test chamber, technical stability and structural design are critical for long-term testing reliability.
Consistent UV intensity directly impacts test repeatability. Advanced systems utilize closed-loop irradiance control to maintain stable output and minimize fluctuations across extended test cycles.
Lamp lifespan of up to 5000 hours reduces replacement frequency and improves operational continuity.
The Black Panel sensor measures specimen surface temperature by combining chamber heat and UV irradiation effects. Accurate BPT control ensures precise evaluation of thermal aging under UV exposure.
Integrated PID control maintains stable temperature conditions, improving test reproducibility and compliance with ASTM requirements.
The programmable color touchscreen controller enables intuitive operation and real-time monitoring of:
Temperature
Irradiance
Cycle progression
The system supports up to 120 customizable programs, each with multiple segments to accommodate different testing standards and material requirements.
Remote management is supported via RS232, USB, and LAN (Ethernet) interfaces, allowing data logging, real-time monitoring, and connection to external computers or network systems. Historical data can be exported in CSV format for analysis and traceability.
Automatic alarms activate if parameters exceed preset limits, ensuring testing safety and equipment protection.
The chamber features flat aluminum sample holders with ring structures capable of accommodating up to 52 standard specimens (75 mm × 150 mm).
For irregular or custom-shaped components, tailor-made 3D holders provide flexible positioning, enabling accurate simulation of real-world applications. This versatility allows laboratories to efficiently test multiple sample types in a single run while maintaining uniform UV exposure across all specimens.
ASTM G154 UV light fastness test chambers are widely used in laboratories and R&D facilities to evaluate the long-term outdoor durability of plastics and coatings. Typical specimens include:
Flat and rigid plastic panels
Coated metal or polymer sheets
Automotive interior and exterior components
Powder-coated or painted samples
The LIB industry chamber accommodates up to 52 standard specimens in flat aluminum holders, ensuring uniform UV exposure for every sample. For irregular or custom-shaped components, tailor-made 3D holders provide flexible positioning, enabling accurate simulation of real-world applications.
|
|
 |
By testing multiple sample types simultaneously, laboratories can efficiently compare material formulations, validate coatings, and identify potential UV-induced degradation before products reach the market. This controlled environment ensures reproducible and consistent results across diverse specimen types, helping manufacturers optimize materials and improve long-term product reliability.
LIB industry designs ASTM G154 UV accelerated weathering chambers with a focus on stability, durability, and intelligent automation.
Key advantages include:
U.S.-manufactured UV lamps with 5000-hour lifespan
Closed-loop irradiance control for stable UV output
High-accuracy Black Panel temperature monitoring
10-nozzle water spray system with automatic filtration
52-specimen capacity for efficient batch testing
Intelligent PID touchscreen controller with remote access
Data logging and USB export capability
Corrosion-resistant internal structure for long service life
In addition to technical performance, LIB industry provides:
3-year warranty covering major components
Lifetime technical support for installation, maintenance, and training
Global service support to ensure long-term equipment reliability
Contact LIB industry today to learn how our ASTM G154 UV aging test solutions can support your durability testing requirements and improve long-term product reliability.
