How Does the LIB Temperature and Humidity Test Chamber Achieve Temperature Stability?

Table of Content [Hide]

LIB temperature and humidity test chamber is the star product series of LIB environmental simulation test chamber. LIB has rich production and design experience of standard and customized temperature and humidity test chambers.

In the temperature and humidity test chamber, how can the temperature of one of the core parameters remain stable in an ultra-wide temperature range? LIB takes you point by point through the causes.

High-precision sensors with multiple feedbacks

Equipped with platinum resistance PT100 sensor, accuracy of ±0.1℃, real-time collection of temperature data in the chamber.

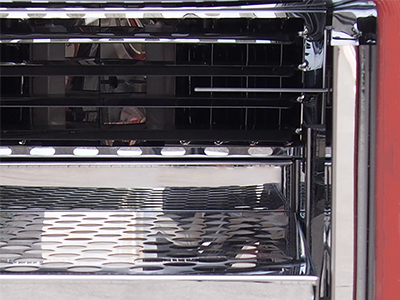

how_does_the_lib_temperature_and_humidity_test_chamber_achieve_temperature_stability.jpg

At the same time, closed-loop control is achieved through dual-circuit temperature monitoring (ambient temperature in the chamber + temperature of the refrigeration system). When the cooling system is abnormal, the sensor will immediately feedback, triggering the backup heating module to compensate and prevent the temperature from plummeting.

Efficient cooling and heating system

Refrigeration system: Using Tecumseh compressor imported from France, combined with binary cascade refrigeration technology, it can quickly cool down in a wide temperature range of -70 ° C to 150 ° C, with a cooling rate of 1 ° C /min or faster (customizable).

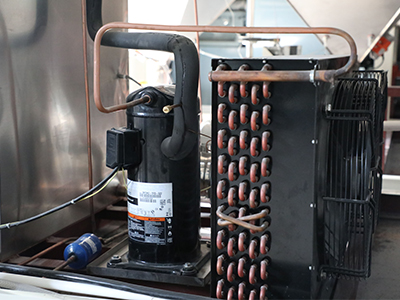

how_does_the_lib_temperature_and_humidity_test_chamber_achieve_temperature_stability1.jpg

Heating system: Independent nickel-chromium alloy electric heating tube, standard heating rate up to 3℃/min or faster (can be customized), and heating uniformity error ≤±2℃.

Air circulation and insulation design

Forced circulation air duct: built-in centrifugal fan forms a circulation path of "top air outlet bottom air return" to ensure that the temperature uniformity inside the chamber is ≤±0.5 ° C.

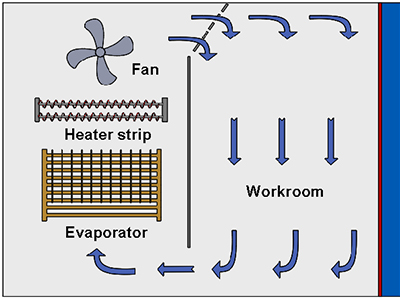

how_does_the_lib_temperature_and_humidity_test_chamber_achieve_temperature_stability2.jpg

Super thick insulation layer: 100mm polyurethane foam material, effectively block external heat interference, reduce energy consumption.

PID+ fuzzy logic control algorithm

PID control algorithm and fuzzy logic technology are used to monitor and adjust the output power of heating/cooling system in real time. For example, when the temperature in the chamber is close to the set value, the system will automatically reduce the heating rate to avoid temperature overshoot; When the temperature deviation is large, the power is increased for rapid adjustment.

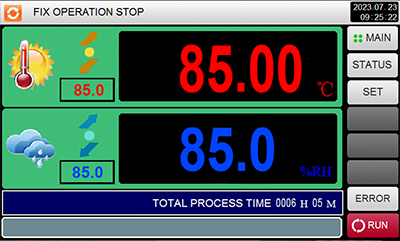

how_does_the_lib_temperature_and_humidity_test_chamber_achieve_temperature_stability3.jpg

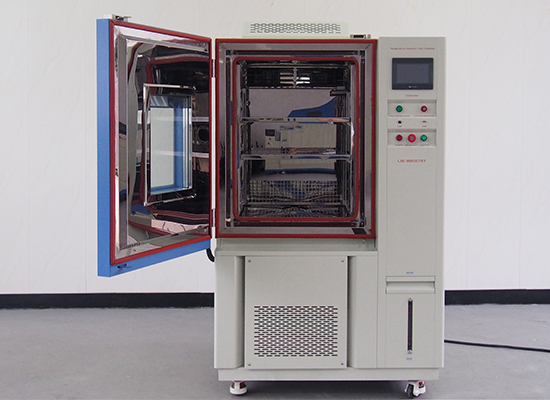

LIB Temperature and humidity test chamber parameters

Model	TH-100	TH-225	TH-500	TH-1000
Internal Dimension (mm)	400500500	500600750	700800900	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	150015402140
Interior Volume	100L	225L	500L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Controller	Programmable color LCD touch screen controller,PC Link, R-232 interface

If you are interested in the LIB temperature and humidity test chamber, please contact us for more information. LIB provides free test solution consultation, all products enjoy a three-year long warranty and lifetime service, 24/7 service online.
