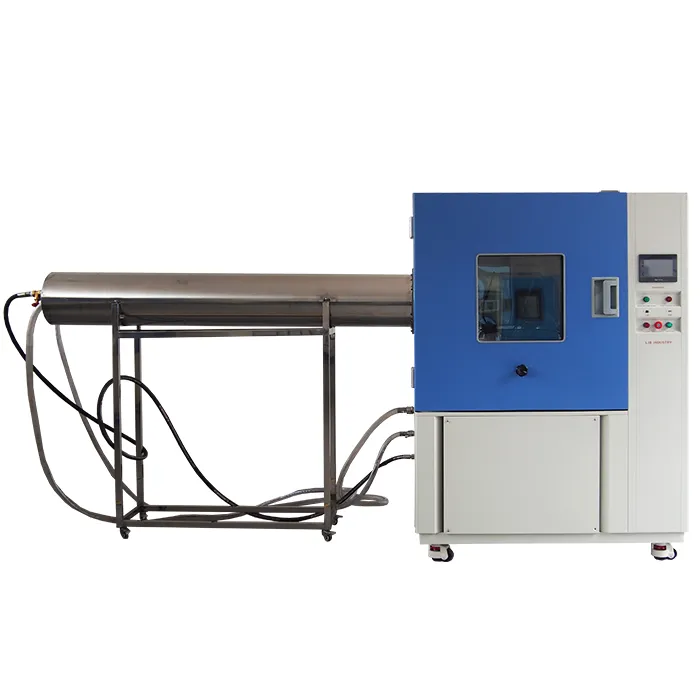

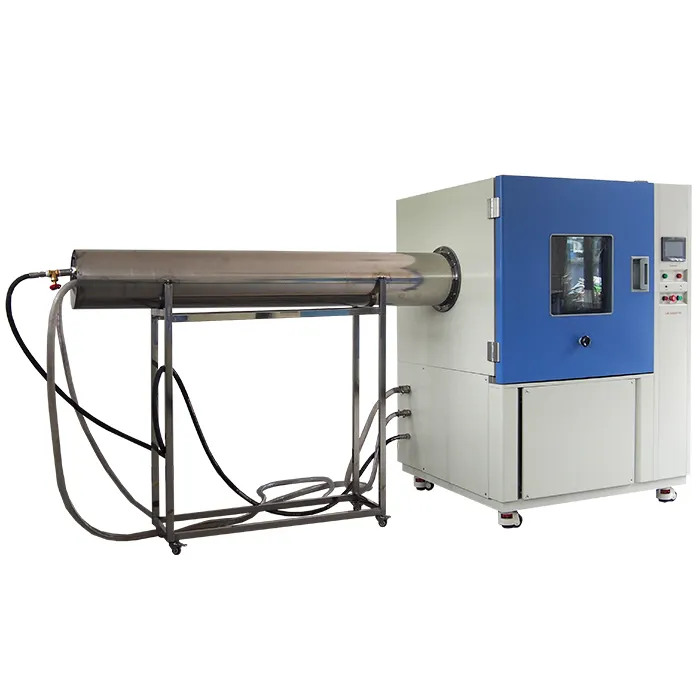

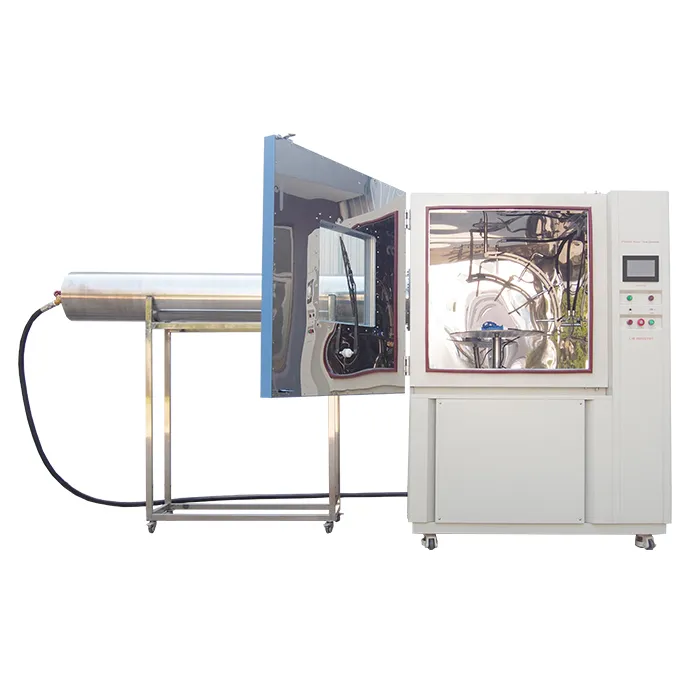

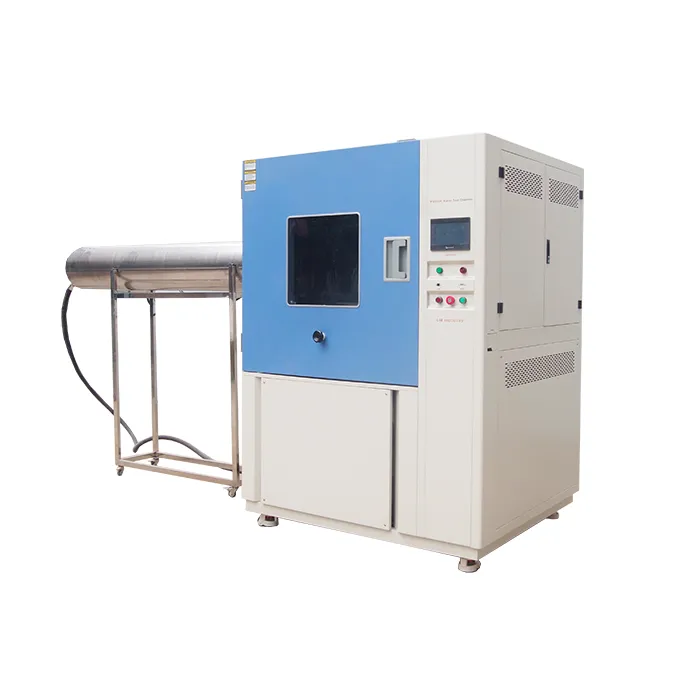

IPX5 IPX6 and IPX9 Ratings Liquid Penetration Testing Equipment

Name: IPX5 IPX6 and IPX9 Ratings Liquid Penetration Testing Equipment
Brand: Xi'an LIB Environmental Simulation Industry

One-Stop Liquid Ingress Testing Solution| Compliant with IEC 60529 & ISO 20653

This IPX5 IPX6 and IPX9 ratings liquid penetration testing equipment is specifically designed for high-end manufacturing industries, integrating IPX5 (water jet), IPX6 (powerful water jet), and IPX9K (high-pressure, high-temperature spray) testing into one complete system. It provides precise and repeatable waterproof performance validation for products exposed to complex and harsh environments within a single platform.

Widely used in automotive, new energy, electronics, outdoor equipment, and aerospace industries, this system is ideal for validating the sealing performance and durability of critical components.

LIB industry provides fully customized IP water spray and dust test solutions, tailored to different product sizes, test standards, and application scenarios

✅ Request a Customized Solution to meet your specific testing requirements

Core Advantages of IPX5 IPX6 and IPX9 Ratings Liquid Penetration Testing Equipment

1. 3-in-1 Integrated System – Space-Saving Modular Design

Eliminate the need for multiple standalone devices. This system integrates IPX5, IPX6, and IPX9K testing into one platform, enabling full test sequence switching through a single PLC control system.

2. Intelligent Switching System

The system automatically adjusts water pump pressure and solenoid valve groups to meet the exact requirements of each IP rating instantly.

Fast switching between IPX5, IPX6, and IPX9K

3. Extreme Environment Simulation (IPX9K)

High Temperature & High Pressure Performance
Equipped with an industrial-grade high-pressure plunger pump, the system delivers impact pressure up to 10,000 kPa, accurately simulating high-pressure cleaning environments.

Stable Temperature Control
The intelligent heating system maintains water temperature at 80 ± 5°C, ensuring consistent test conditions with real-time over-temperature protection.

4. High-Precision Motion Control

360° Rotating Test Platform

Load capacity: 50–200 kg (customizable)
Adjustable rotation speed
Ensures uniform exposure of specimens

Automatic Oscillating Spray / Nozzle System
Driven by a servo motor, the spray angle is precisely controlled within ±1°, guaranteeing accurate and repeatable test coverage.

Parameters of IPX5 IPX6 and IPX9 Ratings Liquid Penetration Testing Equipment

Parameter	Specification
Workroom / Internal Dimensions (mm)	1000 × 1200 × 1000 (adjustable, based on requirement)
External / Overall Dimensions (mm)	1250 × 3150 × 2050 (approx.)
Interior Volume (L)	1200 (approx.)
Turntable / Testing Platform Diameter (mm)	600
Turntable / Platform Rotation Speed	0–7 r/min (adjustable)
Turntable / Platform Height	200–400 mm (adjustable)
IPX5 Nozzle Internal Diameter	6.3 mm
IPX6 Nozzle Internal Diameter	12.5 mm
Water Flow Rate	IPX5: 12.5 L/min ±5% IPX6: 100 L/min ±5% IPX9K: 14–16 L/min
Water Spray Angle	0°, 30°, 60°, 90°
Water Spray Temperature	Ambient to +88–100°C (adjustable)
Spray Nozzle / Cycle	Multiple nozzles; high-pressure jet rotates through positions (approx. 30s per position)
Distance from Water Spray to Specimens	10–15 cm
Water Pressure	IPX9K: 8000–10000 KPa (adjustable)
Controller	Programmable color LCD touchscreen, Ethernet connection
Door Lock	Electromagnetic lock
Water Supply System	Storage water tank, booster pump, automatic water supply, water purification system
Safety Devices	Over-temperature protection; Over-current protection; Water shortage protection; Earth leakage protection; Phase sequence protection
Interior Material	SUS304 stainless steel

Design Highlights of IPX5 IPX6 and IPX9 Ratings Liquid Penetration Testing Equipment

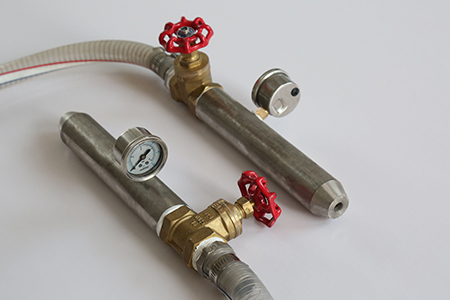

IPX5/IPX6 Precision Low-Pressure Spray System

Strictly designed with 6.3 mm and 12.5 mm standard nozzle diameters, ensuring highly accurate flow rates and realistically simulating extreme rain and water jet conditions.

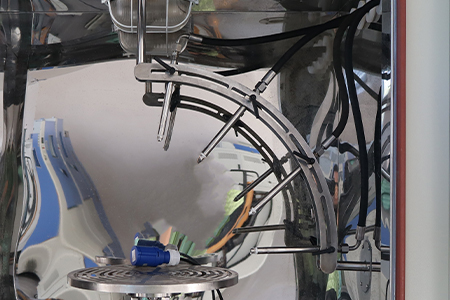

IPX9K Dedicated High-Pressure Fan Spray Nozzle System

Featuring stainless steel precision-engineered fan-shaped spray angles, capable of withstanding up to 100 bar high-pressure impact.

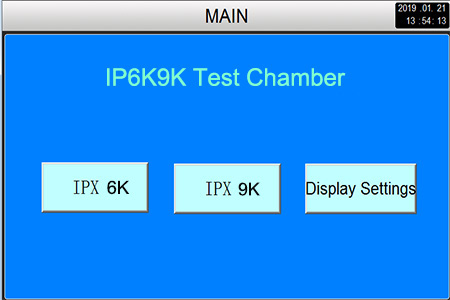

PLC Digital Monitoring with Pre-Programmed Standards

Equipped with built-in IEC standard test programs and real-time digital display of temperature and flow rate, enabling one-touch, highly precise operation for complex waterproof testing.

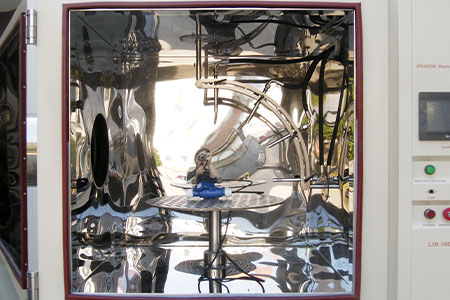

SUS304 Fully Welded Corrosion-Resistant Workroom

Constructed with thickened industrial-grade stainless steel and fully sealed welding, providing excellent resistance to vibration, pressure, and corrosion—even in high-temperature, high-humidity environments.

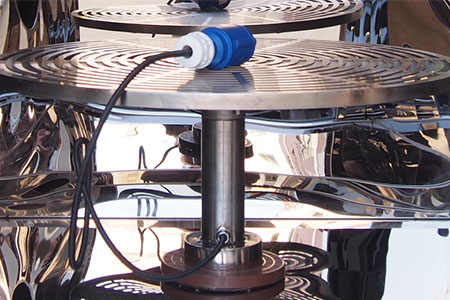

Integrated Powered Rotating Test Platform

Supports real-time powered testing of samples during 360° rotation, accurately simulating actual operating conditions under water spray environments.

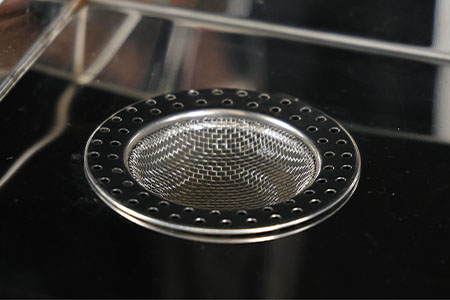

Triple-Stage Filtration and Water Recycling System

Adopting a unique high-precision three-stage filtration system, achieving up to 85% water recycling, protecting critical components while significantly reducing operational costs.
