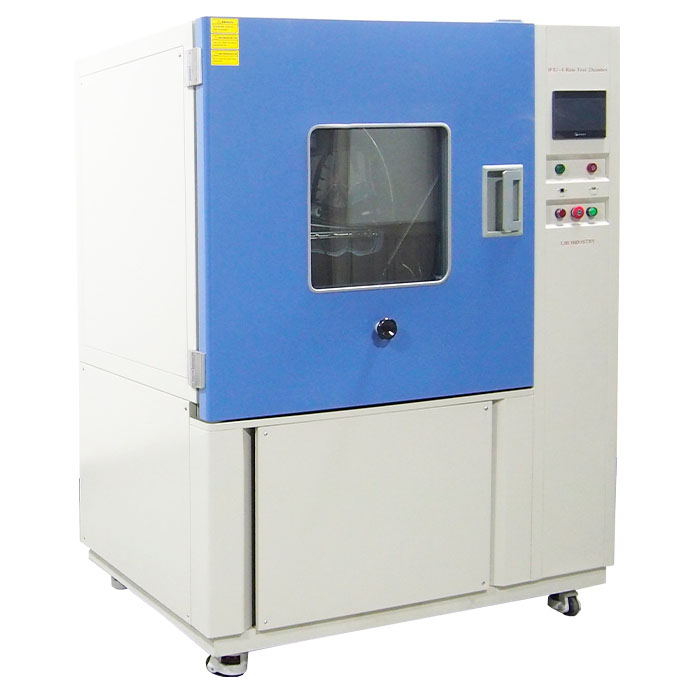

Water Ingress Test Equipment

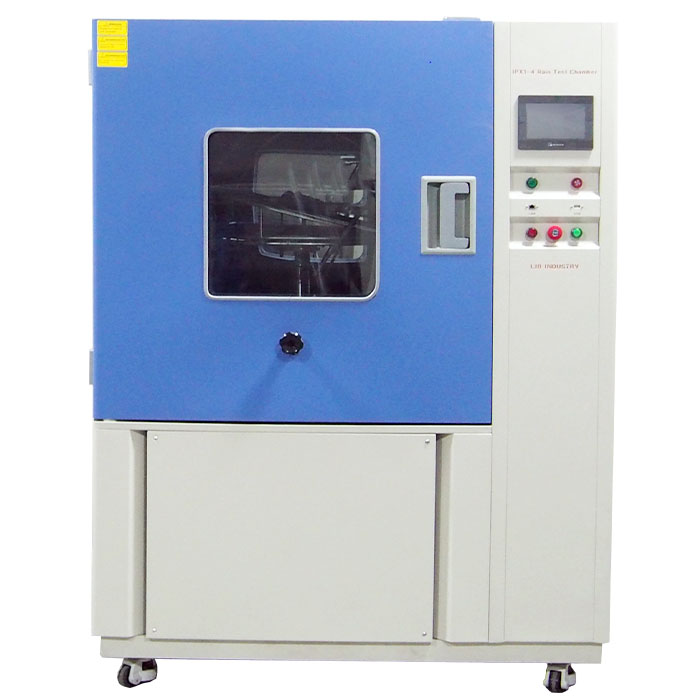

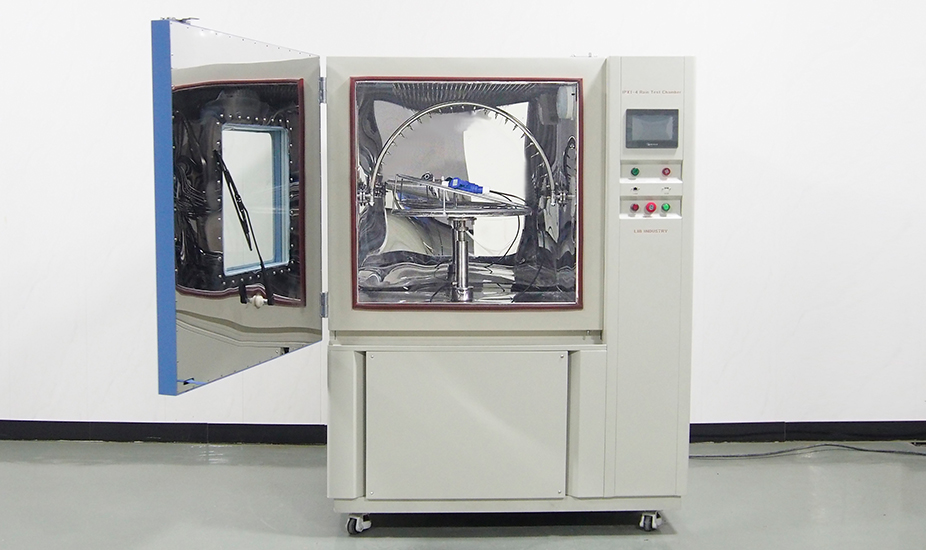

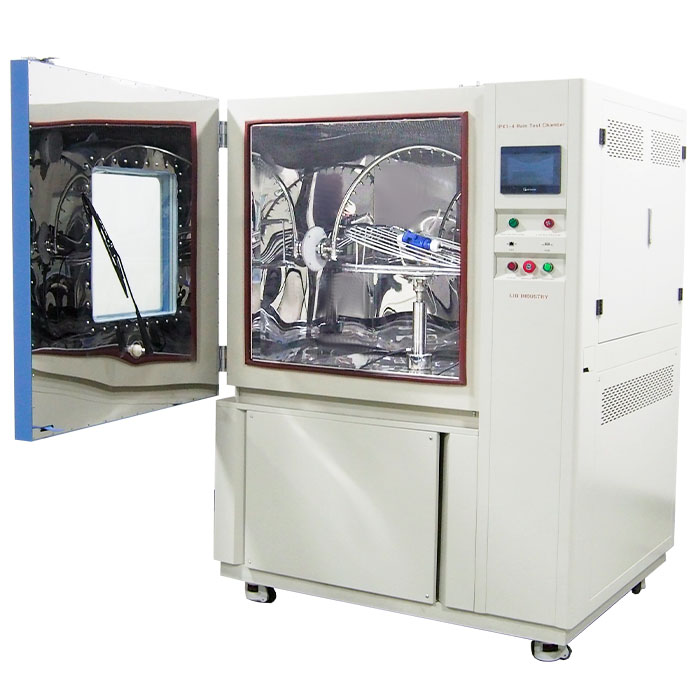

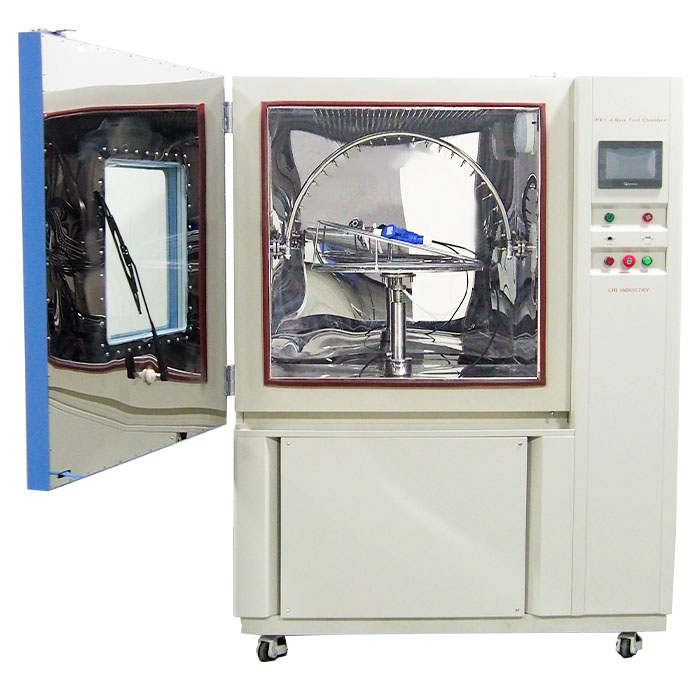

The water ingress test equipment evaluates the waterproof performance of product enclosures by simulating various rain and water exposure environments. It follows  IEC 60529 and ISO 20653, and supports IPX1, IPX2, IPX3, and IPX4 water protection tests.

This equipment can simulate a variety of rain environments and supports waterproof testing levels including IPX1, IPX2, IPX3, and IPX4, covering basic vertical dripping to multi-angle water spray.

Test Capabilities:

IPX1: Vertical dripping test

IPX2: 15°-tilted dripping test

IPX3: Water spraying at angles up to 120°

IPX4: Splash water test from all directions


Available Models:R800C R1200C

Compliance Standards: IEC 60529,ISO 20653,IPX1 to IPX4

窗体底端


Features and Benefits of Water Ingress Test Equipment

1. Comprehensive Waterproof Testing Capabilities
Multiple types of water exposure, including dripping, drenching, splashing, and spraying, to meet waterproof testing requirements from IPX1 to IPX4.

2. Advanced Control and Automation
Equipped with an advanced control system and frequency conversion technology, allowing automatic adjustment of test parameters such as rainfall intensity, test rack motion, spray angle (pendulum), and water spray volume.

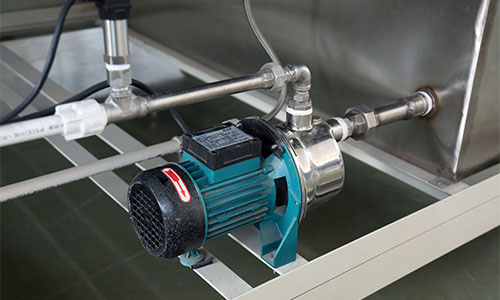

3. Efficient Water Recycling System
Built-in water tank with a float ball valve enables automatic water intake and recycling. The system includes a low water level detection and alarm function to ensure smooth operation and prevent test interruptions.

4. Enhanced Safety Protection
Multiple safety measures are integrated, including a door self-locking mechanism that prevents accidental opening during operation, ensuring operator safety throughout the test.


Specifications of Water Ingress Test Equipment

Model

R800C

R1200C

Internal Dimensions (mm)

900*950*950

1300*1350*1370

Overall Dimensions (mm)

1180*1420*1920

1540*1820*2200

Useful Volume (L)

810

2400

Oscillating Tube Radius

400mm

600mm

Drip Tray Size

600*600

1000*1000

Spraying Hole Diameter

φ0.4mm

Hole Spacing

50 mm

Swing Angle of Oscillating Tube

0 ~ ±180°  (Adjustable)

Turntable Rotation Speed

1r/min (Adjustable speed)

Water Pressure Control

Flow meter

Controller

Programmable color LCD touch screen controller, Ethernet connection

Water supply system

Water tank, booster pump, Automatic water supply, Water purification system

Safety Device

Overtemperature Protection; Overcurrent Protection;

Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Observation Window

Double layer insulating glass with wiper



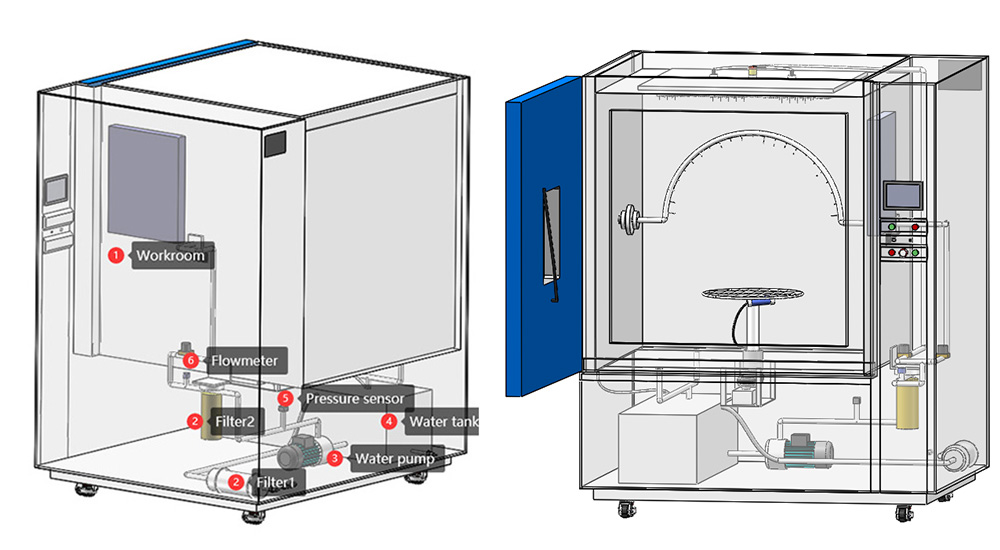

Configuration of Water Ingress Test Equipment

Workroom

  • The workroom is SUS304 stainless steel plate, which is not easy to rust, corrosion resistance, easy to clean.

  • Seamless welding, equipped with waterproof sealing strips and drainage holes, effectively preventing water leakage.

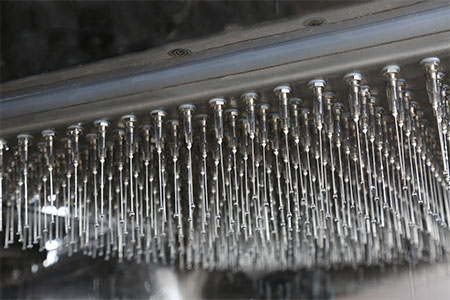

Drip Water Tray



  • The drip hole diameter is Φ0.4mm, the hole spacing is 20×20mm, suitable for IPX1/2 test, IPX2 test will tilt the turntable 15° during the test.

  • Drip Tray Size:600*600,1000*1000

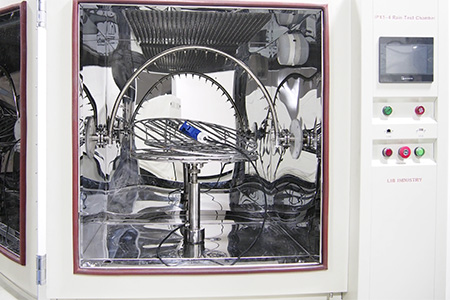

Oscillating Tube

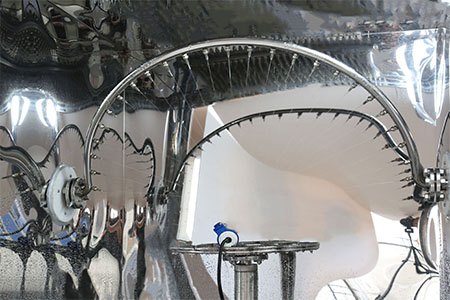

  • It can swing and spray water within the set angle to conduct multi-directional rain simulation on the sample.

  • For IPX3/4 test, radius size is 400mm,600mm, oscillating tube angle can reach 120º (IPX3), 360º (IPX4).

Control system

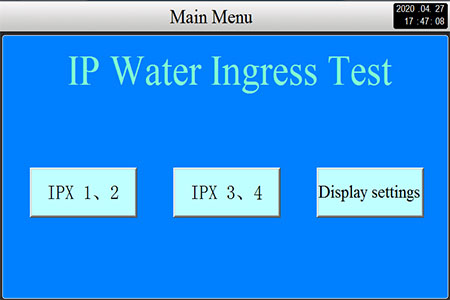

  • The PLC touch screen with a friendly human-machine interface. Multiple language interfaces are available. Parameters such as test time, water spray angle, and water flow rate can be set.

  • Programmable timing, manual/automatic switching, and emergency alarm functions.
