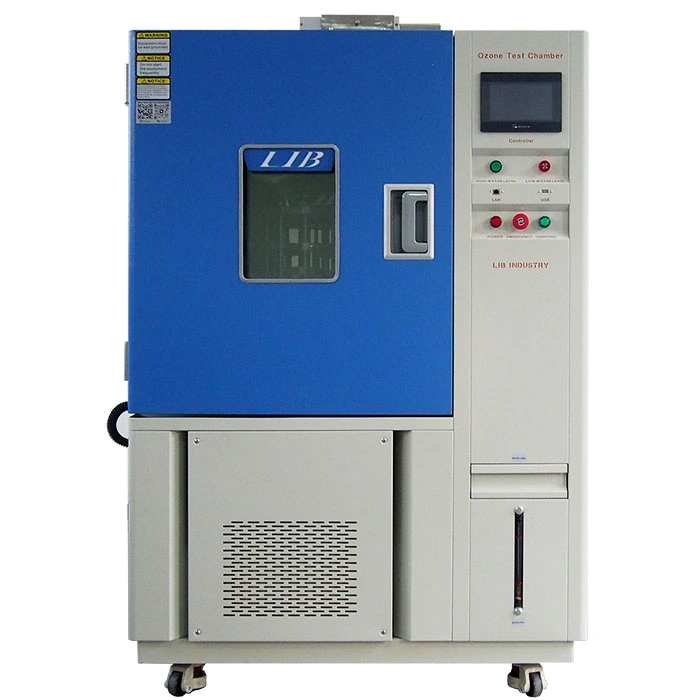

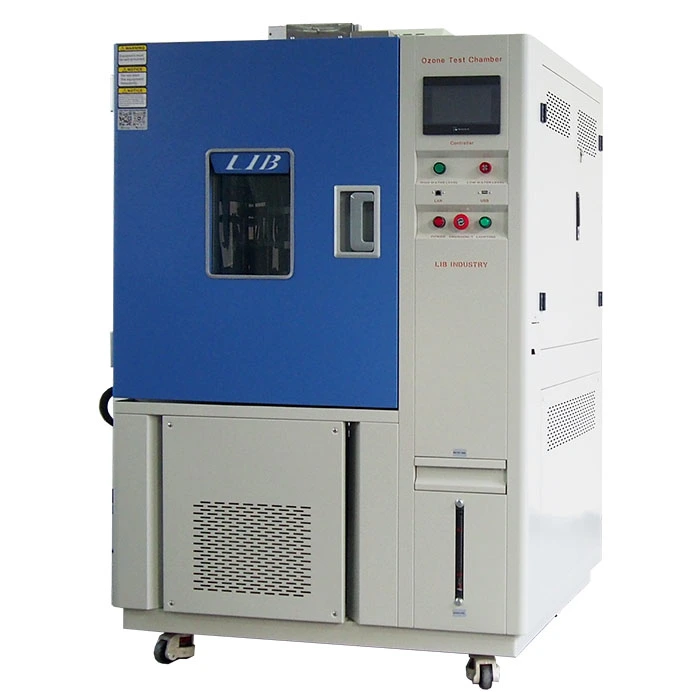

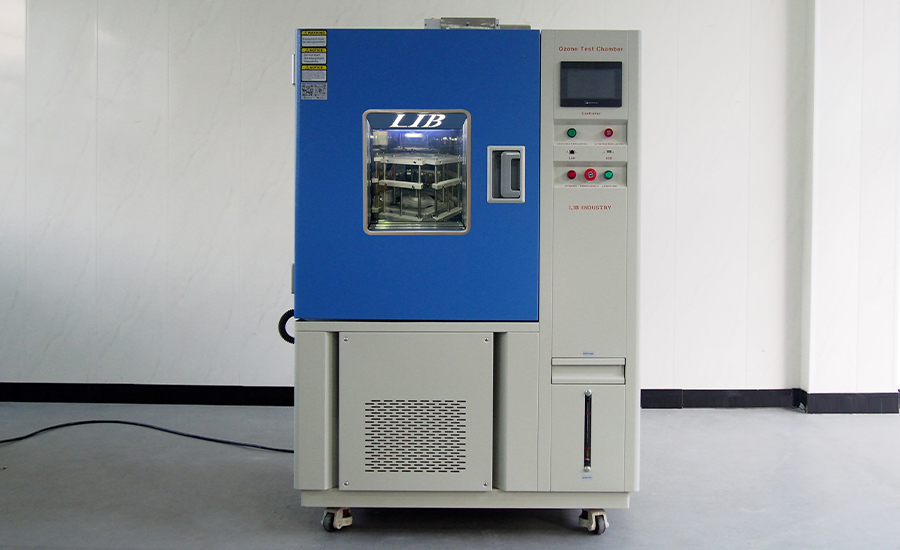

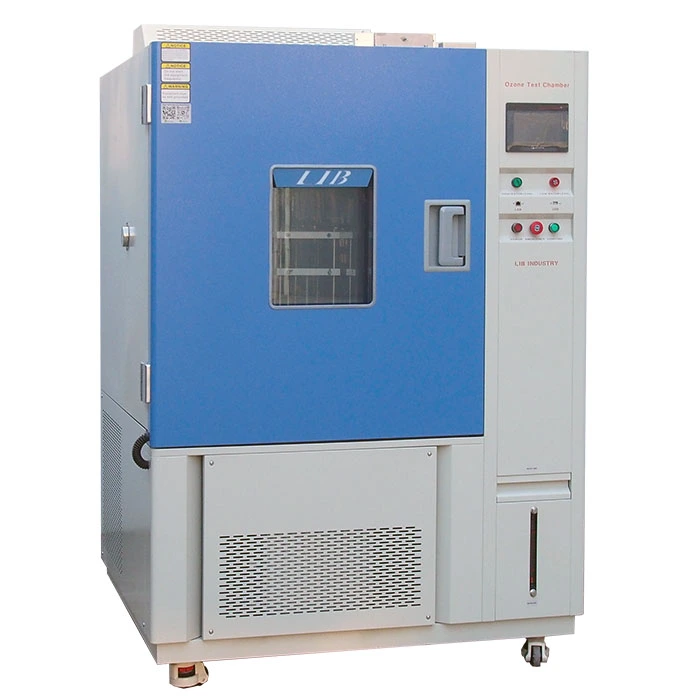

Ozone Aging Testing Machine

Name: Ozone Aging Testing Machine
Brand: Xi'an LIB Environmental Simulation Industry

The ozone aging testing machine evaluates the aging resistance of materials (especially polymer materials) in an ozone environment. By simulating the ozone atmosphere existing in the natural and controlling conditions such as ozone concentration, temperature, humidity, and tensile state, ozone aging testing machine accelerates the aging process of materials. Then operator can observe and measure phenomena such as cracks, discoloration, brittleness, and decline in mechanical properties.

Model: OC-250, OC-500, OC-800, OC-010

Standard: FIAT 504172, ISO 120463, ASTM D10564, ISO 6916-15, ISO 6916-26, ISO 30117, EN 681-18, ASTM D11499, ASTM D117110, ASTM D457511, ISO 1431-112, ISO 1431-313, JIS K 625914, DIN 53 509-115, ISO 732616, ISO 784017, SAE J1401

Features and Benefits of Ozone Aging Testing Machine

1. Precisely simulates the trace ozone environment in the atmosphere, with an ozone concentration control range of 1 to 1000 pphm, and the control accuracy can reach ±10%, accelerating aging tests.

2. Different temperatures and humidity have a significant impact on material aging. It can be applied in various climatic conditions (with a wide range of temperature and humidity control), such as high temperatures accelerating the ozone reaction.

3. Static and dynamic tensile testing functions are more in line with practical applications. Materials are more likely to be attacked by ozone in the tensile state, and the crack propagation rate increases significantly.

4.Equipped with a high-efficiency ozone generator and activated carbon. After testing, it can quickly remove ozone, protecting the operators and the environment.

Specifications of Ozone Aging Testing Machine

Model	OC-250	OC-500	OC-800	OC-010
Internal Dimension (mm)	600600700	700800900	80010001000	100010001000
Overall Dimension (mm)	96011501860	120013402020	130015402120	150015402140
Interior Volume (L)	250	500	800	1000
Temperature Range	0℃ ～ +100 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	30% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	Ambient ~ 0℃ within 20 min
Ozone Concentration	1～1000PPHM
Sample Holder Rotate Speed	0~10 r/min
Airflow Rate	0 ~ 60L/min
Clamps Tensile Stretch	5%～35%
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller Ethernet connection, PC Link
Water supply system	Automatic water supply,Water purification system
Humidifier	External isolation, stainless steel surface evaporation humidifier
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Gas Sensor	Ozone gas sensor
Ozone Generator	Silent discharge type ozone generator
Air Circulation	Centrifugal wind fan
Sample Holder	Static + dynamic combined sample holder
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing

Details of Ozone Aging Testing Machine

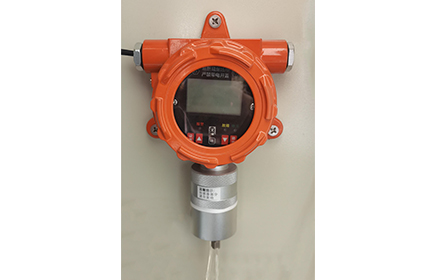

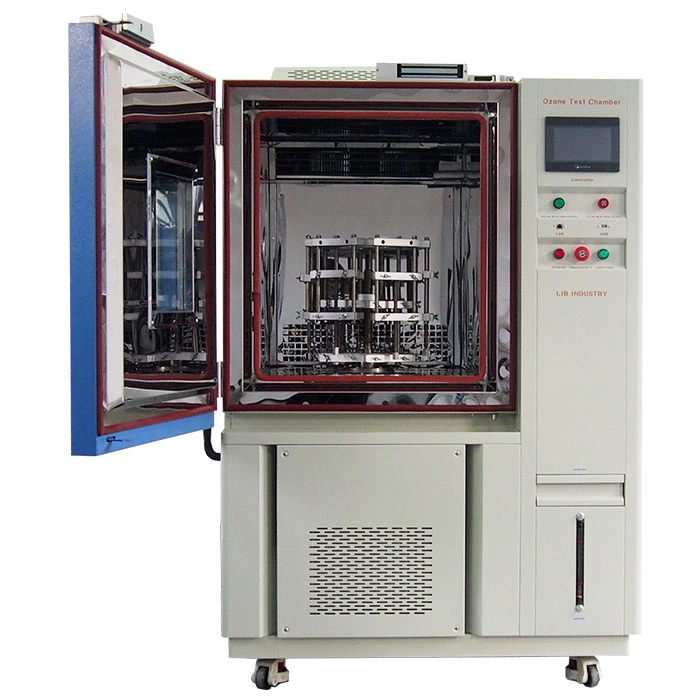

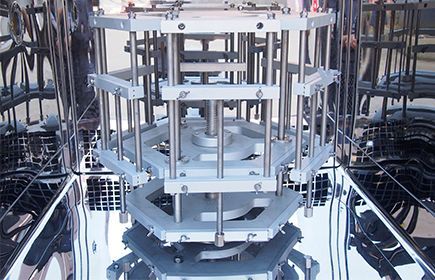

Sample Holder	Ozone detector
SUS304, resistant to ozone erosion.Static clamping and dynamic stretching modes( elongation ratio from 5% to 35%). The stretching fixture can rotate, ensuring that the sample surface is uniformly exposed to ozone.	Electrochemical ozone sensor. The concentration detection range is wide (0-1000 pphm selectable). Fast response time; high concentration control accuracy; regular automatic calibration function.

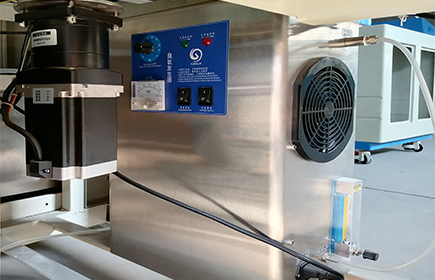

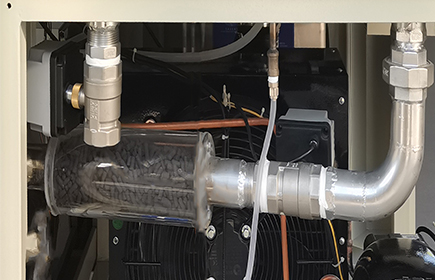

Ozone Generator	Activated Carbon Filter
High-voltage corona discharge type ozone generator, with high efficiency and long service life.	High-efficiency activated carbon adsorption unit, used for ozone purification treatment after the test to protect the lab environment and comply with occupational health and safety standards. Replaceable and easy to maintain.

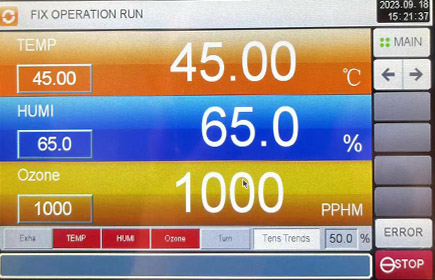

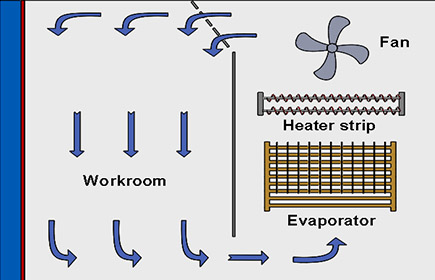

Air Circulation System	Intelligent Controller
High-flow ozone-resistant centrifugal fans and circulation pipelines. Ensure that the ozone gas, temperature and humidity are evenly distributed within workroom.	PLC programmable controller + touch screen interface.Multi-segment programming; real-time monitoring of all parameters; ethernet interface /USB interface for remote monitoring and data download.

The ozone aging testing machine supports the customization of sample racks, control modules, and other extended functions. Contact LIB for the latest product information and the most favorable offer.
