Products such as outdoor lighting, communication enclosures, and automotive components must withstand heavy rainfall, splashes, or high-pressure washdowns. An IPX6 water leak test provides a rigorous evaluation of a product’s resistance to powerful water jets, helping manufacturers validate waterproofing and functional stability. Compared to IPX5, which tests moderate water exposure, IPX6 simulates extreme conditions with higher water flow and pressure, revealing vulnerabilities that lighter tests may not detect.
In modern manufacturing, performing both IPX5 and IPX6 tests with IPX5 IPX6 Water Spray Jetting Chamber is often necessary to ensure products can operate safely in all outdoor scenarios. Many outdoor products, while passing IPX5, fail when subjected to the more intense IPX6 conditions.

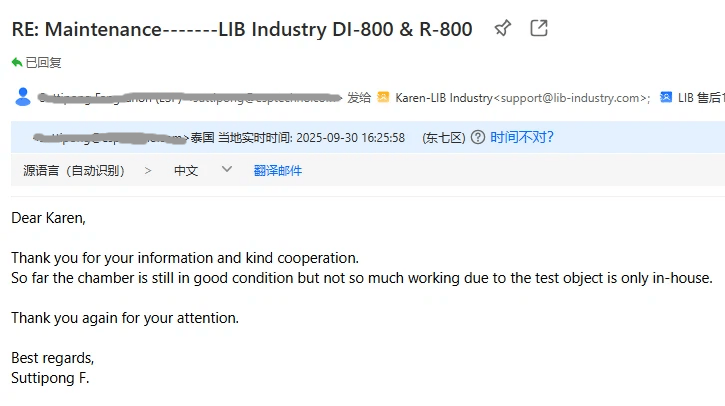

Engineers around the world trust the IPX5/IPX6 Water Jet Test Chamber for its dependable performance and simple operation. One lighting professional from Thailand noted that even occasional, in-house use has kept the chamber running flawlessly. Its consistent reliability makes it a practical choice for testing various lighting products, ensuring safety and efficiency throughout every test cycle.
A clear understanding of the differences between IPX5 and IPX6 is vital for manufacturers choosing the right testing protocol:
Feature | IPX5 | IPX6 |
Water Flow Rate | 12.5 L/min | 100 L/min |
Spray Pressure | Moderate, simulating light rain or spray | High-pressure jets, simulating heavy rain or powerful water impact |
Nozzle Diameter | ~6–12 mm (depending on standard configuration) | 12.5 mm |
Distance from Sample | Typically 2–3 m | Typically 2.5–3 m |
Spray Angle | Multiple directions, lower impact | Multiple directions, high impact and intensity |
Application Scenarios | General outdoor exposure, light rain, splash | Heavy rain, high-pressure washdowns, extreme outdoor conditions |
While IPX5 confirms basic waterproofing, IPX6 verifies durability against powerful water jets. Products intended for high-risk outdoor environments often require compliance with both standards. Conducting both tests in sequence or using combined-capability equipment ensures comprehensive certification.
Outdoor equipment can face multiple challenging environments. From torrential rain to high-pressure cleaning in industrial or public spaces, the risk of water ingress can compromise functionality, safety, and brand reputation. IPX6 testing is particularly critical because:
Enhanced reliability: Ensures enclosures, seals, and gaskets resist extreme water impact.
Functional verification: Electrical components can be powered during the test to check real-time performance.
Cost savings: Detects weaknesses before mass production, reducing returns, warranty claims, and post-market failures.
By performing both IPX5 and IPX6 water leak tests, manufacturers can confidently ensure that products will survive both everyday exposure and extreme environmental stress, providing end users with safer, more reliable equipment.

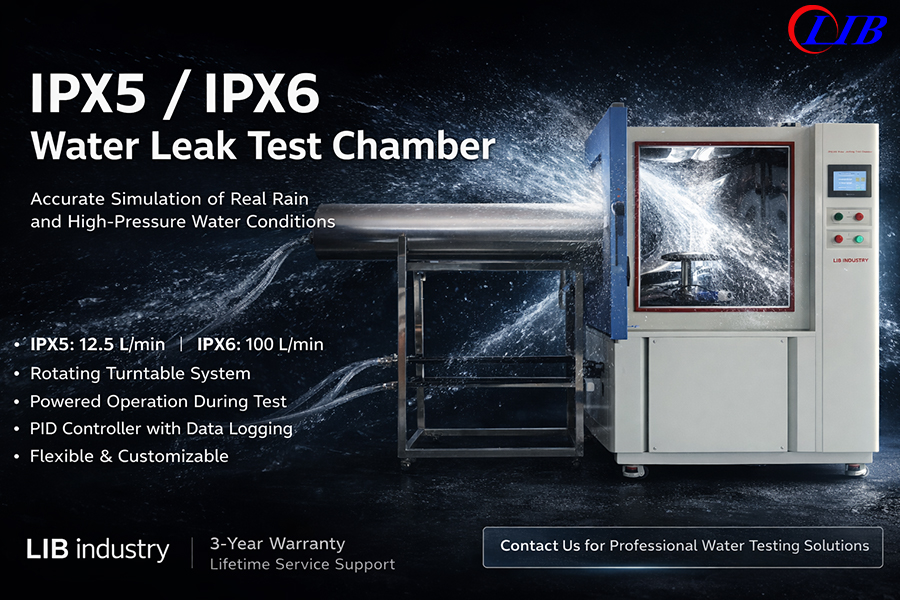

Designed for outdoor equipment testing, LIB industry’s water leak test systems provide precise, reliable, and flexible IPX5 and IPX6 testing capabilities. These systems combine standardized testing with highly customizable configurations, allowing manufacturers to perform combined IPX5/IPX6 cycles or stand-alone IPX6 tests with confidence. Every component is engineered to simulate real-world rain exposure, ensuring product quality, operational stability, and certification compliance.
|  | |
 | ||
Viewing Window:
Large, clear window allows operators to monitor samples in real-time, even under high-pressure water jets.
Manual water wiper keeps visibility clear throughout the test, eliminating interruptions.
Built-in LED Lighting:
Energy-efficient LED system illuminates the test workspace completely.
Ensures all surfaces of the sample are visible, helping to detect water ingress points immediately.
Real-time observation improves accuracy, efficiency, and operator confidence, making every test fully traceable and reliable.
Adjustable Height:
Turntable height can be set from 350–500 mm, accommodating small enclosures to larger components.
Ensures proper alignment with spray nozzles for consistent coverage.
Controlled Rotation:
Speed control guarantees uniform water distribution on all sample sides.
Built-in Waterproof Power Source:
Provides electrical power during testing, enabling real-time functional verification.
Confirms that devices remain operational while exposed to water, not just waterproof externally.
Combining waterproofing evaluation with operational testing ensures full confidence in product performance.
Durable Stainless-Steel Nozzles:
Withstand high-velocity water jets continuously without clogging or deformation.
Flow Rate Compliance:
IPX5: 12.5 L/min – simulates light rain and splash conditions.
IPX6: 100 L/min – replicates heavy rainfall and extreme water impact.
Realistic Simulation:
Spray system is engineered to reproduce real-world conditions accurately, ensuring repeatable and trustworthy test results.
High-precision water jets reduce field failure risks and improve certification credibility, protecting your brand reputation.
Large Internal Reservoir:
Supports continuous long-duration testing without frequent refills.
Stable water supply is critical for high-consumption tests like IPX6 or IPX9K.
Automatic Water Level & Filtration:
Detects and maintains correct water level automatically.
Recycling filtration reduces water waste, lowering operational cost.
Optimized Drainage Design:
Strategically located at the chamber floor’s lowest point for quick, thorough drainage.
Supports manual or pump-assisted removal, reducing downtime between tests.
Efficient water management ensures lab productivity, test consistency, and longer equipment lifespan.
PID Programmable Touchscreen Controller:
Supports up to 120 programs with 99 segments each.
Intuitive interface with multi-language support simplifies global operation.
USB & LAN Connectivity:
Real-time data logging, remote monitoring, and automatic report generation.
Supports CSV and other export formats for compliance and quality documentation.
Safety & Automation:
Built-in alarms for deviations in water pressure or test timing.
Ensures safe, accurate, and repeatable testing even during complex multi-stage programs.
Advanced control and data management make testing more reliable, traceable, and globally compatible.
Adjustable Configurations:
Spray nozzles, water flow, and turntable size can be tailored to sample dimensions.
Accommodates small electronic devices, large enclosures, and non-standard geometries.
Multiple Chamber Types:
Standard IP rain test chambers for combined or stand-alone IPX6 testing.
Walk-in chambers and open-type systems for large-scale or full-system evaluation.
Comprehensive Testing:
Supports testing of entire systems or individual components, ensuring functional stability under water exposure.
|
|
|
|
Workroom | View Window | Internal Power
| Build-in Lighting |
|
|  |  |
| Turnbale | Spray Nozzle | IPX5 IPX6 Water Jetting Outlet | Built-in waterproof power supply |
From compact enclosures to walk-in outdoor equipment, LIB industry provides customized, reliable, and comprehensive solutions, meeting diverse IPX5/IPX6 testing needs with confidence.
LIB industry offers flexible and reliable environmental testing solutions for outdoor equipment of all sizes. From compact enclosures to large industrial machinery, our systems help manufacturers replicate real-world rain and dust conditions while verifying both waterproofing and operational performance.
Custom IP Rain Test Chambers: Support non-standard sizes, combined IPX5/IPX6 cycles, or stand-alone IPX6 testing, with programmable controls and adjustable nozzle layouts.
Sand & Dust Test Chambers (IP5X/IP6X): Simulate dust, sand, and water exposure according to IEC 60529, MIL-STD-810, and other standards, ensuring full environmental reliability.
Open-Type Rain Test Systems: Perfect for oversized equipment or components without enclosures, delivering precise IPX5/IPX6 water jet testing while allowing functional verification.
Walk-In Rain & Dust Chambers: Large-scale chambers for vehicles, industrial cabinets, and full-size enclosures, capable of combining rain and dust testing in one unit.
Complete IP Testing Portfolio: LIB industry covers all IP standards, including IPX1–IPX9K for water ingress and IP5X/IP6X for dust and sand testing, providing one-stop solutions for product validation.
IPX1/X2: IPX1 IPX2 Water Drip Test Apparatus
IPX3/IPX4: Oscillating Tube Rain Test Chamber
IPX5/IPX6: Water Jet Test Chamber
IPX7/IPX8: Immersion Test Chamber
IP5X IP6X: dust test chambers
With LIB industry’s tailored solutions, manufacturers can ensure product durability, reduce field failures, and achieve reliable certification, no matter the size or complexity of the equipment.
1. Can I perform IPX5 and IPX6 tests using the same chamber?
Yes. LIB industry offers IPX5/IPX6 Water Jetting Test Chambers capable of running combined or stand-alone tests. Adjustable spray nozzles, turntable rotation, and programmable controllers ensure accurate simulation of both standards in one system.
2. Can devices be powered during the test?
Yes. The turntable in LIB industry’s chambers provides a built-in waterproof power source, allowing devices to operate during testing. This verifies real-time functionality, not just external waterproofing.
3. What types of products can be tested in an IPX5/IPX6 chamber?
From small electronic enclosures and sensors to large walk-in cabinets, vehicles, or industrial equipment. Customizable chambers and open-type systems can accommodate almost any size or shape for full IPX5/IPX6 evaluation.
4. How is water managed during high-flow IPX6 tests?
Chambers include large internal reservoirs, automatic water level control, filtration, and optimized drainage. This ensures consistent water supply, reduces refills, and maintains test accuracy for long-duration testing.
5. Are these chambers compliant with standards?
LIB industry’s IPX5/IPX6 Water Jetting Test Chambers follow IEC 60529, MIL-STD-810, and other international standards, ensuring reliable certification and traceable test results.
3-Year Warranty & Lifetime Support
English-Speaking Global Service Team
5×12-Hour Response Time
4 Service Centers Worldwide & 30+ Global Agents
Door-to-Door Consultation & Delivery
LIB industry provides complete IPX5/IPX6 water leak test solutions—from standard chambers to fully customized walk-in systems—ensuring manufacturers can meet any outdoor equipment testing requirement with confidence.
Contact LIB industry today to discover IPX5 and IPX6 water leak test solutions tailored to your outdoor equipment and elevate your product reliability to the next level.
