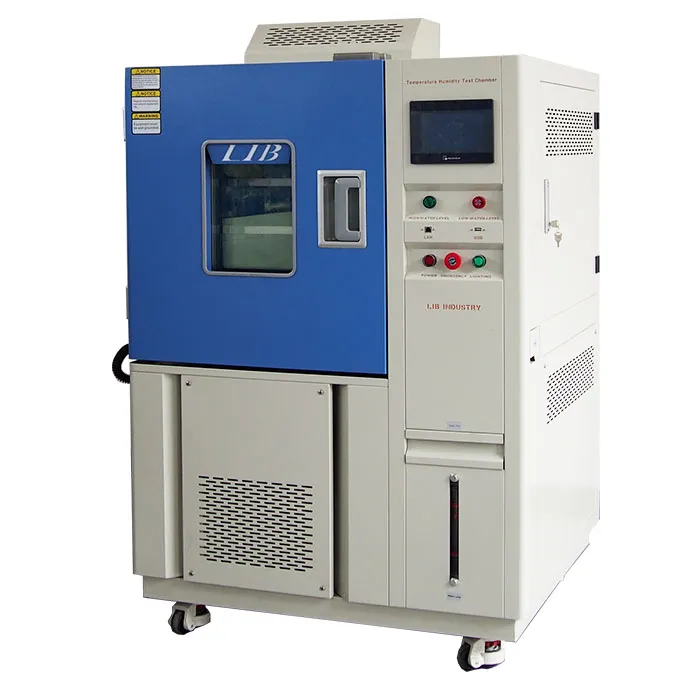

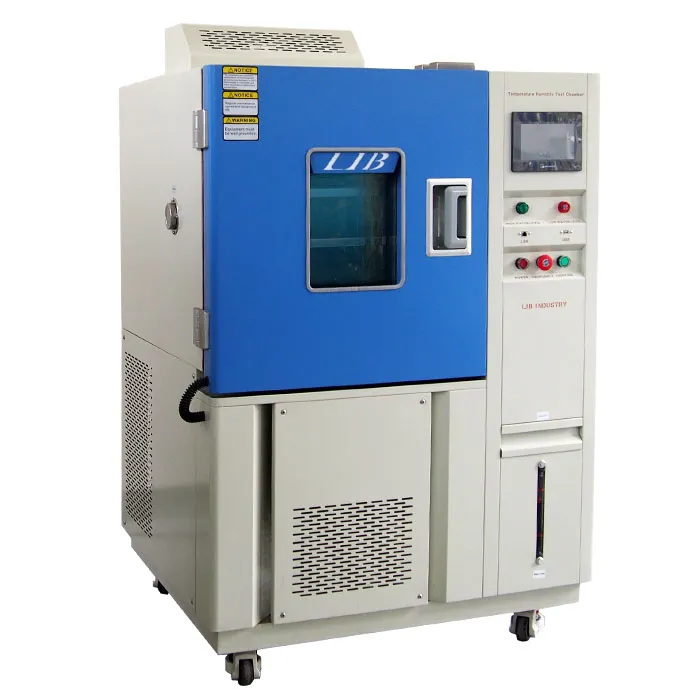

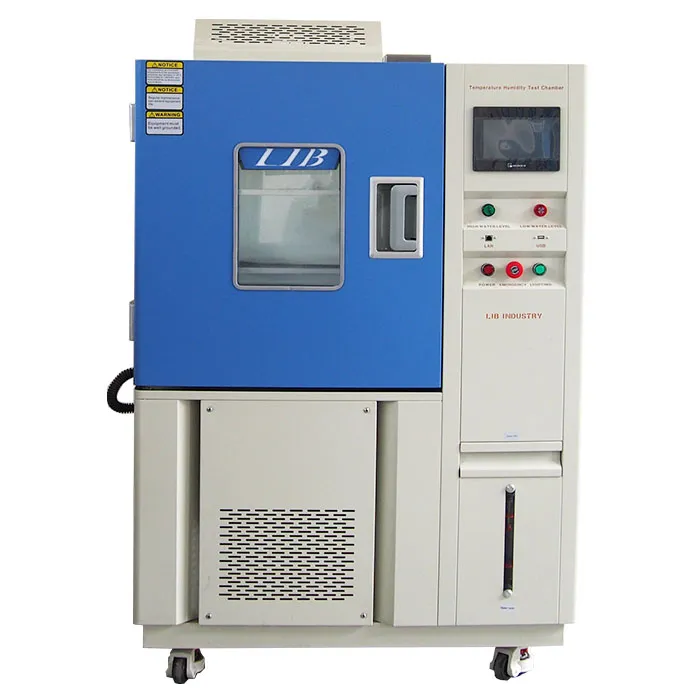

High Ramp Rate Thermal Test Chamber

Name: High Ramp Rate Thermal Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The LIB high ramp rate thermal test chamber is designed for applications that require rapid temperature change to evaluate the thermal reliability of materials, components, and assemblies,such as semiconductors, automotive electronics, batteries, aerospace, and material sciences.

Unlike conventional temperature and humidity chambers, this chamber achieves fast heating and cooling rates up to 5/10/15 °C or higher/min with a temperature range from -70/-40/-20 °C to +150 °C , enabling precise simulation of thermal shock and accelerated stress conditions.

Optional Models: TR5-100, TR5-225, TR5-500, TR5-800, TR5-1000 and more customized models

Applicable Standards: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D

High Ramp Rate Thermal Test Chamber Features and Benefits

1. True High-Speed Thermal Cycling
Unlike conventional chambers limited to 3 °C/min, LIB chambers can achieve up to 30 °C/min heating and cooling, enabling dozens of temperature cycles within a single day and drastically accelerating qualification timelines.

2. Consistent Testing Environment
Optimized airflow circulation ensures uniform temperature distribution during rapid transitions, preventing thermal lag that could otherwise mask solder fatigue or packaging failures in semiconductors.

3. Energy-Efficient Ramp Control
LIB chambers employ a dynamic power management algorithm that adjusts compressor and heater loads in real time, reducing energy consumption despite aggressive temperature cycling.

4. Test Reliability in Harsh Profiles
The chamber maintains ±0.5 °C temperature fluctuation even during rapid ramps, ensuring that every profile—whether JEDEC JESD22 thermal cycling or automotive LV124—is executed with laboratory-grade precision.

Parameters of High Ramp Rate Thermal Test Chamber

Model	TR5-100	TR5-225	TR5-500	TR5-800	TR5-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	130015402120	150015402140
Interior Volume	100L	225L	500L	800L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ~ +150 ℃ B : -40℃ ~ +150 ℃ C: -70℃ ~ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	5 ℃/min
Heating Rate	5 ℃/min
Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Cooling System	Mechanical compression refrigeration system
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Power Supply	380V
Maximum Noise	65 dBA

Details of High Ramp Rate Thermal Test Chamber

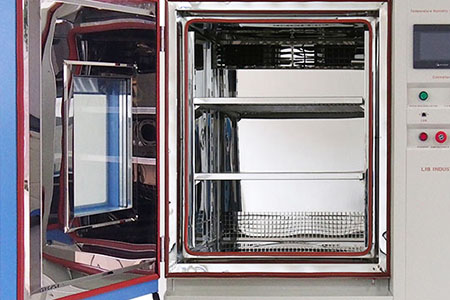

Test Workspace	SUS304 stainless steel, the inner chamber ensures durability under repeated rapid heating and cooling cycles. Specially engineered airflow circulation ducts provide uniform temperature distribution during fast ramp transitions, preventing hot or cold spots even at 20 °C/min. Multi-layer thermal insulation minimizes heat leakage.

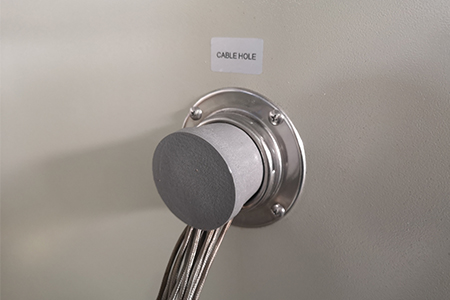

Cable Hole	Standard Ø50 mm cable and sensor ports, allows easy connection of electrical load circuits, battery packs, PCB test boards, or aerospace sensors without compromising chamber stability. Optional multiple ports or custom diameters are available.

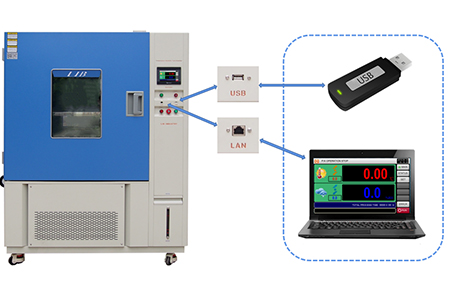

Controller System	Advanced touch-screen PID programmable controller, designed for multi-step ramp & dwell profiles. Real-time monitoring of temperature curves with data logging and Ethernet/USB remote access for test documentation.

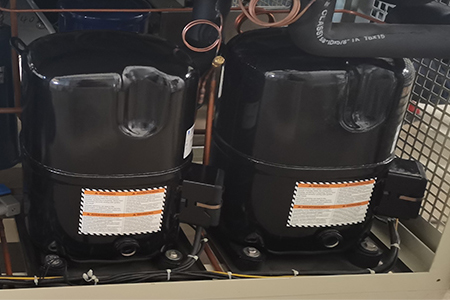

Refrigeration System	Cascade refrigeration system, engineered for continuous high-speed cooling without performance drop. Intelligent load management balances heater and compressor power, delivering both energy efficiency and rapid response.

If you would like to obtain more details about the high ramp rate thermal test chamber, please leave your contact information. The LIB team will provide you with more selection suggestions, materials and quotations.

LIB Team will send you specs and quote today.
