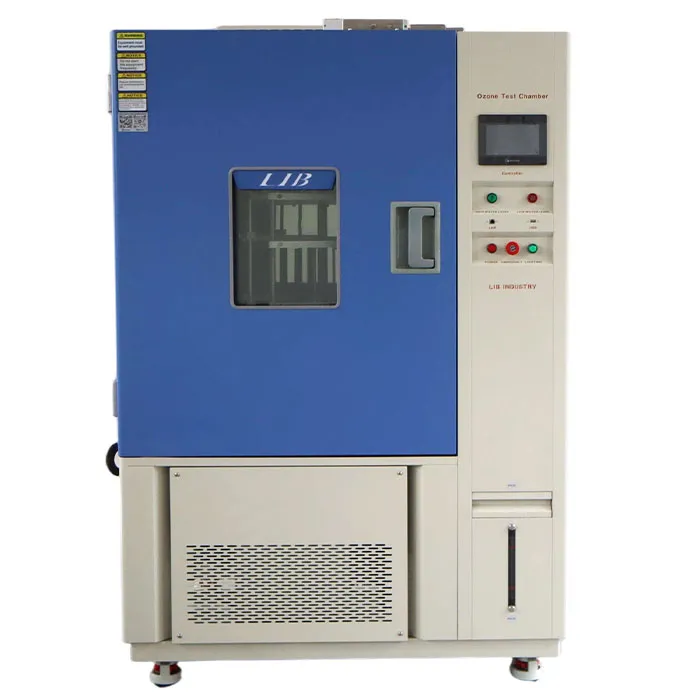

ISO 7326 Static Dynamic Ozone Chamber for Hose

Ensure the Durability and Compliance of Your Hose Products Against Environmental Degradation.Ozone concentration in the atmosphere is a primary cause of rubber cracking. By simulating and accelerating ozone aging conditions in a controlled environment, this chamber helps manufacturers, R&D labs, and quality control departments accurately predict the lifespan of industrial, automotive, and hydraulic hoses, ensuring strict compliance with international testing standards.

Fully engineered to meet the stringent requirements of ISO 7326 (Methods 1-4), our chamber bridges the gap between laboratory simulation and harsh operational environments. It forces your hose products to undergo aggressive, real-time static stretching and high-frequency dynamic flexing under precise ozone concentrations—ensuring your products never fail in the field.


Model: OC-250, OC-500, OC-800, OC-010 and more customized models.

Compliant Standards: ISO 7326 | ISO 1431 | ASTM D1149 | JIS K6259 | SAE J2020

Ozone Chamber Working Video for Rubber Hose Testing


Key Technical Highlights of ISO 7326 Static Dynamic Ozone Chamber for Hose

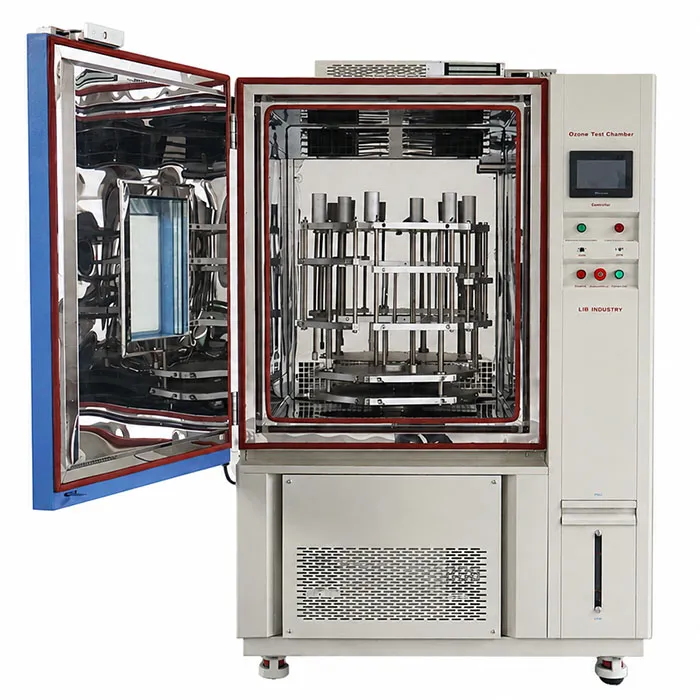

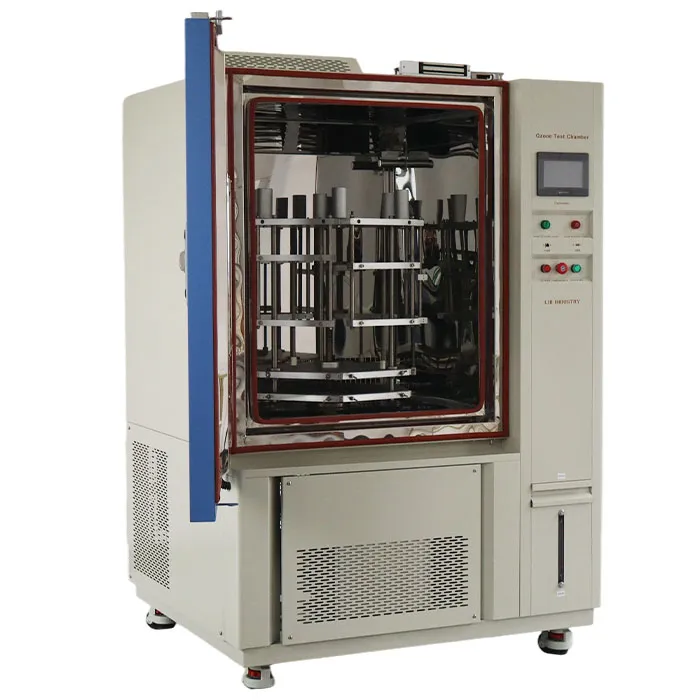

Dual Test Modes: Static & Dynamic Integration

  • Static Tensile Test (Method 1 & 2): Equipped with adjustable mandrels. Hoses are wrapped around the mandrels at specified extensions to test resistance under static stress.

  • Dynamic Bending/Stretching Test (Method 3 & 4): Driven by a high-precision servo motor, the dynamic mechanism continuously flexes, stretches, or rotates the hose samples at preset frequencies and strokes to simulate real-world mechanical movements.

Advanced Ozone Generation & Closed-Loop Control

  • Silent Discharge Technology: Utilizes an advanced ozone generator to provide a stable, continuous ozone supply.

  • UV Absorption Detector: Measuring concentration in real-time, feeding data back to the PLC to maintain fluctuation within safe boundaries.

Precision Environment Control

  • Uniform Airflow: Specially designed air circulation system ensures consistent temperature, humidity, and ozone concentration throughout the entire working room.

Smart Control System & Safety

  • 7-Inch Programmable Touch Screen Controller with multi-Language option

  • Real-time Graphing: Displays real-time curves for temperature, humidity, and ozone concentration.

  • Data Logging: Stores historical test data; supports USB export for easy laboratory report generation.


Specifications of ISO 7326 Static Dynamic Ozone Chamber for Hose

Model

OC-250

OC-500

OC-800

OC-010

Internal Dimension (mm)

600*600*700

700*800*900

800*1000*1000

1000*1000*1000

Overall Dimension (mm)

960*1150*1860

1200*1340*2020

1300*1540*2120

1500*1540*2140

Interior Volume (L)

250

500

800

1000

Temperature Range

0℃ ~ +100 ℃(± 0.5 ℃)

Humidity Range

30% ~ 98% RH(Optional, for specific aging simulation)

Cooling Rate

Ambient ~ 0℃ within 20 min

Ozone Concentration

1~1000PPHM

Sample Holder Rotate Speed

0~10 r/min

Airflow Rate

0 ~ 60L/min

Clamps Tensile Stretch

5%~35%

Cooling system

Mechanical compression refrigeration system,French TECUMSEH compressor

Controller

Programmable color LCD touch screen controller, Ethernet connection, PC Link

Water supply system

Automatic water supply,Water purification system

Temperature Sensor

PTR Platinum Resistance PT100Ω/MV A-class

Gas Sensor

Ozone gas sensor

Ozone Generator

Silent discharge type ozone generator

Sample Holder

Static + dynamic combined sample holder and various customized holders

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing


Get Your ISO 7326 Ozone Testing Solution

  • Customized testing fixtures

  • Global installation support

  • 3-year warranty

  • Lifetime technical service

  • Fast after-sales response

  • Complete environmental testing solutions

LIB industry provides professional static and dynamic ozone test chambers for rubber hose manufacturers, automotive laboratories, material research institutes, and industrial testing facilities worldwide.Contact LIB industry today for technical specifications, customized fixture solutions, pricing, and complete ozone testing laboratory support.
