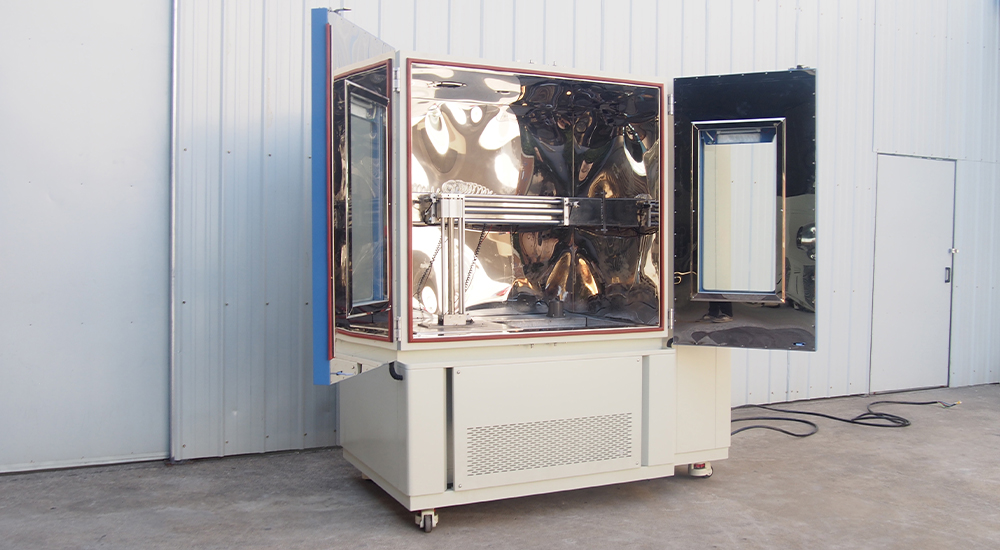

Liquid to Liquid Thermal Shock Test Chamber

Name: Liquid to Liquid Thermal Shock Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

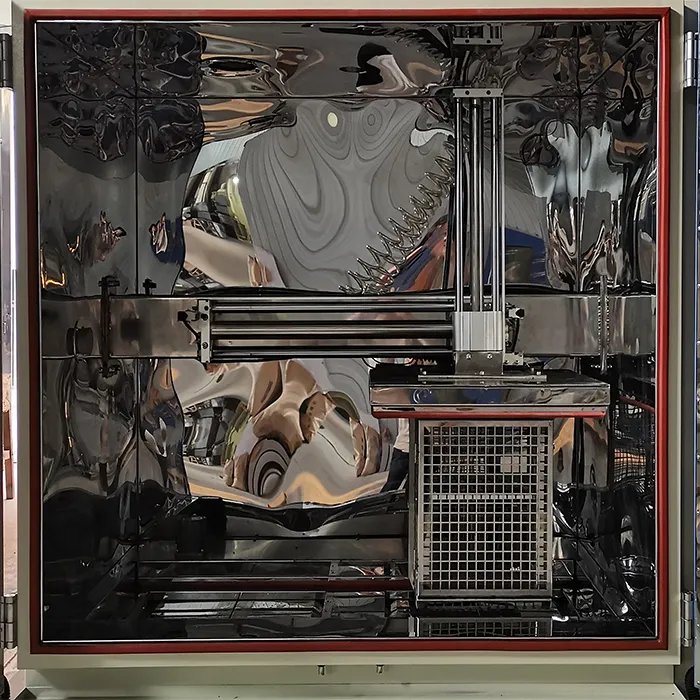

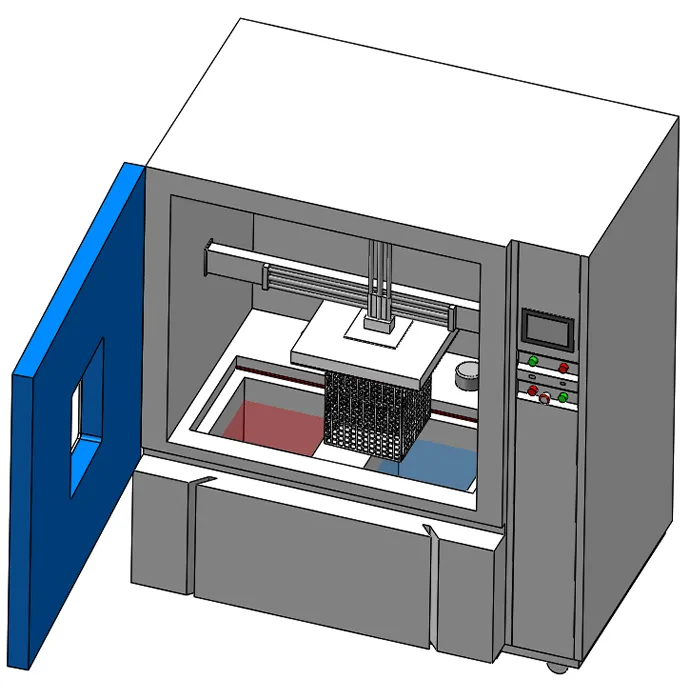

Compared with traditional shock test chambers, the liquid-to-liquid thermal shock test chamber uses liquids with extremely large temperature differences to conduct rapid and intense temperature shock tests on the test pieces. It is generally of a horizontal structure, and the sample basket moves through horizontal mechanical arms between two independent liquid tanks.

Its conversion rate can reach several hundred degrees per minute, which can accurately simulate the harsh working environments faced by the aerospace, automotive and semiconductor industries. This method can ensure high thermal stress, precise control and repeatable results.

Applicable standards:IEC 60068-2-14,MIL-STD-883,MIL-STD-202,JIS C 0025,IPC-TM-650 2.4.6

Liquid to Liquid Thermal Shock Test Chamber Features and Benefits

1. Ultra-Fast Temperature Transfer

By immersing the specimen directly into hot and cold liquid baths, thermal transfer occurs almost instantly.

2. Superior Temperature Uniformity

Unlike air systems that may suffer from thermal lag, liquid baths deliver consistent and evenly distributed temperature to all surfaces of the specimen, ensuring reliable and repeatable test results.

3. Flexible Medium Options for Customized Testing

It allows a wide selection of test media, including silicone oil, fluorinated liquids, or even corrosive solutions. This flexibility enables simulation of not only rapid thermal shocks but also real-world conditions such as chemical exposure or fluid-induced stress.

4. Durable Material Construction
Built with corrosion-resistant SUS304 stainless steel, high-grade seals, and reinforced insulation to withstand aggressive fluids and repeated shock cycles.

Parameters of Liquid to Liquid Thermal Shock Test Chamber

Model	TS-162	TS-340	TS-500	TS-1000
Interior Volume (mm)	22L	72L	211L	505L
Hot Liquid Room	Ambient ~ 55℃（Customized）
Cool Liquid Room	0℃ ~ Ambient（Customized）
Temperature Fluctuation	≤±0.5℃
Temperature Deviation	≤±3 ℃
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing

Details of Liquid to Liquid Thermal Shock Test Chamber

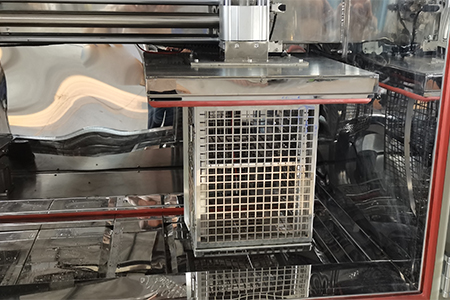

Specimen Basket	Made of high-strength SUS 304 stainless steel to resist corrosion from different liquid media. Smooth lifting and transfer system ensures stable sample movement between hot and cold baths about 10 seconds. Designed for quick loading/unloading, improving operator efficiency.

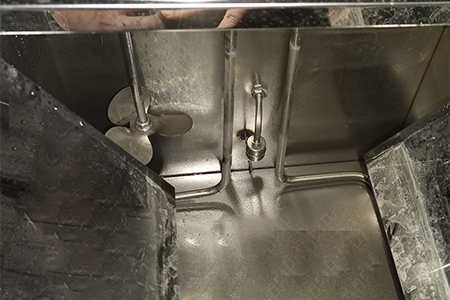

Hot and Cold Chambers	Independent liquid tanks with precise temperature control . High thermal uniformity ensures every surface of the sample experiences equal stress. Built with corrosion-resistant materials to handle oils, fluorinated fluids, or corrosive liquids.

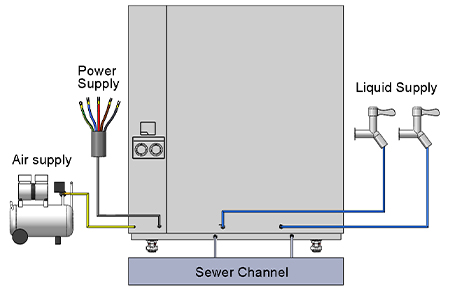

Power and Water Connections	The water and electricity connection is independent. It can automatically draw water from the source when connected. Leak-proof and easy-to-maintain design ensures long-term durability.

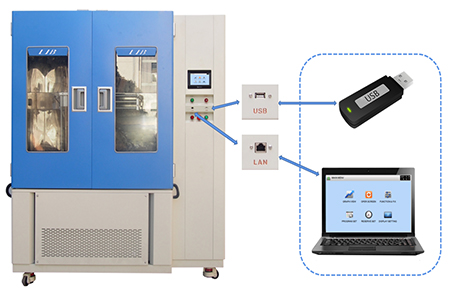

Advanced Controller	Touchscreen interface with intuitive menu navigation. Programmable test parameters: temperature range, dwell time, cycle count, transfer speed. Real-time monitoring and multiple safety alarms (over-temperature, liquid level, leakage).

The liquid to liquid thermal shock test chamber is a customized product under the thermal shock test chamber series. If you have similar testing requirements or want to obtain more information about this product, please contact LIB. LIB will respond to your request within 24 hours.
