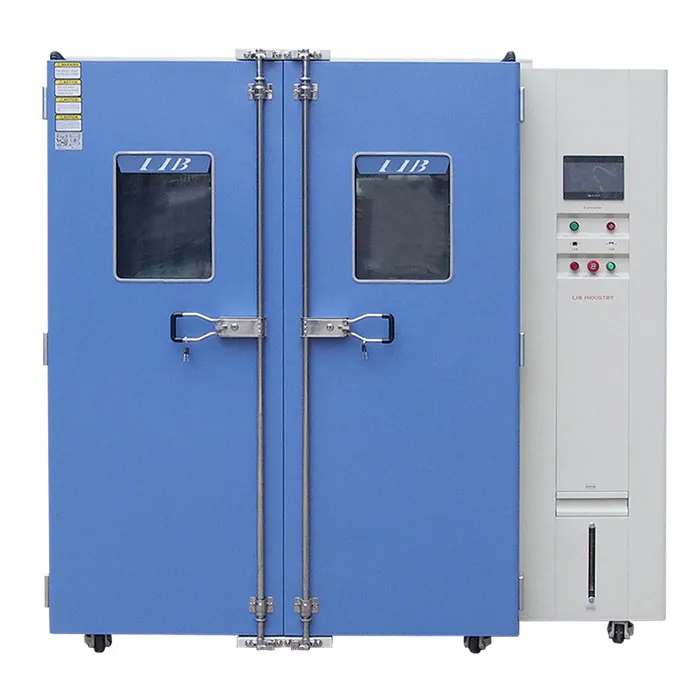

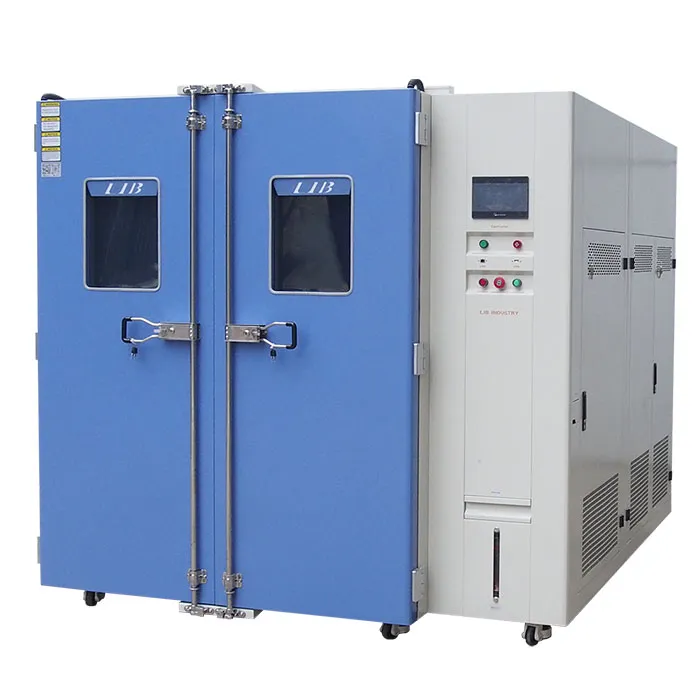

Walk In Mixed Noxious Gas Chamber

Name: Walk In Mixed Noxious Gas Chamber
Brand: Xi'an LIB Environmental Simulation Industry

Engineered for Large-Scale Corrosion Reliability Testing

The LIB industry Walk-In Mixed Gas Test Chamber is designed to reproduce highly corrosive industrial and atmospheric environments using controlled concentrations of sulfur dioxide (SO₂), hydrogen sulfide (H₂S), nitrogen dioxide (NO₂), chlorine (Cl₂), and other mixed gases.

Unlike conventional small-volume gas corrosion chambers, this walk-in design allows full-scale testing of: EV battery systems, Automotive assemblies, Aerospace components, Communication cabinets, Power distribution equipment, PCB systems,Military electronics,Rail transit equipment

By combining precise gas concentration control, temperature regulation, humidity conditioning, and airflow circulation, the system accelerates corrosion mechanisms under repeatable laboratory conditions.

Model: GCM-100, GCM-225, GCM-500, GCM-800, GCM-1000

Standard: ISO 6988, ISO 3231, DIN 50018, ASTM G87-02, IEC 60950:22, IEC 60068-2-42, IEC60068-2-60,EIA-364-65

Core Advantages of LIB Industry Walk-In Mixed Noxious Gas Chamber

Precision Safety Protection Design

The LIB industry walk-in mixed gas chamber adopts a fully welded gas-tight structure with continuous micro-negative-pressure control to help prevent toxic gas leakage during operation.
An independent emergency exhaust system allows operators to quickly activate forced extraction and direct internal gases to the external treatment system when needed.
The walk-in door integrates mechanical and electronic interlocks for safer personnel protection during toxic gas testing.

Stable Multi-Gas Dynamic Control

Equipped with high-precision mass flow controllers (MFC), the system supports dynamic mixing of multiple corrosive gases including SO₂, H₂S, NO₂, and Cl₂.
Combined with temperature, humidity, and airflow control, the chamber maintains stable gas concentration and environmental uniformity inside large walk-in testing spaces.

Heavy-Duty Anti-Corrosion Construction

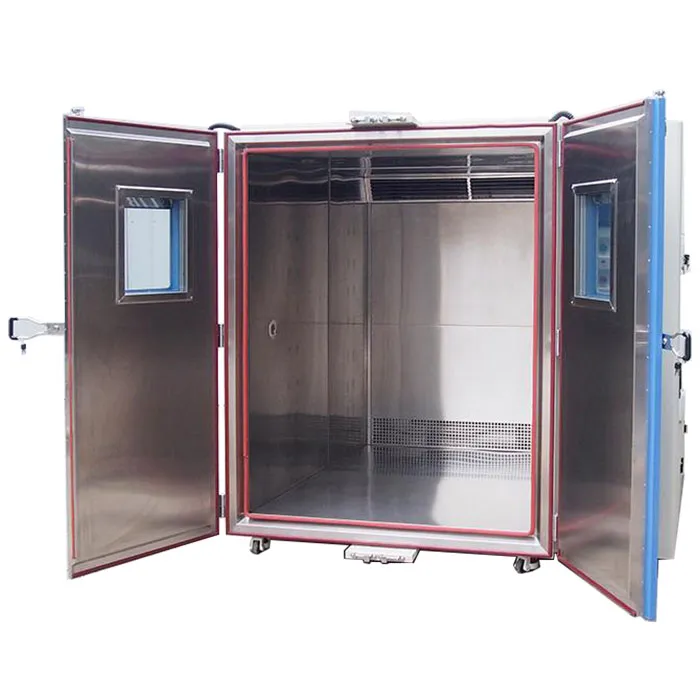

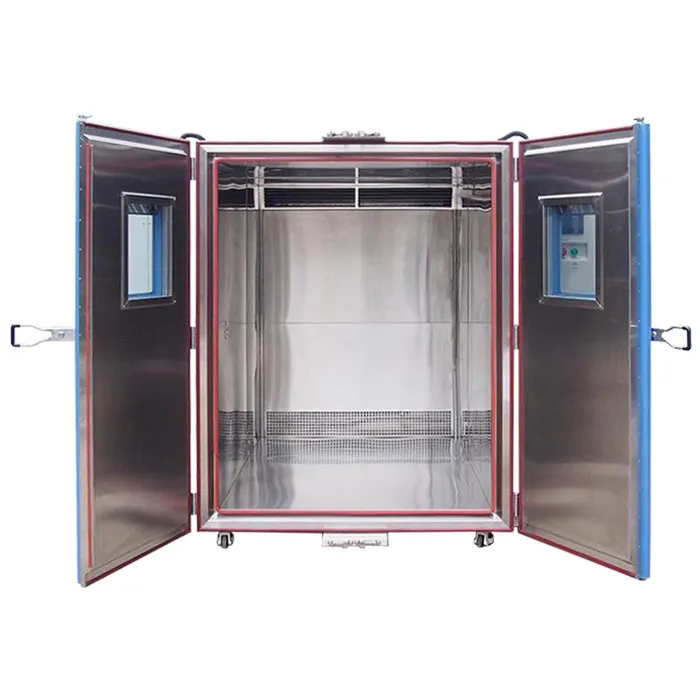

The internal structure uses reinforced SUS316L stainless steel with integrated fluoropolymer anti-corrosion protection for long-term resistance against acidic and oxidizing gases.
Key internal components including airflow, heating, and sensing systems are specially protected to improve durability and long-cycle operational stability in corrosive environments.

Technical Specifications of Walk-In Mixed Noxious Gas Chamber

Parameter	Specification
Custom Capacity	Up to 120 m³ for large systems, vehicles, radar equipment, and military applications
Supported Gases	H₂S, SO₂, NO₂, Cl₂
Gas Mixing Mode	Single gas, binary, ternary, or four-component mixed gas testing
Gas Concentration Range	0.1 ppm ~ 200 ppm (Expandable to 500 ppm)
Temperature Range	+15°C ~ +60°C (Optional up to +85°C)
Temperature Stability	≤ ±0.5°C
Temperature Uniformity	≤ ±1.0°C
Humidity Range	60% ~ 95% RH
Humidity Deviation	≤ ±3.0% RH
MFC Control Accuracy	±1.0% F.S.
System Concentration Accuracy	≤ ±5.0% F.S.
Explosion Protection	Ex d ib IIB T4 Gb or customized higher protection level
Safety Protection	Leakage, over-temperature, low-water, gas interruption protection
Exhaust Treatment System	Multi-stage chemical scrubber with activated carbon adsorption system

Fully Customizable Walk-In Design

LIB industry provides flexible customization solutions based on your actual testing process and laboratory requirements.

Customization options include:

Walk-in chamber dimensions
Gas types and mixed gas configurations
Gas concentration ranges
Sample racks and loading structures
Observation windows and lighting systems
Explosion-proof configurations
Cable ports and power interfaces
Fresh air exchange systems
Remote monitoring and control
Multi-zone testing layouts

From laboratory-scale systems to large-volume corrosion testing projects, LIB industry delivers customized walk-in mixed gas chambers designed for long-term reliable operation.

Turnkey Custom Engineering Service

Because walk-in mixed gas test chambers are highly customized large-scale systems, LIB industry provides complete turnkey engineering support from project planning to long-term operation.

Technical Consultation & Site Evaluation

Our engineering team supports project assessment including installation space, exhaust routing, gas supply layout, floor loading requirements, and laboratory safety planning.

Customized System Design

LIB industry provides customized chamber layout design, gas pipeline configuration, airflow circulation planning, and integrated safety system solutions based on your testing requirements.

Manufacturing & Factory Validation

Before delivery, each system undergoes complete functional commissioning, gas-tightness verification, and operational testing to ensure stable and reliable performance.

Installation, Training & Long-Term Support

We provide on-site installation guidance, operation training, and maintenance support to help customers establish safe and efficient testing procedures.
