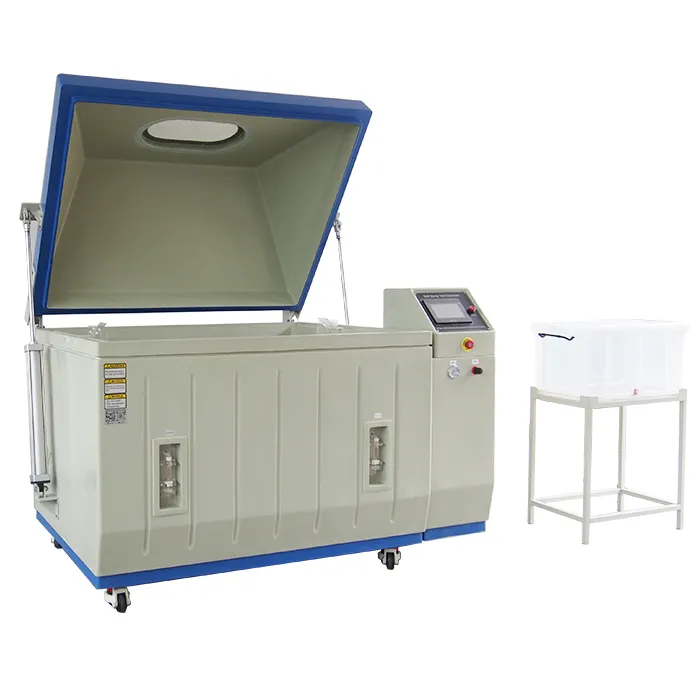

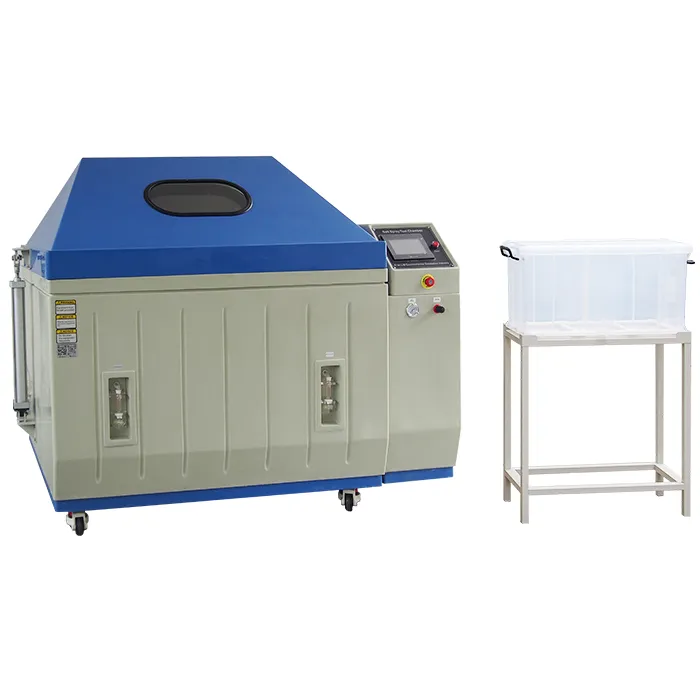

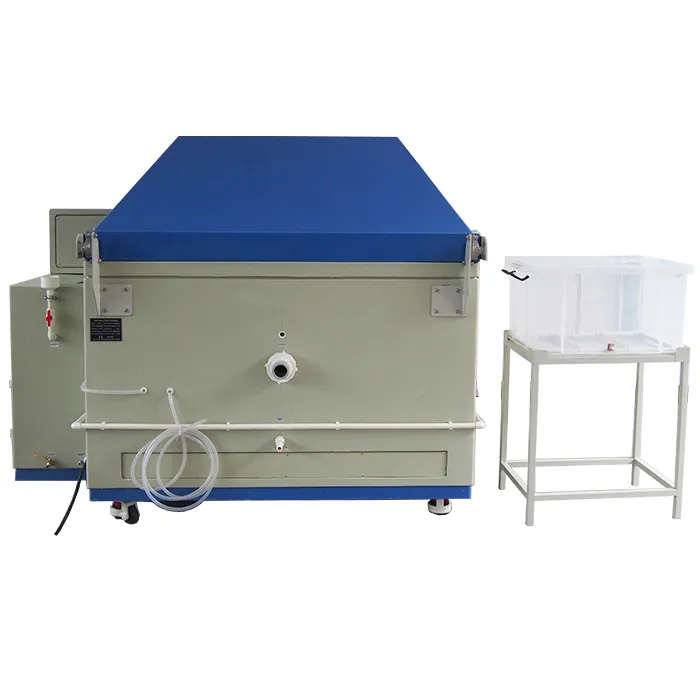

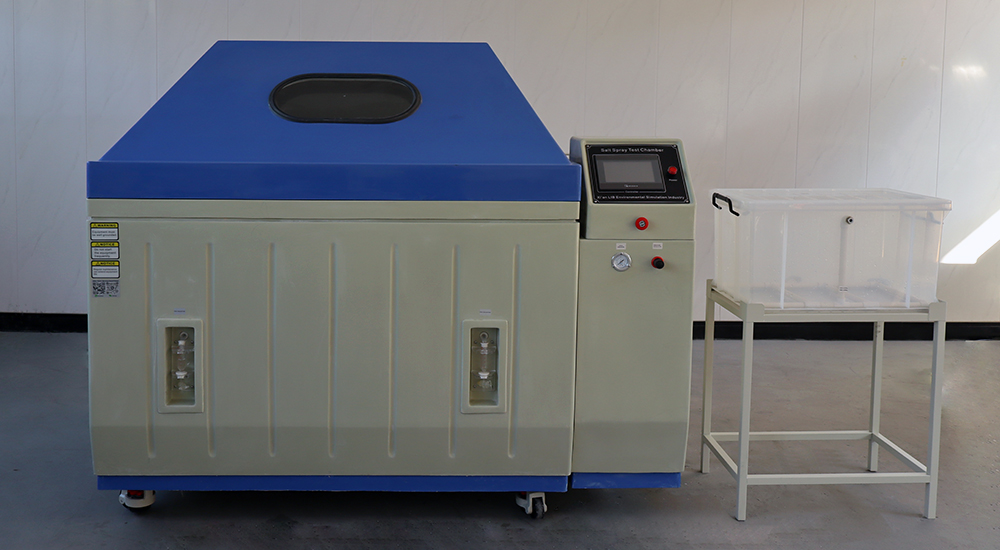

Salt Water Spray Tester

Name: Salt Water Spray Tester
Brand: Xi'an LIB Environmental Simulation Industry

The salt water spray tester atomizes the 5% sodium chloride solution into fine mist to simulate harsh marine or coastal environments. This accelerated corrosion test is widely used in industries such as automobiles, electronics, metal processing, and coatings. The salt water spray tester helps manufacturers assess the durability of products, verify protective measures, and ensure compliance with international standards such as ASTM B117 and ISO 9227.

The temperature is controllable (RT to +60℃), and the salt spray deposition is 1-2 ml/80cm². Various models meet the testing requirements of different components. Welcome to leave your testing requirements.

Model: S-150,S-250, S-750, S-010, S-016, S-020

Standard: ASTM B117, ISO 9227, ASTM G85, D17 2028, SAE J2334, ISO4611, ISO7253, IEC 60068-2-11, ASTM G85-02e1 Annex A1, DIN 50021, ASTM B368

LIB Industry Salt Water Spray Tester Video

Salt Water Spray Tester Features and Benefits

1. Accurate Corrosion Simulation – Uniform atomization of 5% NaCl solution to replicate marine and coastal environments with high precision.

2. Enhanced Environmental and Safety Compliance – The heating system’s partition has been upgraded from asbestos to calcium silicate, meeting the latest environmental and safety requirements.

3. Durable and Corrosion-resistant Structure - The salt water spray body is made of a single-piece fiberglass reinforced plastic material, which can withstand the test in a high-salt environment for a long time.

4. Flexible Test Modes – Supports continuous or intermittent spray cycles to accommodate various test standards and customer needs.

Specifications of Salt Water Spray Tester

Model	S-150	S-250	S-750	S-010
Internal dimensions (mm)	590470400	1000640500	1100750500	10001300600
Overall dimensions (mm)	14607601140	18509601350	195010301350	2000×1300×1600
Interior Volume (L)	110	320	410	780
Temperature Range	Ambient ～ +60 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	95% ~ 98% RH
Salt Fog Deposition	1～2ml / 80cm2 · h
Spray Type	Continuous / Periodic
Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating	Saturated air barrel
Spraying System	Atomizer tower and Spray nozzles
Controller	PID controller
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material	Glass fiber reinforced plastics
Standard Configuration	6 round bars and 5 V-shaped grooves

Details of Salt Water Spray Tester

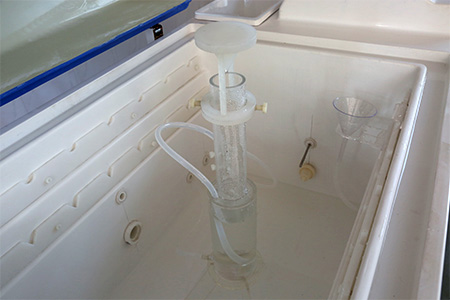

Spray Tower System	Quartz nozzles are installed inside the spray tower (easy to clean crystallization). The salt fog is dense, uniform and distributed stably, ensuring the consistency of the salt fog environment and the repeatable testing conditions.

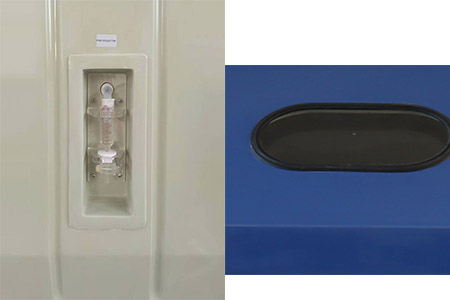

Observation window and graduated cylinder	Facilitate direct and continuous monitoring of the samples and the testing process, accurately collect and measure the salt fog deposition rate.

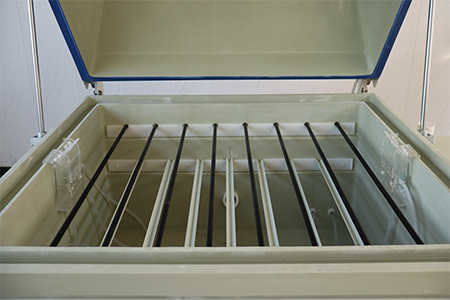

Corrosion-resistant sample holder	Standard sample holder: round rod + V-shaped groove, the number depends on the equipment model, the angle and position of the test piece can be adjusted. For special-shaped test pieces, a customized sample holder is configured.

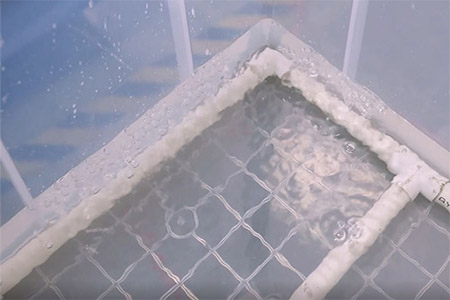

Automatic salt water stirring	Continuous bubble stirring of the salt water to stabilize the pH value, avoiding the formation of precipitates and clogging of the nozzle.
Smart controller	PLC control system supports multiple test programs. Precise temperature/spray control Real-time data logging & alarms Safety protections & remote access
