IPX3/IPX4 Handheld Water Spray Nozzle

Name: IPX3/IPX4 Handheld Water Spray Nozzle
Brand: Xi'an LIB Environmental Simulation Industry

IPX3 IPX4 Handheld Water Spray Nozzle, IEC 60529 Waterproof Ingress Protection Test Equipment with Movable Shield & Pressure Gauge

The IPX3/IPX4 Handheld Water Spray Nozzle is designed for IEC 60529 waterproof testing requiring controlled spraying and splash simulation. It is widely used to evaluate water resistance of electronic products, automotive components, outdoor electrical equipment, household appliances, lighting products, and industrial enclosures. Its handheld design enables flexible operation for laboratory testing, R&D validation, prototype evaluation, and on-site inspections.

With stable spray patterns and compliant water distribution, it supports IPX3 rain and IPX4 splash testing. The nozzle can also be installed inside a standard vertical IPX3/IPX4 waterproof test chamberLIB industry provides reliable testing equipment designed for accurate, repeatable, and long-term testing performance.

Features & Advantages of IPX3/IPX4 Handheld Water Spray Nozzle

Strict Standard Compliance:

100% compliant with IEC 60529, GB 4208, and EN 60529 standards. Ideal for third-party laboratory certifications.

Dual-Purpose with Movable Shield:

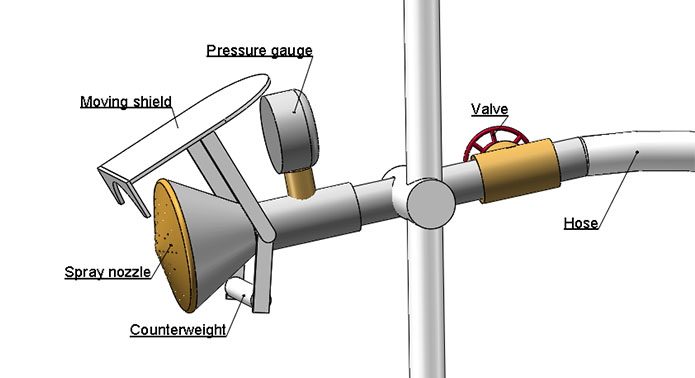

Features a precision-engineered aluminum shield. Keep the shield on for IPX3 (spraying water), or remove it for IPX4 (splashing water).

Premium Material & Precision Machining:

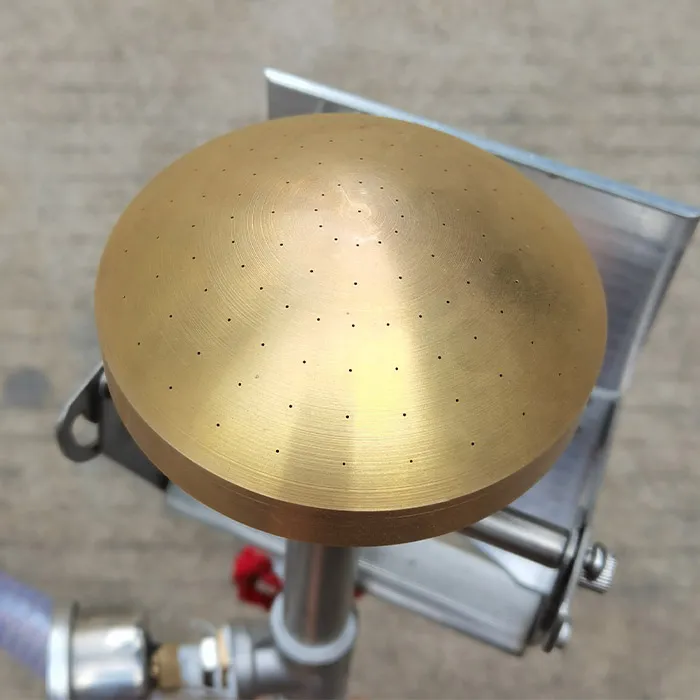

The nozzle head is crafted from high-grade brass with 121 precision-drilled holes (Φ0.5 mm) to ensure uniform water distribution. The handle and connection parts are made of durable stainless steel.

All-in-One Control:

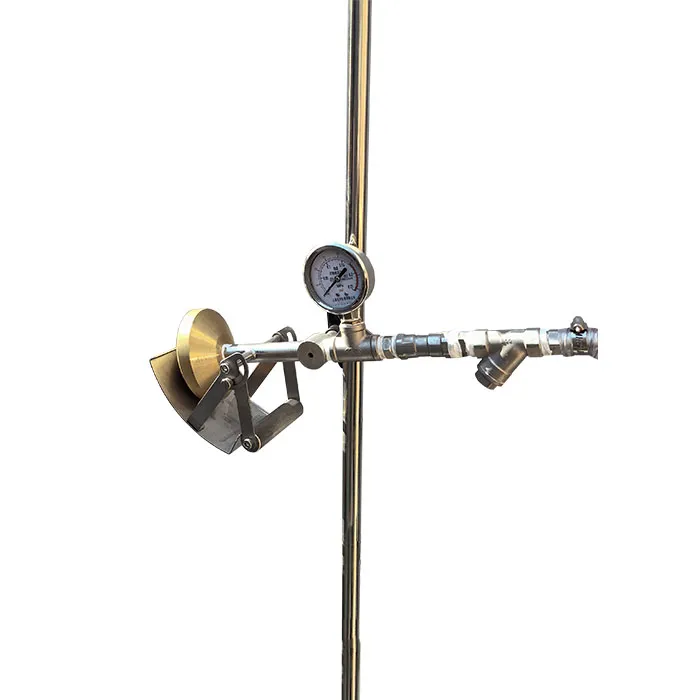

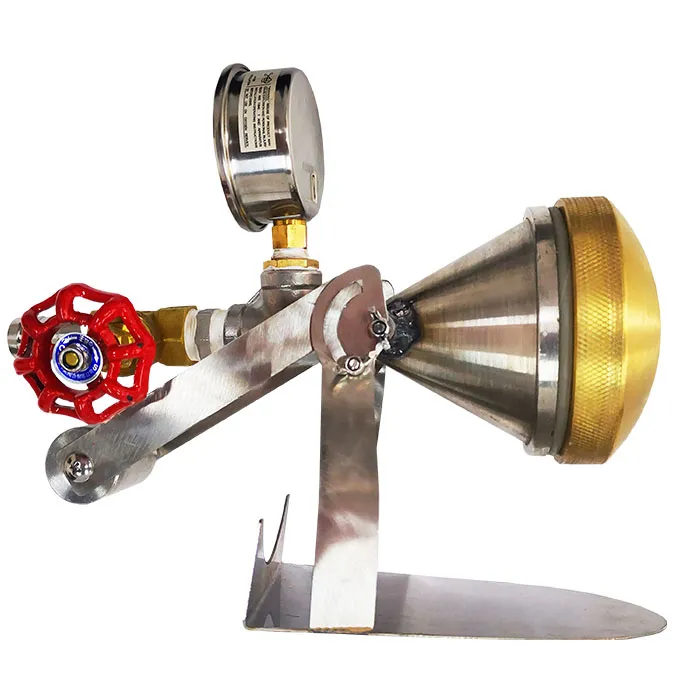

Comes integrated with a high-accuracy pressure gauge (0-250 kPa) and a brass water flow control valve for real-time monitoring and safe operation.

Durable SUS304 Construction:

The nozzle structure is manufactured using corrosion-resistant materials for long-term operation under continuous water exposure conditions.

Technical Specifications of IPX3/IPX4 Handheld Water Spray Nozzle

Parameter	Specification
Nozzle Hole Diameter	Φ0.5 mm
Number of Holes	121 holes
Water Flow Rate	10 L/min ±5%
Pressure Gauge Range	0 - 250 kPa
Main Material	Stainless Steel & Brass
Shield Type	Movable Counterbalanced Shield
Water Inlet Connection	Quick-connect coupling or custom threads

How IPX3/IPX4 Handheld Water Spray Nozzle Works

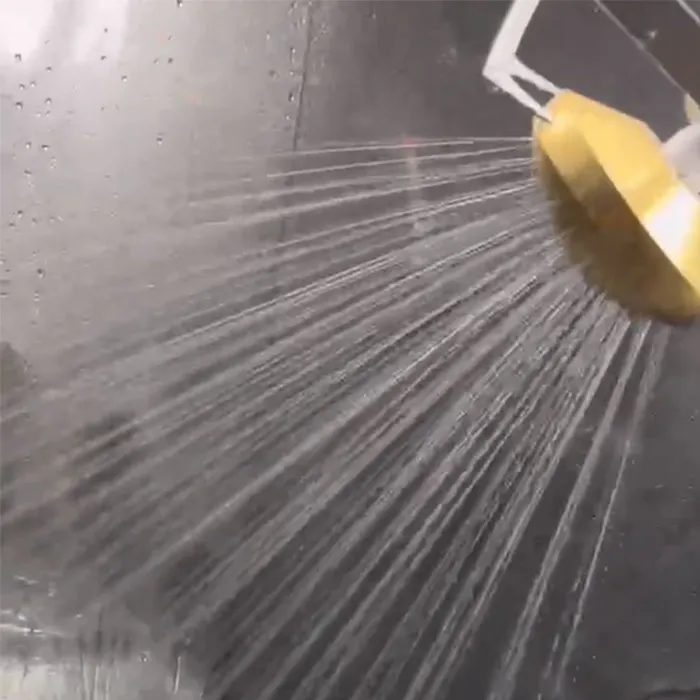

• IPX3 Testing (Spraying Water): Retain the shield on the nozzle. Water sprays within an angle of ±60° from the vertical line.

• IPX4 Testing (Splashing Water): Remove the shield. Water splashes the device from every direction (360°).

Note: To ensure precise testing, users need to connect this nozzle to a stable water supply system that can provide a steady 10 L/min flow rate.

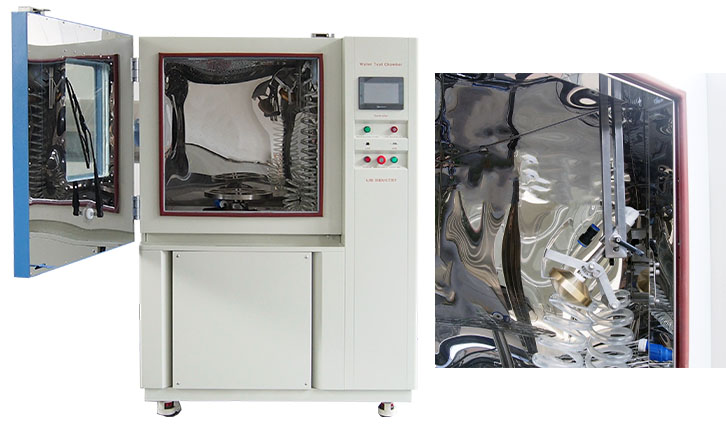

Upgrade Solution: Vertical IPX3/X4 Test Chamber

Need a Fully Automated & Enclosed Solution?

While the handheld nozzle is flexible and cost-effective, it requires manual spraying and cannot easily contain wastewater. If you are conducting high-volume batch testing or need unattended, highly repeatable results, our Vertical IPX3/X4 Rain Test Chamber is your best choice.

Features of Vertical Chamber:

• Automated Oscillating Tube driven by servo motor
• Water Recycling System with built-in filtration
• Smart Touch Screen PLC Controller
• 360° Rotating Turntable for even water distribution
